CN203390827U - multifunctional wrench - Google Patents

Abstract

The utility model relates to a multifunctional wrench used by repairmen, assemblers and families. It is a wrench with a narrow handle in the middle, two round heads connected in series with the narrow handle at one end, and a round head at the other end; it consists of a multi-eye wrench, an inner hexagon, an opening and a square socket head. The utility model can assemble and disassemble bolts and nuts conveniently, quickly, accurately, safely and efficiently.

Description

multifunctional wrench

technical field

The utility model relates to a multifunctional wrench used by repairmen, assemblers and families. Involves the technical fields of hand tools and plumbing systems.

Background technique

At present, when installing and disassembling machinery or other equipment bolts and nuts during construction, even if the models are the same, it is necessary to use multiple wrenches or multiple sets of tools to complete the installation and disassembly of the equipment, which is troublesome to operate and low in work efficiency. Multiple sets of tools are inconvenient to carry, easy to lose, and cumbersome to operate.

Utility model content

The purpose of this utility model is to design a kind of multifunctional wrench that can assemble and disassemble bolts and nuts conveniently, quickly, accurately, safely and efficiently.

The structural diagram of the utility model is as shown in Figure 1-4, is made up of multi-eye wrench, inner hexagon, opening and square sleeve head. It is a wrench with a narrow handle in the middle, two round heads connected in series with the narrow handle at one end, and a round head at the other end. There is a four-sided opening 3 for elastic φ34 nuts on a round head perpendicular to the narrow handle, and a hexagonal hole 2 for elastic φ19mm nuts inside, and a hexagonal hole for elastic φ9mm nuts at the junction of the round head and the narrow handle 4. There is an inner hexagonal groove 1 outside the round head of the extension line of the center line of the narrow handle; on the narrow handle, there are hexagonal holes 5 for elastic φ10mm nuts, hexagonal holes 5 for elastic φ11mm nuts, and elastic The hexagonal hole 6 for the φ12mm nut, the hexagonal hole 8 for the elastic φ16mm nut; two round heads at one end, the hexagonal hole 9 for the elastic φ6mm nut and the elastic φ8mm nut on the extension line of the center line of the narrow handle of the round head that meets the narrow handle The hexagonal hole 12 of the narrow handle centerline extension line is perpendicular to the four-side opening 10 of the elastic φ14mm nut and the four-side opening 11 of the elastic φ22mm nut; on the extension line of the narrow handle centerline of the second round head The square hole 15 of supporting sleeve head is arranged on, has the four sides opening 13 of elastic φ 24mm nut outwards with narrow bar handle centerline extension line vertical direction, and this opening has the hexagonal hole 14 of elastic φ 17mm nut inward.

Nuts, bolts, inner hexagons, slotted screws, Phillips screws and socket wrenches can be assembled and disassembled on it.

in:

Inner hexagonal groove 1 is an inner hexagonal column groove with a built-in magnet, which can be externally connected with an inner hexagonal wrench, a flat head, and a Phillips screw head (see Figure 3);

The square hole 15 of the matching socket head can be used as a socket wrench after the socket head is installed (see Figure 4).

In order to overcome the deficiencies of existing tools for installing and removing bolts and nuts, the utility model provides a multifunctional wrench, which can conveniently, quickly and accurately install and remove bolts and nuts, and solves the problems of inconvenient carrying and easy loss during construction. , It also improves the work efficiency and brings great convenience to the construction.

The utility model has the following characteristics:

1 The wrench has multiple functions;

2 Small and exquisite, novel style, easy to carry;

3 Simple and fast operation;

4 High work efficiency.

Description of drawings

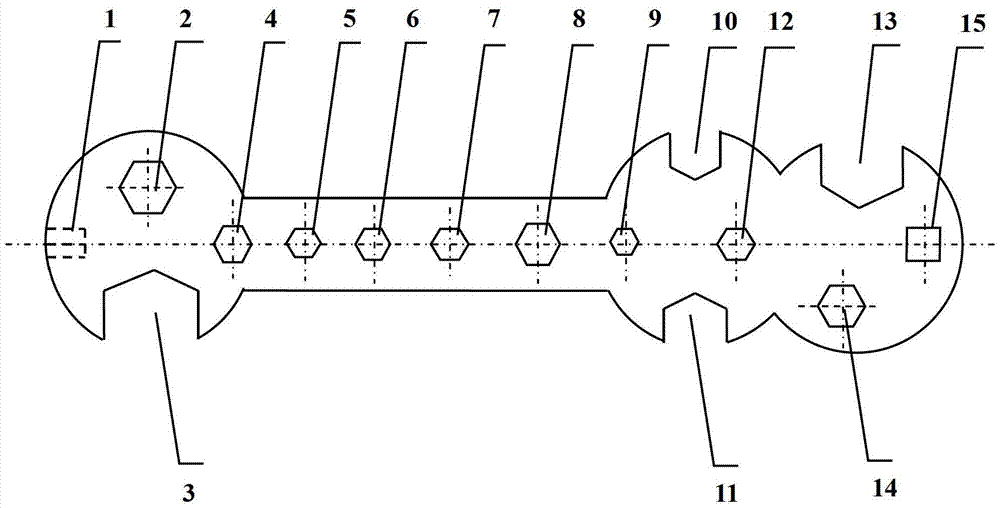

Figure 1 Front view of the multifunctional wrench

Figure 2 Top sectional view of the multifunctional wrench

Figure 3 Partial enlarged view of the inner hexagonal groove

Figure 4 Partial enlarged view of the square hole of the matching sleeve head

Among them 1—inner hexagonal groove 2—hexagonal hole of elastic φ19mm nut 3—four side opening of elastic φ34mm nut 4—hexagonal hole of elastic φ9mm nut 5—hexagonal hole of elastic φ10mm nut 6—hexagonal hole of elastic φ11mm nut 7—elasticity Hexagonal hole for φ12mm nut 8—hexagonal hole for elastic φ16mm nut 9—hexagonal hole for elastic φ6mm nut 10—four side opening for elastic φ14mm nut 11—four side opening for elastic φ22mm nut 12—hexagonal hole for elastic φ8mm nut 13—slack φ24mm nut Four side openings 14—hexagonal holes for elastic φ17mm nuts 15—square holes for matching sleeve heads

Detailed ways

Embodiment. This example is an experimental prototype, and its structure is shown in Figure 1-Figure 4. It is a kind of narrow bar handle in the middle, one of the two ends is two round heads connected in series with the narrow bar handle, and one end is a round head wrench. There is a four-sided opening 3 with an elastic φ34 nut on a round head perpendicular to the narrow handle, and a hexagonal hole 2 with an elastic φ19mm nut inside, and a hexagonal hole with an elastic φ9mm nut at the junction of the round head and the narrow handle. 4. There is an inner hexagonal groove 1 outside the round head of the extension line of the center line of the narrow handle; on the narrow handle, there are hexagonal holes 5 for elastic φ10mm nuts, hexagonal holes 5 for elastic φ11mm nuts, and elastic The hexagonal hole 6 for the φ12mm nut, the hexagonal hole 8 for the elastic φ16mm nut; two round heads at one end, the hexagonal hole 9 for the elastic φ6mm nut and the elastic φ8mm nut on the extension line of the center line of the narrow handle of the round head that meets the narrow handle The hexagonal hole 12 of the narrow handle center line is perpendicular to the extension line of the center line of the narrow handle, and the four side openings 10 of the elastic φ14mm nut and the four side openings 11 of the elastic φ22mm nut are respectively opened outwards; The square hole 15 of supporting sleeve head is arranged on, has the four sides opening 13 of elastic φ 24mm nut outwards with narrow bar handle centerline extension line vertical direction, and this opening has the hexagonal hole 14 of elastic φ 17mm nut inward.

in:

The multifunctional wrench has a total length of 300mm, a thickness of 10mm, a width of 35mm in the middle, and round heads at both ends of φ66mm;

Assembly and disassembly of bolts, nuts, screws, and hexagonal wrench grooves 1 hexagonal hole 1 hole width 6mm, hole depth 10mm, and a magnet at the bottom of the hole;

The width across sides of the hexagonal hole 2 of the elastic φ19mm nut is 19mm;

The four side openings of the elastic φ34mm nut 3 openings are 10mm on each side, the width on the opposite side is 34mm, and the angle is 120°;

The hexagonal hole 4 of the elastic φ9mm nut has a width of 9mm across sides;

The hexagonal hole 5 of the elastic φ10mm nut has a width of 10mm across sides;

The hexagonal hole 6 of the elastic φ11mm nut has a width of 11mm across sides;

The hexagonal hole 7 of the elastic φ12mm nut has a width of 12mm across sides;

The hexagonal hole 8 of the elastic φ16mm nut has a width of 16mm across sides;

The hexagonal hole 9 of the elastic φ6mm nut has a width of 6mm across sides;

The four side openings of the elastic φ14mm nut are 10, each side is 15mm, the width of the opposite side is 14mm, and the angle is 120°;

The four side openings 11 of the elastic φ22mm nut are 20mm on each side, the width on the opposite side is 22mm, and the angle is 120°;

The hexagonal hole 12 of the elastic φ8mm nut has a width of 8mm across sides;

The four side openings 13 of the elastic φ24mm nut are 2010mm on each side, the width on the opposite side is 24mm, and the angle is 120°;

The hexagonal hole 14 of the elastic φ17mm nut has a width of 17mm across sides;

Square hole joint 15 inner side 13 * 13mm of sleeve head, deep 10mm.

In this example, through many tests, the efficiency of installation and construction, maintenance, assembly and disassembly of bolts and nuts has been doubled. It is easy to install, disassemble and carry, and the operation is simple and fast. It has great use value in the disassembly and installation of equipment parts.

Claims (3)

1. the multifunctional wrench using in mechanic, assembler and family, is characterized in that being comprised of many spanners, interior hexagonal, opening and cubic sleeve wrench; It is that a kind of centre is fillet handle, and in two, one is two round ends and fillet handle series winding, and one is the spanner of a round end; On a round end, outwards have four limit openings (3) of degree of tightness φ 34mm nut with fillet handle vertical direction, the hexagonal hole (2) that has degree of tightness φ 19mm nut in the inside, the hexagonal hole (4) that has degree of tightness φ 9mm nut in round end and fillet handle junction, there are interior six side's grooves (1) the round end outside of fillet handle center line extended line; On fillet handle from having successively the hexagonal hole (5) of degree of tightness φ 10mm nut with a round end junction, the hexagonal hole (6) of the hexagonal hole (5) of degree of tightness φ 11mm nut, degree of tightness φ 12mm nut, the hexagonal hole (8) of degree of tightness φ 16mm nut; Two round end one end, with on the fillet handle center line extended line of the round end of fillet handle handing-over, have the hexagonal hole (9) of degree of tightness φ 6mm nut and the hexagonal hole (12) of degree of tightness φ 8mm nut, each outwards has four limit openings (10) of degree of tightness φ 14mm nut and four limit openings (11) of degree of tightness φ 22mm nut with fillet handle center line extended line vertical direction; The cubic hole (15) that has supporting collet head on the fillet handle center line extended line of second round end, outwards have four limit openings (13) of degree of tightness φ 24mm nut with fillet handle center line extended line vertical direction, this opening has the hexagonal hole (14) of degree of tightness φ 17mm nut inward.

2. multifunctional wrench according to claim 1, is characterized in that described interior six side's grooves (1) are the embedded magnet of an interior hexagonal prism groove.

3. multifunctional wrench according to claim 1, is characterized in that the cubic hole (15) of described supporting collet head can installing sleeve head.
