CN203356490U - Cable cutting device - Google Patents

Abstract

The utility model relates to a cable cutting device, which comprises a control box (1), a button (2), a guide module (3), a lower mold (4), a knife groove (5), a cutting knife (8), an upper mold ( 9), support column (10), support plate (11) and cylinder (12), the upper end surface of the control box (1) is respectively provided with a guide module (3) and a lower module (4), the lower module (4 ) is provided with a knife groove (5), and a cylinder (12) is installed vertically above the support plate (11). The power output end of the cylinder (12) is connected with the upper mold (9), and the Cutting knife (8) is arranged, and knife groove (5) cooperates with cutting knife (8). The utility model has the following advantages: simple structure, small volume, light weight, easy to carry, simple and fast operation for use in the production process, safe and reliable use, improved cutting production efficiency, and reduced labor intensity of employees.

Description

A cable cutting device

technical field

The utility model relates to the field of cable processing, in particular to a cable cutting device.

Background technique

With the continuous development of social economy, the labor cost of industrial production continues to increase, and it has become a trend to reduce the labor intensity of operators. The traditional manual cutting of cables is difficult to process, high in strength, slow in cutting speed, time-consuming and laborious, and difficult to meet the needs of batch and large-scale production. In order to solve the defects of traditional processing methods, it has become necessary to apply automation, semi-automatic and other technologies to improve production efficiency and reduce labor intensity.

Utility model content

The purpose of the utility model is to overcome the shortcomings of the prior art and provide a cable cutting device with small volume, light weight, simplicity and high efficiency.

The purpose of this utility model is achieved through the following technical solutions: it includes a control box, a button, a guide module, a lower mold, a knife groove, a guide column, a spring member, a cutting knife, an upper mold, a support column, a support plate and a cylinder, the There is a button on the left and right sides of the control box. The upper surface of the control box is respectively provided with a guide module and a lower module. The lower module is provided with a knife slot. Fixedly connected through the support column, the cylinder is installed vertically above the support plate, the power output end of the cylinder is connected with the upper mold, the two sides of the lower mold are fixed with guide columns, the guide columns pass through the two sides of the upper mold, and the spring is set on the guide column One end of the spring part is fixed on the lower die, the other end of the spring part is fixed on the upper die, and a cutting knife is also installed under the upper die.

Further, the knife groove is matched with the cutting knife.

The utility model has the following advantages: the utility model is simple in structure, small in size, light in weight, and easy to carry, and can be carried to the installation site, and can be cut according to the actual use length to avoid waste. At the same time, the utility model can also be used in the production process , Simple and fast operation, ensuring safe and reliable use, improving cutting production efficiency and reducing labor intensity of employees.

Description of drawings

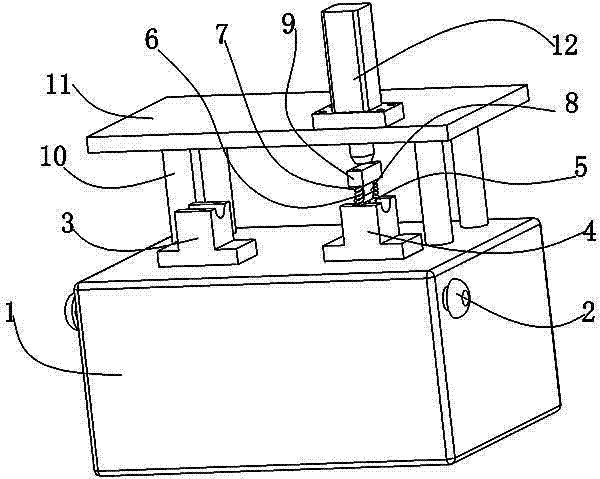

Fig. 1 is the structural representation of the utility model.

In the figure: 1-control box, 2-button, 3-guiding module, 4-lower mold, 5-slot, 6-guiding column, 7-spring, 8-cutting knife, 9-upper mold, 10-support Column, 11-support plate, 12-cylinder.

Detailed ways

The utility model will be further described below in conjunction with the accompanying drawings, but the protection scope of the utility model is not limited to the following description.

As shown in Figure 1, it includes a control box 1, a button 2, a guide module 3, a lower mold 4, a knife groove 5, a guide column 6, a spring member 7, a cutting knife 8, an upper mold 9, a support column 10, and a support plate 11 and cylinder 12, the left and right sides of the control box 1 are respectively provided with a button 2, and the side double control switch improves the safety factor of the operation process. Both the module 3 and the lower module 4 have guide grooves, and the two guide grooves should be kept on the same straight line as far as possible to avoid situations such as being stuck when the cable is pulled. The lower module 4 is provided with a knife groove 5, and the control box 1 is also provided with a Support plate 11, between support plate 11 and control box 1 is fixedly connected by support column 10, and the quantity of support column 10 can select suitable quantity according to need, and the concrete implementation process of the present utility model has used four support columns 10, and support plate 11 A cylinder 12 is vertically installed above, and the power output end of the cylinder 12 is connected with the upper mold 9, and guide columns 6 are fixed on both sides of the lower mold 4, and the guide columns 6 pass through both sides of the upper mold 9, and a spring is set on the guide column 6. Part 7, one end of the spring part 7 is fixed on the lower die 4, and the other end of the spring part 7 is fixed on the upper die 9, and a cutting knife 8 is also installed below the upper die 9.

The guide column 6 is matched with the upper mold 9 in clearance, and the upper mold 9 can move freely in the vertical direction of the guide column 6 to play a guiding role. The described knife groove 5 cooperates with the cutting knife 8.

The guide column 6 is provided with a spring element 7, and the function of the spring element 7 is to make the upper mold 9 return to the initial position.

The action execution process of the utility model is as follows: the automatic cable coiling device coils the cable or stops when the cable is manually pulled to the required cable length, press the double control button, the cylinder 12 starts to press the upper mold 9, and the cutting knife 8 moves downward Cut the cables. the

Claims (2)

1. a cable cutting device, it is characterized in that: it comprises control cabinet (1), button (2), oriented module (3), counterdie (4), cutter groove (5), lead (6), spring part (7), cutter (8), patrix (9), support column (10), gripper shoe (11) and cylinder (12), described control cabinet (1) each side is provided with a button (2), the upper surface of control cabinet (1) is respectively arranged with oriented module (3) and lower module (4), offer cutter groove (5) on lower module (4), also be provided with gripper shoe (11) on control cabinet (1), between gripper shoe (11) and control cabinet (1), by support column (10), be fixedly linked, gripper shoe (11) top vertically is equipped with cylinder (12), the clutch end of cylinder (12) is connected with patrix (9), counterdie (4) both sides are fixed with lead (6), lead (6) is through the both sides of patrix (9), be set with spring part (7) on lead (6), one end of spring part (7) is fixed on counterdie (4), the other end of spring part (7) is fixed on patrix (9), the below of patrix (9) also is equipped with cutter (8).

2. a kind of cable cutting device according to claim 1, it is characterized in that: described cutter groove (5) coordinates with cutter (8).
