本实用新型涉及一种医用腹带，包括腰片和连接在腰片两端的腹片，所述腰片的两侧沿宽度方向分别固定有软支撑条，所述腹片的末端沿宽度方向连接有若干条连接带，所述各连接带上设有粘扣，位于所述各腹片的相对应连接带上的粘扣相互搭接粘结在一起。软支撑条在腹带的宽度方向支撑起腰片，使得腰片在使用过程中不产生折叠，保证其包覆效果，而相互搭接粘结的粘扣，使得相对应的连接带能够比较简单方便的固连在一起，改变了传统腹带中复杂的绑扎方式，减轻了医护人员的护理难度。本实用新型适用于医疗用品。
The utility model relates to a medical abdominal belt, which comprises a waist piece and an abdominal piece connected to two ends of the waist piece. Soft support strips are respectively fixed on both sides of the waist piece along the width direction, and the ends of the waist piece are connected along the width direction. There are several connecting strips, each of the connecting strips is provided with a Velcro button, and the Velcro buttons on the corresponding connecting strips of each web are overlapped and bonded together. The soft support strips support the waist piece in the width direction of the abdominal belt, so that the waist piece does not fold during use, ensuring its covering effect, and the overlapping adhesive buttons make the corresponding connecting belt simpler Conveniently fixed together, it changes the complicated binding method in the traditional abdominal belt, and reduces the difficulty of nursing care for medical staff. The utility model is suitable for medical supplies.
Description
技术领域 technical field
本实用新型涉及医疗用品，特别是一种医用腹带。 The utility model relates to medical supplies, in particular to a medical abdominal belt.
背景技术 Background technique
医用腹带可以用于普通腹部手术，利用腹带加压达到止血、防止术后患者切口裂开，减轻术后疼痛的目的，有可以帮助孕妇起到支撑腰部的作用。 The medical abdominal belt can be used for ordinary abdominal surgery. The abdominal belt can be used to pressurize to stop bleeding, prevent postoperative incision dehiscence, and reduce postoperative pain. It can help pregnant women play a role in supporting the waist.
目前，医院里实用的腹带一般为平布多头绑扎式的结构，这种腹带使用过程中存在着几点不足： At present, the practical abdominal belt in the hospital is generally a flat cloth multi-head binding structure. There are several shortcomings in the use of this abdominal belt:
1、 佩戴和拆解非常不便，需要耗费医护人员大量的时间； 1. It is very inconvenient to wear and disassemble, and it takes a lot of time for medical staff;
2、 患者在活动后腹带容易上下滑动导致移位； 2. After the patient is active, the abdominal belt is easy to slide up and down and cause displacement;
3、 长期使用后，布质的腹带容易上下折叠，无法重新撑开影响腰腹的包覆效果。 3. After long-term use, the cloth abdominal belt is easy to fold up and down, and cannot be stretched again, which will affect the wrapping effect of the waist and abdomen.
实用新型内容 Utility model content
为了克服上述技术问题，本实用新型的目的在于提供一种简单方便的医用腹带，使其拥有良好的包覆效果。 In order to overcome the above technical problems, the purpose of this utility model is to provide a simple and convenient medical abdominal belt, which has a good covering effect.
本实用新型所采用的技术方案是： The technical scheme adopted in the utility model is:
一种医用腹带，包括腰片和连接在腰片两端的腹片，所述腰片的两侧沿宽度方向分别固定有软支撑条，所述腹片的末端沿宽度方向连接有若干条连接带，所述各连接带上设有粘扣，位于所述各腹片的相对应连接带上的粘扣相互搭接粘结在一起。 A medical abdominal belt, comprising a waist piece and an abdominal piece connected to both ends of the waist piece, soft support strips are respectively fixed on both sides of the waist piece along the width direction, and several connecting strips are connected to the end of the abdomen piece along the width direction Belts, each of the connecting belts is provided with Velcro buttons, and the Velcro buttons on the corresponding connecting belts of each web are overlapped and bonded together.
作为上述技术方案的进一步改进，所述腰片的内侧对称设有用于粘贴在腰部上的胶布。 As a further improvement of the above technical solution, the inner side of the waist piece is symmetrically provided with an adhesive plaster for pasting on the waist.
作为上述技术方案的进一步改进，所述软支撑条具有内凹的弧度。 As a further improvement of the above technical solution, the soft support bar has a concave radian.
作为上述技术方案的进一步改进，所述腰片和腹片一体成型。 As a further improvement of the above technical solution, the waist piece and the abdominal piece are integrally formed.
作为上述技术方案的进一步改进，所述腰片和腹片采用双层棉布叠合缝合而成。 As a further improvement of the above-mentioned technical solution, the waist piece and the abdomen piece are formed by superimposing and sewing double layers of cotton cloth.
作为上述技术方案的进一步改进，所述软支撑条固定在双层棉布所形成的夹层内。 As a further improvement of the above technical solution, the soft support strip is fixed in the interlayer formed by double layers of cotton cloth.
作为上述技术方案的进一步改进，所述腰片由无弹性的布料制成，所述腹片由具有弹性的布料制成。 As a further improvement of the above technical solution, the waist piece is made of non-elastic cloth, and the abdominal piece is made of elastic cloth.
本实用新型的有益效果是：软支撑条在腹带的宽度方向支撑起腰片，使得腰片在使用过程中不产生折叠，保证其包覆效果，而相互搭接粘结的粘扣，使得相对应的连接带能够比较简单方便的固连在一起，改变了传统腹带中复杂的绑扎方式，减轻了医护人员的护理难度。 The beneficial effects of the utility model are: the soft support strips support the waist piece in the width direction of the abdominal belt, so that the waist piece does not produce folding during use, ensuring its covering effect, and the glue buttons that overlap and bond each other make The corresponding connecting belts can be fixed together in a relatively simple and convenient way, which changes the complicated binding method in the traditional abdominal belt and reduces the difficulty of nursing care for medical staff.
附图说明 Description of drawings
下面结合附图和实施方式对本实用新型进一步说明。 Below in conjunction with accompanying drawing and embodiment the utility model is further described.

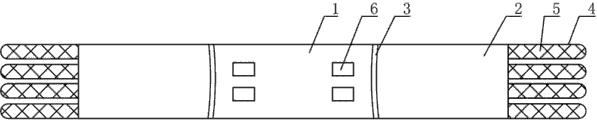

图1是本实用新型第一实施例的结构示意图； Fig. 1 is the structural representation of the utility model first embodiment;
图2是本实用新型第二实施例的结构示意图。 Fig. 2 is a schematic structural view of the second embodiment of the utility model.
具体实施方式 Detailed ways
一种医用腹带，由腰片1和连接在腰片1两端的腹片2构成，其中腰片1包覆在腰部外周，腹片2包覆在腹部外。腰片1的两侧沿宽度方向分别固定有软支撑条3，当腰片1包覆腰部后，软支撑条3沿宽度方向支撑起腰片1，使其不会轻易产生折叠。腰片1两端的腹片2的末端沿宽度方向连接有若干条连接带4，各连接带4上设有粘扣5（魔术贴），当腹带包覆在患者身体上时，两端腹片2的相对应连接带4上的粘扣5相互搭接粘结在一起，使得腹带固定。粘扣5搭接的位置还可以作出一定的调整，以调整腹带的实际使用长度，适应不同患者的体型。
A medical abdominal belt is composed of a waist piece 1 and an
腰片1的内侧对称设有四块胶布6，这些胶布6用于粘贴在腰部，进而将腹带定位在人体皮肤上，即使有比较大的动作也不会令腹带产生上下的滑移。
The inner side of the waist piece 1 is symmetrically provided with four
软支撑条3由软塑料制成，其具有内凹的弧度，以更贴合人体的腰部曲线。
The
在图1所示的第一实施例中，腰片1和腹片2采用双层棉布叠合缝合成一体成型的一条，而软支撑条3固定在双层棉布所形成的夹层内。
In the first embodiment shown in FIG. 1 , the waist piece 1 and the
在图2所示的第二实施例中，腰片1由无弹性的布料制成，腹片2由具有弹性的布料制成，腰片1和腹片2缝合到一起。具有弹性的腹片2能对人体腹部产生较强的支撑作用，尤其适合孕妇使用以缓解腰部不适。
In the second embodiment shown in FIG. 2 , the waist panel 1 is made of non-elastic fabric, the
以上所述只是本实用新型优选的实施方式，其并不构成对本实用新型保护范围的限制。 The above descriptions are only preferred implementations of the present utility model, and they do not constitute a limitation to the protection scope of the present utility model.
