The utility model aims at providing a novel multi-purpose sketching easel which is simple in structure, and can realize multi-angle close-range copying and facilitate placement of drawing tools. The multi-purpose sketching easel comprises an upright, a support frame, a base and a copying movable arm, wherein one end of the upright is connected with the base through a shaft, a movable groove is formed in the center of the upright along the longitudinal direction, the movable groove is further internally provided with a top plate and a bottom plate which are movably connected, the top end of the support frame is movably connected in the movable groove of the upright, the bottom end of the support frame is connected on the base through a hinge, the copying movable arm further comprises a universal shaft connecting arm and a copying plate, one end of the universal shaft connecting arm is movably connected in the movable groove, the other end of the universal shaft connecting arm is connected with a connecting shaft on the back of the copying plate; the support frame, the top plate, the bottom plate and the universal shaft connecting arm are connected in the movable groove through screws; the universal shaft connecting arm is composed of two parts, the two parts are connected by a universal connecting shaft, the connecting part can rotate by 360 degrees, the part where the upright and the base are connected through the shaft can rotate by 90 degrees, and the connecting shaft on the back of the copying plate can rotate by 180 degrees.

Description

A kind of multi-functional easel
Technical field
The utility model relates to a kind of easel of the use of painting, specifically a kind of multi-functional easel.
Background technology
Easel is a kind of instrument of painting and often using, and present easel generally all only has this kind of function of the drawing board of placement, lacks the function of glove.And, when painting the beginner when being copied photo or picture, often photo or picture can only be hung on the wall or followed closely on the easel top, can't make the painter keep a good drawing visual angle.
Summary of the invention
The purpose of this utility model is for the deficiency in existing design, provide a kind of simple in structure, result of use good, be convenient to closely copy article, realizes again a kind of Multifunction easel of function of placing articles.
A kind of Multifunction easel, comprise column, bracing frame, base and imitation lever arm, and described column one end is connected with datum axle, in the column center, vertically is provided with loose slot, also comprises top board, the base plate of flexible connection in described loose slot; The support frame as described above top is movably connected in the column loose slot, and the bracing frame bottom is connected on base by loose-leaf; Described imitation lever arm also comprises universal connecting shaft arm and Plate for coping model, and described universal connecting shaft arm one end is movably connected in loose slot, and the other end is connected with the connecting axle at the Plate for coping model back side.
Support frame as described above, top board, base plate and universal connecting shaft arm, be connected in loose slot by screw.
Described universal connecting shaft arm is comprised of two parts, middle connected by universal connecting shaft, rotatable 360 degree.
Rotatable 90 degree in described column and datum axle junction.
Rotatable 180 degree in connecting axle place, the described Plate for coping model back side.
Described base is isosceles right angle trigonometry type, and column is connected with bracing frame by the hypotenuse center line of base.
Owing to adopting technique scheme, the drawing personnel can be fixed on Plate for coping model copying thing, carry out the adjustment arbitrarily such as far away, near, left and right, upper and lower to copying thing, to reach comfortable visual angle.According to the different demands of painter, also can be adjusted the angle of easel, the height of easel, the size of drawing board folder etc. simultaneously.When not needing closely to copy, can, by the Plate for coping model horizontal positioned, realize placing the function of draw tool.The utility model has overcome the deficiency in existing easel design, and it is simple in structure, easy to use, meets the more demand of drawing personnel simultaneously.
The accompanying drawing explanation
Below in conjunction with accompanying drawing, the utility model is described in further detail:

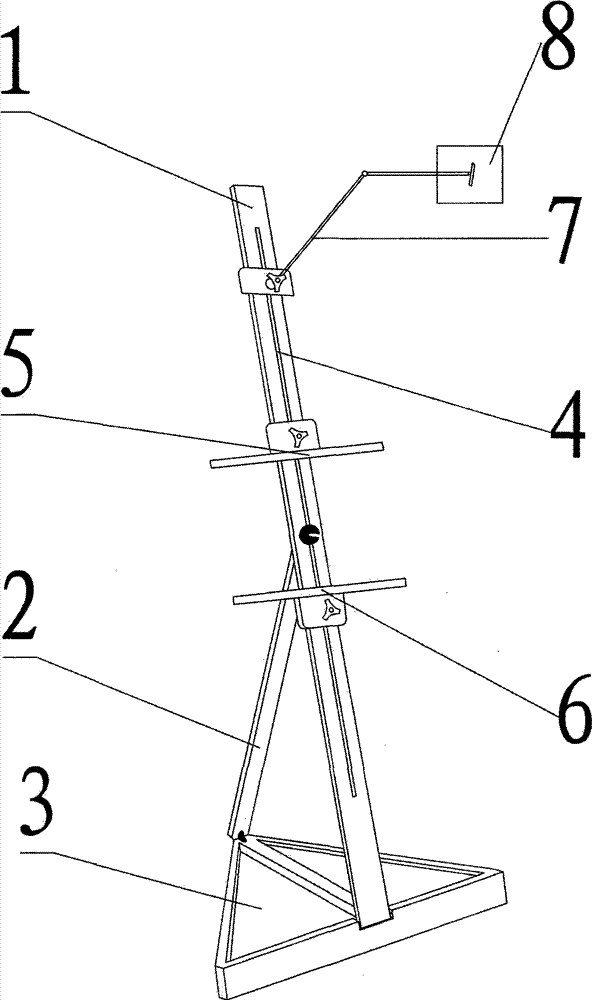

The main body schematic diagram that Fig. 1 is multi-functional easel of the present utility model.
Wherein: column 1, bracing frame 2, base 3, loose slot 4, top board 5, base plate 6, universal linking arm 7, Plate for coping model 8.
The specific embodiment
Below in conjunction with drawings and Examples, the utility model is described further.
As shown in Figure 1, the utility model is a kind of Multifunction easel, comprises column 1, bracing frame 2, base 3 and copies lever arm, and described column 1 one ends are connected by connecting axle with base 3, rotatable 90 degree in junction.Vertically be provided with loose slot 4 in column 1 center, described loose slot interior 4 also comprises top board 5, the base plate 6 of flexible connection; Support frame as described above 2 tops are movably connected in the loose slot 4 of column 1, and bracing frame 2 bottoms are connected on base 3 by loose-leaf; Described imitation lever arm also comprises universal connecting shaft arm 7 and Plate for coping model 8, and described universal connecting shaft arm 7 one ends are movably connected in loose slot 4, and the other end is connected with the connecting axle at Plate for coping model 8 back sides.
For convenience of adjusting, bracing frame 2, top board 5, base plate 6 and universal connecting shaft arm 7, be connected in loose slot 4 by screw in use.
Universal connecting shaft arm 7 is comprised of two parts, middle connected by universal connecting shaft, and rotatable 360 degree carry out the adjustment of various angles to facilitate the drawing personnel to copying lever arm.
In use, can the angle of easel column 1 be adjusted according to drawing personnel's requirement, column 1 and rotatable 90 degree in base 3 shaft connection places, coordinated with the position of bracing frame 2 in loose slot 4, to reach drawing personnel's requirement.
When the drawing personnel are copied, the connecting axle at Plate for coping model 8 back sides can be adjusted, rotatable 180 degree in connecting axle place, to reach drawing personnel's requirement, also can be adjusted to horizontal level by Plate for coping model 8, realizes placing the function of draw tool.
Base 3 is designed to isosceles right angle trigonometry type to have advantages of good stability, save material, not to take up space, and column 1 is connected with bracing frame 2 by the hypotenuse center line of base 3.

Claims (6)

1. a Multifunction easel, it is characterized in that: comprise column, bracing frame, base and imitation lever arm, described column one end is connected with datum axle, in the column center, vertically is provided with loose slot, also comprises top board, the base plate of flexible connection in described loose slot; The support frame as described above top is movably connected in the column loose slot, and the bracing frame bottom is connected on base by loose-leaf; Described imitation lever arm also comprises universal connecting shaft arm and Plate for coping model, and described universal connecting shaft arm one end is movably connected in loose slot, and the other end is connected with the connecting axle at the Plate for coping model back side.
2. multi-functional easel according to claim 1, it is characterized in that: support frame as described above, top board, base plate and universal connecting shaft arm are connected in loose slot by screw.
3. multi-functional easel according to claim 1, it is characterized in that: described universal connecting shaft arm is comprised of two parts, middlely by universal connecting shaft, be connected, rotatable 360 degree.
4. multi-functional easel according to claim 1, is characterized in that: rotatable 90 degree in described column and datum axle junction.
5. multi-functional easel according to claim 1, is characterized in that: rotatable 180 degree in connecting axle place, the described Plate for coping model back side.
6. multi-functional easel according to claim 1, it is characterized in that: described base is isosceles right angle trigonometry type, and column is connected with bracing frame by the hypotenuse center line of base.
