Abstract

The utility model discloses a terminal clamp, which is characterized in that it comprises a terminal, a sleeve and a horizontal terminal plate; the terminal is connected to a power distribution transformer, and the sleeve is screwed on the terminal through its internal thread. A conjoined horizontal wiring board is arranged at the waist of the sleeve, and the right end of the horizontal wiring board is connected with the external wire through bolts and nuts. The right end of the horizontal wiring board is connected to the external wires through bolts provided with pressure plate nuts. Symmetrical planes are provided on the outer peripheries of both ends of the sleeve. The utility model has the advantages of simple structure and high reliability, which can prevent overheating at the connection between the terminal post of the distribution transformer and the secondary outgoing line, improve the conductivity, avoid the oil leakage fault of the transformer, and improve the reliability of power supply.

Description

a wiring clip

technical field

The utility model relates to a connection clamp for a secondary terminal of a power distribution transformer, in particular to a connection clamp with an external connection board.

Background technique

The secondary outlet of a 10kV distribution transformer is usually crimped to the secondary terminal of the transformer with equipment clamps. Since there is a certain gap between the crimping of ordinary clamps and the secondary terminal of the transformer, it can only rely on the upper and lower nuts and clamps of the equipment clamp. The connection conducts electricity. Due to the small contact surface between the wire clip and the secondary terminal of the transformer, it is very easy to cause heat at the connection between the terminal post of the distribution transformer and the wire clip when the transformer is under heavy load, causing the rubber beads on the secondary side of the transformer to age and harden, resulting in oil leakage from the transformer .

Utility model content

The technical problem to be solved by the utility model is to provide a terminal clip which enlarges the electrical connection contact surface, improves the conductivity, and avoids overheating under heavy load.

In order to solve the above technical problems, the technical solution adopted by the utility model is: a terminal clamp, which is characterized in that it includes a terminal, a sleeve and a horizontal terminal plate; the terminal is connected to the distribution transformer, and the sleeve The sleeve is screwed on the terminal through its internal thread, and the waist of the sleeve is provided with a conjoined horizontal terminal board, and the right end of the horizontal terminal board is connected with the external wire through bolts and nuts.

A further improvement of the utility model is that: the right end of the horizontal wiring board is connected to the external wiring through a bolt provided with a pressure plate nut.

Symmetrical planes are provided on the outer peripheries of both ends of the sleeve.

The beneficial effects produced by adopting the above-mentioned technical solution are: the utility model has simple structure and high reliability, and can be widely applied to 10kV distribution transformers, increases the contact surface between the distribution transformer terminal and the secondary outgoing line, and effectively solves the problem of traditional The overheating problem at the connection between the terminal post of the distribution transformer and the secondary outgoing line caused by the connection technology improves the conductivity, avoids the oil leakage fault of the transformer, and improves the reliability of power supply.

Description of drawings

Below in conjunction with accompanying drawing and specific embodiment, the utility model is described in further detail.

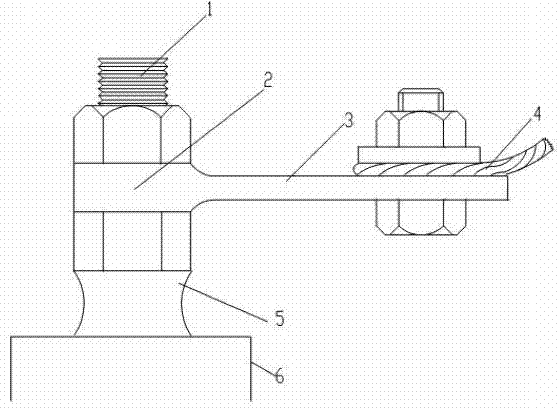

Fig. 1 is the structural representation of the utility model.

As shown in the figure: 1 terminal, 2 sleeve, 3 horizontal terminal board, 4 external wiring, 5 insulator of distribution transformer, 6 distribution transformer.

Detailed ways

In contrast to Fig. 1, the operation steps of the present utility model are further described:

Embodiment 1: A terminal clamp, characterized in that it includes a terminal 1, a sleeve 2 and a horizontal terminal board 3; the terminal 1 is connected to the distribution transformer 6, and the sleeve 2 is tightened by its internal thread On the terminal post 1, a conjoined horizontal terminal board 3 is provided at the waist of the sleeve 2, and the right end of the horizontal terminal board 3 is connected to the external wire 4 through bolts and nuts.

The installation steps of this embodiment: 1. Pass the terminal post 1 through the insulator 5 of the distribution transformer and tighten it on the distribution transformer 6 to make it firmly connected. Second, tighten the sleeve 2 on the terminal post 1. 3. Connect the external wiring 4 with the horizontal wiring board 3 through bolts and nuts

Embodiment 2: A terminal clamp, characterized in that it includes a terminal 1, a sleeve 2 and a horizontal terminal board 3; the terminal 1 is connected to the distribution transformer 6, and the sleeve 2 is tightened by its internal thread On the terminal post 1, a conjoined horizontal terminal board 3 is provided at the waist of the sleeve 2, and the right end of the horizontal terminal board 3 is connected to the external wire 4 through bolts and nuts. The right end of the horizontal terminal board 3 is connected to the external wire 4 through a bolt provided with a pressure plate nut.

The installation steps of this embodiment: 1. Pass the terminal post 1 through the insulator 5 of the distribution transformer and tighten it on the distribution transformer 6 to make it firmly connected. Second, tighten the sleeve 2 on the terminal post 1. 3. Connect the external wiring 4 to the horizontal wiring board 3 through bolts and pressure plate nuts.

Embodiment 3: A terminal clamp, characterized in that it includes a terminal 1, a sleeve 2 and a horizontal terminal board 3; the terminal 1 is connected to the distribution transformer 6, and the sleeve 2 is tightened by its internal thread On the terminal post 1, a conjoined horizontal terminal board 3 is provided at the waist of the sleeve 2, and the right end of the horizontal terminal board 3 is connected to the external wire 4 through bolts and nuts. The right end of the horizontal terminal board 3 is connected to the external wire 4 through a bolt provided with a pressure plate nut. Symmetrical planes are provided on the outer peripheries of both ends of the sleeve 2 .

The installation steps of this embodiment: 1. Pass the terminal post 1 through the insulator 5 of the distribution transformer and tighten it on the distribution transformer 6 to make it firmly connected. Second, tighten the sleeve 2 on the terminal post 1. 3. Connect the external wiring 4 to the horizontal wiring board 3 through bolts and pressure plate nuts. Since the outer circumferences of both ends of the sleeve 2 are provided with symmetrical planes, the planes can be clamped with a wrench to tighten the sleeve 2 so that it is firmly connected with the terminal 1 .

Claims (3)

1. A terminal clamp, characterized in that it includes a terminal post (1), a sleeve (2) and a horizontal terminal plate (3); The terminal (1) is connected to the distribution transformer (6), the sleeve (2) is screwed on the terminal (1) through its internal thread, and the waist of the sleeve (2) is provided with a conjoined horizontal connection plate (3), the right end of the horizontal terminal plate (3) is connected to the external wire (4) through bolts and nuts. 2. A terminal clamp according to claim 1, characterized in that: the right end of the horizontal terminal plate (3) is connected to the external wire (4) through a bolt provided with a pressure plate nut. 3. A terminal clip according to claim 2, characterized in that: the outer circumferences of both ends of the sleeve (2) are provided with symmetrical planes.
