Abstract
本实用新型涉及一种侧装式V形半球阀，包括阀体、半球体、上阀杆、扳手、压盖、下阀杆及下阀盖，半球体设在阀体内，上阀杆的下端插入阀体内，并与半球体的上端连接，上阀杆的上端与设在阀体外部的扳手连接，压盖套设在上阀杆上部并与阀体固定连接，下阀杆的上端插入阀体内，并与半球体的下端连接，下阀杆的下端与固定在阀体上的下阀盖连接，半球体上开设有V形通道。与现有技术相比，本实用新型实现了半球阀启闭无摩擦，流动液体阻力小，密封不易磨损，启闭力矩小，可以切断纤维状的流体，增加了阀门工作的可靠性和灵活性，延长阀门的使用寿命，提高了工作效率。
The utility model relates to a side-mounted V-shaped hemispherical valve, which comprises a valve body, a hemisphere, an upper valve stem, a wrench, a gland, a lower valve stem and a lower valve cover, the hemisphere is arranged in the valve body, and the lower end of the upper valve stem Insert into the valve body and connect with the upper end of the hemisphere, the upper end of the upper valve stem is connected with the wrench outside the valve body, the gland is set on the upper part of the upper valve stem and fixedly connected with the valve body, the upper end of the lower valve stem is inserted into the valve The body is connected with the lower end of the hemisphere, the lower end of the lower stem is connected with the lower valve cover fixed on the valve body, and a V-shaped channel is opened on the hemisphere. Compared with the prior art, the utility model realizes the opening and closing of the hemispherical valve without friction, the resistance of the flowing liquid is small, the seal is not easy to wear, the opening and closing torque is small, the fibrous fluid can be cut off, and the reliability and flexibility of the valve work are increased. , Prolong the service life of the valve and improve the work efficiency.
Description
Technical field
The utility model relates to a kind of semispherical valve, especially relates to a kind of side-mounted V-arrangement semispherical valve.
Background technique
Ball valve is one of valve kind with fastest developing speed the America and Europe in recent years, and the progress of related industries technology makes various semispherical valves be born.It,, by eccentric rotation axis, drives the keying that spherical crown fixed thereon reaches valve.Structural type and effective sealing means simply, reliably, make it than conventional valves such as gate valve, butterfly valves, have more advantage, although exist as impurity is arranged in pipeline, easily by impurity, stopped up, the shortcoming that causes valve to open, experienced the years test, be applicable to the general work media such as water, solvent, acid and rock gas, but also be applicable to the severe medium of operating conditions, as oxygen, hydrogen peroxide, methane and ethene etc., in industries such as oil, chemical industry, urban water supply and sewerages, be used widely.
Chinese patent CN202646853U has announced a kind of hemisphere valve body, comprise the cue ball face, cue ball face two ends are provided with connecting cylinder and lower connecting cylinder on one, respectively offer a upper and lower connecting through hole on upper and lower connecting cylinder, the cue ball face is a hemisphere, and its hemisphere boundary line is V-notch, upper attachment hole is provided with gear grooved, the spherome surface surfacing has alloy-layer, and the whole surfacing stellites of spherome surface strengthen spheroid hardness; Guarantee that matrix surface does not come off simultaneously, improve sealability, the particulate matter that also can resist in the media such as oil, cement, coal slurry washes away, and has self-cleaning function, and the spheroid that increases the service life designs with v-notch, can effectively regulate rate-of flow.But this patent structure is comparatively complicated, manufactures loaded down with trivial details.
The model utility content
The purpose of this utility model be exactly in order to overcome the defect that above-mentioned prior art exists, provide a kind of be applicable to fibrous fluid, flow resistance little, seal reliable side-mounted V-arrangement semispherical valve.
The purpose of this utility model can be achieved through the following technical solutions:
A kind of side-mounted V-arrangement semispherical valve, comprise valve body, hemisphere, upper valve rod, spanner, gland, lower valve rod and bottom flange, described hemisphere is located in valve body, insert in valve body the lower end of described upper valve rod, and be connected with hemispheroidal upper end, the upper end of upper valve rod is connected with the spanner that is located at the valve body outside, described gland is set in upper valve rod top and is fixedly connected with valve body, insert in valve body the upper end of described lower valve rod, and be connected with hemispheroidal lower end, the lower end of lower valve rod is connected with the bottom flange on being fixed on valve body, offer the V-arrangement passage on described hemisphere.
The two ends up and down of described V-arrangement passage all offer attachment hole, and described upper valve rod is connected with the attachment hole of the upper end of V-arrangement passage, and described lower valve rod is connected with the attachment hole of the lower end of V-arrangement passage.
The angle of described V-arrangement passage is 90 °.
The junction of described hemisphere and valve inner is provided with seal ring.
Between described gland and valve body, be bolted.
The joint of described gland or bottom flange and valve body is provided with polytetrafluoroethylene packing.
Described hemisphere is Stainless Steel Ball.
Described bottom flange, lower valve rod, valve body, upper valve rod, gland, bolt all adopt Structural Hardware.
Drive hemisphere by rotating spanner and rotate, due to the hemisphere inboard, offering is a V-arrangement passage, between V-arrangement passage and valve body, shear action is arranged, and is particularly suitable for the media such as fibre-bearing, small solid particle, slip.When by spanner, driving the hemisphere half-twist, at the valve body inlet/outlet, place all presents sphere, thereby blocks mobile, open and close rapidly, need only half-twist from the standard-sized sheet to the complete shut-down, be convenient to remote control, sealing surface and the sphere closed state of being everlasting, be difficult for by the medium erosion.
Compared with prior art, the utlity model has following advantage:
One, be a V-arrangement passage in hemisphere, between V-arrangement access portal and valve body, shear action arranged, be particularly suitable for the media such as fibre-bearing, small solid particle, slip.
Two, fluid resistance is little, simple in structure, volume is little, lightweight, easy to operate.
Three, closely reliable, good seal performance, applied widely.
Four, when standard-sized sheet or full cut-off, can not cause the erosion of valve sealing face.
The accompanying drawing explanation

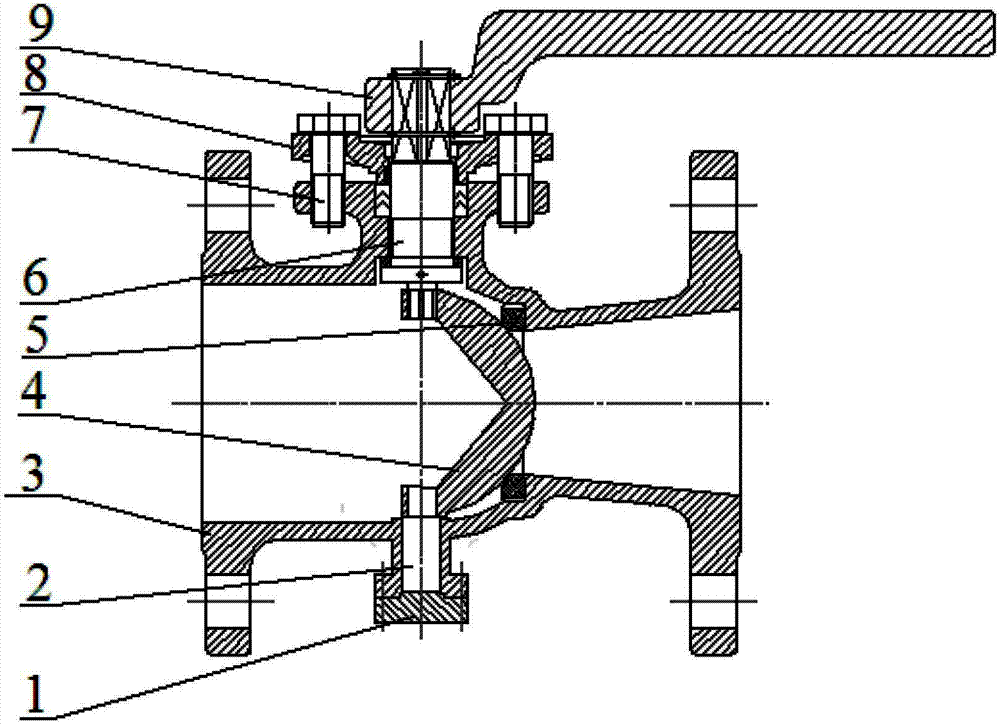

Fig. 1 is structural representation of the present utility model.
In figure: 1 is bottom flange, and 2 is lower valve rod, and 3 is valve body, and 4 is hemisphere, and 5 is seal ring, and 6 is upper valve rod, and 7 is bolt, and 8 is gland, and 9 is spanner.
Embodiment
Below in conjunction with the drawings and specific embodiments, the utility model is elaborated.
Embodiment
A kind of side-mounted V-arrangement semispherical valve, as shown in Figure 1, comprise valve body 3, hemisphere 4, upper valve rod 6, spanner 9, gland 8, lower valve rod 2 and bottom flange 1, and hemisphere 4 is located in valve body 3, and hemisphere 4 is provided with seal ring 5 with the junction of valve body 3 inside.Insert in valve body 3 lower end of upper valve rod 6, and be connected with the upper end of hemisphere 4, the upper end of upper valve rod 6 is connected with the spanner 9 that is located at valve body 3 outsides, gland 8 is set in upper valve rod 6 tops and is bolted to connection with valve body 3, insert in valve body 3 upper end of lower valve rod 2, and be connected with the lower end of hemisphere 4, the lower end of lower valve rod 2 is connected with the bottom flange 1 on being fixed on valve body 3, and gland 8 or bottom flange 1 are provided with polytetrafluoroethylene packing with the joint of valve body 3.The outside of hemisphere 4 is sphere, and the inboard of hemisphere 4 offers the V-arrangement passage.The two ends up and down of V-arrangement passage all offer attachment hole, and upper valve rod 6 is connected with the attachment hole of the upper end of V-arrangement passage, and lower valve rod 2 is connected with the attachment hole of the lower end of V-arrangement passage.The angle of V-arrangement passage is 90 °.
Wherein, hemisphere 4 is Stainless Steel Ball.Bottom flange 1, lower valve rod 2, valve body 3, upper valve rod 6, gland 8, bolt 7 all adopt Structural Hardware.
Drive hemisphere 4 by rotating spanner 9 and rotate, due to hemisphere 4 inboards, offering is a V-arrangement passage, and 3 of V-arrangement passage and valve bodies have shear action, are particularly suitable for the media such as fibre-bearing, small solid particle, slip.When by spanner 9, driving hemisphere 4 half-twist, at valve body, 3 inlet/outlet places all present sphere, thereby block mobile, open and close rapidly, need only half-twist from the standard-sized sheet to the complete shut-down, be convenient to remote control, sealing surface and the sphere closed state of being everlasting, be difficult for by the medium erosion.
The utility model has realized that semispherical valve opens and closes without friction, and the working fluid resistance is little, seal not easy to wearly, opens and closes moment little, and fluid that can the cut staple shape, increased reliability and the flexibility of valve working, in the working life of prolongation valve, improved working efficiency.
Claims (7)
1. a side-mounted V-arrangement semispherical valve, it is characterized in that, comprise valve body, hemisphere, upper valve rod, spanner, gland, lower valve rod and bottom flange, described hemisphere is located in valve body, insert in valve body the lower end of described upper valve rod, and be connected with hemispheroidal upper end, the upper end of upper valve rod is connected with the spanner that is located at the valve body outside, described gland is set in upper valve rod top and is fixedly connected with valve body, insert in valve body the upper end of described lower valve rod, and be connected with hemispheroidal lower end, the lower end of lower valve rod is connected with the bottom flange on being fixed on valve body, offer the V-arrangement passage on described hemisphere.
2. a kind of side-mounted V-arrangement semispherical valve according to claim 1, it is characterized in that, the two ends up and down of described V-arrangement passage all offer attachment hole, and described upper valve rod is connected with the attachment hole of the upper end of V-arrangement passage, and described lower valve rod is connected with the attachment hole of the lower end of V-arrangement passage.
3. a kind of side-mounted V-arrangement semispherical valve according to claim 1, is characterized in that, the angle of described V-arrangement passage is 90 °.
4. a kind of side-mounted V-arrangement semispherical valve according to claim 1, is characterized in that, the junction of described hemisphere and valve inner is provided with seal ring.
5. a kind of side-mounted V-arrangement semispherical valve according to claim 1, is characterized in that, between described gland and valve body, is bolted.
6. a kind of side-mounted V-arrangement semispherical valve according to claim 1, is characterized in that, the joint of described gland or bottom flange and valve body is provided with polytetrafluoroethylene packing.
7. a kind of side-mounted V-arrangement semispherical valve according to claim 1, is characterized in that, described hemisphere is Stainless Steel Ball.
