本实用新型提供一种风光互补路灯智能控制系统，包括中空的灯杆，所述灯杆上装有太阳能电池板、风力发电机和灯具，所述灯具包括灯壳和光源，所述太阳能电池板、风力发电机均通过一风光互补控制器与一蓄电池相连接，还包括一控制器，所述灯壳前端固定安装有一感应器，所述感应器与控制器相连接，所述蓄电池通过所述控制器与光源相连接；还包括一设有容腔的基座，所述蓄电池位于该容腔内，所述基座上端设有一凸出部，该凸出部伸入灯杆中，灯杆下端设有向外扩展的固定部，所述固定部与基座可拆卸连接。该路灯智能控制系统通过控制器控制光源的全功率发光或半功率发光，进而有效节能。
The utility model provides an intelligent control system for wind-solar complementary street lamps, which comprises a hollow light pole on which a solar battery panel, a wind generator and a lamp are mounted, the lamp comprises a lamp housing and a light source, the solar battery panel, The wind power generators are all connected to a storage battery through a wind-solar hybrid controller, and also include a controller, and an inductor is fixedly installed at the front end of the lamp housing, and the sensor is connected to the controller, and the storage battery is controlled by the controller. It also includes a base with a cavity, the battery is located in the cavity, the upper end of the base is provided with a protruding part, the protruding part extends into the light pole, and the lower end of the light pole An outwardly expanding fixed portion is provided, and the fixed portion is detachably connected with the base. The street lamp intelligent control system controls the full-power or half-power light emission of the light source through the controller, thereby effectively saving energy.
Description
Technical field
The utility model relates to a kind of illuminator, particularly relates to a kind of wind and light complementary road lamp intelligence control system.
Background technology
In recent years, along with the continuous expansion of wind and solar hybrid generating system range of application, it was all applied fully in each field.Particularly at lighting field, the advantages such as the price that the street lamp that utilizes the wind light mutual complementing principle to make is cheap with it, easy for installation, energy-conservation, environmentally safe, be widely used in the photo occasions such as urban road, community view, urban and rural highway, it had both saved coal, gas, electricity, had realized again environmental protection.
Existing street lamp is generally all 18 unified bright lights, 5 unified light-offs at second day, the concrete time period can be adjusted according to different seasons, but in putting during this period of time to 5:00 AM 23 of nights, the people or the vehicle that on road, travel are less, therefore street lamp can be wasted electric energy during with same power illumination greatly, do not meet national energy-saving and reduce discharging policy.
In addition, wind and light complementary road lamp generally comprises lamp stand, light source and provides solar panel and the wind-driven generator of power supply, a kind of wind-solar complementary street lamp system as disclosed as Chinese utility model patent specification CN202691867U for light source.But, in this road lamp system, it is arranged on battery the subsurface of lamp stand, this can bring inconvenience to maintenance, protection and the maintenance of battery.
The utility model content
The defect of prior art and various weak point in view of the above, the technical problems to be solved in the utility model be to provide a kind of effectively energy-conservation and be convenient to change, the wind and light complementary road lamp intelligence control system of protection, maintenance battery.
For achieving the above object, the utility model provides a kind of wind and light complementary road lamp intelligence control system, the lamp stand that comprises hollow, solar panel, wind-driven generator and light fixture are housed on described lamp stand, described light fixture comprises lamp housing and light source, described solar panel, wind-driven generator all are connected with a battery by a wind/light complementation controller, also comprise a controller, described lamp housing front end is installed with an inductor, described inductor is connected with controller, and described battery is connected with light source by described controller; Also comprise that one is provided with the pedestal of cavity volume, described battery is positioned at this cavity volume, and described pedestal upper end is provided with a protuberance, and this protuberance stretches in lamp stand, and the lamp stand lower end is provided with abducent fixed part, and described fixed part and pedestal removably connect.
Preferably, be provided with sealing ring between described fixed part and pedestal.
Further, also comprise civil power, described civil power is connected with light source by controller.
Preferably, described fixed part and pedestal removably connect by a plurality of bolts.
Further, described inductor is an infrared probe.
Preferably, described light source is LED light source.
Further, described lamp housing back is provided with corrugated fin, and this fin and lamp housing are overall structure.
The wind and light complementary road lamp intelligence control system that the utility model relates to has following beneficial effect:
This intelligent street lamp control system controls by controller that the total power of light source is luminous or half-power is luminous, and then effectively energy-conservation; And it is placed on battery in one pedestal, by removably connecting of pedestal and lamp stand be convenient to battery keeped in repair, protected, the operation such as replacing, and the syndeton of lamp stand and pedestal further improves battery waterproof and dustproof function.
Above-mentioned explanation is only the general introduction of technical solutions of the utility model, in order to better understand technological means of the present utility model, and can be implemented according to the content of specification, below with preferred embodiment of the present utility model and coordinate accompanying drawing to be elaborated to this patent.
The accompanying drawing explanation
Fig. 1 is structural representation of the present utility model.
Fig. 2 is control principle drawing of the present utility model.

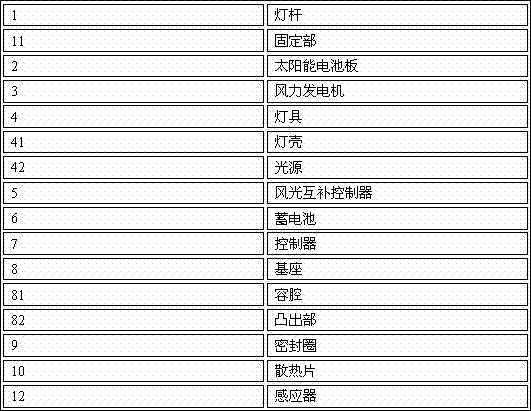

The element numbers explanation
The specific embodiment
Below in conjunction with accompanying drawing, preferred embodiment of the present utility model is described in detail.
As depicted in figs. 1 and 2, the wind and light complementary road lamp intelligence control system that the utility model provides comprises the lamp stand 1 of hollow, solar panel 2, wind-driven generator 3 and light fixture 4 are housed on described lamp stand 1, described light fixture 4 comprises lamp housing 41 and light source 42, described solar panel 2, wind-driven generator 3 all are connected with a battery 6 by a wind/light complementation controller 5, also comprise a controller 7, described lamp housing 41 front ends are installed with an inductor 12, described inductor 12 is connected with controller 7, and described battery 6 is connected with light source 42 by described controller 7; Also comprise that one is provided with the pedestal 8 of cavity volume 81, described battery 6 is positioned at this cavity volume 81, and described pedestal 8 upper ends are provided with a protuberance 82, and this protuberance 82 stretches in lamp stand 1, lamp stand 1 lower end is provided with abducent fixed part 11, and described fixed part 11 removably connects with pedestal 8.Preferably, described fixed part 11 removably connects by a plurality of bolts with pedestal 8.
In this wind and light complementary road lamp intelligence control system, by solar panel 2, wind-driven generator 3, absorb respectively solar energy and wind energy, and by wind/light complementation controller 5, absorbed solar energy and wind energy are converted to electrical power storage in battery 6.Described controller 7 carries out total power illumination or half-power illumination for controlling light source 42 in the different time periods, in the present embodiment, during the 18-23 point, described light source 42 carries out the total power illumination, during the 23-05 point, described light source 42 carries out the half-power illumination, and sense in certain limit and people or vehicle are arranged through out-of-date when inductor 12, control again light source 42 by controller 7 and carry out the total power illumination, and then reach energy-conservation purpose, in the present embodiment, described inductor 12 preferably adopts infrared probe.In addition, battery 6 is put into to pedestal 8, and the protuberance 82 of pedestal 8 upper ends stretches in lamp stand 1, its effective dust and water protection, and be convenient to realize the operations such as replacing to battery 6, M R by fixed part 11 and removably connecting of pedestal 8.
Preferably, see Fig. 1, between described fixed part 11 and pedestal 8, be provided with sealing ring 9, further improve the water proof and dust proof performance.
Further, also comprise civil power, described civil power is connected with light source 42 by controller 7, and its assurance offers the enough electric energy of light source 42, has realized mutually supplementing of civil power and battery 6.
Preferably, described light source 42 is LED light source, more energy-conservation.And as shown in Figure 1, described lamp housing 41 backs are provided with corrugated fin 10, and this fin 10 be overall structure with lamp housing 41, to improve the radiating efficiency of light fixture 4, and the service life of prolongation light fixture 4.
In sum, this intelligent street lamp control system controls by controller that the total power of light source is luminous or half-power is luminous, and then effectively energy-conservation; And it is placed on battery in one pedestal, by removably connecting of pedestal and lamp stand be convenient to battery keeped in repair, protected, the operation such as replacing, and the syndeton of lamp stand and pedestal further improves battery waterproof and dustproof function.Therefore the utility model has effectively overcome various shortcoming of the prior art and the tool high industrial utilization.
Above a kind of wind and light complementary road lamp intelligence control system that the utility model embodiment is provided is described in detail; for one of ordinary skill in the art; thought according to the utility model embodiment; all will change in specific embodiments and applications; in sum; this description should not be construed as restriction of the present utility model, and all any changes of making according to the utility model design philosophy are all within protection domain of the present utility model.
