Abstract
本实用新型涉及一种安全水槽，它由浓度传感器、IC芯片、扬声器和显示屏组成；浓度传感器安装在水槽的底部；IC芯片与浓度传感器连接，其安装在水槽的侧面内；扬声器与IC芯片连接，其安装在水槽的侧面；显示屏与IC芯片连接，其安装在水槽的侧面。本实用新型结构简单，操作方便，设计新颖独特，不仅可以节约水资源，也可以及时提醒人们注意餐具或者食物的安全，实用性强，适用于家庭、餐馆等场所，具有广阔的市场前景。
The utility model relates to a safe water tank, which is composed of a concentration sensor, an IC chip, a loudspeaker and a display screen; the concentration sensor is installed at the bottom of the water tank; the IC chip is connected with the concentration sensor and installed in the side of the water tank; connection, which is installed on the side of the water tank; the display screen is connected with the IC chip, which is installed on the side of the water tank. The utility model has simple structure, convenient operation, novel and unique design, can not only save water resources, but also remind people to pay attention to the safety of tableware or food in time, has strong practicability, is suitable for places such as families and restaurants, and has broad market prospects.
Description
Technical field
The utility model relates to the one way of life articles for use, especially a kind of safe tank.
Background technology
Tank, a kind of instrument of collecting gas or dress water, generally cannot heat.The tank that kitchen is used can be divided into according to material: cast iron enamel, pottery, stainless steel, man-made stone, crystallization stone etc.; It can be divided into according to style: single basin, two basin, the two basins of size, the two basins of the opposite sex etc.The color of tank is also the problem of people's required consideration while selecting tank, if focus on the overall color of kitchen tools, can select the acrylic tank.When using tank, need carefully, sharp cutter and coarse article can scratch the surface of tank, and then destroy the fineness of flume surface.
At present, people, when using tank wash dining set, food etc., are ceaselessly rinsed them.Yet whether washes clean can not guarantee for tableware, food etc., is all by virtue of experience to determine mostly.If use full automatic table-ware washing machine, not only can cause the waste of water resource, also can improve the cost of use, to such an extent as to bring very large inconvenience to people's life.
The utility model content
Above-mentioned deficiency for conventional sink, the purpose of this utility model is to provide a kind of safe tank, it has installed a concentration sensor in the bottom of tank, can detect in time the concentration of solution containing abluent, and it also is provided with display screen, can watch intuitively the data of detection, efficiently solve the problems referred to above.
In order to realize that the technical scheme that the purpose of this utility model adopts is: a kind of safe tank is characterized in that: it is comprised of concentration sensor, IC chip, loudspeaker and display screen; Described concentration sensor is arranged on the bottom of tank; Described IC chip is connected with concentration sensor, and it is arranged in the side of tank; Described loudspeaker is connected with the IC chip, and it is arranged on the side of tank; Described display screen is connected with the IC chip, and it is arranged on the side of tank.
The beneficial effects of the utility model are: simple in structure, easy to operate, novel in design unique, not only can saving water resource, also can remind in time people to note the safety of tableware or food, practical, be applicable to the places such as family, restaurant, there are wide market prospects.
The accompanying drawing explanation
Below in conjunction with the drawings and specific embodiments, the utility model is described in further detail.

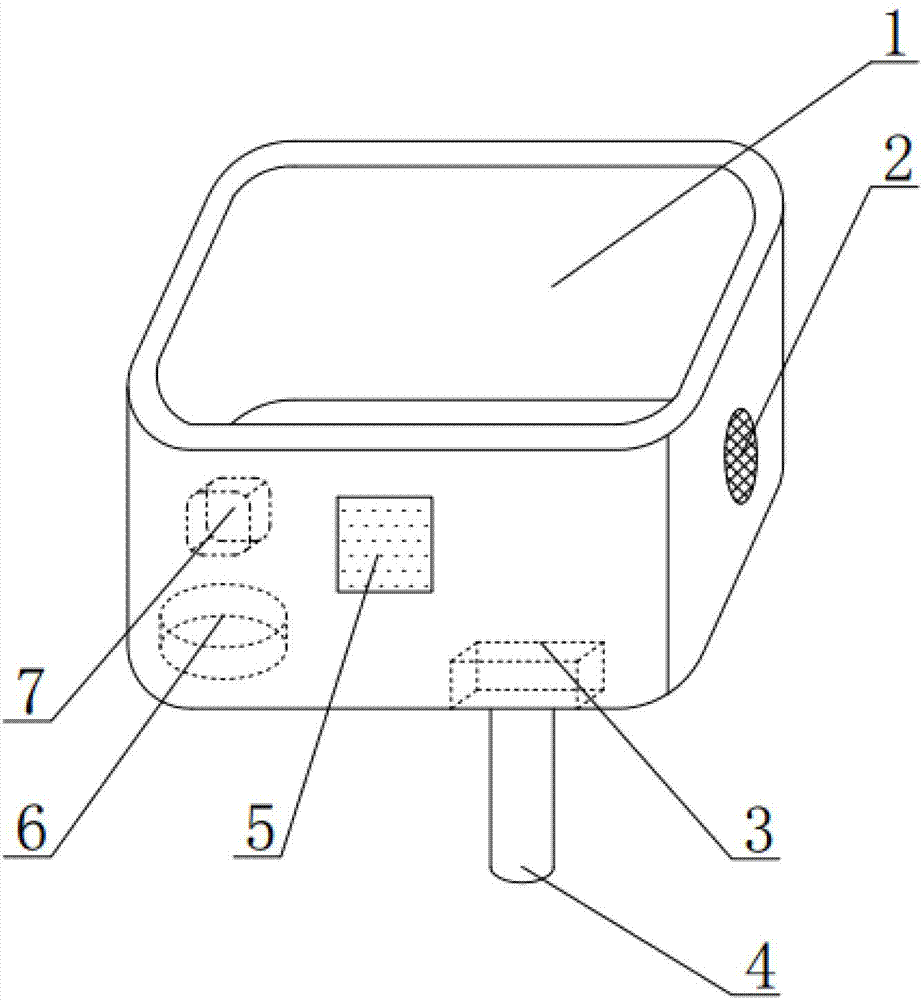

Fig. 1 is the utility model overall structure figure.
Fig. 2 is the utility model construction module figure.
In figure, 1-tank, 2-loudspeaker, 3-stopper, 4-pipeline, 5-display screen, 6-concentration sensor, 7-IC chip.
The specific embodiment
In the first embodiment shown in Fig. 1, Fig. 2, a kind of safe tank is characterized in that: it is comprised of concentration sensor, IC chip, loudspeaker and display screen; Described concentration sensor is arranged on the bottom of tank; Described IC chip is connected with concentration sensor, and it is arranged in the side of tank; Described loudspeaker is connected with the IC chip, and it is arranged on the side of tank; Described display screen is connected with the IC chip, and it is arranged on the side of tank.
In the second embodiment shown in Fig. 1, concentration sensor, loudspeaker and display screen are wrapped in by one deck waterproof film, can strengthen their application life, also can facilitate the user to use.
In the 3rd embodiment shown in Fig. 1, Fig. 2, when cleaning the solution process concentration sensor of tableware, food etc., concentration sensor detects the concentration of contained cleaning agent in solution in time, and passes to the IC chip; If when the concentration detected is greater than setting value, IC chip enable loudspeaker, loudspeaker sends voice, and reminds the user to note the concentration of contained cleaning agent in solution; If, when the concentration detected is less than setting value, loudspeaker is not activated; Simultaneously, the concentration value that the IC chip detects concentration sensor is presented on display screen, can allow the user watch in real time the value of contained detergent concentration in solution.
Claims (2)
1. a safe tank, it is characterized in that: it is comprised of concentration sensor, IC chip, loudspeaker and display screen; Described concentration sensor is arranged on the bottom of tank; Described IC chip is connected with concentration sensor, and it is arranged in the side of tank; Described loudspeaker is connected with the IC chip, and it is arranged on the side of tank; Described display screen is connected with the IC chip, and it is arranged on the side of tank.
2. safe tank according to claim 1, it is characterized in that: concentration sensor, loudspeaker and display screen are wrapped in by one deck waterproof film.
