Abstract

The utility model belongs to sports equipment and relates to an aerobics pedal. The aerobics pedal includes two horizontal plates connected by hinges. A groove is arranged at the lower end of the leg, and a pulley is hinged in the groove, and a foldable connecting frame is arranged between the pulley and the pulley. The beneficial effects of the utility model are: the aerobics pedal of the utility model, the shock-absorbing sponge under the horizontal plate can effectively absorb the vibration of the horizontal plate, thereby effectively improving the comfort of the pedal when stepping on it. The player is set in the outrigger, no need to equip another player, it is also very convenient to train alone, saving time and effort. The pulley is hinged below the supporting leg, and the movement of the device of the pulley can turn the device pulley to one side of the supporting leg during the practice process, which is convenient to use and has multiple functions.

Description

an aerobics pedal

(1) Technical field

The utility model belongs to sports equipment and relates to an aerobics pedal.

(2) Background technology

Step gymnastics is the movement and pace of aerobics by dancing up and down on the pedals rhythmically with dynamic music. And the aerobics pedal is the requisite apparatus for pedal exercise, but because the existing aerobics pedal is the main function with this, the function is single, when performing the pedal exercise, it also needs to be equipped with a sound box and a player to exercise, and The carrying process of the device is cumbersome and cannot be completed by one person, which is troublesome.

(3) Contents of the invention

In order to make up for the deficiencies of the prior art, the utility model provides an aerobics pedal with various functions and convenient movement.

The utility model is achieved through the following technical solutions:

An aerobics pedal, comprising two horizontal boards connected by hinges, which is special in that shock-absorbing sponges and outriggers are respectively arranged under the horizontal boards, and players and storage spaces are respectively installed in the outriggers. A groove is arranged at the lower end of the leg, and a pulley is hinged in the groove, and a foldable connecting frame is arranged between the pulley and the pulley.

In the aerobics pedal of the utility model, an electronic watch is installed on the outside of the legs, and the shock-absorbing sponge is placed in the middle of the two horizontal plates. The middle position of the horizontal plate can effectively play the role of shock absorption.

The beneficial effects of the utility model are: the aerobics pedal of the utility model, the shock-absorbing sponge under the horizontal plate can effectively absorb the vibration of the horizontal plate, thereby effectively improving the comfort of the pedal when stepping on it. The player is installed in the outrigger, so there is no need to equip another player. It is also very convenient to train alone, saving time and effort. The pulley is hinged below the supporting leg, and the movement of the device of the pulley can be turned to one side of the supporting leg in the practice process, which is convenient to use and has multiple functions.

(4) Description of drawings

Below in conjunction with accompanying drawing, the utility model is further described.

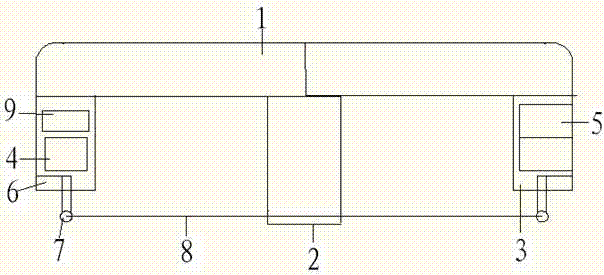

Accompanying drawing 1 is the structural representation of the utility model;

In the figure, 1 horizontal plate, 2 shock-absorbing sponge, 3 legs, 4 player, 5 storage space, 6 groove, 7 pulley, 8 connecting frame, 9 electronic watch.

(5) Specific implementation methods

Accompanying drawing is a kind of concrete embodiment of the utility model. This embodiment comprises two horizontal boards 1 that are connected into one by hinges. The two horizontal boards 1 can be folded. The shock-absorbing sponge 2 and supporting legs 3 are respectively arranged under the horizontal boards 1. Players 4 and 4 are respectively installed in the supporting legs 3. Storage space 5, sports equipment is placed in the storage space 5, a groove 6 is arranged at the lower end of the leg 3, and a bracket is hinged in the groove 6, a pulley 7 is installed on the bracket, and a foldable pulley is arranged between the pulley 7 and the pulley 7. The connecting frame 8, when the device is stored, the two horizontal plates 1 can be folded, and the connecting frame 8 is also folded thereupon, reducing the occupied space.

An electronic watch 9 is installed on the outside of the leg 3, and the shock-absorbing sponge 2 is placed in the middle of the two horizontal plates 1. The player 4 is connected to the audio system and can be used together when many people are practicing. The electronic watch 9 is used to see the time. Because shock-absorbing sponge 2 has certain elasticity, so the lower end of shock-absorbing sponge 2 can be slightly lower than the lower end of two supporting legs 3, when this aerobics pedal is placed on the ground, shock-absorbing sponge 2 will be in The horizontal plate 1 is pressed down and shrinks, and then the shock-absorbing sponge 2 and the two legs 3 can touch the ground at the same time. With the above structure, the shock-absorbing sponge 2 can effectively absorb the vibration between the two horizontal plates 1, thereby effectively Improve the comfort of the pedal when pedaling.

The beneficial effects of the utility model are: the aerobics pedal of the utility model, the damping sponge 2 under the horizontal plate 1 can effectively absorb the vibration of the horizontal plate 1, thereby effectively improving the comfort of the pedal when stepping on it. The player 4 is set in the outrigger 3, and there is no need to be equipped with another player 4. It is also very convenient to train alone, saving time and effort. Hinged pulley 7 below support leg 3, the movement of this device of this pulley 7, and can forward this device pulley 7 to the side of support leg 3 in the course of practice, easy to use, multifunctional.

Claims (2)

1. a callisthenics pedal, comprise that two by the hinged transverse slat linked into an integrated entity (1), it is characterized in that: damping sponge (2), supporting leg (3) are set respectively below transverse slat (1), difference provided with player (4) and storage space (5) in this supporting leg (3), the lower end of supporting leg (3) arranges groove (6), hinged pulley (7) in this groove (6), arrange folding link (8) between this pulley (7) and pulley (7).

2. callisthenics pedal according to claim 1 is characterized in that: the upper arranged outside electronic watch (9) of installing of supporting leg (3), and damping sponge (2) is placed in the centre position of two transverse slats (1), and player (4) is connected with sound equipment.
