Abstract
本实用新型涉及一种基于机器视觉的连接件检测系统，支柱固定连接在底板前端中间，支柱上部安装有相机支承板，相机支承板后端上面安装有相机，相机支承板后端下面通过Z形支承板固定连接同轴光源，且同轴光源位于相机正下方；底板后部上面安装背板光源，背板光源上面固定连接支承框，支承框表面中装有玻璃板，支承框前部上面装有定位块，定位块内侧表面上装有弹性片；相机、同轴光源和定位块自上而下垂直对中；相机与操作系统连接，同轴光源和背板光源均与光源控制器相连。本实用新型具有结构紧凑简单、操作方便快捷、工作过程平稳、检测结果准确稳定等特点，能减轻劳动强度、提高产品检测精度和效率。
The utility model relates to a connector detection system based on machine vision. A pillar is fixedly connected in the middle of the front end of a bottom plate. A camera support plate is installed on the upper part of the pillar. A camera is installed on the rear end of the camera support plate. The support plate is fixedly connected to the coaxial light source, and the coaxial light source is located directly below the camera; the back plate light source is installed on the rear of the bottom plate, and the back plate light source is fixedly connected to the support frame, the glass plate is installed on the surface of the support frame, and the front of the support frame is mounted There is a positioning block, and an elastic sheet is installed on the inner surface of the positioning block; the camera, the coaxial light source and the positioning block are aligned vertically from top to bottom; the camera is connected to the operating system, and the coaxial light source and the back panel light source are connected to the light source controller. The utility model has the characteristics of compact and simple structure, convenient and fast operation, stable working process, accurate and stable detection results, etc., which can reduce labor intensity and improve product detection accuracy and efficiency.
Description
Technical field
The utility model relates to a kind of detection system, especially a kind of detection system of web member based on machine vision.
Background technology
Along with expanding economy, all trades and professions are more and more higher to the requirement of product quality.At present, industrial technology advanced person's country has realized that all the web member production run that is applied to network communication apparatus detects online, and China substantially still adopts the manual detection method to reject substandard products, labor strength is large, production efficiency is low, and is easy to cause testing result unstable, even inaccurate.Constantly perfect along with the development of IT technology and digital image processing method, utilize the contactless automatic detection of realizing of Robot Vision product quality to become practical, for this reason, machine vision technique is applied to the web member qualification to be detected, design is based on the web member detection system of machine vision, with realize the web member quality of production fast, reliable, automatic gauging and monitoring.
Summary of the invention
The utility model is that a kind of detection system of web member based on machine vision will be provided, can be applicable to the Detection & Controling fast and automatically of web member qualification, have the web member detection system of the characteristics such as compact conformation is simple, convenient to operation, the course of work steady, testing result accurate stable, the labor strength of bringing be used to the manual detection method that solves current employing is large, production efficiency is low, testing result is unstable and inaccurate technical matters.
The utility model is that to solve the problems of the technologies described above the technical scheme adopted as follows: a kind of detection system of web member based on machine vision, comprise base plate, pillar, camera, coaxial light source, locating piece, flexure strip, glass plate, supporting frame, backboard light source, light source controller, operating system, be characterized in: pillar is fixedly connected in the middle of the base plate front end, pillar top is equipped with the camera support plate, the camera support plate is equipped with camera above rear end, camera support plate rear end is fixedly connected with coaxial light source below by Z-shaped support plate, and coaxial light source is positioned under camera; Base plate is installed backboard light source above rear portion, above backboard light source, is fixedly connected with supporting frame, and supporting frame is equipped with glass plate in surface, and supporting frame is equipped with locating piece above front portion, on the locating piece inner surface, flexure strip is housed; Camera, coaxial light source and locating piece be vertical centering from top to bottom; Camera is connected with operating system, and coaxial light source all is connected with light source controller with backboard light source.
Camera is black and white face battle array or linear array industrial camera, be used to gathering the web member image.Glass plate is transparency glass plate.Light source controller is placed in above the left front end of base plate, and operating system is positioned at the base plate left side.
The utility model compared with prior art has following beneficial effect:
1. based on the web member detection system of machine vision, adopt the unit module array configuration, compact conformation is simple, dismounting and adjustment easy, easy to maintenance.
2. convenient to operation, but single-set operation also can be assembled online use, is the ideal product of realizing that the quality testing of web member production run is controlled.
3. the applied for machines vision technique is realized the contactless automatic detection of web member qualification, and labor intensity of operating staff is low, efficiency is high, the testing result accurate stable.
4. can realize quick, steady, the automatic detecting & monitoring that web member is produced, provide good basic condition for web member manufacturing enterprise realizes computer integrated control and digital management.
The accompanying drawing explanation

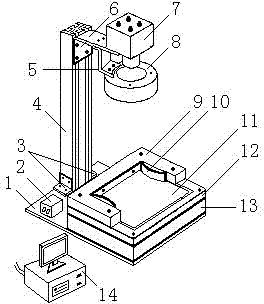

Fig. 1 is structural upright schematic diagram of the present utility model.
Embodiment
The utility model will be further described with enforcement below in conjunction with accompanying drawing.
As shown in Figure 1, web member based on machine vision detection system of the present utility model, comprise base plate 1, contiguous block 3, pillar 4, Z-shaped support plate 5, camera support plate 6, camera 7, coaxial light source 8, locating piece 9, flexure strip 10, glass plate 11, supporting frame 12, backboard light source 13, light source controller 2, operating system 14.
During work, first open the operating system 14 based on machine vision technique, and make camera 7 in running order, then open coaxial light source 8 and backboard light source 13.After entering workflow, web member to be measured is placed on glass plate 11, by the flexure strip 10 on locating piece 9 inner surfaces, positioned; Then by light source controller 2, regulate the brightness of each light source, the web member image that makes camera 7 gather and be transferred to operating system 14 meets the requirements; Afterwards, operating system 14 utilizes software to analyze and process image, the qualification of judgement web member.For defective, system will be indicated and report to the police.
Claims (4)
1. detection system of the web member based on machine vision, comprise base plate (1), pillar (4), camera (7), coaxial light source (8), locating piece (9), flexure strip (10), glass plate (11), supporting frame (12), backboard light source (13), light source controller (2), operating system (14), it is characterized in that: described pillar (4) is fixedly connected in the middle of base plate (1) front end, pillar (1) top is equipped with camera support plate (6), camera support plate (6) is equipped with camera (7) above rear end, camera support plate (6) rear end is fixedly connected with coaxial light source (8) below by Z-shaped support plate (5), and coaxial light source (8) is positioned under camera (7), base plate (1) is installed backboard light source (13) above rear portion, above backboard light source (13), be fixedly connected with supporting frame (12), supporting frame (12) is equipped with glass plate (11) in surface, supporting frame (12) is equipped with locating piece (9) above front portion, on locating piece (9) inner surface, flexure strip (10) is housed, camera (7), coaxial light source (8) and locating piece (9) be vertical centering from top to bottom, camera (7) is connected with operating system (14), and coaxial light source (8) all is connected with light source controller (2) with backboard light source (13).
2. the detection system of the web member based on machine vision according to claim 1, is characterized in that, described camera (7) is black and white face battle array or linear array industrial camera, be used to gathering the web member image.
3. the detection system of the web member based on machine vision according to claim 1, is characterized in that, described glass plate (11) is transparency glass plate.
4. the detection system of the web member based on machine vision according to claim 1, is characterized in that, described light source controller (2) is placed in above the left front end of base plate (1), and described operating system (14) is positioned at base plate (1) left side.
