CN203308012U - Solar thermal insulation chamber - Google Patents
Solar thermal insulation chamber Download PDFInfo
- Publication number
- CN203308012U CN203308012U CN2012203041974U CN201220304197U CN203308012U CN 203308012 U CN203308012 U CN 203308012U CN 2012203041974 U CN2012203041974 U CN 2012203041974U CN 201220304197 U CN201220304197 U CN 201220304197U CN 203308012 U CN203308012 U CN 203308012U
- Authority
- CN
- China
- Prior art keywords
- wall
- roof
- gas channel
- insulation layer
- cold air
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B10/00—Integration of renewable energy sources in buildings
- Y02B10/20—Solar thermal
Landscapes
- Building Environments (AREA)
Abstract
本实用新型涉及一种节能建筑物，特别是涉及一种太阳能保温室。其技术方案是：包括屋顶和墙体，屋顶的内侧设有吸热保温层，所述的屋顶的外表面加装玻璃层，玻璃层与吸热保温层之间通过支撑架隔出一个气流通道，所述的气流通道的上端与吸热保温层的顶部设有的热气出孔，墙体内设有墙体气流通道，墙体的底部设有多个冷气进孔；加热气体通过气流通道、热气出孔、屋内和墙体底部的冷气进孔进入墙体气流通道，形成热气循环。本实用新型的有益效果是：通过采集太阳能，使热气进入室内并循环利用，可以保证白天停供暖气或者烧炉取暖，大大减少能源的消耗，同时减少污柒物的排放，避免环境污染。
The utility model relates to an energy-saving building, in particular to a solar heat preservation room. The technical solution is: including the roof and the wall, the inner side of the roof is provided with a heat-absorbing insulation layer, the outer surface of the roof is equipped with a glass layer, and an airflow channel is separated between the glass layer and the heat-absorbing insulation layer through a support frame , the upper end of the air flow channel and the hot air outlet hole provided on the top of the heat-absorbing insulation layer, the wall body is provided with a wall air flow channel, and the bottom of the wall body is provided with a plurality of cold air inlet holes; the heating gas passes through the air flow channel, The hot air outlet holes, the cold air inlet holes in the house and the bottom of the wall enter the airflow channel of the wall to form a hot air circulation. The beneficial effects of the utility model are: by collecting solar energy, the hot air enters the room and is recycled, which can ensure that the heating is stopped during the day or the furnace is heated for heating, greatly reducing energy consumption, reducing pollutant discharge, and avoiding environmental pollution.
Description
Technical field
The utility model relates to a kind of energy saving building, especially a kind of warming solar energy chamber.
Background technology
The heating in winter of existing private residence and factory floor is except central heating, and great majority adopt the modes such as the original burning coal such as boiler, stove, burning bavin, need to consume a large amount of fuel every day, have aggravated the consumption of the energy and the pollution of environment.
Summary of the invention
The purpose of this utility model is exactly in view of the foregoing defects the prior art has, and a kind of utilize solar energy heating to go forward side by side heating energy-saving house that the promoting the circulation of qi body recycles is provided.
The technical scheme that its technical problem that solves the utility model adopts is: comprise roof and body of wall, the inboard on roof is provided with the heat absorption insulation layer, the external surface equipped with glass layer on described roof, glassy layer is separated out a gas channel with asking by bracing frame of insulation layer of heat absorption, the hot gas that the top of the upper end of described gas channel and heat absorption insulation layer is provided with portals, in body of wall, be provided with the body of wall gas channel, the bottom of body of wall is provided with a plurality of cold air inlet holes; Heated air is portalled, with the cold air inlet hole of body of wall bottom, is entered the body of wall gas channel within doors by gas channel, hot gas, form hot gas cycle, the gas of gas channel is through shining upon heating, according to the principle that hot gas rises, cold air descends, hot gas enters within doors, and cold air enters gas channel through the cold air inlet hole and again is heated.
The external surface of described body of wall is provided with the body of wall glassy layer, by bracing frame, is separated out the body of wall gas channel between body of wall glassy layer and body of wall, and the body of wall gas channel is communicated with by tube connector with gas channel.In described roof, be provided with ceiling, the descending hole of the hot gas that ceiling is provided with, heated air leads to that enlightening gas channel, hot gas portal, the descending hole of hot gas, with the cold air inlet hole of body of wall bottom, enter the body of wall gas channel within doors, forms hot gas cycle.The back and the sunny side on described roof are respectively equipped with glassy layer.The sunny side on described roof is provided with glassy layer.
The beneficial effects of the utility model are: by gathering solar energy, make hot gas enter indoor and recycle, can guarantee to stop daytime for heating installation or burn the stove heating, greatly reduce the consumption of the energy, reduce simultaneously the discharge of pollutant, avoid environment pollution.
The accompanying drawing explanation
Below in conjunction with drawings and Examples, the utility model is further illustrated.

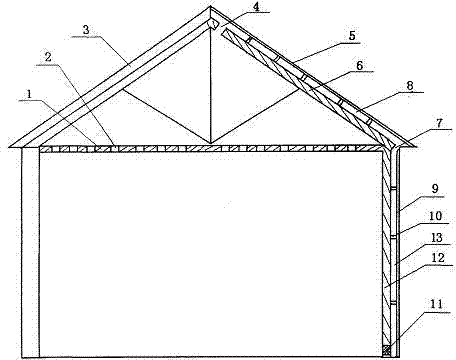

Accompanying drawing 1 is the structural representation of the first embodiment of the present utility model:
Accompanying drawing 2 is structural representations of the second embodiment of the present utility model:
In figure, ceiling 1, the descending hole 2 of hot gas, roof 3, hot gas portal 4, glassy layer 5, heat absorption insulation layer 6, tube connector 7, gas channel 8, body of wall glassy layer 9, bracing frame 10, cold air inlet hole 11, body of wall 12, body of wall gas channel 13.
The specific embodiment
Embodiment 1: with reference to accompanying drawing 1, the common private residence of take is example, the utility model will be further described: its structure mainly comprises ceiling 1, roof 3 and body of wall 12 etc., the inboard on roof 3 is provided with heat absorption insulation layer 6, the descending hole 2 of the hot gas that ceiling is provided with, the external surface equipped with glass layer on roof 3, between glassy layer and heat absorption insulation layer, be separated out a gas channel 8 that 4-5mm is thick by bracing frame 10, the hot gas that the top of the upper end of described gas channel 8 and heat absorption insulation layer is provided with portals 4, in body of wall 12, be provided with body of wall gas channel 13, the bottom of body of wall is provided with a plurality of cold air inlet holes 11, can set up stopper and block the cold air inlet hole, when winter, daytime was fine, can open stopper, make heated air pass through gas channel 8, hot gas portals 4, the descending hole 2 of hot gas, with the cold air inlet hole 11 of body of wall bottom, enter body of wall gas channel 13 within doors, form hot gas cycle, the gas of gas channel is through shining upon heating, according to hot gas, rise, the principle that cold air descends, hot gas enters within doors, cold air enters gas channel through the cold air inlet hole and again is heated.Certainly, the back and the sunny side on described roof 3 are respectively equipped with glassy layer, can be also that only its sunny side is provided with glassy layer 5; Can also make to be provided with body of wall glassy layer 9 at the external surface of body of wall 12, by bracing frame 10, be separated out body of wall gas channel 13 between body of wall glassy layer and body of wall, body of wall gas channel 13 is communicated with by tube connector 7 with gas channel 8.
Embodiment 2: with reference to accompanying drawing 2, take common flat-top workshop is example, the utility model will be further described: its structure is mainly to comprise roof 3 and body of wall 12 etc., the inboard on roof 3 is provided with heat absorption insulation layer 6, the appearance on roof 3 is drawn the equipped with glass layer, between glassy layer and heat absorption insulation layer, be provided with the gas channel 8 that 4-5mm is thick, the hot gas that the top of the upper end of described gas channel 8 and heat absorption insulation layer is provided with portals 4, in body of wall 12, be provided with body of wall gas channel 13, the bottom of body of wall is provided with a plurality of cold air inlet holes 11, can set up stopper and block the cold air inlet hole, when winter, daytime was fine, can open stopper, make heated air pass through gas channel 8, hot gas portals 4, with the cold air inlet hole 11 of body of wall bottom, enter body of wall gas channel 13 within doors, form hot gas cycle, the gas of gas channel is through shining upon heating, according to hot gas, rise, the principle that cold air descends, hot gas enters within doors, cold air enters gas channel through the cold air inlet hole and again is heated.
Claims (5)
1. warming solar energy chamber, comprise roof and body of wall, the inboard on roof is provided with the heat absorption insulation layer, it is characterized in that: the external surface equipped with glass layer on described roof, between glassy layer and heat absorption insulation layer, be separated out a gas channel by bracing frame, the hot gas that the top of the upper end of described gas channel and heat absorption insulation layer is provided with portals, and in body of wall, is provided with the body of wall gas channel, and the bottom of body of wall is provided with a plurality of cold air inlet holes.
2. warming solar energy according to claim 1 chamber, it is characterized in that: the external surface of described body of wall is provided with the body of wall glassy layer, between body of wall glassy layer and body of wall, be separated out the body of wall gas channel by bracing frame, the body of wall gas channel is communicated with by tube connector with gas channel.
3. warming solar energy according to claim 1 and 2 chamber, is characterized in that: in described roof, be provided with ceiling, the descending hole of the hot gas that ceiling is provided with.
4. according to claim l or 2 described warming solar energy chambers, it is characterized in that: the back and the sunny side on described roof are respectively equipped with glassy layer.
5. warming solar energy according to claim 3 chamber, it is characterized in that: the sunny side on described roof is provided with glassy layer.
