Abstract
本实用新型涉及医疗器械技术领域，是一种带有防堵气囊的脓液引流双腔管，由冲洗管（1）和引流管（2）组成，分头部、体部和尾部三部分，头部圆钝，前端为双腔管的两个管口，管口周边圆润光滑，位于冲洗管一侧的管壁上设或不设进液孔（3），位于引流管一侧的管壁上设或不设出液孔（4）；尾部的冲洗管和引流管分离呈Y形，冲洗管的尾端与输液导管或注射器连接，引流管的尾端设有一根分叉管（5），引流管的主管与负压吸引装置连接，分叉管与防堵气囊（6）衔接。本实用新型操作方便，设有防堵气囊可随时将管口堵塞物冲开，有利于冲洗和引流连贯进行，省时省力；由于双腔管头部管壁上设有进液孔和出液孔，因此对脓液的冲洗引流更充分，且对组织器官不易造成损伤。
The utility model relates to the technical field of medical devices, which is a pus drainage double-cavity tube with an anti-blocking air bag, which is composed of a flushing tube (1) and a drainage tube (2), which are divided into three parts: a head, a body and a tail. The head is round and blunt, and the front end is the two nozzles of the double-lumen tube. The circumference of the nozzle is round and smooth. There is or is not provided with a liquid outlet (4); the washing tube and the drainage tube at the tail are separated into a Y shape, the tail end of the washing tube is connected with the infusion catheter or the syringe, and a bifurcated tube (5) is provided at the tail end of the drainage tube , the main pipe of the drainage tube is connected with the negative pressure suction device, and the bifurcated tube is connected with the anti-blocking air bag (6). The utility model is easy to operate, and is equipped with an anti-blocking air bag, which can flush away the blockage at the mouth of the nozzle at any time, which is conducive to the continuous flushing and drainage, saving time and effort; because the wall of the head of the double-cavity tube is provided with a liquid inlet hole and a liquid outlet Therefore, the flushing and drainage of pus is more sufficient, and it is less likely to cause damage to tissues and organs.
Description
技术领域technical field
本实用新型涉及医疗器械技术领域，是一种带有防堵气囊的脓液引流双腔管。The utility model relates to the technical field of medical instruments, which is a pus drainage double-cavity tube with an anti-blocking air bag.
背景技术Background technique
临床上，脓液的引流和脓腔的冲洗是常用的医疗措施，以加快脓腔的闭合。目前常规使用的是一种单腔引流管，引流方法为：在影像定位下将一根引流管插于脓腔进行引流。在实际操作中，由于脓液比较粘稠，可能夹有杂质或絮状物，引流时引流管的管口容易被堵塞，因此往往先注入适量冲洗液稀释，再行引流。然而，粘稠的脓液不容易被少量冲洗液稀释，管口仍容易被堵塞，出现冲洗液注入顺畅而引流不畅的情况，且采用一根管既用于冲洗，又用于引流，操作不连贯，费时费力，还可能引流不彻底，特别是对位于腹腔的脓肿，由于管口的吸力较大，容易吸住肠壁、网膜等组织器官造成损伤。Clinically, the drainage of pus and the flushing of the abscess cavity are commonly used medical measures to speed up the closure of the abscess cavity. At present, a single-lumen drainage tube is routinely used, and the drainage method is as follows: a drainage tube is inserted into the abscess cavity under imaging positioning for drainage. In actual operation, because the pus is relatively viscous and may contain impurities or flocs, the orifice of the drainage tube is easily blocked during drainage. Therefore, an appropriate amount of washing fluid is often injected to dilute it before drainage. However, the viscous pus is not easy to be diluted by a small amount of irrigating fluid, and the orifice of the nozzle is still easily blocked, so that the irrigating fluid is injected smoothly but the drainage is not smooth, and a tube is used for both rinsing and drainage. Incoherent, time-consuming and labor-intensive, and may not be completely drained, especially for abscesses located in the abdominal cavity, due to the strong suction of the nozzle, it is easy to suck the intestinal wall, omentum and other tissues and organs to cause damage.
发明内容Contents of the invention
本实用新型的目的是提供一种操作简便、冲洗引流充分、对组织器官不会造成损伤的带有防堵气囊的脓液引流双腔管。The purpose of the utility model is to provide a pus drainage double-cavity tube with an anti-blocking air bag, which is easy to operate, sufficient for flushing and drainage, and does not cause damage to tissues and organs.
本实用新型由冲洗管和引流管组成，分头部、体部和尾部三部分。头部圆钝，前端为双腔管的两个管口，位于引流管一侧的管壁上设或不设出液孔，引流管管口和出液孔周边圆润光滑，以防吸出脓液等液体时伤及肠壁、网膜等组织器官，位于冲洗管一侧的管壁上设或不设进液孔，若设有进液孔，则可用冲洗液多方位进入脓腔冲洗脓液，从而对脓液的冲洗引流更充分；尾部的冲洗管和引流管分离呈Y形，冲洗管的尾端与输液导管或注射器连接，以输入冲洗液，引流管的尾端设有一根分叉管，引流管的主管与负压吸引装置连接，以进行负压引流，其分叉管与防堵气囊衔接，用于在引流管前端管口被堵塞时注入气体，气体将引流管管内的液体前推，使管口堵塞物被冲开，于是可继续进行负压引流。The utility model is composed of a flushing tube and a drainage tube, which are divided into three parts: a head, a body and a tail. The head is round and blunt, and the front end is the two nozzles of the double-lumen tube. The tube wall on one side of the drainage tube is provided with or without a fluid outlet hole. The surroundings of the drainage tube nozzle and the fluid outlet hole are round and smooth to prevent pus from being sucked out. Injury to the intestinal wall, omentum and other tissues and organs when waiting for liquid, the tube wall located on one side of the irrigation tube may or may not be provided with a liquid inlet hole, if there is a liquid inlet hole, the irrigation liquid can be used to enter the abscess cavity in multiple directions to flush out the pus , so that the flushing and drainage of pus is more sufficient; the irrigation tube and the drainage tube at the tail are separated into a Y shape, and the tail end of the irrigation tube is connected with the infusion catheter or syringe to input the flushing fluid, and the tail end of the drainage tube is provided with a bifurcation The main pipe of the drainage tube is connected to the negative pressure suction device for negative pressure drainage, and its bifurcated tube is connected with the anti-blocking air bag, which is used to inject gas when the front end of the drainage tube is blocked, and the gas will drain the liquid in the drainage tube Push forward, so that the nozzle blockage is washed away, so that negative pressure drainage can continue.
使用时，按常规将本实用新型双腔管的前端置于脓肿部位，冲洗管的尾端直接接输液导管或注射器注入冲洗液，冲洗液从冲洗管口和/或进液孔流入冲洗脓腔稀释脓液等，引流管主管的尾端接负压吸引装置将冲洗液冲洗下来的液体吸除，在引流管前端管口被堵塞时，停止负压吸引，用防堵气囊将管口堵塞物冲开后继续引流。When in use, place the front end of the double-cavity tube of the utility model on the abscess site as usual, and the tail end of the flushing tube is directly connected to the infusion catheter or syringe to inject the flushing liquid, and the flushing liquid flows into the flushing abscess cavity from the flushing nozzle and/or the liquid inlet hole To dilute pus, etc., connect the end of the drainage tube to a negative pressure suction device to absorb the liquid washed by the irrigation fluid. When the front end of the drainage tube is blocked, stop the negative pressure suction, and use the anti-blocking air bag to remove the blockage from the tube orifice. Continue drainage after flushing.
本实用新型操作方便，冲洗和引流可以连贯进行，由于引流管壁上设有出液孔，因此液体吸出时，吸力被分散至各孔，避免了因吸引力过大造成对组织脏器的损伤，加上引流管管口和出液孔周边圆润光滑，故对肠壁、网膜等组织器官不容易造成损伤；由于设有防堵气囊可随时将管口堵塞物冲开，有利于引流的顺利进行，省时省力；由于双腔管头部的管壁上设有多个出液孔，冲洗液可多方位冲洗脓腔，因此对脓液的冲洗引流更充分。The utility model is easy to operate, flushing and drainage can be carried out coherently, because the drainage tube wall is provided with a liquid outlet hole, so when the liquid is sucked out, the suction force is dispersed to each hole, avoiding damage to tissues and organs due to excessive suction In addition, the mouth of the drainage tube and the periphery of the outlet hole are round and smooth, so it is not easy to cause damage to the intestinal wall, omentum and other tissues and organs; because of the anti-blocking air bag, the blockage at the mouth of the tube can be washed away at any time, which is conducive to drainage. It goes smoothly, saves time and effort; because there are multiple outlet holes on the wall of the head of the double-lumen tube, the irrigation fluid can rinse the pus cavity in multiple directions, so the irrigation and drainage of the pus is more sufficient.
附图说明Description of drawings

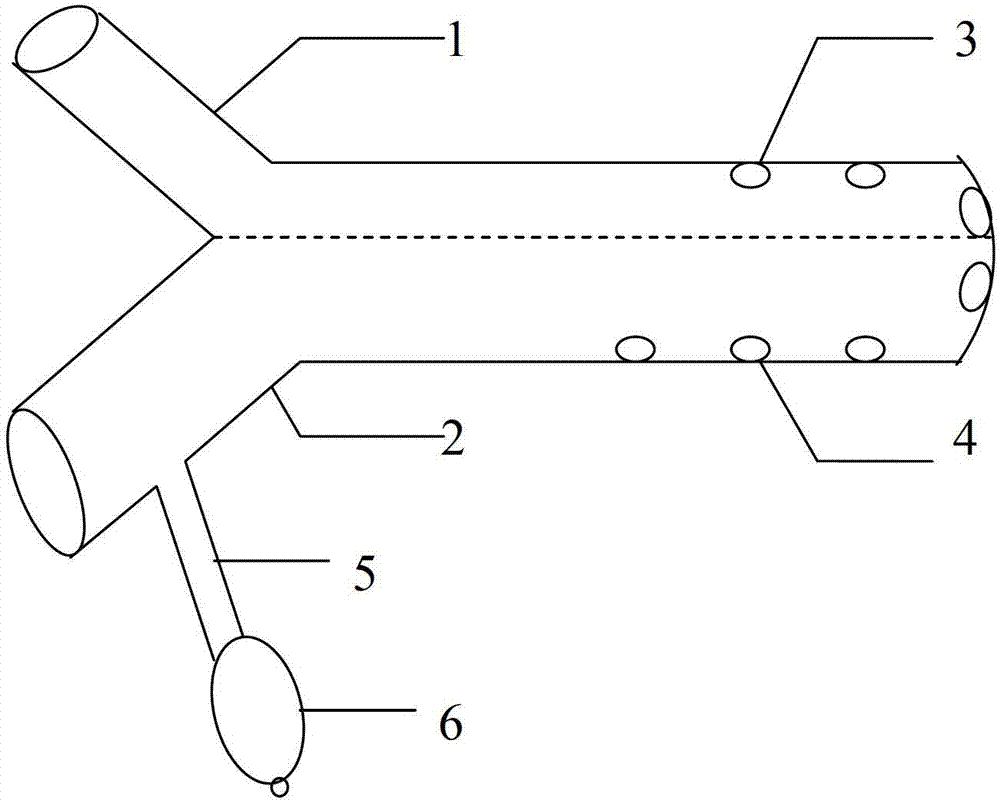

图1为本实用新型的整体结构示意图。Figure 1 is a schematic diagram of the overall structure of the utility model.
图2为本实用新型双腔管体部的横截面结构示意图。Fig. 2 is a schematic diagram of the cross-sectional structure of the dual-cavity tube body of the present invention.
具体实施方式Detailed ways
现结合附图对本实用新型作详细描述。Now in conjunction with accompanying drawing, the utility model is described in detail.
本实用新型由冲洗管1和引流管2组成，分头部、体部和尾部三部分，头部圆钝，前端为双腔管的两个管口，位于冲洗管一侧的管壁上设或不设进液孔3，位于引流管一侧的管壁上设或不设出液孔4；尾部的冲洗管和引流管分离呈Y形，冲洗管1的尾端与输液导管或注射器连接，以输入冲洗液，引流管2的尾端设有一根分叉管5，引流管的主管与负压吸引装置连接，分叉管5与防堵气囊6相连。The utility model is composed of a flushing tube 1 and a drainage tube 2, which are divided into three parts: the head, the body and the tail. The head is round and blunt. Or do not set the
实施例1、一种带有防堵气囊的脓液引流双腔管Embodiment 1. A double-lumen tube for pus drainage with an anti-clogging air bag
本实用新型冲洗管1长45cm,内径0.2cm，引流管2长45cm,内径0.3cm，尾端两管分离，各长15cm。引流管的分叉管5长10cm,内径0.1cm,防堵气囊6为市售的血压计球囊。The flushing pipe 1 of the utility model is long 45cm, and internal diameter is 0.2cm, and drainage pipe 2 is long 45cm, and internal diameter is 0.3cm, and two pipes of tail end are separated, and each long 15cm. The bifurcated
实施例2、一种带有防堵气囊的脓液引流双腔管Embodiment 2, a double-lumen tube for pus drainage with an anti-blocking air bag
本实用新型的双腔管头部管壁上设有2个进液孔3和3个出液孔4。其余同实施例1。Two
本实用新型可按需制成不同的规格型号，可用于引流脓液、胆汁或其他引流液。The utility model can be made into different specifications and models as required, and can be used for drainage of pus, bile or other drainage fluids.
