CN203290020U - Tobacco plant hydroponic device - Google Patents
Tobacco plant hydroponic device Download PDFInfo
- Publication number
- CN203290020U CN203290020U CN2013203291620U CN201320329162U CN203290020U CN 203290020 U CN203290020 U CN 203290020U CN 2013203291620 U CN2013203291620 U CN 2013203291620U CN 201320329162 U CN201320329162 U CN 201320329162U CN 203290020 U CN203290020 U CN 203290020U
- Authority
- CN
- China
- Prior art keywords
- tobacco plant
- tobacco
- fixed
- hydroponic device
- plant hydroponic
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P60/00—Technologies relating to agriculture, livestock or agroalimentary industries
- Y02P60/20—Reduction of greenhouse gas [GHG] emissions in agriculture, e.g. CO2
- Y02P60/21—Dinitrogen oxide [N2O], e.g. using aquaponics, hydroponics or efficiency measures
Landscapes
- Hydroponics (AREA)
Abstract
A tobacco plant hydroponic device is characterized in that a non-transparent liquid storage box and a fixed planting board buckled on the upper edge of the liquid storage box are included, a water outlet is formed in the bottom of the liquid storage box, the bottom of the liquid storage box is connected with a transparent plastic hose, a tobacco sprout planting hole is formed in the center of the fixed planting board, four supporting rods which are arrange in a cross shape are arranged on the periphery of the tobacco sprout planting hole, the height of the each supporting rod is adjusted vertically through a fixed adjusting device fixed on the fixed planting board, rubber bands for supporting and fixing the stem of a tobacco sprout are arranged between correspondingly intersected supporting rods, and a water inlet is formed in a side position of the fixed planting board. At utilization time, a tobacco sprout can grow normally as long as the hydroponic tobacco sprout is placed into the planting hole and is fixed through the rubber bands on the supporting rods, and prepared nutrition liquid is added into the liquid storage device. The tobacco plant hydroponic device can be used for effective fixing a tobacco plant and preventing the tobacco plant from falling down, and can also be used for replacing nutrition liquid and adding the nutrition liquid conveniently.
Description
Technical field
The utility model belongs to tobacco water planting technical field, specifically a kind of tobacco plant hydroponic device that is applicable to scientific experiment.
Background technology
Water planting refers to that root system of plant is grown directly upon the soilless culture method in nutrient solution.Under the water planting condition, plant directly draws nutrition from solution, and plant strain growth is very fast, and root system is sound flourishing.Water planting has been a kind of plant cultivation method commonly used in scientific experiment, is widely used in plant nutrition and plant physiology research.
Tobacco is as a kind of important economic crops and botany mode crop, many research institutions and researcher all tobacco as a kind of important research object, and water planting is also common a kind of planting type in tobacco research.
At present, people are when carrying out cigarette seedling water planting, and what generally use is cystosepiment field planting method (CN201020230551.4), iron wire or clip fixation (CN200610041567.9 and CN200920289463.9) and vermiculite water culture etc.Though these methods can be carried out the fixing of cigarette seedling and be cultivated, and have some problems, as cystosepiment field planting method, are only applicable to seedling, when seedling grew up to strong sprout, the cigarette strain was difficult for fixing, needed while changing liquid the cigarette strain is taken out, and is very inconvenient; Iron wire or clip fixation can produce injury to tobacco, affect its growth; The vermiculite water culture is more loaded down with trivial details when carrying out the root system sampling, and easily root system is produced damage.
The utility model content
For the weak point that exists in existing water culture technology, the technical problems to be solved in the utility model is to provide a kind of tobacco hydroponic device of Simple And Practical, it is effectively fixedly cigarette strain not only, prevents its lodging, but also can change easily nutrient solution and quantitatively add nutrient solution.
the purpose of this utility model is achieved through the following technical solutions: a kind of tobacco plant hydroponic device, comprise that fluid storage tank and button are placed on the field planting plate on edge on fluid storage tank, the fluid storage tank bottom offers delivery port and is connected with transparent plastic hose, offer the cigarette seedling at field planting plate center and implant hole, the cigarette seedling is implanted the hole surrounding and is provided with four support bars that are the cross layout, the height of described support bar is by being fixed on the secured adjusted device up-down adjustment on the field planting plate, be connected with between support bar corresponding to intersection for supporting the fixedly rubber band of cigarette seedling bar stem, offer a funnel-form water inlet at the avris position of field planting plate.
In the utility model, described secured adjusted device is adjusting nut.The fluid storage tank tank wall is provided with graduation mark, to show water level.
The middle part of the rubber band between two support bars is bonded with one section soft material that is used for preventing cigarette seedling bar stem ankle injury.
The utility model in use, only need to be put into the cigarette seedling of water planting and implant hole, and by the rubber band on support bar, be fixed, and adds the nutrient solution for preparing in liquid reservoir, and the cigarette seedling just can normal growth.And the utility model device increased a hose mouth of a river and funnel water inlet, can also, by the volume of nutrient solution in the rough estimation liquid reservoir of the water level of checking hose, use very convenient.
Description of drawings

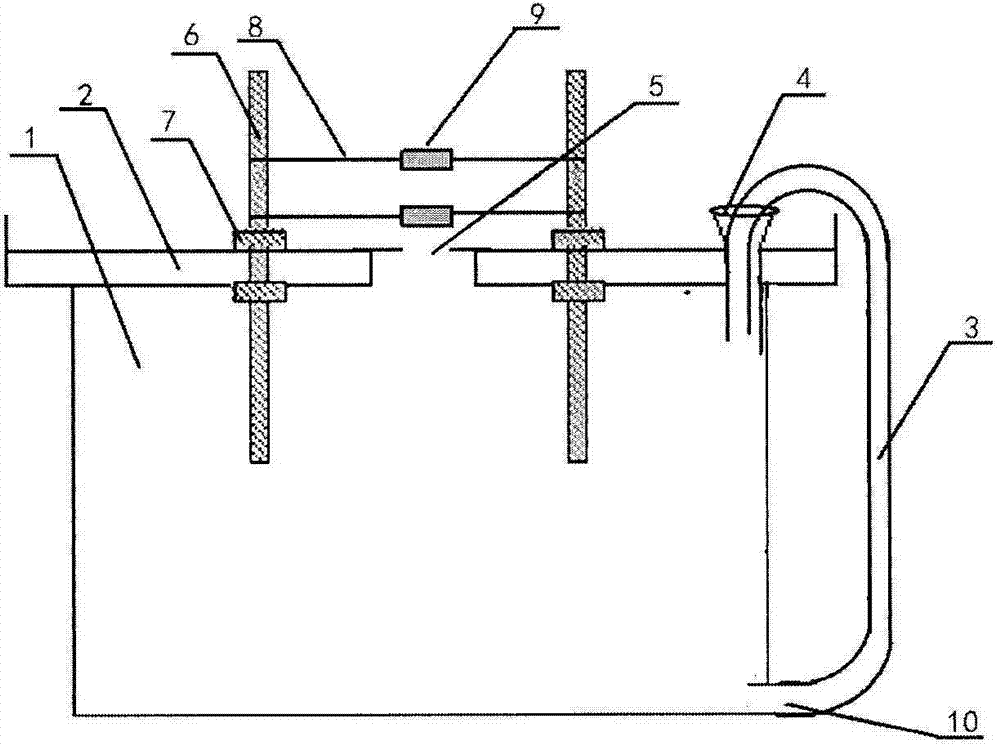

Fig. 1 is the utility model sectional structure schematic diagram.
Fig. 2 is the vertical view of the utility model field planting plate.
In figure: 1, fluid storage tank, 2, the field planting plate, 3, flexible pipe, 4, water inlet, 5, the cigarette seedling implants hole, 6, support bar, 7, nut, 8, rubber band, 9, soft material, 10, delivery port.
Embodiment
Below in conjunction with accompanying drawing, the utility model is described further.
as Fig. 1, shown in 2, a kind of tobacco plant hydroponic device, comprise that fluid storage tank 1 and button are placed on the field planting plate 2 on edge on fluid storage tank, the fluid storage tank bottom offers delivery port 10 and is connected with transparent plastic hose 3, offer the cigarette seedling at field planting plate center and implant hole 5, the cigarette seedling is implanted the hole surrounding and is provided with four support bars 6 that are the cross layout, the height of described support bar is by being fixed on secured adjusted device (the being nut 7) up-down adjustment on the field planting plate, be connected with between two support bars corresponding to intersection for supporting the fixedly rubber band 8 of cigarette seedling bar stem, offer a funnel-form water inlet 4 at the avris position of field planting plate.
during use, plastic flexible pipe 3 is mentioned, make its peak on field planting plate 2, add nutrient solution by funnel water inlet 4 again, this moment can be by checking the water level at plastic flexible pipe place, determine to add the height of nutrient solution, after nutrient solution adds, plastic flexible pipe 3 is inserted funnel water inlet 4 places, it is fixed, by nut 7, support bar 6 is adjusted to suitable height (it highly preferably is no more than cigarette height of seedling degree) again, then putting two at the rhizome join of cigarette seedling is sponge with soft material 9() rubber band 8, again cigarette shoot root system is immersed in nutrient solution by implanting hole 5, finally rubber band is enclosed within on corresponding support bar by chi sequence, thereby the cigarette seedling is fixed, in the process of tobacco seedling growth, can also keep fixed effect by the elongation degree of adjusting rubber band and the height of support bar, sponge is mainly used to wrap up in holds the cigarette seedling and prevents that rubber band from damaging it, when the nutrient solution in replacing fluid storage tank 1, only need flexible pipe 3 is taken out from the funnel water inlet, again liquid is drained, thereby the trouble of while having avoided changing liquid, the cigarette strain having been taken out.This device is simple to operate, is applicable to do tobacco experiment in the time of infertility.This device only is provided with four support bars 6 and two rubber bands 8 as shown in accompanying drawing 1,2, can also arrange a plurality of, condition and determining according to need.
Claims (5)
1. tobacco plant hydroponic device, it is characterized in that: comprise that a nontransparent fluid storage tank and button are placed on the field planting plate on edge on fluid storage tank, the fluid storage tank bottom offers delivery port and is connected with transparent plastic hose, offer the cigarette seedling at field planting plate center and implant hole, the cigarette seedling is implanted the hole surrounding and is provided with four support bars that are the cross layout, the height of described support bar is by being fixed on the secured adjusted device up-down adjustment on the field planting plate, be connected with between support bar corresponding to intersection for supporting the fixedly rubber band of cigarette seedling bar stem, avris position at the field planting plate offers a water inlet.
2. tobacco plant hydroponic device according to claim 1, it is characterized in that: the secured adjusted device is adjusting nut.
3. tobacco plant hydroponic device according to claim 1 is characterized in that: the middle part of the rubber band between two support bars is bonded with one section soft material that is used for preventing cigarette seedling cane ankle injury.
4. tobacco plant hydroponic device according to claim 1, it is characterized in that: water inlet is funnel-form.
5. tobacco plant hydroponic device according to claim 1, it is characterized in that: the fluid storage tank tank wall is provided with graduation mark.
