Abstract

The utility model provides a portable 3G wireless solar energy monitoring system, comprising a solar power supply system, a video monitoring system and a wireless video transmission system. The solar power supply system comprises a solar module, a lithium battery, a BMS (battery management system) module and a voltage stabilization output module, wherein the solar module is connected to the BMS module, and the BMS module is connected to the lithium battery and the voltage stabilization output module respectively; the video monitoring system comprises a camera and a movable shelf; and the wireless video transmission system comprises a wireless transmission module. The portable 3G wireless solar energy monitoring system adopts portable design, thereby having the advantages of capability of being deployed rapidly, being flexible to move, being used throughout the day, needing no ditching or electric power rack erection, needing no large quantities of wire material and no power transmission and transformation equipment, not consuming commercial power, not being restricted by geographic locations and so on; in addition, advanced 3G wireless video transmission technology is adopted, so that temporary or continuous remote video monitoring at any places having mobile phone signals is made possible.

Description

Solar energy supervisory control system that portable 3G is wireless
Technical field
The utility model relates to supervisory control system, is specifically related to the wireless solar energy supervisory control system of a kind of portable 3G.
Background technology
The area that more present remote areas and solar energy resources are relatively abundant: as forest mountain area, scenic spot, mining area, highway, fishing ground reservoir, construction site, island frontier defense, oil or natural gas line, railway or power transmission line.These areas are because physical features is remote, and cause uninhabited, perhaps there is no electric power netting twine process, simplified summary is the place of " three none have ", namely unmanned nothing electricity is without netting twine, but need Real-time Monitor Management to need again the local or regional of energy-conservation Zero-discharge non-pollution, the remote districts that can't obtain supply of electric power are difficult to realize long-range uninterrupted video monitoring, simple solar poweredly due to continuous, likely cause standby electricity to be used up without sunlight making system be in the state of quitting work, make in use procedure and blind area occurs.
and when accident occurs or when temporary needs is monitored, fixed wireless supervisory control system is set a wasting of resources is arranged, often need a kind of portable supervisory control system, realization is carried out the real time remote wireless transmission to the image scene of various accidents, also can be applicable to be placed on for a long time appointed place and carry out uninterrupted wireless video monitoring round the clock, for example for the various emergency management and rescue tasks of speedily carrying out rescue work of government department, provide real-time image scene, complete the rescue task to help the better command scheduling of headquarter, to national grid, the important building site such as oil is monitored temporarily, public security department carries out interim fixed point monitoring to suspicious object, the wild animal monitoring, soldier individual soldier's monitoring etc.
The utility model content
In order to solve the deficiency of above-mentioned technology, the purpose of this utility model is to provide the wireless solar energy supervisory control system of a kind of portable 3G, and it has solved fixed supervisory control system in the past can not effectively solve the deficiency of accident or interim monitoring.
The technical scheme that its technical problem that solves the utility model adopts is:
the wireless solar energy supervisory control system of a kind of portable 3G, described solar energy supervisory control system comprises be used to the solar electric power supply system that power supply is provided, be used for the video monitoring system of Real Time Monitoring and be used for the wireless video transmission system of transfer of data, described solar electric power supply system comprises solar components, lithium battery, BMS battery management module and voltage stabilizing output module, described solar components is connected with the BMS battery management module, described BMS battery management module is connected with the voltage stabilizing output module with lithium battery respectively, described video monitoring system comprises for the video camera of monitoring with for the adjustable shelf that fixedly mounts video camera, described wireless video transmission system comprises wireless transport module.
Described solar components adopts the folding type flexible solar components.
Described solar electric power supply system comprises the charging adapter for common charging, and described charging adapter is connected with the BMS battery management module.
Described wireless transport module is wireless 3G module.
Described wireless video transmission system comprises for the video server of storage the transmission of data, is used for the wireless 3G network of video data transmitting and the 3G gain antenna that is used for strengthening signal transmission.
Described 3G gain antenna adopts the mounted enhancing double antenna of absorption.
Described video monitoring system is provided with the laser light aid of taking light for strengthening.
Described adjustable shelf adopts the aluminium alloy telescopic tripod.
Described adjustable shelf top is provided with the strong magnets that video camera is installed for absorption.
The beneficial effects of the utility model are, adopt portable design, it is had fast deploy troops on garrison duty, mobile flexible, round-the-clock use, need not ditching or set up the electric power frame, do not need a large amount of wire rods, do not need power transmission and transforming equipment, do not consume civil power, be not subjected to geographic restriction, the plurality of advantages such as maintenance cost is low, the danger of low pressure non-contact electric, adopted simultaneously advanced 3G wireless video transmission technology, making anyly has the place of mobile phone signal to realize that temporarily or uninterruptedly monitoring remote video becomes possibility.
Description of drawings
Fig. 1 is structural representation of the present utility model.
Fig. 2 is the logic diagram of solar electric power supply system of the present utility model.

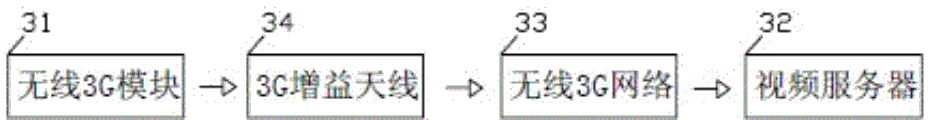

Fig. 3 is the logic diagram of wireless video transmission system of the present utility model.
Embodiment
Below in conjunction with accompanying drawing, the utility model is further illustrated:
referring to Fig. 1, Fig. 2 and Fig. 3, the utility model comprises be used to the solar electric power supply system 1 that power supply is provided, be used for the video monitoring system 2 of Real Time Monitoring and be used for the wireless video transmission system 3 of transfer of data, described solar electric power supply system 1 comprises solar components 11, lithium battery 12, BMS battery management module 13 and voltage stabilizing output module 14, described solar components 11 is connected with BMS battery management module 13, described BMS battery management module 13 is connected and is connected with the voltage stabilizing output module with lithium battery 12 respectively, described video monitoring system 2 comprises for the video camera 21 of monitoring and is used for the adjustable shelf 22 of fixed cameras 21, described wireless video transmission system 3 comprises wireless transport module.
Described solar components 11 adopts the folding type flexible solar components, and the folding type flexible solar components changes luminous energy into electric energy, via BMS battery management module 13, power storage is arrived lithium battery 12; While needing power supply, open lithium battery 12 mains switches and connect load, the electric energy in lithium battery 12 is offered load.The Main Function of BMS battery management module 13 is that lithium battery 12 is carried out management of charging and discharging, and when lithium battery 12 electricity shortage within the operating time, BMS battery management module 13 is cut off load supplying automatically, and lithium battery 12 is carried out Cross prevention; When lithium battery 12 continued charging, 13 pairs of lithium batteries of BMS battery management module 12 carried out over-charge protective.
, because the utility model according to circumstances needs to move at any time,, so solar components has adopted the folding flexible solar assembly of 90W, can portable weight be 5KG after folding.Its photoelectric conversion efficiency is 20% higher than regular solar assembly 11, and solar power generation is the main source of whole system non-stop run energy.Lithium battery 12 is there is no to keep the required energy source of system works sunshine in situation, when occurring, overcast and rainy continuously situation just need lithium battery 12 to have enough electric weight to keep the continuous operation of whole system, the lithium battery 12 of the utility model configuration is 45AH, video camera 21 12 cruising time of lithium battery in static situation are 50 hours, in video camera 21 continuous rotation situations, 12 cruising time of lithium battery are 42 hours, and 12 useful lifes of lithium battery are 500 circulations.
Due to the preciousness of solar power generation and lithium battery 12 accumulates, so in whole system, the low power operation of load equipment becomes the key of solar energy radio supervisory control system.Load equipment should select the product of low power consumption effectively to reduce system power consumption.In order to solve the excessive problem of infrared lamp power in night vision, video camera of the present utility model 21 adopts the super low-power consumption laser camera, has met again the night vision demand when making the power consumption of video camera 21 greatly reduce, and has also reduced the power supply cost of solar energy system.
Described solar electric power supply system 1 comprises the charging adapter 15 for common charging, described charging adapter 15 is connected with BMS battery management module 13, also can give lithium battery 12 chargings with charging adapter 15 in the place that civil power is arranged except solar recharging, charging adapter 15 specifications are 16.8V/10A, band radiator fan, charging indicator light, after charging is completed, the demonstration green light also stops charging automatically, and under the load non operating state, the charging interval is 4 hours fully.
Referring to Fig. 3, described wireless video transmission system 3 comprises for the video server 32 of storage the transmission of data, is used for the wireless 3G network 33 of video data transmitting and the 3G gain antenna 34 that is used for strengthening signal transmission, and described 3G gain antenna 34 adopts the mounted enhancing double antenna of absorption.
Wireless video transmission system 3 is to utilize wireless 3G network 33 to carry out transmission of video, video data is passed through relevant 3G platform operation business's network delivery to Surveillance center.The support that the 3G transmission covers due to operator's service network large tracts of land, can effectively overcome the stopping signal such as massif, trees, building, as long as there is the place of mobile phone signal (telecommunications or UNICOM) just can receive image, guarantee to the full extent transmission of video, be suitable for city, village, suburb and emergent application fast, image resolution ratio CIF, VGA, HD1, D1 are optional and number of image frames is adjustable, and to tackle different network environments, the SD card plug that provides can be realized front end video recording.3G gain antenna 34 is configured to the second generation and strengthens double antenna, and signal is better than single antenna, and 3G gain antenna 34 adopts quick adsorption formula mounting means.
Described video monitoring system 2 is provided with the laser light aid 23 of taking light for strengthening.
Described adjustable shelf 22 adopts the aluminium alloy telescopic tripod, described adjustable shelf 22 tops are provided with the strong magnets that video camera 21 is installed for absorption, described adjustable shelf 22 can launch at any time support cameras 21 or draw in and carry, flexible amplitude is 95 centimetres-160 centimetres, adjustable shelf 22 tops are embedded with strong magnets, install for video camera 21 quick adsorptions, the steel nut on adjustable shelf 22 tops can be installed for 34 absorption of 3G gain antenna.
The image of target monitoring point is gathered by video camera 21, be wirelessly transmitted to wireless 3G network 33 by wireless 3G module 31 by 3G gain antenna 34, be transferred to video server 32 by wireless 3G network 33 by internet again, video server 32 is transmitted to by internet the host computer that private client software is installed and carries out video monitoring and video recording.Front-end camera according to user's request select can 360 ° of rotations common ball machine or sharp ball grinder.Swash ball grinder night visual range and reach 120 meters, its laser lamp power is only 5W, under the bad weathers such as mist snow, stronger penetration power is arranged, be 3-5 times of common infrared lamp useful life, is particularly suitable under wild environment controlling the high solar energy supervisory control system of power consumption requirement.
The utility model can be realized the remote monitoring of any node or multinode by internet, can provide master control to divide the control function.The user can understand and control the operating state of front-end camera at any time in Surveillance center, as video camera 21 menus are adjusted, the ball machine head is carried out the upper and lower, left and right adjustment, the all-in-one camera lens is furthered zoom out, focus on manually or automatically, carry out the presetting bit setting, the track setting of cruising, video recording inquired about and playback.
The image scene that the utility model is mainly used in various accidents carries out the real time remote wireless transmission, also can be applicable to be placed on for a long time appointed place and carry out uninterrupted wireless video monitoring round the clock, for example for the various emergency management and rescue tasks of speedily carrying out rescue work of government department, provide real-time image scene, to help the better command scheduling of headquarter to complete the rescue task, to the important building sites such as national grid, oil monitor temporarily, public security department carries out to suspicious object the aspects such as monitoring, wild animal monitoring, soldier individual soldier's monitoring of fixing a point temporarily.
Embodiment should not be considered as restriction of the present utility model, but any improvement of doing based on spirit of the present utility model, all should be within protection range of the present utility model.

Claims (9)

1. wireless solar energy supervisory control system of portable 3G, it is characterized in that: described solar energy supervisory control system comprises be used to the solar electric power supply system that power supply is provided (1), be used for the video monitoring system (2) of Real Time Monitoring and be used for the wireless video transmission system (3) of transfer of data, described solar electric power supply system (1) comprises solar components (11), lithium battery (12), BMS battery management module (13) and voltage stabilizing output module (14), described solar components (11) is connected with BMS battery management module (13), described BMS battery management module (13) is connected 14 with lithium battery (12) with the voltage stabilizing output module respectively) be connected, described video monitoring system (2) comprises for the video camera (21) of monitoring with for the adjustable shelf (22) that fixedly mounts video camera (21), described wireless video transmission system (3) comprises wireless transport module.
2. the wireless solar energy supervisory control system of portable 3G according to claim 1, is characterized in that, described solar components (11) adopts the folding type flexible solar components.
3. the wireless solar energy supervisory control system of portable 3G according to claim 1, it is characterized in that, described solar electric power supply system (1) comprises the charging adapter (15) for common charging, and described charging adapter (15) is connected with BMS battery management module (13).
4. the wireless solar energy supervisory control system of portable 3G according to claim 1, is characterized in that, described wireless transport module is wireless 3G module (31).
5. the wireless solar energy supervisory control system of portable 3G according to claim 1, it is characterized in that, described wireless video transmission system (3) comprises for the video server (32) of storage the transmission of data, is used for the wireless 3G network (33) of video data transmitting and the 3G gain antenna (34) that is used for strengthening signal transmission.
6. the wireless solar energy supervisory control system of portable 3G according to claim 5, is characterized in that, described 3G gain antenna (34) adopts the mounted enhancing double antenna of absorption.
7. the wireless solar energy supervisory control system of portable 3G according to claim 1, is characterized in that, described video monitoring system (2) is provided with the laser light aid (23) of taking light for strengthening.
8. the wireless solar energy supervisory control system of portable 3G according to claim 1, is characterized in that, described adjustable shelf (22) adopts the aluminium alloy telescopic tripod.
9. the according to claim 1 or 8 wireless solar energy supervisory control systems of described portable 3G, is characterized in that, described adjustable shelf (22) top is provided with the strong magnets that video camera (21) is installed for absorption.
