Abstract

The utility model discloses an air purification device with an ultrasonic humidification function, which comprises a shell main body, on which a humidification device, an air purification device and a control panel for controlling the humidification device and the air purification device are fixedly installed. The device includes an ultrasonic atomization device, the ultrasonic atomization device is provided with a water tank for holding water, and the air purification device includes a turbofan for suction and exhaust, and the air inlet of the turbofan is provided with a filter Because the utility model is equipped with a humidifying device, an air cleaning device and a control device on the shell body, it can also filter and purify the air while humidifying the air, improve the indoor air environment, and satisfy people's quality of life. requirements, and the utility model has a simple structure and is convenient to manufacture, which contributes to the production cost of the enterprise and enhances the social competitiveness of the enterprise.

Description

An air purification device with ultrasonic humidification function

technical field

The utility model relates to an air purification device, in particular to an air purification device with an ultrasonic humidification function. the

Background technique

With the development of society and the progress of science and technology, people's requirements for quality of life are getting higher and higher. Now more and more people work indoors. Due to the narrow indoor environment and few doors and windows, the air circulation is not smooth. In addition, there are various office equipment in the room, such as printers, computers, etc., which further deteriorates the indoor air environment. It cannot meet people's requirements for indoor air environment. Therefore, air treatment equipment that combines air humidification and filtration has appeared on the market. However, this type of equipment has a complex structure and high production costs, which is not conducive to enhancing the social competitiveness of enterprises. the

Utility model content

In order to solve the above problems, the purpose of this utility model is to provide a purification device with simple structure and capable of humidifying and filtering air. the

The technical scheme that the utility model adopts for solving its technical problem is:

An air purification device with an ultrasonic humidification function, comprising a shell body on which a humidification device, an air purification device and a control panel for controlling the humidification device and the air purification device are fixedly installed, the humidification device includes an ultrasonic atomization The ultrasonic atomization device is provided with a water tank for holding water, and the air purification device includes a turbofan for air intake and exhaust, and a filter screen is provided at the air inlet of the turbofan.

In order to make the air purification effect better and improve the quality of the air, a negative ion generating device is also arranged on the shell main body. the

In order to make the structure of the humidifying and purifying device of the present invention more concise, the humidifying device is installed in the middle and upper part of the shell main body, and the air cleaning device is installed in the middle and lower part of the shell main body. the

In order to make the utility model safer in use and prevent the parts inside the humidifying and purifying device from being damaged by external force, the left and right sides of the shell main body are respectively covered with a left shell and a right shell. the

In order to prevent water shortage inside the water tank of the humidifying and purifying device, a sensor for measuring the water level is provided in the water tank, and one or more warning devices for warning the water level of the water tank is low are also provided on the shell body. the

In order to make the warning effect better, the number of the warning devices is two, and the two warning devices are arranged on the same side of the shell main body. the

In order to save production cost, the warning device is a buzzer and/or an indicator light. the

In order to facilitate people to use and control the humidifying and purifying device, the control panel is arranged at the upper end surface of the shell main body. the

In order to better humidify the indoor air, one or more humidifying nozzles for humidifying the air are arranged on the upper end surface of the ultrasonic atomization device. the

The beneficial effects of the utility model are: because the utility model is provided with a humidifying device, an air cleaning device and a control device on the shell body, it can also filter and purify the air while humidifying the air, thereby improving the indoor air environment , to meet people's requirements for quality of life, and the utility model has a simple structure and is convenient to manufacture, which contributes to the production cost of the enterprise and enhances the social competitiveness of the enterprise; in addition, the utility model is also provided with an anion generating device, which helps Improve air quality. the

Description of drawings

Below in conjunction with accompanying drawing and specific embodiment, the utility model is described in further detail. the

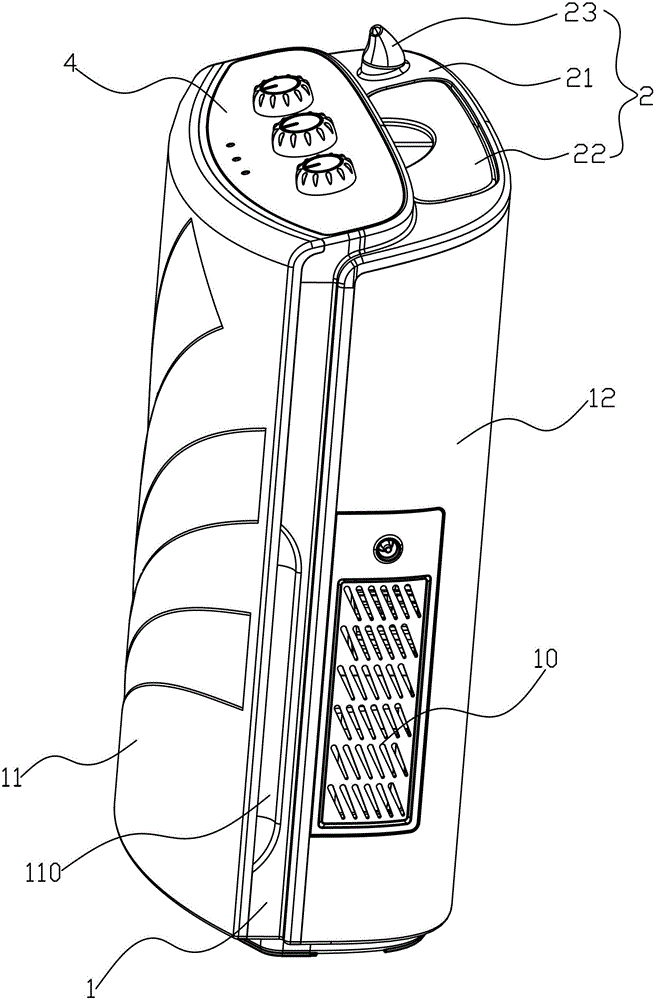

Fig. 1 is the appearance structure schematic diagram of the present utility model;

Fig. 2 is an exploded view of the utility model;

Fig. 3 is a schematic diagram of the main structure of the utility model;

Fig. 4 is a schematic diagram of the main structure of the utility model in another direction.

Detailed ways

Referring to Figures 1 to 4, an air purification device with an ultrasonic humidification function includes a shell body 1 on which a humidification device 2, an air purification device 3, and a humidification device 2 and an air purification device for controlling the humidification device 2 and the air purification device are fixedly installed. 3 of the control panel 4, here as a preferred embodiment, the control panel 4 is set at the upper end of the shell body 1, the humidifier 2 and the air purification device 3 are respectively installed in the upper middle and middle of the shell body 1 Bottom; the humidifying device 2 includes an ultrasonic atomization device 21, the ultrasonic atomization device 21 is provided with a water tank 22 for holding water, and the upper end surface of the ultrasonic atomization device 21 is also provided with one or more For the humidifying nozzle 23 for humidifying the air, in the present utility model, the number of humidifying nozzle 23 is preferably set to one, and the humidifying nozzle 23 is arranged on the upper end surface of the ultrasonic atomization device 21, which can The water vapor is discharged vertically upwards, which facilitates the humidification of the indoor air and effectively prevents the atomized water vapor from spraying other equipment or articles. Of course, the number of the above-mentioned humidifying nozzles 23 can also be set to other; the air purification device 3 Including a turbofan 31 for air intake and exhaust, the air inlet of the turbofan 31 is provided with a filter screen 32, the filter screen 32 is preferably used as a HEPA filter screen, and of course other filter screens can also be selected, so The turbofan 31 is fixedly mounted on the lower part of one side of the housing main body 1, the filter screen 32 is installed on the opposite side of the housing main body 1 and the turbofan 31, and the housing main body 1 is located between the turbofan 31 and the filter screen 32 A part is provided with a through hole. When the turbofan 31 is working and sucking air, the air filtered by the filter screen 32 passes through the above-mentioned through hole, and then enters into the turbofan 31. The outside of the turbofan 31 is provided with a Enclosed wind deflector 310, said wind deflector 310 communicates with the air outlet 10 arranged on one side of the shell main body 1, when the turbo fan 31 starts and adds air, the air enters into the air guide after being filtered by the filter screen 32. Inside the air plate 310, the air deflector 310 guides the air to the air outlet 10, and finally the air flows out from the air outlet 10. The above-mentioned humidifying device 2 and air purification device 3 can be opened separately or at the same time, which is effective and convenient for people to use The utility model humidifies and purifies the air. the

Further, on the side where the turbofan 31 is installed on the housing main body 1, an anion generating device 5 is also provided, and the anion generating device 5 is located between the wind deflector 310 and the turbofan 31, and the anion generating device improves The quality of the filtered air makes the air purification effect of the utility model better. the

Furthermore, the left and right sides of the shell main body 1 are respectively covered with a left shell 11 and a right shell 12, and the buckle between the left shell 11 and the shell main body 1 is provided with a suction hole for the turbofan 31. The air inlet 110, when the turbofan 31 starts to inhale air, the outside air can enter the inside of the shell body 1 from the air inlet 110 and be supplied to the filter screen 32 to filter it, and the right shell 12 is provided with an air outlet 10 fits the notch. the

Further, in order to remind people to replenish water in the water tank 22 in time, the water tank 22 is provided with a sensor for measuring the water level, and at the same time, the shell body 1 is also provided with one or more alarms for warning the water tank 22. Low water level warning device 6, here, the quantity of described warning device 6 is preferably two, and two warning devices 6 are all arranged on the side that shell main body 1 is equipped with filter screen 32, and described warning device 6 can be honeycomb buzzer and/or indicator light, when the sensor detects that the water level in the water tank 22 is lower than the set value, the sensor transmits the detected information to the control panel 4, and the control panel 4 sends a signal to the warning device 6, and the warning device 6. Send an alarm signal to remind people to replenish water in the water tank 22 in time. the

The above descriptions are only the preferred implementation modes of the present utility model, as long as the technical solutions that achieve the purpose of the utility model by basically the same means all fall within the scope of protection of the utility model. the

Claims (10)

1. An air purification device with ultrasonic humidification function, comprising a shell main body (1), on which a humidification device (2), an air purification device (3) and a humidification device (2) for controlling the humidification device (2) are fixedly installed. ) and the control panel (4) of the air purification device (3), characterized in that: the humidification device (2) includes an ultrasonic atomization device (21), and the ultrasonic atomization device (21) is provided with a The water tank (22), the air purification device (3) includes a turbo fan (31) for air intake and exhaust, and a filter screen (32) is provided at the air inlet of the turbo fan (31). 2. The air purification device with ultrasonic humidification function according to claim 1, characterized in that: the housing body (1) is also provided with a negative ion generator (5). 3. An air purification device with ultrasonic humidification function according to claim 1 or 2, characterized in that: the humidification device (2) is installed in the middle and upper part of the shell main body (1). 4. An air purification device with ultrasonic humidification function according to claim 1 or 2, characterized in that: the air purification device (3) is installed in the middle and lower part of the shell main body (1). 5. An air purification device with ultrasonic humidification function according to claim 1, characterized in that: the left and right sides of the shell body (1) are respectively covered with a left shell (11) and a right shell (12 ). 6. The air purification device with ultrasonic humidification function according to claim 1, characterized in that: the water tank (22) is provided with a sensor for measuring the water level, and the shell body (1) is also equipped with One or more warning devices (6) for warning that the water level of the water tank (22) is low are provided. 7. An air purification device with ultrasonic humidification function according to claim 6, characterized in that: the number of the warning devices (6) is two, and the two warning devices (6) are arranged on the shell main body ( 1) on the same side. 8. An air cleaning device with ultrasonic humidification function according to claim 6 or 7, characterized in that: the warning device (6) is a buzzer and/or an indicator light. 9. The air purification device with ultrasonic humidification function according to claim 1, characterized in that: the control panel (4) is arranged at the upper end surface of the shell main body (1). 10. The air purification device with ultrasonic humidification function according to claim 1, characterized in that: the upper end surface of the ultrasonic atomization device (21) is provided with one or more for humidifying the air humidification nozzle (23).
