CN203286513U - Arrangement structure with diameter of 5.5 meters of illumination lamp in cable tunnel - Google Patents

Abstract

The utility model relates to an arrangement structure of lighting fixtures in a cable tunnel with a diameter of 5.5 meters. It includes a plurality of LED lights, which are divided into two rows and arranged on both sides of the top of the tunnel. The two rows of LED lights are arranged alternately. The distance between them is 7-8m. Compared with the prior art, the utility model has the advantages of convenience and energy saving.

Description

Arrangement structure of lighting fixtures in a cable tunnel with a diameter of 5.5 meters

technical field

The utility model relates to a tunnel lighting system, in particular to an arrangement structure of lighting fixtures in a cable tunnel with a diameter of 5.5 meters.

Background technique

With the rapid development of the national economy and the continuous improvement of people's living standards, the load of Shanghai power grid has been increasing year by year. In order to meet the needs of the development of Shanghai's electric power system and ease the power supply pressure in the central urban area, 500kV substations have penetrated into the downtown area, and power cables will be used for the 500kV transmission lines in the urban area. 500kV cables have high requirements for heat dissipation around the cables due to their transmission capacity requirements. The original laying methods commonly used in Shanghai, such as pipe arrangement, direct burial, and cable trenches, are no longer suitable for the needs of 500kV cables. Therefore, the construction of special tunnels for electric power has become the main way of laying 500kV cables.

For electric power tunnels, in addition to the cable laying requirements in the cable tunnel, the auxiliary facilities for the cables in the tunnel, including ventilation systems, power systems, lighting systems, drainage systems, monitoring systems, communication systems, fire protection systems, The grounding system and other aspects are considered together in the tunnel design.

Contents of the invention

The purpose of this utility model is to provide a convenient and energy-saving arrangement of lighting lamps in a cable tunnel with a diameter of 5.5 meters in order to overcome the above-mentioned defects in the prior art.

The purpose of this utility model can be achieved through the following technical proposals: an arrangement structure of lighting fixtures in a cable tunnel with a diameter of 5.5 meters, which is characterized in that it includes a plurality of LED lights, which are divided into two rows and arranged on both sides of the top of the tunnel. Rows of LED lights are staggered, and the interval between adjacent LED lights in the same row is 7-8m.

The sidewalls on both sides of the tunnel are provided with horizontal cross-arms, and cables are hung on each horizontal cross-arm.

The same side of the tunnel is provided with at least two horizontal cross arms, and each horizontal cross arm is arranged in parallel up and down.

A bracket is provided in the center of the tunnel, and the bracket is composed of a vertical vertical bar and a horizontal cross bar, and cables are hung on the horizontal bar.

The two rows of LED lights are respectively arranged between the central support of the tunnel and the horizontal cross arms on both sides.

The single lamp power of the LED lamp is 2×18W, and it is equipped with an electronic ballast.

Compared with the prior art, the utility model adopts high-efficiency energy-saving fluorescent lamps with a single lamp power of 2×18W and is equipped with electronic ballasts. The lamps and lanterns have functions such as moisture-proof and rust-proof. The lighting fixtures in the tunnel are ceiling-mounted on both sides of the tunnel, and the longitudinal spacing is in accordance with the multiple of the segments. Three-phase power supply is adopted, and each phase is balanced, with moderate illumination and energy saving.

Description of drawings

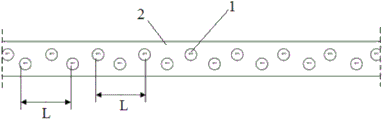

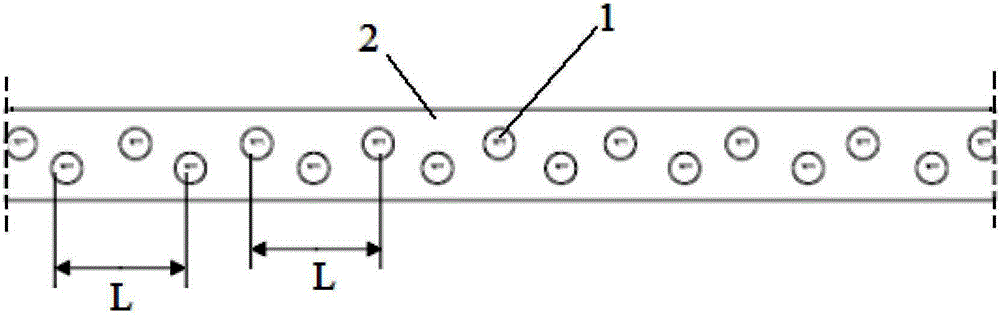

Fig. 1 is a schematic diagram of the arrangement of lamps and lanterns of the present invention;

Fig. 2 is a sectional view of the utility model tunnel.

Detailed ways

The utility model will be described in detail below in conjunction with the accompanying drawings and specific embodiments.

Example 1

As shown in Figures 1 and 2, an arrangement structure of lighting fixtures in a cable tunnel with a diameter of 5.5 meters includes a plurality of LED lights 1, which are divided into two rows and arranged on both sides of the top of the tunnel 2. The two rows of LED lights are arranged alternately. The distance L between adjacent rows of LED lamps is 7.2m.

The sidewalls on both sides of the tunnel are provided with horizontal arms 21, and cables 22 are hung on each horizontal arm. The same side of the tunnel is provided with at least two horizontal cross arms, and each horizontal cross arm is arranged in parallel up and down.

The center of the tunnel is provided with a support 3, which is composed of a vertical vertical bar 31 and a horizontal cross bar 32, and cables are hung on the cross bar 32.

The two rows of LED1 lights are respectively arranged between the central support of the tunnel and the horizontal cross arms on both sides.

The single lamp power of the LED lamp is 2×18W, and it is equipped with an electronic ballast.

Example 2

The interval L between adjacent LED lamps is 7m. All the other are with embodiment 1.

Example 3

The interval L between adjacent LED lamps is 8m. All the other are with embodiment 1.

Claims (6)

1. the arrangement of the cable tunnel intraoral illumination light fixture of 5.5 meters of diameters, is characterized in that, comprises a plurality of LED lamps, is divided into two rows and is arranged in the both sides, top in tunnel, and two row LED lamps are crisscross arranged, and is spaced apart 7～8m between same row's adjacent LED lamp.

2. the arrangement of the cable tunnel intraoral illumination light fixture of 5.5 meters of a kind of diameters according to claim 1, is characterized in that, both sides, described tunnel sidewall is provided with horizontal cross-arm, hangs cable on each horizontal cross-arm.

3. the arrangement of the cable tunnel intraoral illumination light fixture of 5.5 meters of a kind of diameters according to claim 2, is characterized in that, described tunnel homonymy is provided with at least two horizontal cross-arms, and each horizontal cross-arm be arranged in parallel up and down.

4. the arrangement of the cable tunnel intraoral illumination light fixture of 5.5 meters of a kind of diameters according to claim 3, is characterized in that, center, described tunnel is provided with support, and this support is comprised of the cross bar of vertical montant and level, hangs cable on described cross bar.

5. the arrangement of the cable tunnel intraoral illumination light fixture of 5.5 meters of a kind of diameters according to claim 4, is characterized in that, described two row LED lamps are separately positioned between the horizontal cross-arm of tunnel center bearing bracket and both sides.

6. the arrangement of the cable tunnel intraoral illumination light fixture of 5.5 meters of a kind of diameters according to claim 1, is characterized in that single lamp power 2 * 18W of described LED lamp, and distribution sub-ballast.
