Abstract
本实用新型涉及一种太阳能自动擦车装置，包括太阳能电池、侧轨、上横轨、传动丝杠、顶刷支架、顶刷、侧刷、侧刷支架、待洗汽车和地轨，太阳能电池通过电缆与侧轨相连接，所述侧轨与上横轨相连接，传动丝杠置于上横轨内部，顶部支架固定在上横轨上，所述顶部支架上设有滑块，所述滑块的下端装有顶刷，侧刷支架固定在侧轨上，侧刷装在侧刷支架上，侧轨的下面与地轨相连接，待洗汽车通过与顶刷与侧刷相接触清洗。本实用新型大大地缓解洗车耗能、耗水、污染、费时等问题，使百姓生活更方便，利于民生，且使用方便、节能环保能满足市场需要。
The utility model relates to a solar automatic car cleaning device, which comprises a solar battery, a side rail, an upper rail, a transmission screw, a top brush bracket, a top brush, a side brush, a side brush bracket, a car to be washed, a ground rail, and a solar battery. The side rail is connected with the side rail through the cable, the side rail is connected with the upper rail, the transmission screw is placed inside the upper rail, the top bracket is fixed on the upper rail, the top bracket is provided with a slider, and the The lower end of the slider is equipped with a top brush, and the side brush bracket is fixed on the side rail. . The utility model greatly alleviates the problems of energy consumption, water consumption, pollution and time-consuming of car washing, makes people's lives more convenient, is beneficial to people's livelihood, and is convenient to use, energy-saving and environmentally friendly, and can meet market needs.
Description
Technical field
The utility model relates to a kind of automatic wiping car device, is specifically related to a kind of solar power and automatically wipes the car device.
Background technology
At present, carwash has become the essential task of car epoch clan owning cars, but mostly to look for 4S car shop during car owner's carwash, car washer arrives more than several ten thousand to tens0000 yuan less, to expend a large amount of water in the carwash process, and with more purging medium, a large amount of water expends and more purging medium can be to environment, and carwash also will expend the more time.Be applicable to now the family convenient automatic car washing device and lack, utilize solar power as carwash power or blank, the water car-washing that automatically declines also has no report.
Summary of the invention
The utility model overcomes the deficiencies in the prior art, propose a kind of solar power and automatically wiped the car device, solar power belongs to the clean energy resource of environmental protection, solar power is wiped the design of car device automatically, be exactly to use solar power as power, when cleaning power driven, free from environmental pollution, the collapsible placing car rear cabinet of designed device, very convenient, the automatic car washing car owner props when stopping after, can reduce the hard work of car owner's carwash, or look for the time-consuming of shop carwash and cost, thus, having solved present carwash has pollution, water consumption large, the problem such as not convenient.If family is furnished with this device, will alleviate widely carwash power consumption, water consumption, pollution, the problem such as time-consuming, make the lives of the people more convenient, be beneficial to the people's livelihood, and easy to use, energy-conserving and environment-protective energy satisfying the market needs.
the technical solution of the utility model is: a kind of solar power is wiped the car device automatically, comprise solar cell, siding track, upper traverse rod, turn-screw, the top brush support, top brush, the side brush, side brush support, automobile to be washed and ground rail, solar cell is connected with siding track by cable, described siding track is connected with upper traverse rod, it is inner that turn-screw is placed in traverse rod, top-support is fixed on traverse rod, described top-support is provided with slide block, top brush is equipped with in the lower end of described slide block, side brush support is fixed on siding track, the side brush is contained on side brush support, following and the ground rail of siding track is connected, automobile to be washed is by the cleaning that contacts with the side brush with top brush.
The utlity model has following beneficial effect:
The utility model is used solar power as power, when cleaning power driven, free from environmental pollution, the collapsible placing car rear cabinet of designed device, very convenient, the automatic car washing car owner props when stopping after, can reduce the hard work of car owner's carwash, or look for the time-consuming of shop carwash and cost, thus, having solved present carwash has pollution, water consumption large, the problem such as not convenient.If family is furnished with this device, will alleviate widely carwash power consumption, water consumption, pollution, the problem such as time-consuming, make the lives of the people more convenient, be beneficial to the people's livelihood, and easy to use, energy-conserving and environment-protective energy satisfying the market needs.
Description of drawings

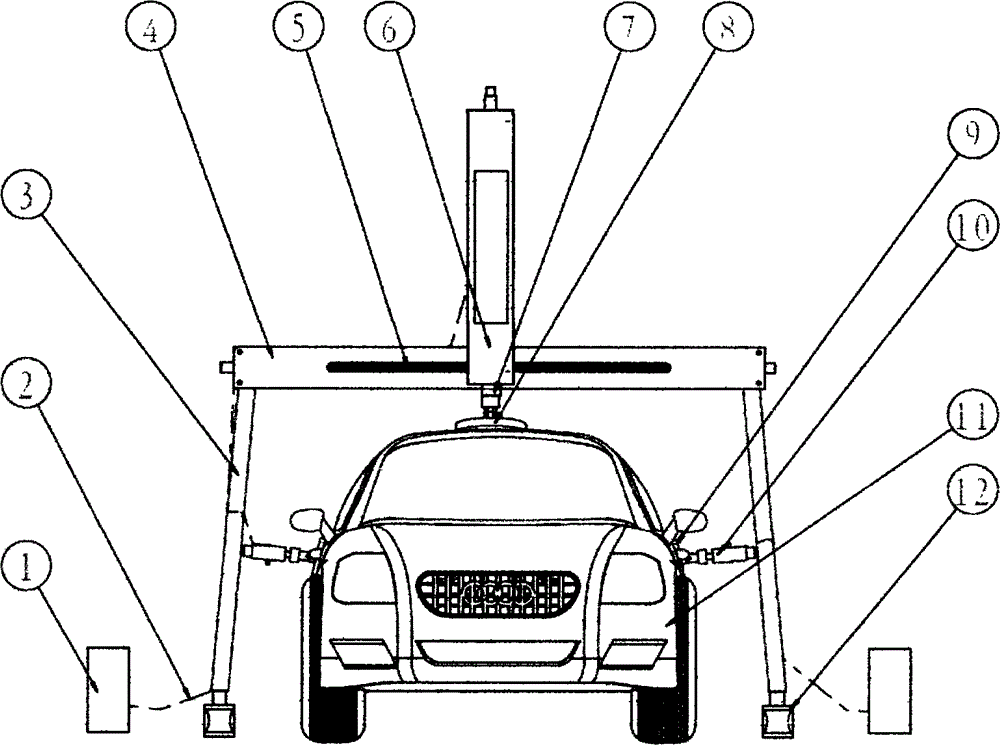

Accompanying drawing is the structural representation that the utility model solar power is wiped car automatically.
In figure: 1, solar cell; 2, cable; 3, siding track; 4, upper traverse rod; 5, turn-screw; 6, top brush support; 7, slide block; 8, top brush; 9, side brush; 10, side brush support; 11, automobile to be washed; 12, rail.
The specific embodiment:
shown in accompanying drawing, the utility model comprises solar cell 1, siding track 3, upper traverse rod 4, turn-screw 5, top brush support 6, top brush 8, side brush 9, side brush support 10, automobile 11 to be washed and ground rail 12, solar cell 1 is connected with siding track 3 by cable 2, described siding track 3 is connected with upper traverse rod 4, turn-screw 5 is placed in traverse rod 4 inside, top brush support 6 is fixed on traverse rod 4, described top brush support 6 is provided with slide block 7, top brush 8 is equipped with in the lower end of described slide block 7, side brush support 10 is fixed on siding track 3, side brush 9 is contained on side brush support 10, following and the ground rail 12 of siding track 3 is connected, automobile 11 to be washed is by the cleaning that contacts with top brush 8 and side brush 9.
To treat carwash 11 stops in place; Ground rail 12 is positioned over the car both sides, installs two siding tracks 3 and upper traverse rod 4, connect solar cell 1, start car cleaner and start working; Top brush 8 and side brush 9, near car body surface, stretch out dust absorption nozzle from brush, spray after dust suction again, then make the brush rotary-cleaning; Top brush, side brush can move forward and backward along with support, progressively clean whole car surface.
Principle of work is: the utility model utilizes solar power as power source, and whole device is by drive system, mechanical system, and control system, washing system forms.Drive system is comprised of solar storage battery 1 and motor, and motor drives slide block 7 operations that fall within on ground, ground rail 12, the frame straight ahead that slide block 7 drives on it.Control system is comprised of control chip and cable etc., can control a plurality of brushes and move simultaneously, carries out automatic car washing.Washing system utilizes brush, dust collecting fan, the atomizing cone on it to carry out work, thus, energy-conservation while realizing joint, water-saving is convenient, the purpose of environmental protection, and meet people to facilitating the demand of carwash, can serve numerous car owners.
Claims (1)
1. a solar power is wiped the car device automatically, comprise solar cell, siding track, upper traverse rod, turn-screw, the top brush support, top brush, the side brush, side brush support, automobile to be washed and ground rail, it is characterized in that: solar cell is connected with siding track by cable, described siding track is connected with upper traverse rod, it is inner that turn-screw is placed in traverse rod, top-support is fixed on traverse rod, described top-support is provided with slide block, top brush is equipped with in the lower end of described slide block, side brush support is fixed on siding track, the side brush is contained on side brush support, following and the ground rail of siding track is connected, automobile to be washed is by the cleaning that contacts with the side brush with top brush.
