Abstract

The utility model relates to a multipurpose sitting bed, which comprises a bed body and universal wheels (7), and is characterized in that the bed body consists of a headboard (12), a bed surface backboard and a bottom board (9), and side panels (4 ), the left and right sides of the bed are equipped with left and right sitting cabinets (11) and right sitting cabinets (8) and left drawers (14) and right drawers (13), and there is a coffee table in the middle of the bed (3) and entrance and exit (10), wherein, the bed surface backboard is designed as left and right bed surface backboard (1) and right bed surface backboard (6) and armrest (2), coffee table ( 3) Designed as an oval, this technology can be folded, easy to move, simple in structure, multi-functional, low in cost, simple and practical in installation and so on.

Description

A kind of multiplex sitting and lying bed

Technical field

The utility model is the furniture design technical field, particularly is applicable to modern's life requirement, diverse in function and practical a kind of multiplex sitting and lying bed.

Background technology

As everyone knows, the most of beds in the modern life, of a great variety, big or small pattern is different, is the place of having a rest and sleeping, and is all the function that has only realized sleep, and has ignored other function, and for example chair bed is exactly one.At present, the modern room layout is advocated succinct, and multi-functional furniture more and more becomes popular selection, modern youth people's environment of living mostly is small apartment, be subjected to the limitation on space, due to the consumer group who belongs to knowledge type, they are many to the functional of product and the consideration of fashion convenience; Also have some relatively to pay attention to the household consumption colony of fashion, they pay close attention to the modern designs of novel especially succinct fashion very much.In addition, even if existing chair bed, also by sofa variable body " divan ", only meet simple sitting and lying function, and from modern's use angle, the sitting and lying bed of requirement not only to better be realized the sitting and lying function, more to further optimize, have more function,, such as comprising function of containing articles, tea table function etc., facilitate the multiple demands such as receiving a visitor of family.And not being existing chair bed, the requirement of these " one-object-many-purposes " furniture forms can not meet, in the urgent need to designing a kind of multiplex sitting and lying bed of novel adaptation requirements of the times.

Summary of the invention

The purpose of this utility model is: succinct to furniture style for the modern, diverse in function, on requirement such as grade easy to use and market, chair bed form and function ratio are more single, modern's work rhythm can not be met better fast, living space is little, and furniture is succinct and can have several functions, as the function of storage drawer, tea table function etc. is also arranged, spacious and comfortful sleep bed double bed while on the one hand becoming people's rest; On the other hand, become the functions such as combination tea table that people leisure and family receive a visitor and dining table, solve the multi-faceted requirement of daily life and a kind of multiplex sitting and lying bed that designs in good time.

the technical scheme that its technical problem that solves the utility model adopts is: a kind of multiplex sitting and lying bed, comprise a body, universal wheel 7, it is characterized in that: the bed body is by the headpiece 12 of the left and right sides, the bed surface backboard that headpiece 12 is setting up and down and base plate 9, and side panel 4 forms, the bed body left and right sides is provided with symmetrical left side and sits cabinet 11 and right side seat cabinet 8, locus in the middle of the bed body is provided with tea table 3, the import and export 10 that on the bed body of the front and back of tea table 3, setting party person who happens to be on hand for an errand walks and passes in and out, wherein, the bed surface backboard is designed to left bed surface backboard 1 and the right bed surface backboard 6 that left-right symmetry can pull up, the both sides of left bed surface backboard 1 and right bed surface backboard 6 are respectively equipped with the handrail 2 of installing by hinge 5, as Figure 1-4.

The said bed body left and right sides is provided with on symmetrical left side seat cabinet 11 and right side seat cabinet 8 and is respectively equipped with left side drawer 14 and right side drawer 13, and, be respectively equipped with drawer attacker 16 on left side drawer 14 and right side drawer 13, as Figure 1-4.

Said tea table 3 is designed to ellipse, as Figure 1-4.Here tea table 3 except ellipse, can also be square, rectangle, and circle, and other various polygons etc.

The operation principle of present technique and the course of work :The bed surface backboard that adopts due to present technique is designed to left bed surface backboard 1 and the right bed surface backboard 6 that left-right symmetry can pull up, and the both sides of left bed surface backboard 1 and right bed surface backboard 6 are respectively equipped with the handrail 2 of installing by hinge 5, as Figure 1-4.this folding left bed surface backboard 1 and right bed surface backboard 6, the bed body that can solve existing simple function only has the function of sleep, and has ignored other function, particularly the bed body left and right sides is provided with symmetrical left side and sits cabinet 11 and right side seat cabinet 8, locus in the middle of the bed body is provided with tea table 3, the import and export 10 that on the bed body of the front and back of tea table 3, setting party person who happens to be on hand for an errand walks and passes in and out, like this, when left bed surface backboard 1 and right bed surface backboard 6 are pulled up, the both sides of left bed surface backboard 1 and right bed surface backboard 6 are automatically adjusted and are presented level by the handrail 2 that hinge 5 is installed respectively, the angle that left bed surface backboard 1 and right bed surface backboard 6 are certain with adjusting inclination, usually feel comfortable suitable being as the criterion with human body, at this moment, more want further optimal design, realize the sitting and lying function, have more as comprising function of containing articles, tea table function etc., facilitate the multiple demands such as receiving a visitor of family.Thereby meet the requirement of " one-object-many-purposes " furniture form.

The advantage of present technique and beneficial effect: compared to the prior art, 1, in the configuration design of sitting and lying (dual-purpose) bed, have and pursue moulding attractive in appearance, generous, succinct, fashion, hobby youthful according to the modern times, select smooth clean and tidy profile, save as much as possible material under the prerequisite that can meet ergonomics; 2, the function of multiplex sitting and lying bed is mainly derived from existing product, carry out on its basis the function improvement design, the function of bed and seat is perfectly combined, make simple chair bed have more function, the function of sitting and lying is expanded, increase storing, tea table and the removable function of whole multi-functional sitting and lying bed, make it more practical, could give prominence to its convenience like this.simultaneously product design is become folding, fold up is exactly a square-folded removable large bed or large mattress, and it becomes a tea table combination of can four-player using while opening it, can open it in parlor in the time of daytime, sit comfortably on seat, taste after meal the fragrance of tea, after coming night, we can fold up it, the double bed that can move is just put in face of us, the consumer will can not worry for family comes the guest to have a rest evening again, practical, such chair bed can be so that people enjoy the superior life that modern designs is brought as much as possible to the full, 3, the novelty of structural design can be brought vigor to product equally, also can attract consumer spending, the structure outward appearance of designed multi-functional sitting and lying bed has direct impact to the consumer, can be described as the outward appearance impression and determining directly whether the consumer can buy this product, design takes into full account the demand trend in multi-functional sitting and lying bed market and consumer's psychological characteristics and needs, hope is appreciated from consumer and their friends and family there, the consumer also can be felt oneself being one is the fashion intelligent, chair bed adopts unique appearance design, upper cover can adopt metal to be connected with bottom integral body, safe and reliable, simple and clear, give the consumer with deep impression, abstract artistic effect, is rich in times flavour, in the feasibility that has guaranteed structure, product design has also obtained breakthrough.Multi-functional sitting and lying bed bottom is equipped with embedded rollers.When being subjected to gravity larger, pulley meeting automatic retraction, make coupled square block bear gravity, and while needing at ordinary times to move, pulley can eject to facilitate movement, and whole moulding reaches a kind of effect of noveltyization, and handled easily uses.In a word, present technique has and can fold, conveniently moving, and simple in structure, function is many, and volume is little, and is lightweight, and cost is low, uses the characteristics such as simple of installing.

Description of drawings

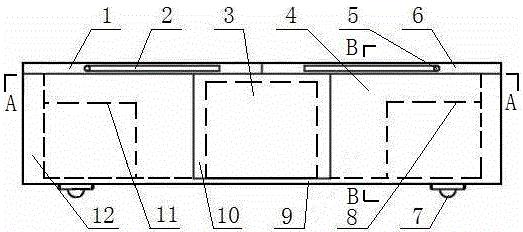

Fig. 1 is the front view of general structure of the present utility model.

Fig. 2 is the A-A cutaway view of Fig. 1.

Fig. 3 is the B-B cutaway view of Fig. 1.

Fig. 4 is that the utility model is opened rear cutaway view as using.

In figure: 1 left bed surface backboard, 2 handrails (or be called the bed surface backboard open the handrail of support), 3 tea tables, 4 side panels, 5 hinges, 6 right bed surface backboards, 7 universal wheels (or being called the base support universal wheel), 8 right sides are sat cabinet (or the fixing cabinet of sitting in the right side that is called drawer), 9 base plates, 10 import and export (facing to the turnover doorway of tea table), and cabinet (or the fixing cabinet of sitting in the left side that is called drawer), 12 headpieces are sat in 11 left sides, 13 right side drawers, 14 left side drawers, 15 angle braces, 16 drawer attackers.

The specific embodiment

the specific embodiment of the present utility model, as Figure 1-4, a kind of multiplex sitting and lying bed, comprise a body, universal wheel 7, it is characterized in that: the bed body is by the headpiece 12 of the left and right sides, the bed surface backboard that headpiece 12 is setting up and down and base plate 9, and side panel 4 forms, the bed body left and right sides is provided with symmetrical left side and sits cabinet 11 and right side seat cabinet 8, locus in the middle of the bed body is provided with tea table 3, the import and export 10 that on the bed body of the front and back of tea table 3, setting party person who happens to be on hand for an errand walks and passes in and out, wherein, the bed surface backboard is designed to left bed surface backboard 1 and the right bed surface backboard 6 that left-right symmetry can pull up, the both sides of left bed surface backboard 1 and right bed surface backboard 6 are respectively equipped with the handrail 2 of installing by hinge 5, as Figure 1-4.

The said bed body left and right sides is provided with on symmetrical left side seat cabinet 11 and right side seat cabinet 8 and is respectively equipped with left side drawer 14 and right side drawer 13, and, be respectively equipped with drawer attacker 16 on left side drawer 14 and right side drawer 13, as Figure 1-4.

Said tea table 3 is designed to ellipse, as Figure 1-4.

Claims (3)

1. A multi-purpose sitting bed, comprising a bed body and universal wheels (7), characterized in that: the bed body consists of headboards (12) on the left and right sides, and the bed surface and back boards arranged above and below the headboard (12) Composed of the base plate (9) and the side panel (4), the left and right sides of the bed are provided with symmetrical left sitting cabinets (11) and right sitting cabinets (8), and a coffee table is provided in the middle of the bed (3), the front and back of the tea table (3) are provided with an entrance and exit (10) for people to walk in and out of, wherein, the bed backrest board is designed as a symmetrical pull-up left bed backrest board (1) and The right bed surface backboard (6), the both sides of the left bed surface backboard (1) and the right bed surface backboard (6) are respectively provided with handrails (2) installed through hinge shafts (5). 2. A multi-purpose sitting and lying bed as claimed in claim 1, characterized in that: left and right sides of the bed body are provided with left and right sitting cabinets (11) and right sitting cabinets (8) respectively. There are a left drawer (14) and a right drawer (13), and the left drawer (14) and the right drawer (13) are respectively provided with drawer handles (16). 3. A multi-purpose sitting bed according to claim 1 or 2, characterized in that: said tea table (3) is designed to be oval.
