Abstract

A cultivation greenhouse for dendrobium candidum, which includes several arched skeletons (1) whose ends are inserted into the soil, the plurality of arched skeletons (1) are evenly arranged to form a strip-shaped shed area, and the arched The arched skeleton (1) is an integrated structure, and the soil at both ends of the arched skeleton (1) is provided with a cement reinforcement layer (2) for reinforcing the arched skeleton (1), and the arched skeleton (1) The height is 180-220cm; compared with the prior art, the utility model increases the cement reinforcement layer, which makes the connection between the two ends of the arched skeleton and the soil better, and can withstand higher tensile strength; while the arched The skeleton is integrally formed, so that the arched skeleton itself has good strength, is not prone to bending or fracture failure, and can resist greater wind force; moreover, the arched skeleton is 180-220cm high, which is about 5 meters high compared to ordinary The windward side of the vegetable greenhouse is relatively small when facing the wind, and the moment of the wind force is also small, so it can resist a greater level of wind force, generally can resist typhoons of about 10 levels, and the overall structure is relatively simple and easy to build.

Description

Dendrobium candidum cultivation greenhouse

technical field

The utility model belongs to the field of cultivation equipment, in particular to a dendrobium candidum cultivation greenhouse.

Background technique

At present, the Dendrobium candidum cultivation greenhouses in the prior art have the same structure as ordinary vegetable greenhouses. In the summer and autumn seasons, typhoons are often encountered in the summer and autumn seasons, and the Dendrobium candidum cultivation greenhouses of the prior art are easily blown down or completely overturned by the typhoon, which leads to heavy losses for the growers. It cannot resist typhoons of level 8 and above, and typhoons in Jiangsu, Zhejiang and Fujian often reach above level 9. For example, the typhoon "Sea Anemone" in 2012 caused huge losses to farmers in Zhejiang and almost failed to harvest. Therefore, the existing technology Dendrobium candidum cultivation greenhouses have the problem of poor typhoon resistance.

Utility model content

The utility model provides a dendrobium candidum cultivation shed with simple structure and good typhoon-resistant performance aiming at the above problems.

The technical scheme used by the utility model to solve the above problems is to provide a Dendrobium candidum cultivation shed, which includes a plurality of arched skeletons whose two ends are inserted in the soil, and the plurality of arched skeletons are evenly arranged to form a long strip. In the shed area, the arched skeleton is an integrated structure, and the soil at both ends of the arched skeleton is provided with a cement reinforcement layer for reinforcing the arched skeleton, and the height of the arched skeleton is 180-220 cm.

After adopting the above device, compared with the prior art, the utility model increases the cement reinforcement layer, so that the connection between the two ends of the arched skeleton and the soil is more secure and can bear higher tensile strength; while the arched The frame is integrally formed, so that the arch frame itself has good strength, is not prone to bending or fracture failure, and can resist greater wind force; moreover, the height of the arch frame is 180-220cm, which is about 5 meters high compared to ordinary The windward side of the vegetable greenhouse is relatively small when facing the wind, and the moment of the wind force is also small, so it can resist a greater level of wind force, generally can resist typhoons of about 10 levels, and the overall structure is relatively simple and easy to build; and The cement reinforcement layer is located on the upper end surface of the soil. When dismantling, the cement reinforcement layer can be directly raised as a whole without digging. After removal, other crops can be directly planted. Therefore, the utility model has the characteristics of simple structure and good typhoon resistance.

The cement reinforcement layer extends along the length direction of the shed, and the cement reinforcement layers at both ends of the arched skeleton form an integral long strip with high strength, which can better limit the two ends of the arched skeleton.

As an improvement, at least two columns are arranged on the arched framework at both ends of the shed, the upper ends of the columns are connected to the arched framework, the lower ends of the columns are inserted into the soil, and the soil at the lower end of the columns is also With cement reinforcement layer. There are four columns, which are symmetrically distributed along the central line of the arched skeleton.

As a further improvement, the distance between the two adjacent arched skeletons is 70-90 cm, then the arched skeletons with this density have better wind resistance strength, and the material cost is relatively low at the same time, thereby reducing the cost of the utility model. New type of production cost.

As a further improvement, the cement reinforcement layer is provided with several fixing rings, the fixing rings are arranged along the length direction of the cement reinforcement layer, and the distance between two adjacent fixing rings is 150-200cm, then the fixing After the ring is set, when strong wind weather such as a typhoon comes, it can be reinforced by reinforcing ropes, and then the utility model has better wind resistance.

Description of drawings

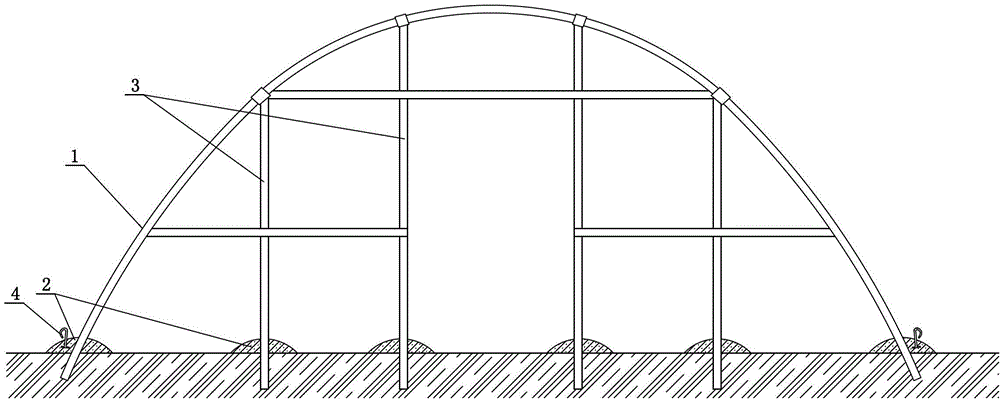

Fig. 1 is the structural representation of the utility model dendrobium candidum cultivation greenhouse.

As shown in the figure: 1. Arch skeleton, 2. Cement reinforcement layer, 3. Upright column, 4. Fixed ring.

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment, the utility model is described further.

As shown in Figure 1, a kind of Dendrobium candidum cultivation greenhouse, it comprises several arched skeletons 1 whose two ends are inserted in the soil, and described several arched skeletons 1 are evenly arranged to form a strip-shaped shed area, said The arched skeleton 1 is an integral structure, and the soil at both ends of the arched skeleton 1 is provided with a cement reinforcement layer 2 for reinforcing the arched skeleton 1, and the height of the arched skeleton 1 is 180-220 cm.

The cement reinforcement layer 2 extends along the length direction of the shed area.

The arch frame 1 at both ends of the shed area is provided with at least two columns 3, the upper ends of the columns 3 are connected to the arch frame 1, the lower ends of the columns 3 are inserted into the soil, and the lower ends of the columns 3 are A cement reinforcement layer 2 is also provided on the soil.

There are four upright columns 3, which are symmetrically distributed along the central line of the arched skeleton 1.

The distance between two adjacent arched skeletons 1 is 70-90cm (80cm in this example, it can also be 70cm, 85cm or 90cm, etc.).

The cement reinforcement layer 2 is provided with several fixing rings 4, the fixing rings 4 are arranged along the length direction of the cement reinforcement layer 2, and the distance between two adjacent fixing rings 4 is 150-200cm (this example 160cm, or 150cm, 170cm, 180cm or 190cm, etc.).

When laying,.

The above embodiments are only preferred embodiments of the utility model, and the utility model is not limited to the above embodiments and also allows other structural changes, and all changes within the scope of the independent claims of the utility model all belong to the protection scope of the utility model.

Claims (6)

1. A cultivation greenhouse for dendrobium candidum, which comprises several arched skeletons (1) whose two ends are inserted in the soil, and the plurality of arched skeletons (1) are evenly arranged to form a strip-shaped shed area, which is characterized in In that: the arched frame (1) is an integrated structure, the soil at both ends of the arched frame (1) is provided with a cement reinforcement layer (2) for reinforcing the arched frame (1), and the The arched skeleton (1) is 180-220cm high. 2. The Dendrobium candidum cultivation greenhouse according to claim 1, characterized in that: the cement reinforcement layer (2) extends along the length direction of the shed area. 3. The Dendrobium candidum cultivation greenhouse according to claim 1, characterized in that: at least two uprights (3) are arranged on the arched skeleton (1) at both ends of the shed area, and the uprights (3) of the uprights (3) The upper end is connected with the arched frame (1), the lower end of the column (3) is inserted into the soil, and the soil at the lower end of the column (3) is also provided with a cement reinforcement layer (2). 4. The Dendrobium candidum cultivation greenhouse according to claim 3, characterized in that there are four columns (3) symmetrically distributed along the central line of the arched skeleton (1). 5. The greenhouse for cultivation of Dendrobium candidum according to claim 1, characterized in that: the distance between the two adjacent arched skeletons (1) is 70-90 cm. 6. The Dendrobium candidum cultivation greenhouse according to claim 1, characterized in that: the cement reinforcement layer (2) is provided with several fixing rings (4), and the fixing rings (4) are arranged along the cement reinforcement layer (2) Arranged in the length direction, and the distance between two adjacent fixing rings (4) is 150-200 cm.
