Abstract
本实用新型公开了一种嵌入式太阳能光伏光热一体化组件，包括太阳能电池，还包括有吸热板，太阳能电池通过其底部TPT材料层粘附在吸热板顶面，吸热板底部多道直槽内分别嵌入有直管，吸热板底部还设置有隔热板。本实用新型结构紧凑，安装方便，具有较高的热能传导率，并大大提高了太阳能的利用率。
The utility model discloses an embedded solar photovoltaic photothermal integrated component, which includes a solar cell and a heat absorbing plate. Straight pipes are respectively embedded in the straight grooves, and a heat insulating board is arranged at the bottom of the heat absorbing plate. The utility model has the advantages of compact structure, convenient installation, high thermal conductivity and greatly improved utilization rate of solar energy.
Description
Technical field
The utility model relates to area of solar cell, is specially a kind of embedded photovoltaic and photothermal solar integral component.
Background technology
Solar cell in transform light energy is become the process of electric energy, is not all to convert whole luminous energy to electric energy.Theoretical research shows, the Theoretical Physics limit of the conversion efficiency of the solar cell of one pole single crystal silicon material in the time of 0 ℃ is 30%.Under the certain condition of light intensity, power output will descend when silion cell self temperature raises.In actual applications, under reference condition, the crystal silicon cell average efficiency is Shang Xia 15%.That is to say, solar cell can only become available electrical energy with 15% transform light energy, and remaining 85% all is converted into heat energy.In transfer process, along with the increase of heat energy, battery temperature constantly raises, and except photoelectric conversion efficiency reduces greatly, also will shorten the useful life of solar cell.For solar module can be worked muchly, in prior art, add heat abstractor (be similar to the cooling systems such as water-cooled, air cooling, by recirculated water or circulating air heat absorption, reach the heat radiation purpose) outside framework.But heat energy is also the part that solar module absorbs the solar radiation energy, if this part energy can be taken out and collects, be used, but not it needing to be considered as harmful heat of dissipation, just can reach the purpose that takes full advantage of the energy, and widen the use function of solar module.
The utility model content
The purpose of this utility model is to provide a kind of embedded photovoltaic and photothermal solar integral component, the unserviceable problem of heat energy of distributing to solve the prior art solar cell.
In order to achieve the above object, the technical scheme that adopts of the utility model is:
Embedded photovoltaic and photothermal solar integral component, comprise by the solar cell that consists of of the TPT material layer of lamination, EVA material layer, photovoltaic cell, EVA material layer, toughened glass successively from bottom to up, it is characterized in that: also include absorber plate, the absorber plate end face is coated with coating for selective absorption, described solar cell sticks to the absorber plate end face by its bottom TPT material layer, the absorber plate bottom is provided with the multiple tracks straight trough, embedding respectively in the per pass straight trough has straight tube, and the absorber plate bottom also is provided with the thermal insulation board of being close to the absorber plate bottom and holding straight tube.
Described embedded photovoltaic and photothermal solar integral component is characterized in that: the preferred blue titanium of described coating for selective absorption material.
Described embedded photovoltaic and photothermal solar integral component is characterized in that: many straight troughs are arranged parallel to each other in the absorber plate bottom.
The utility model compact conformation, easy for installation, have higher thermal energy conduction rate, and greatly improved the utilance of solar energy.
Description of drawings

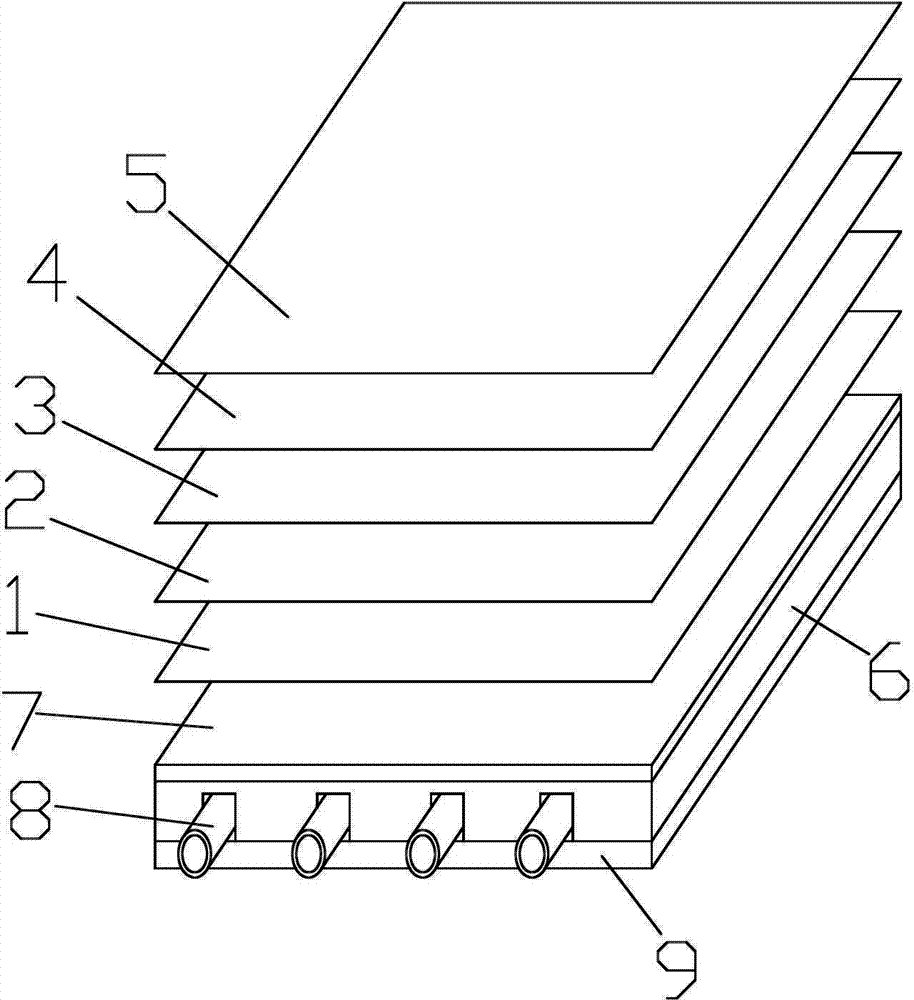

Fig. 1 is the loose view of the utility model structure.
Embodiment
As shown in Figure 1.Embedded photovoltaic and photothermal solar integral component, comprise by the solar cell that consists of of the TPT material layer 1 of lamination, EVA material layer 2, photovoltaic cell 3, EVA material layer 4, toughened glass 5 successively from bottom to up, also include absorber plate 6, absorber plate 6 end faces are coated with blue titanium coating 7, solar cell sticks to absorber plate 6 end faces by its bottom TPT material layer 1, absorber plate 6 bottoms are provided with the straight trough that multiple tracks is parallel to each other, embedding respectively in the per pass straight trough has straight tube 8, and absorber plate 6 bottoms also are provided with the thermal insulation board 9 of being close to absorber plate 6 bottoms and holding straight tube 8.
Claims (3)
1. embedded photovoltaic and photothermal solar integral component, comprise by the solar cell that consists of of the TPT material layer of lamination, EVA material layer, photovoltaic cell, EVA material layer, toughened glass successively from bottom to up, it is characterized in that: also include absorber plate, the absorber plate end face is coated with coating for selective absorption, described solar cell sticks to the absorber plate end face by its bottom TPT material layer, the absorber plate bottom is provided with the multiple tracks straight trough, embedding respectively in the per pass straight trough has straight tube, and the absorber plate bottom also is provided with the thermal insulation board of being close to the absorber plate bottom and holding straight tube.
2. embedded photovoltaic and photothermal solar integral component according to claim 1, is characterized in that: the preferred blue titanium of described coating for selective absorption material.
3. embedded photovoltaic and photothermal solar integral component according to claim 1 is characterized in that: many straight troughs are arranged parallel to each other in the absorber plate bottom.
