CN203273647U - Solar wall lamp - Google Patents

Abstract

The utility model discloses a solar wall lamp, which comprises a vertically arranged mounting plate (3), an integrally injection-molded shell (1) with the mounting plate (3), a solar battery panel (4), and a solar battery panel (4) ), the battery electrically connected to the output port of ), the light-transmitting lampshade (2), the LED light beads electrically connected to the battery, and the infrared sensor switch (5), and the solar panel (4) is embedded in the upper inclined wall of the housing (1) ( 1.1), and the surface of the solar panel (4) is provided with a protective film layer; the angle between the upper slope wall (1.1) of the housing (1) and the vertical direction is 45°, and the LED lamp beads are placed in the transparent In the light lampshade (2), the light-transmitting lampshade (2) is detachably connected to the lower end of the shell (1), and the angle between the side wall of the light-transmitting lampshade (2) and the vertical direction is 45°; the infrared sensor switch ( 5) Set on the casing (1). The solar wall lamp is easy to install, energy-saving and environment-friendly, and very convenient to use.

Description

A solar wall light

technical field

The utility model relates to the field of solar lighting, in particular to a solar wall lamp.

Background technique

Wall lamps are widely used in residential areas, tourist attractions, parks, squares, private gardens, courtyard corridors and other public places for lighting, providing necessary lighting and living convenience, and increasing residents' sense of security. But the problem is that the wall lamps of the prior art need to arrange additional power lines to supply power to them, which is very inconvenient.

Contents of the invention

The technical problem to be solved by the utility model is to provide a solar wall lamp which is easy to install, energy-saving and environment-friendly, and very convenient to use.

The technical scheme adopted by the utility model to solve the above-mentioned problems is: a solar wall lamp, including a vertically arranged mounting plate, an integrally injection-molded shell with the mounting plate, a solar cell panel, an electrical connection with the output port of the solar cell panel and A storage battery, a light-transmitting lampshade, an LED lamp bead electrically connected to the storage battery, and an infrared sensor switch are arranged in the casing, and the solar battery panel is embedded in a groove on the upper inclined wall of the casing, and the surface of the solar battery panel is arranged There is a protective film layer; the angle between the upper inclined wall of the shell and the vertical direction is 45°, the LED lamp beads are placed in the light-transmitting lampshade, and the light-transmitting lampshade is detachably connected It is located at the lower end of the shell, and the angle between the side wall of the light-transmitting lampshade and the vertical direction is 45°; the infrared sensor switch is arranged on the shell.

Compared with the prior art, the utility model has the advantages that: the mounting plate and the casing of the solar wall lamp are integrally injection molded, the solar battery panel is arranged in the groove of the upper inclined wall of the casing, and the upper inclined wall of the casing is connected to the vertical wall. The included angle in the vertical direction is 45°, and the solar panel can receive sunlight better. The shell is equipped with a battery electrically connected to the output port of the solar panel, which can store the electric energy converted by the solar panel during the day. At night, when someone approaches, the infrared sensor switch can sense the LED lamp bead and turn it on to provide lighting. . The LED lamp beads are placed in the light-transmitting lampshade and the light-transmitting lampshade is detachably connected to the lower end of the housing, so that installation and disassembly are more convenient. The angle between the side wall of the light-transmitting lampshade and the vertical direction is 45°, and the irradiation range is wider. The solar wall lamp is easy to install, energy-saving and environment-friendly, and very convenient to use.

Description of drawings

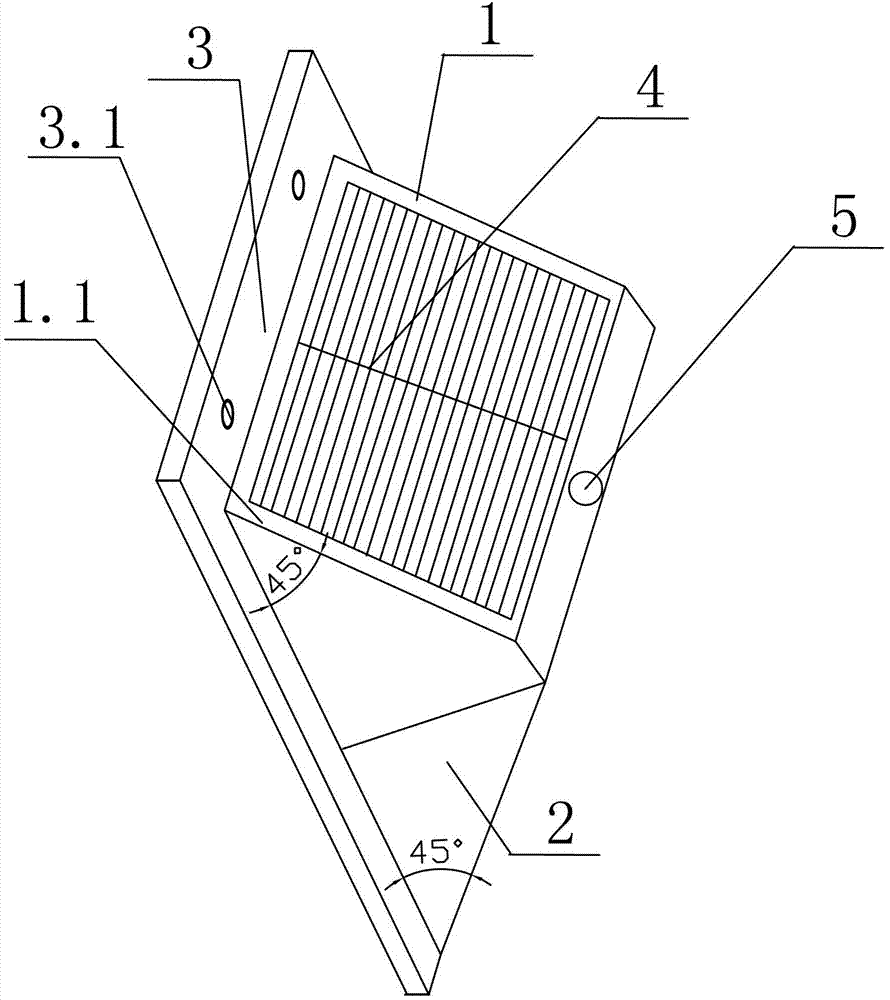

Fig. 1 is a structural schematic diagram of a solar wall lamp of the utility model.

In Fig. 1: 1 shell, 1.1 upper inclined wall, 2 light-transmitting lampshade, 3 mounting plate, 3.1 mounting hole, 4 solar cell panel, 5 infrared sensor switch.

Detailed ways

Embodiments of the utility model will be further described below in conjunction with the accompanying drawings.

As shown in Figure 1, a kind of solar wall lamp, comprises the mounting board 3 that is arranged vertically, and the shell 1 of integral injection molding with mounting board 3, solar panel 4, is electrically connected with the output port of solar panel 4 and is arranged on The battery in the housing 1, the light-transmitting lampshade 2, the LED lamp bead electrically connected to the battery and the infrared sensor switch 5, the solar battery panel 4 is embedded in the groove of the upper inclined wall 1.1 of the housing 1, and the solar battery The surface of the plate 4 is provided with a protective film layer; the angle between the upper inclined wall 1.1 of the housing 1 and the vertical direction is 45°, and the LED lamp beads are placed in the light-transmitting lampshade 2, and the The transparent lampshade 2 is detachably connected to the lower end of the shell 1, and the angle between the side wall of the transparent lampshade 2 and the vertical direction is 45°; the infrared sensor switch 5 is located on the on the casing 1 described above.

The mounting plate 3 is symmetrically provided with two mounting holes 3.1. The two installation holes 3.1 can be directly used to fix the wall lamp, and the installation is very convenient.

The protective film layer is an ETFE layer, and the thickness of the protective film layer is 0.2-0.5 mm. It can effectively prevent the solar panel from being scratched and prevent the surface of the solar panel from being damaged.

Claims (3)

1. solar energy wall lamp, it is characterized in that: comprise vertical setting installing plate (3), the shell (1) with installing plate (3) integrated injection forming, solar panel (4), be electrically connected to and be located at battery, transparent lamp shade (2), the LED lamp pearl that is connected with storage battery and infrared sensing switch (5) in shell (1) with the output port of solar panel (4), described solar panel (4) is embedded in the groove of upper skew wall (1.1) of shell (1), and the surface of solar panel (4) is provided with the protective film layer; The upper skew wall (1.1) of described shell (1) is 45 ° with the angle of vertical direction, described LED lamp pearl is placed in described transparent lamp shade (2), the removable lower end that is connected in described shell (1) of described transparent lamp shade (2), and the angle of the sidewall of described transparent lamp shade (2) and vertical direction is 45 °; Described infrared sensing switch (5) is located on described shell (1).

2. a kind of solar energy wall lamp according to claim 1, is characterized in that: be arranged with two installing holes (3.1) on described installing plate (3).

3. a kind of solar energy wall lamp according to claim 1, it is characterized in that: described protective film layer is the ETFE layer, and the thickness of protective film layer is 0.2～0.5mm.
