The utility model discloses a device for frying melon seeds, which comprises a cooker, a frying pan is installed in the cooker, a support is arranged on the cooker, a rotating shaft is installed on the support, and a stirring blade is installed at the bottom of the rotating shaft. The blades extend into the frying pan, the top of the rotating shaft is connected to the drive shaft through gears, and the driving shaft is connected to a crank handle; the stirring blades have three pieces, and the three pieces are evenly installed on the bottom of the rotating shaft; the stove and the bracket A detachable connection is adopted between them; the beneficial effect of the utility model is that it is practical, low in production cost, easy to use, convenient to fry melon seeds, saves labor, improves the efficiency of frying melon seeds, and is suitable for some small roasted seeds and nuts shops.

Description

A device for frying melon seeds

技术领域technical field

本实用新型涉及一种炒瓜子用装置。The utility model relates to a device for frying melon seeds.

背景技术Background technique

瓜子都要通过炒熟以后，才可食用，现在人们炒瓜子，一般都用很大的一口锅，里面放入铁砂或者是盐，再将瓜子放入里面进行翻炒，翻炒的时候，一般都用铁锹或者锅铲进行翻炒，很是费力，使用不方便，不适用于较多的瓜子的加工。Melon seeds must be fried before they can be eaten. Nowadays, people usually use a large pot to fry melon seeds, put iron sand or salt in it, and then put the melon seeds in it to stir fry. When stir frying, generally All stir-fry with a shovel or a spatula, which is very laborious and inconvenient to use, and is not suitable for the processing of more melon seeds.

实用新型内容Utility model content

本实用新型所要解决的技术问题是针对现有技术的不足，提供一种新型的炒瓜子用装置。The technical problem to be solved by the utility model is to provide a novel device for frying melon seeds in view of the deficiencies of the prior art.

为了实现上述目的，本实用新型所采取的措施：In order to achieve the above object, the measures taken by the utility model:

一种炒瓜子用装置，包括灶台，灶台内安装有炒锅，所述的灶台上设置有支架，支架上安装有转轴，转轴底部安装有拨动叶片，拨动叶片伸入到炒锅内，转轴顶部通过齿轮连接有驱动轴，驱动轴上连接有摇把；A device for frying melon seeds, comprising a cooker, a wok is installed in the cooker, a support is arranged on the cooker, a rotating shaft is installed on the support, a stirring blade is installed at the bottom of the rotating shaft, and the stirring blade extends into the frying pan. In the pot, the top of the rotating shaft is connected to the drive shaft through the gear, and the crank is connected to the drive shaft;

所述的拨动叶片有三片，三片均匀的安装在转轴底部；There are three moving blades, and the three blades are evenly installed on the bottom of the rotating shaft;

所述的灶台与支架之间采用可拆卸式连接。A detachable connection is adopted between the stove and the support.

本实用新型的有益效果：实用，生产成本低，使用方便，便于炒瓜子，省力，提高了炒瓜子的效率，适用于一些小型的炒货店使用。The beneficial effect of the utility model is that it is practical, low in production cost, convenient to use, convenient for frying melon seeds, saves labor, improves the efficiency of frying melon seeds, and is suitable for some small roasted seeds and nuts shops.

附图说明Description of drawings

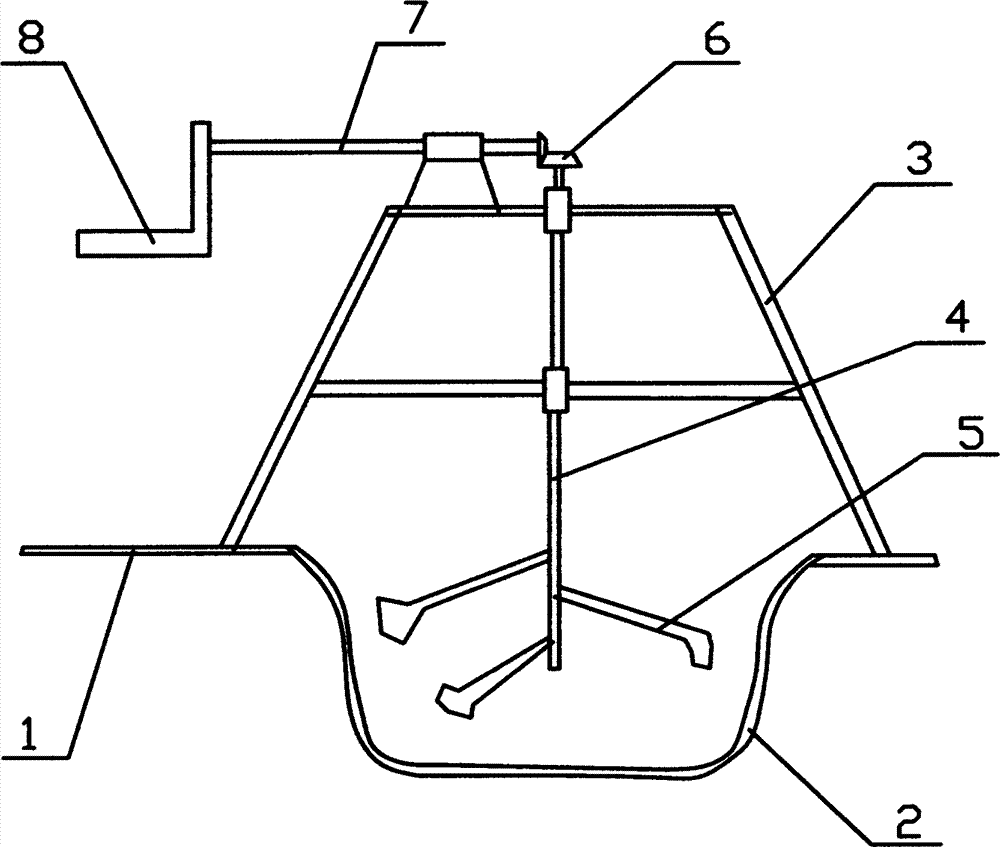

图1，本实用新型的侧面结构示意图。Fig. 1, the side structure schematic diagram of the utility model.

具体实施方式Detailed ways

一种炒瓜子用装置，包括灶台1，灶台1内安装有炒锅2，所述的灶台1上设置有支架3，支架3上安装有转轴4，转轴4底部安装有拨动叶片5，拨动叶片5伸入到炒锅2内，转轴4顶部通过齿轮6连接有驱动轴7，驱动轴7上连接有摇把8，将需要炒熟的瓜子放入到炒锅2内，在炒锅2底部加热，通过转动摇把8，炒锅2带动驱动轴7转动，驱动轴7通过齿轮6带动转轴4转动，转轴4带动拨动叶片5，拨动叶片5即可翻炒瓜子，省力，适用于炒货店内使用，使用方便；所述的拨动叶片5有三片，三片均匀的安装在转轴4底部，翻炒均匀；所述的灶台1与支架3之间采用可拆卸式连接，便于放入瓜子和取出瓜子，从而实现本实用新型的目的。A device for frying melon seeds, comprising a cooktop 1, a wok 2 is installed in the cooktop 1, a support 3 is arranged on the cooktop 1, a rotating shaft 4 is installed on the support 3, and a stirring blade is installed at the bottom of the rotating shaft 4 5. The moving blade 5 extends into the wok 2, the top of the rotating shaft 4 is connected to the drive shaft 7 through the gear 6, and the drive shaft 7 is connected to the handle 8, put the melon seeds that need to be cooked into the wok 2, Heating at the bottom of the wok 2, by turning the handle 8, the wok 2 drives the drive shaft 7 to rotate, the drive shaft 7 drives the rotation shaft 4 to rotate through the gear 6, the rotation shaft 4 drives the stirring blade 5, and the melon seeds can be stirred by stirring the blade 5 , labor-saving, suitable for use in roasted seeds and nuts shops, and easy to use; the stirring blade 5 has three pieces, and the three pieces are evenly installed on the bottom of the rotating shaft 4, and the stir-frying is even; Type connection, is convenient to put in melon seeds and take out melon seeds, thereby realizes the purpose of the utility model.

Claims

1. fry the melon seeds device for one kind, comprise the kitchen range top (1), frying pan (2) is installed in the kitchen range top (1), it is characterized in that: be provided with support (3) on the described kitchen range top (1), rotating shaft (4) is installed on support (3), rotating shaft (4) bottom is equipped with stirs blade (5), stirring blade (5) extend in frying pan (2), rotating shaft (4) top is connected with driving shaft (7) by gear (6), is connected with crank (8) on driving shaft (7).

2. a kind of stir-fry melon seeds device according to claim 1, it is characterized in that: the described blade (5) of stirring has three, and three are arranged on rotating shaft (4) bottom uniformly.

3. a kind of stir-fry melon seeds device according to claim 1 is characterized in that: adopt detachable the connection between the described kitchen range top (1) and support (3).
