Abstract
一种能照明的太阳能手持扩音器。它是由扩音器、太阳能板、LED灯、LED灯开关和蓄电池构成。该实用新型通过太阳能板为蓄电池充电，从而为扩音器及LED灯提供电量，使其具有节约有限能源、一物多用的优点。
A solar-powered handheld loudspeaker capable of lighting. It is composed of a loudspeaker, solar panels, LED lights, LED light switches and batteries. The utility model charges the storage battery through the solar panel, thereby providing electric power for the loudspeaker and the LED lamp, so that it has the advantages of saving limited energy and multi-purpose.
Description
Technical field
The utility model relates to a kind of loudspeaker, particularly the hand-held loudspeaker of a kind of solar energy that can throw light on.
Background technology
In daily life, loudspeaker has the advantages that sound is amplified, and is one of very general electrical equipment.Yet common loudspeaker function is single, uses the battery pollution environment, and therefore, the loudspeaker that designs a kind of novel environment friendly is significant.
Summary of the invention
For the problems referred to above, the utility model provides a kind of solar energy that can throw light on hand-held loudspeaker, and this loudspeaker can utilize solar power generation, and has illumination functions.
The technical scheme that its technical problem that solves the utility model adopts is: it is to be made of loudspeaker, solar panels, LED lamp, LED lamp switch and storage battery, solar panels are embedded in the loudspeaker both sides, storage battery places loudspeaker inner, the LED lamp embeds loudspeaker edge, and the LED lamp switch places loudspeaker outside.Solar panels convert solar energy into electrical energy and are stored in the storage battery, provide electric energy for loudspeaker and LED lamp when needed.
The beneficial effects of the utility model are, use sunlight as the mode of the energy, thereby saved to a great extent the limited energy, and having illumination function.
Description of drawings
Below in conjunction with drawings and Examples the utility model is further specified.

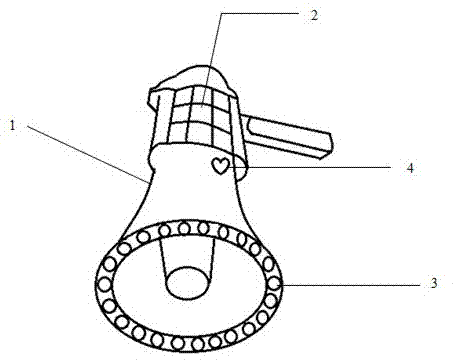

Fig. 1 is overall structure schematic diagram of the present utility model.
Fig. 2 is integrated circuit schematic diagram of the present utility model.
Among Fig. 1, Fig. 2,1. loudspeaker, 2. solar panels, 3.LED lamp, 4.LED lamp switch, 5. storage battery.
Embodiment
Solar panels (2) are embedded in loudspeaker (1) both sides, and storage battery (5) places loudspeaker (1) inside, and LED lamp (3) embeds loudspeaker (1) edge, and LED lamp switch (4) places loudspeaker (1) outside.Solar panels (2) change solar energy into electrical power storage in storage battery (5), for loudspeaker (1) and LED lamp (3) provide required electric energy.
Claims (4)
1. the solar energy that can throw light on is handed loudspeaker, and it is to be made of loudspeaker, solar panels, LED lamp, LED lamp switch and storage battery, it is characterized in that solar panels are embedded in the loudspeaker both sides.
2. the hand-held loudspeaker of a kind of solar energy that can throw light on according to claim 1 is characterized in that described storage battery places loudspeaker inner.
3. the hand-held loudspeaker of a kind of solar energy that can throw light on according to claim 1 is characterized in that described LED lamp embeds loudspeaker edge.
4. the hand-held loudspeaker of a kind of solar energy that can throw light on according to claim 1 is characterized in that described LED lamp switch places loudspeaker outside.
