Abstract

The utility model discloses a novel packaging box, which is mainly composed of a box cover and a box body; the box cover is composed of a box cover wooden device and a box cover linen wrapping sponge device; the box body is composed of a box body wooden device and a box body It consists of a sponge body device wrapped in linen cloth; a box body cavity is arranged between the box cover and the box body. In the box body cavity surrounded by the box cover linen wrapped sponge and the box body linen wrapped sponge device, when placing items, you can place them at will, as long as the size is appropriate, any shape of item can be placed in the box cavity Inside, items can be placed in any position, and it is drop-proof and shock-proof, which can protect fragile items. In addition, the utility model is easy to use, easy to carry, simple in design, low in cost, strong in protection and has strong practicability.

Description

A new type of packing box

technical field

The utility model belongs to the field of packaging boxes, in particular to a novel packaging box capable of fixing articles, preventing falls and shocks.

Background technique

Traditional packaging boxes use foam to protect fragile items. Because the foam cannot shrink at will, the fixing performance of the items is not so strong, and it is easy to fall out. Moreover, when using foam as a shockproof product, there are limitations. According to each According to the shape and size of each item to make the packaging box, the cost is high, and the placement process is complicated, and the shockproof effect is not ideal. Aiming at the various disadvantages of traditional packaging boxes, in order to better adapt to the development of the market, it is necessary to invent a new type of packaging box that can fix items, prevent falls, and prevent shocks.

Contents of the invention

The purpose of the utility model is to provide a new type of packing box, aiming at solving the problem that the traditional packing box cannot well fix the articles, prevent falling and shockproof.

The utility model is achieved in this way, a new type of packaging box mainly consists of a box cover and a box body, the box cover is composed of a box cover plank device and a box cover linen wrapping sponge device, and the box cover linen wraps the sponge The device is arranged inside the box cover plank device; the box body is composed of a box body plank device and a box body linen wrapping sponge device, and the box linen wrapping sponge device is arranged inside the box body plank device; A box body cavity is arranged between the box cover and the box body.

Further, the lid linen-wrapped sponge device is laid flat inside the lid wooden board device.

Further, the box body linen wrapping sponge device is laid obliquely inside the box body plank device.

Further, a box edge is provided above the box.

A new packaging box provided by the utility model is mainly composed of a box cover and a box body. The box cover is composed of a box cover plank device and a box cover linen wrapping sponge device. The box cover linen wrapping sponge device is arranged on Inside the box cover plank device; the box body is composed of a box body plank device and a box body linen wrapping sponge device, and the box body linen wrapping sponge device is arranged inside the box body plank device; the box cover A box body cavity is arranged between the box body and the box body. This new packaging box has strong practicability. The linen wrapped sponge device is soft. With the above-mentioned flat laying and inclined laying design, the four sides of the sponge body can be shrunk at will, and the items can be placed flexibly to obtain the greatest aesthetic effect. , there is no need to tailor a packing box for each item, and the elastic force of the sponge device without flax wrapped is better. When the items are placed inside, the fixing effect on the items is very good. In addition, the utility model is convenient to use, easy to carry, simple in design, low in cost, strong in protection and has strong practicability.

Description of drawings

Fig. 1 is the structural representation of the lid provided by the utility model

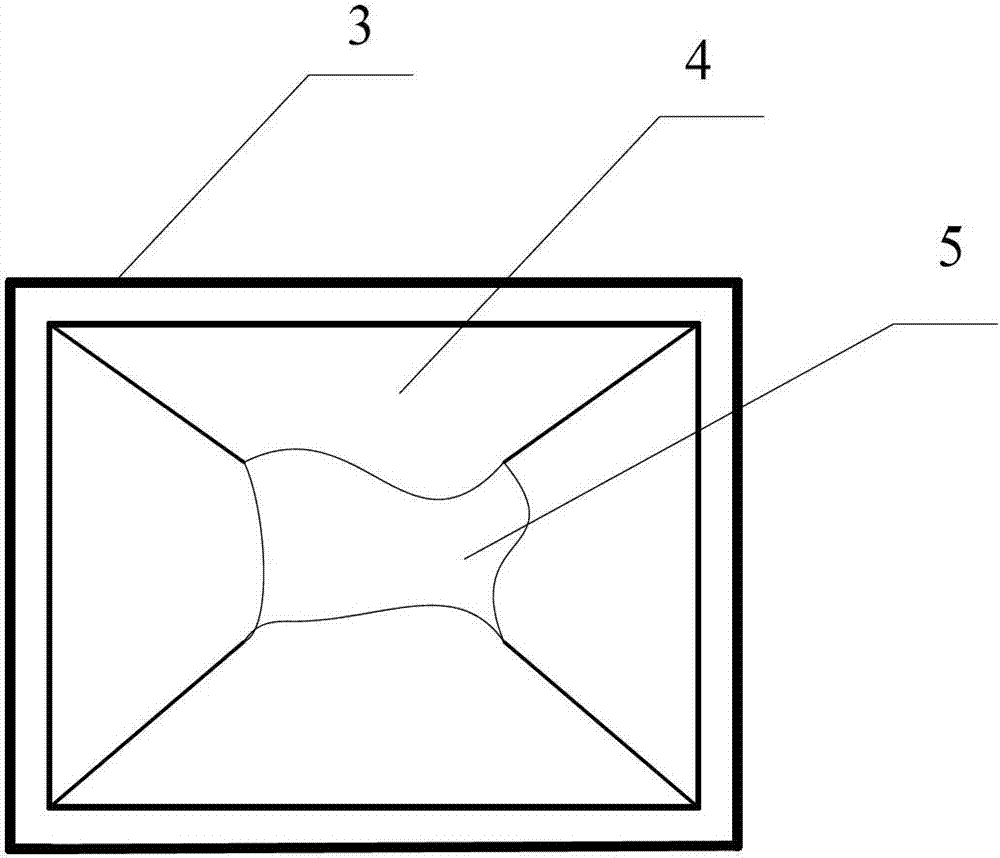

Fig. 2 is the structural representation of the box body that the utility model provides

In the figure: 1. Box lid wooden device; 2. Box cover linen wrapped sponge device; 3. Box body wooden device; 4. Box body linen wrapped sponge device; 5. Box cavity.

Detailed ways

In order to make the purpose, technical solution and advantages of the utility model clearer, the utility model will be further described in detail below in conjunction with the embodiments. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

Fig. 1 shows a schematic structural view of the box cover provided by the utility model, and Fig. 2 shows a schematic structural view of the box cover provided by the utility model. For ease of description, only the parts relevant to the present utility model are shown.

A new type of packaging box, mainly composed of a box cover and a box body, the box cover is composed of a box cover plank device 1 and a box cover linen wrapping sponge device 2, and the box cover linen wrapping sponge device 2 is arranged on the box cover Inside the plank device 1; the box body is composed of a box body plank device 3 and a box body linen wrapping sponge device 4, and the box linen wrapping sponge device 4 is arranged inside the box plank device 3; A box body cavity 5 is arranged between the box cover and the box body.

In the box body cavity 5 surrounded by the box cover linen wrapping sponge device 2 and the box body linen wrapping sponge device 4, when placing articles, it can be placed arbitrarily, as long as the size is suitable, articles of any shape can be It is placed inside the box body cavity 5, and items can be placed in any position. After putting the lid of the article cover box, because the expansion and contraction force of the sponge in the device 2 of the lid linen wrapping the sponge and the device 4 of the box body linen wrapping the sponge is better, when the article is placed inside, it can be better. Fix the placed items.

The lid linen wrapping sponge device 2 is spread flat inside the box lid plank device 1 , and the box body linen wrapping sponge device 4 is spread obliquely inside the box body plank device 3 . Such a design can better fix and protect the items put into the box.

The top of the box body is provided with a box body edge, and such a design can make the box cover and the box body more tightly buckled together, thereby better fixing and protecting the articles put into the box.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model shall be included in this utility model. within the scope of protection of utility models.

Claims (4)

1. A novel packaging box, characterized in that it mainly consists of a lid and a box body, the lid is made up of a lid plank device and a lid linen wrapping sponge device, and the lid linen wrapping sponge device is set Inside the box cover plank device; the box body is composed of a box body plank device and a box body linen wrapping sponge device, and the box body linen wrapping sponge device is arranged inside the box body plank device; the box A box body cavity is arranged between the cover and the box body. 2 . The novel packaging box according to claim 1 , wherein the lid linen wrapping sponge device is laid flat inside the lid wood plank device. 3 . 3. The new packaging box according to claim 1, wherein the box body linen wrapping sponge device is laid obliquely inside the box body wooden board device. 4. The novel packaging box according to claim 1, characterized in that, a box edge is arranged above the box body.
