Abstract

The utility model relates to the field of cutting equipment, in particular to a pearl wool cutting device. The pearl wool cutting device comprises a rack, a feeding roller, a vertical round cutter, a transverse cutter and a controller, wherein the feeding roller is arranged on the rack. The feeding roller comprises a pair of inlet rolling shafts and a pair of outlet rolling shafts, the inlet rolling shafts and the outlet rolling shafts are arranged at the front end of the rack, one inlet rolling shaft is located above the other inlet rolling shaft, one outlet rolling shaft is located above the other outlet rolling shaft, and the inlet rolling shafts or the outlet rolling shafts are driven by a first motor to rotate through a first chain. The vertical round cutter comprises a round cutter shaft, the round cutter shaft is arranged between the inlet rolling shafts and the outlet rolling shafts, a disc cutter is arranged on the round cutter shaft, and the transverse cutter comprises a toothed cutter. The two ends of the round cutter shaft are respectively provided with a second chain, the second chains are driven by a second motor to rotate, the second motor is arranged on the lower portion of the rack, the two ends of the toothed cutter are respectively driven by a cylinder to move up and down, and the end portions of the inlet rolling shafts and the end portions of the outlet rolling shafts are driven by synchronous belts to rotate. The pearl wool cutting device has the advantages of being high in production efficiency, low in cost, good in quality and good in universality.

Description

A kind of expanded polyethylene foam cutter sweep
Technical field
The utility model relates to the cutting equipment field, relates in particular to a kind of expanded polyethylene foam cutter sweep.
Background technology
Expanded polyethylene foam (EPE) cutter sweep is the equipment that expanded polyethylene foam is cut into needed shape and size, existing expanded polyethylene foam cutter is to adopt blade or annular without the serrated knife band mostly, slowly switch to the other end from an end of monoblock material, thereby expanded polyethylene foam is cut into strip, if need less size, then manually cut open, the efficient of cutting is low like this, has also increased human cost again; Moreover because bad dynamics is grasped in artificial cutting, the finished product tangent plane of cutting is inhomogeneous, of low quality, and size is inaccurate.
The utility model content
The problem that the utility model solves is that existing expanded polyethylene foam cutter sweep efficient is low, cost is high, ropy defective, and a kind of expanded polyethylene foam cutter sweep is provided, and its cutting efficiency is high, cost is low, end product quality is high.
The utility model embodiment provides a kind of expanded polyethylene foam cutter sweep, and it comprises frame, is arranged on the feeding roller on the described frame, perpendicular round cutting-off tool, revolving knife and a controller; Described feeding roller comprises import roller bearing a pair of setting up and down and a pair of outlet roller bearing setting up and down that is arranged on described frame front end, has up and down the material slit between the roller bearing, described import roller bearing or described outlet roller bearing are rotated by the first chain-driving by the first motor, described perpendicular round cutting-off tool comprises the round cutting-off tool axle that is arranged between described import roller bearing and the outlet roller bearing, be provided with cutting disc on the described round cutting-off tool axle, described revolving knife is arranged on the outlet of described outlet roller bearing, and described revolving knife comprises a tooth form knife; Described round cutting-off tool axle both ends respectively arrange one second chain, and described the second chain is rotated by second motor-driven that is arranged on described frame lower, and each is moved up and down described tooth form knife two ends by cylinder drive; Thereby the end of described import roller bearing is connected transmission with the end of described outlet roller bearing with Timing Belt, the direction of rotation of the rotation direction of described round cutting-off tool axle and described import roller bearing or outlet roller bearing.
Be that the cutting disc below has cutting plate on the described frame, has the round cutting-off tool groove on the described cutting plate to further improvement in the technical proposal.
Be that the arrival end of described frame arranges a feed table to further improvement in the technical proposal.
Preferably, described tooth form knife two ends respectively are connected on the serrated knife seat, and described serrated knife seat is connected by a serrated knife lead with described cylinder.
Expanded polyethylene foam cutter sweep described in the utility model, beneficial effect is:
(1) expanded polyethylene foam cutter adopts the double-pole diced system, expanded polyethylene foam is cut at vertical direction through round cutter first, again through the transversely lower cutting of sawtooth cutting knife, thereby expanded polyethylene foam is cut into the size that needs, both saved human cost, production efficiency is also high, the product cross section that cuts into is even, quality is good, can size be set arbitrarily, satisfies the sizes requirement.
(2) control each motor and cylinder by controller, and then automatically control product cut lengths and startup-shutdown, serrated knife is moved up and down by cylinder control, expanded polyethylene foam is transversely cut into down strip, than existing cutting machine high efficiency.
Description of drawings
Accompanying drawing 1 is the utility model embodiment expanded polyethylene foam cutter sweep structural representation;
Accompanying drawing 2 is the utility model embodiment expanded polyethylene foam cutter sweep side structure schematic diagram;
Accompanying drawing 3 is the utility model embodiment expanded polyethylene foam cutter sweep front view;

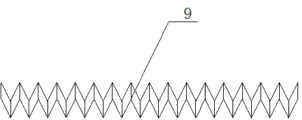

Accompanying drawing 4 is the utility model embodiment expanded polyethylene foam cutter sweep sawtooth cutter structure schematic diagram;
Accompanying drawing 5 is the inner partial structurtes schematic diagram of the utility model embodiment expanded polyethylene foam cutter sweep;
Wherein:
1, frame 2, feeding roller 3, perpendicular round cutting-off tool
4, revolving knife 5, import roller bearing 6, outlet roller bearing
7, round cutting-off tool axle 8, cutting disc 9, tooth form knife
10, the second chain 11, the second motor 12, cylinder
13, controller 14, Timing Belt 15, the first motor
16, cutting plate 17, round cutting-off tool groove 18, cradle
19, the first chain 20, gear 21, serrated knife seat
22, serrated knife lead
The specific embodiment
For making the purpose of this utility model, technical scheme and advantage clearer, below in conjunction with accompanying drawing the utility model is described in further detail.
Expanded polyethylene foam cutter sweep described in the utility model, shown in accompanying drawing 1 or 3, it comprises frame 1, and feeding roller 2 is set on the frame 1, perpendicular round cutting-off tool 3 and revolving knife 4 also arrange a controller 13.
Feeding roller 2 comprises two import roller bearings 5 that are arranged on frame 1 front end (being material inlet), two import roller bearings 5 are setting up and down, between have material slit by material, frame 1 rear end (namely near material outlet) also arranges two outlet roller bearings 6 that distribute up and down, and the end of import roller bearing 5 is connected by belt 14 with the end of outlet roller bearing 6.Frame 1 bottom arranges the first motor 15, import roller bearing 5 and outlet roller bearing 6 ends arrange gear 20, the first motor 15 is connected by the gear 20 of the first chain 19 with import roller bearing 5 or outlet roller bearing 6 ends, and import roller bearing 5 or outlet roller bearing 6 are by belt transmission, thus the walking of drive material.
Controller 13 is electrically connected with the first motor 15, and it can control the size in the material gap between two import roller bearings 5 or two the outlet roller bearings 6.
Perpendicular round cutting-off tool 3 comprises the round cutting-off tool axle 7 that is arranged between import roller bearing 5 and the outlet roller bearing 6, round cutting-off tool axle 7 ends arrange gear 20, frame 1 bottom arranges the second motor 11, the second motor 11 is connected with the gear 20 of round cutting-off tool axle 7 ends by the second chain 10, thereby the second motor 11 drives round cutting-off tool axle 7 and rotates, cutting disc 8 is set on the round cutting-off tool axle 7, its number and spacing can be as required the length setting of expanded polyethylene foam, the direction of rotation of the rotation direction of round cutting-off tool axle 7 and import roller bearing 5 or outlet roller bearing 6 is in order to drive the material walking.
Revolving knife 4 comprises a tooth form knife 9, and it is arranged on the outlet of outlet roller bearing 6, and tooth form knife 9 two ends respectively are connected on the serrated knife seat 21, serrated knife seat 21 links together by a joint pin 22 with cylinder 12, thereby cylinder 12 moves up and down and drives tooth form knife 9 and move up and down, and expanded polyethylene foam is cut.
The below of cutting disc 8 has the cutting plate 16 of steel on the frame 1, has tiny round cutting-off tool groove 17 on the cutting plate 16, and roll setting reduces its wearing and tearing after 8 pairs of material cuttings of cutting disc in round cutting-off tool groove 17.
The arrival end of frame 1 arranges a feed table 18.
During work, at controller 13 the up and down distance of roller bearing is set, the monoblock expanded polyethylene foam of respective thickness is sent in the equipment by feed table 18, pass through from the material slit between the import roller bearing 5, then pass through from round cutting-off tool axle 7 bottoms, cutting disc 8 is vertically cut the monoblock expanded polyethylene foam open, then between outlet roller bearing 6, pass through, rotation by outlet roller bearing 6, expanded polyethylene foam is driven tooth form knife 9 places, tooth form knife 9 moves downward, and with the expanded polyethylene foam transverse cuts, exports out from frame 1 thereby expanded polyethylene foam becomes the size that needs.
Expanded polyethylene foam cutter sweep described in the utility model, adopt the double-pole diced system, expanded polyethylene foam is cut at vertical direction through cutting disc first, pass through again the tooth form knife transverse cuts, thereby expanded polyethylene foam is cut into the size that needs, both saved human cost, production efficiency is also high, and the product cross section that cuts into is even, and quality is good, can size be set arbitrarily, satisfy the sizes requirement.Control each motor and cylinder by controller, and then automatically control product cut lengths and startup-shutdown, serrated knife is moved up and down by cylinder control, to the expanded polyethylene foam transverse cuts into strips, and than existing cutting machine high efficiency.
The above is preferred embodiment of the present utility model; should be pointed out that for those skilled in the art, under the prerequisite that does not break away from the utility model principle; can also make some improvements and modifications, these improvements and modifications also are considered as protection domain of the present utility model.

Claims (4)

1. expanded polyethylene foam cutter sweep is characterized in that:
Comprise frame (1), be arranged on the feeding roller (2) on the described frame (1), perpendicular round cutting-off tool (3), revolving knife (4) and a controller (13);
Described feeding roller (2) comprises import roller bearing (5) a pair of setting up and down and a pair of outlet roller bearing (6) setting up and down that is arranged on described frame (1) front end, has the material slit between the roller bearing (5) up and down, described import roller bearing (5) or described outlet roller bearing (6) are driven by the first chain (19) by the first motor (15) and rotate, described perpendicular round cutting-off tool (3) comprises the round cutting-off tool axle (7) that is arranged between described import roller bearing (5) and the outlet roller bearing (6), be provided with cutting disc (8) on the described round cutting-off tool axle (7), described revolving knife (4) is arranged on the outlet of described outlet roller bearing (6), and described revolving knife (4) comprises a tooth form knife (9);
Described round cutting-off tool axle (7) both ends respectively arrange one second chain (10), described the second chain (10) is driven by second motor (11) that is arranged on described frame (1) bottom and rotates, and each is moved up and down described tooth form knife (9) two ends by a cylinder (12) drive;
The end of the end of described import roller bearing (5) and described outlet roller bearing (6) with Timing Belt (14) thus be connected transmission, the direction of rotation of the rotation direction of described round cutting-off tool axle (7) and described import roller bearing (5) or outlet roller bearing (6).
2. expanded polyethylene foam cutter sweep as claimed in claim 1, it is characterized in that: the upper cutting disc (8) of described frame (1) below has cutting plate (16), has round cutting-off tool groove (17) on the described cutting plate (16).
3. expanded polyethylene foam cutter sweep as claimed in claim 1, it is characterized in that: the arrival end of described frame (1) arranges a feed table (18).
4. expanded polyethylene foam cutter sweep as claimed in claim 1, it is characterized in that: described tooth form knife (9) two ends respectively are connected on the serrated knife seat (21), and described serrated knife seat (21) is connected by a serrated knife lead (22) with described cylinder (12).
