Abstract

The utility model discloses an external notebook computer auxiliary cooling device, which can efficiently and energy-savingly dissipate heat for the notebook computer. The cooling device includes: cooling fins, heat pipes, atomizers, CPU temperature sensors, fans, water pipes, microcirculation pumps, water tanks and an automatic control system, wherein cooling fins, heat pipes, and fans are inherent components inside the notebook computer , The atomizer is installed between the fan and the cooling fins, connected to the microcirculation pump and the water tank through the water pipe, and the automatic control system is connected to the CPU temperature sensor and the microcirculation pump to detect the CPU temperature and adjust the water volume. The utility model applies the heat dissipation device of the atomizer to the heat dissipation of the notebook computer. Under the action of the atomizer, the phase change process is accelerated, thereby accelerating the heat exchange speed and effectively improving the heat exchange efficiency.

Description

An external notebook computer auxiliary cooling device

technical field

The utility model relates to a cooling device for electronic components, in particular to an auxiliary cooling device for an external notebook computer.

Background technique

As the performance of notebook computers gets higher and higher, the chips inside the machine generate more and more heat, and the chips can reach very high temperatures in a very short period of time. While enjoying the comfort brought by high-performance notebooks, people are also faced with the problem of continuously and effectively solving the heat dissipation of notebook computers. Poor heat dissipation will lead to system performance degradation, seriously affect the stability and reliability of the system, and will also affect the service life of other components. At present, most of the heat dissipation methods used in notebook computers are heat pipes + heat sinks + fans. Strengthening the heat exchange between the heat sink and the air medium is the main means of external cooling methods for notebook computers, such as the common notebook fan cooling base. The fan heat dissipation base takes away the heat from the notebook panel from the bottom. This method reduces the temperature of the panel by strengthening the convection heat exchange between the panel and the surrounding air. The improvement of the heat exchange of the heat sink in the notebook inner shell is limited, and the heat inside the system cannot be absorbed. Take away quickly.

Chinese Patent Publication (Announcement) No.: CN202008625U, is a liquid and wind hybrid notebook computer radiator, which mainly introduces unique liquid cooling heat dissipation into the notebook computer heat dissipation device, and cooperates with the fan that can adjust the fan position at will. Phase change heat; Chinese Patent Publication (Announcement) No.: CN1591278A, is a phase change heat dissipation device, including a heat exchanger, a vapor phase transfer pipe, a heat exchange chamber, a storage tank, and a liquid transfer pipe. It also includes a fluid supplier with a capillary structure. When used in a notebook computer, a flexible tube is used to link the heat exchange reaction chamber and the heat exchanger, so that it can be respectively located in the cooling of the LCD screen and the base; Chinese Patent Publication (Announcement ) number: CN201316696Y, a heat exchange device for an atomizer, which is applied to a heat dissipation plate, and a protective layer is provided on the heat dissipation plate. The first two patent systems are complex and costly, while the atomizer heat exchange device has a good cooling effect, but it has not been used in a notebook computer cooling device.

Utility model content

The utility model provides an external notebook computer auxiliary cooling device, which can efficiently and energy-savingly dissipate heat for the notebook computer.

An external notebook computer auxiliary cooling device provided by the utility model includes: cooling fins, heat pipes, atomizers, CPU temperature sensors, fans, water pipes, microcirculation pumps, water tanks and automatic control systems, wherein the cooling fins , heat pipes, and fans are inherent parts of the notebook computer. The atomizer is installed between the fan and the cooling fins. It is connected to the microcirculation pump and the water tank through the water pipe. The automatic control system is connected to the CPU temperature sensor and the microcirculation pump to detect the CPU temperature. and adjust the water volume.

The working process of the present utility model is as follows:

1. When the notebook computer CPU is started, the built-in temperature sensor and automatic control system will judge whether to start the external notebook computer auxiliary cooling device.

2. When the set temperature is reached, start the microcirculation pump and the atomizer starts to work.

3. Water mist starts to be generated on the side of the cooling fins, and is blown to the fins through the heat pipes under the action of the fan.

4. The heat generated by the CPU starts from the external heat exchange. The water droplets on the fins cause vaporization under the condition of heat and forced convection, and take away heat.

5. When the CPU temperature drops below the set value, the automatic control system turns off the microcirculation pump water pump.

Compared with the existing similar devices, the utility model has the beneficial effects as follows:

1. The atomizer cooling device is applied to the heat dissipation of notebook computers. Under the action of the atomizer, the phase change process is accelerated, thereby speeding up the heat transfer speed and effectively improving the heat transfer efficiency.

2. The automatic control system is used to control the cooling device, which is beneficial to save energy.

Description of drawings

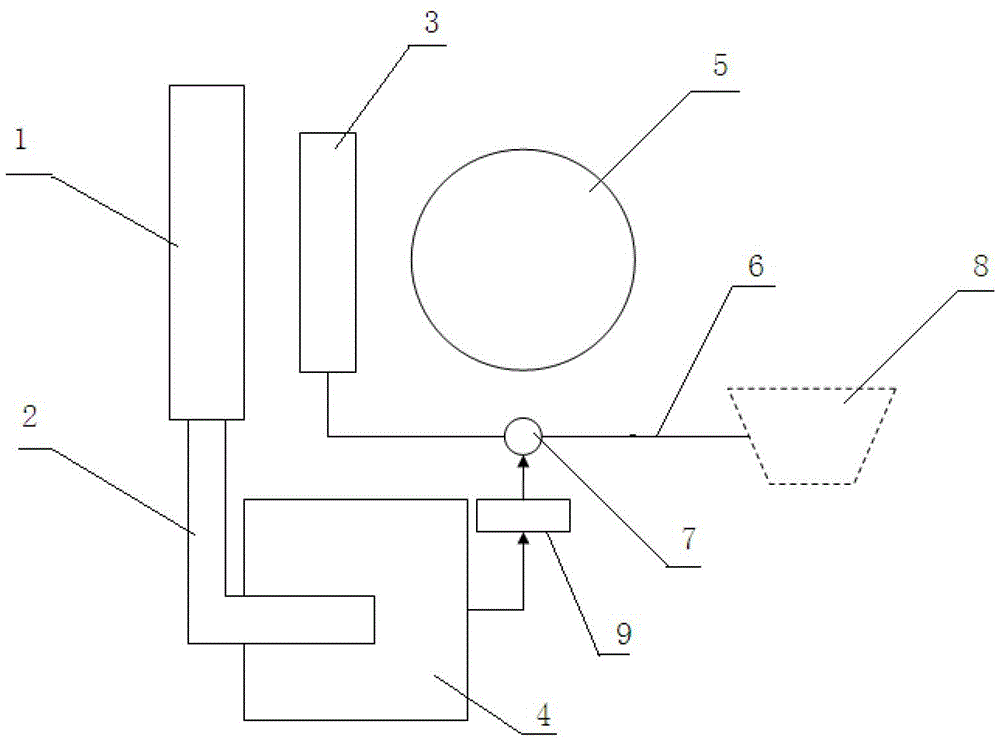

Fig. 1 is a schematic structural diagram of an external notebook computer auxiliary cooling device.

Detailed ways

An external notebook computer auxiliary cooling device provided by the utility model includes: cooling fins 1, heat pipe 2, atomizer 3, CPU temperature sensor 4, fan 5, water pipe 6, microcirculation pump 7, water tank 8 and The automatic control system 9, wherein the heat dissipation fin 1, the heat conduction pipe 2, and the fan 5 are internal components of the notebook computer, the atomizer 3 is installed between the fan 5 and the heat dissipation fin 1, and the microcirculation pump 7 and the water tank are connected through the water pipe 6 8. The automatic control system 9 connects the CPU temperature sensor 4 and the microcirculation pump 7 to detect the CPU temperature and adjust the water volume.

Claims (1)

1. An external notebook computer auxiliary cooling device is characterized in that the device comprises: cooling fins, heat pipes, atomizer, CPU temperature sensor, fan, water pipe, microcirculation pump, water tank and automatic control system, wherein Cooling fins, heat pipes, and fans are internal components of the notebook computer. The atomizer is installed between the fan and the cooling fins. It is connected to the microcirculation pump and water tank through water pipes. The automatic control system is connected to the CPU temperature sensor and the microcirculation pump.
