CN203237580U - Separated facial mask package bag and facial mask product adopting same - Google Patents
Separated facial mask package bag and facial mask product adopting same Download PDFInfo
- Publication number
- CN203237580U CN203237580U CN 201320165369 CN201320165369U CN203237580U CN 203237580 U CN203237580 U CN 203237580U CN 201320165369 CN201320165369 CN 201320165369 CN 201320165369 U CN201320165369 U CN 201320165369U CN 203237580 U CN203237580 U CN 203237580U
- Authority
- CN
- China
- Prior art keywords
- facial mask
- bag
- cellular
- chamber
- packaging bag
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
- 230000001815 facial effect Effects 0.000 title claims abstract description 116
- 238000004806 packaging method and process Methods 0.000 claims abstract description 29
- 238000005192 partition Methods 0.000 claims abstract description 13
- 239000004744 fabric Substances 0.000 claims description 34
- 230000000694 effects Effects 0.000 claims description 26
- 239000000203 mixture Substances 0.000 claims description 26
- 230000004308 accommodation Effects 0.000 claims description 16
- 238000007789 sealing Methods 0.000 claims description 15
- 238000000034 method Methods 0.000 claims description 7
- 238000012856 packing Methods 0.000 claims description 5
- 239000012780 transparent material Substances 0.000 claims description 5
- 239000000463 material Substances 0.000 claims description 3
- 239000004033 plastic Substances 0.000 claims description 3
- 238000003032 molecular docking Methods 0.000 claims description 2
- 230000002035 prolonged effect Effects 0.000 abstract description 4
- 239000003795 chemical substances by application Substances 0.000 description 13
- 230000002087 whitening effect Effects 0.000 description 13
- 239000003963 antioxidant agent Substances 0.000 description 12
- 230000003078 antioxidant effect Effects 0.000 description 12
- 239000000686 essence Substances 0.000 description 11
- 241000894006 Bacteria Species 0.000 description 5
- 230000009286 beneficial effect Effects 0.000 description 4
- 238000000151 deposition Methods 0.000 description 3
- 230000002605 anti-dotal effect Effects 0.000 description 2
- 239000007788 liquid Substances 0.000 description 2
- 230000003020 moisturizing effect Effects 0.000 description 2
- 239000007844 bleaching agent Substances 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 239000012467 final product Substances 0.000 description 1
- 230000007774 longterm Effects 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 239000000047 product Substances 0.000 description 1
- 230000001052 transient effect Effects 0.000 description 1
Images
Landscapes
- Packages (AREA)
Abstract
The utility model discloses a separated facial mask package bag. The separated facial mask package bag comprises a bag body and an accommodating space formed by the bag body; the accommodating space comprises three chambers which are respectively used for separately packaging different facial mask components; a partition which can be extruded for communicating the chambers is arranged between two adjacent chambers; the accommodating space is separated into three chambers which are independent and can communicate with each other, and the three chambers respectively store different facial mask components, so that the storage time of a facial mask is prolonged, the content of each component of the facial mask can be known intuitively and clearly by a consumer when the facial mask is bought, so that worries of the consumer are avoided. The utility model also discloses a facial mask product adopting the facial mask package bag.
Description
Technical field
The utility model relates to a kind of mask packaging bag, particularly relates to the facial mask goods of a kind of cellular-type mask packaging bag and this mask packaging bag of employing.
Background technology
Existing facial mask goods generally comprise mask packaging bag and the wet type facial mask of depositing in the mask packaging bag, the wet type facial mask is directly the facial mask cloth of reservation shape to be infiltrated on to have moisturizing, whitening, compact, in the liquid parts of the effect such as releive, then with its fold seals in packaging bag, only need during use and will infiltrate the above-mentioned moisturizing that has, whitening, compact, the mask sheet of the liquid parts of the effect such as releive spreads on facial getting final product, this facial mask goods are easy to use, but these facial mask goods are because facial mask cloth, the long-term mixing of facial mask stoste and high activity composition, easy breed bacteria, shorten easily the shelf-life of whole facial mask goods, and the customer is when buying and use, often can not know the content of the various functional components of learning intuitively this kind facial mask, the customer will produce misgivings when buying.
The utility model content
For addressing the above problem, the utility model provides a kind of long shelf-life, is difficult for breed bacteria, and the cellular-type mask packaging bag of the various compositions of learning facial mask that can be simple and clear.
The technical solution of the utility model is as follows: a kind of cellular-type mask packaging bag, comprise bag and the spatial accommodation that is formed by described bag, described spatial accommodation comprises three chambers that are respectively applied to the different facial mask compositions of packing, is provided with the partition that described chamber is connected through extruding between the adjacent described chamber.
Preferably, the outside face of described bag is provided with respectively the volume scale corresponding to described three chamber places.
Preferably, described bag is transparent material corresponding to described volume scale place.
Preferably, described bag docking forms the described spatial accommodation of sealing, and the joint of described bag is provided with sealing lip.
Preferably, described bag is plastic material, and described sealing lip is that heat-seal process forms; Described partition is that half heat-seal process forms.
Preferably, described spatial accommodation comprises that at least one tears breach, and the described breach of tearing is arranged on the described sealing lip.
Preferably, described spatial accommodation also comprises at least one auxiliary chamber, is provided with described partition between described auxiliary chamber and the described cavity.
The utility model also provides another technical scheme: a kind of facial mask goods, comprise facial mask and aforesaid cellular-type mask packaging bag, and described facial mask comprises facial mask cloth, facial mask stoste and high activity composition; Described facial mask cloth, facial mask stoste and high activity composition are deposited in respectively in described three chambers.
Preferably, described facial mask stoste and high activity composition are symmetrical arranged with respect to described facial mask.
Preferably, described facial mask stoste is Essence, and described high activity composition is whitening agent and/or antioxidant and/or antidotal agent.
Adopt the beneficial effect of above technical scheme: the chamber that still can mutually connect again by spatial accommodation being divided into three independences, facial mask is when depositing, facial mask cloth in the facial mask, facial mask stoste and high activity composition can be deposited respectively, in order to avoid bacteria breed, have prolonged the shelf-life of facial mask; The customer can be simple and clear when buying facial mask the content of the various compositions of learning this kind facial mask, when buying, just can buy as required release trouble and worry; The customer only needs extruding or curling bag when using facial mask, can realize the perforation of adjacent chamber, thereby realizes the mixing of the various compositions of facial mask.
Adopt above technical scheme also to have other beneficial effect: one, the outside face at bag arranges the volume scale, and the volume scale place of bag is set to transparent material, can grasp more accurately the content of various compositions in the facial mask, the customer is more trusted with relieved; Two, breach is torn in setting at the sealing lip place, the facial mask of taking during convenient the use.
Description of drawings
In order to be illustrated more clearly in the utility model embodiment or technical scheme of the prior art, the below will do to introduce simply to the accompanying drawing of required use in embodiment or the description of the Prior Art, apparently, accompanying drawing in the following describes only is embodiment more of the present utility model, for those of ordinary skills, under the prerequisite of not paying creative work, can also obtain according to these accompanying drawings other accompanying drawing.
Fig. 1 is the main TV structure scheme drawing of the disclosed cellular-type mask packaging bag of the utility model embodiment 1;
Fig. 2 is the plan structure scheme drawing of the disclosed cellular-type mask packaging bag of the utility model embodiment 1;
Fig. 3 is the facial mask goods embodiment 1 storage configuration scheme drawing of disclosed this mask packaging bag of employing of the utility model;
Fig. 4 is that the facial mask goods embodiment 1 first of disclosed this mask packaging bag of employing of the utility model uses view;

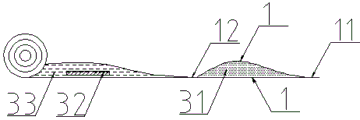

Fig. 5 is that the facial mask goods embodiment 1 second of disclosed this mask packaging bag of employing of the utility model uses view;
Fig. 6 is the plan structure scheme drawing of the disclosed cellular-type mask packaging bag of the utility model embodiment 2;
Fig. 7 is the plan structure scheme drawing of the disclosed cellular-type mask packaging bag of the utility model embodiment 4.
The title of the numeral among the figure or the corresponding component of alphabetical representative:
1. bag 11. sealing lips 12. partitions 21. high activities become sub-chamber's 22. facial mask cloth chamber 23. stoste chambers, 31. whitening agents and antioxidant 32. facial mask cloths 33. Essences 34. functional components 35. facial masks 4. volume scales 5. to tear breach.
The specific embodiment
Below in conjunction with the accompanying drawing among the utility model embodiment, the technical scheme among the utility model embodiment is clearly and completely described, obviously, described embodiment only is the utility model part embodiment, rather than whole embodiment.Based on the embodiment in the utility model, those of ordinary skills are not making the every other embodiment that obtains under the creative work prerequisite, all belong to the scope of the utility model protection.
Referring to Fig. 1-Fig. 5, shown in legend wherein, a kind of cellular-type mask packaging bag, comprise a bag 1 and dock a spatial accommodation of the sealing that forms by bag 1, the joint of bag 1 is provided with sealing lip 11, this spatial accommodation comprises that a high activity that is used for packing high activity composition becomes sub-chamber 21, the one facial mask cloth chamber 22 and that is used for the packing facial mask cloth is used for the stoste chamber 23 of packing stoste, and high activity becomes between sub-chamber 21 and the facial mask cloth chamber 22 to be provided with a partition 12 that makes high activity become sub-chamber 21 and facial mask cloth chamber 22 to connect through extruding, be provided with a partition 12 that facial mask cloth chamber 22 and stoste chamber 23 is connected through extruding between facial mask cloth chamber 22 and the stoste chamber 23.
The below introduces a kind of facial mask goods, comprise a facial mask and above-mentioned cellular-type mask packaging bag, above-mentioned facial mask comprises Essence 33, facial mask cloth 32 and whitening agent and antioxidant 31, Essence 33 is deposited in the stoste chamber 23, facial mask cloth 32 is deposited in the facial mask cloth chamber 22, and whitening agent is deposited in high activity with antioxidant 31 and become in the sub-chamber 21.
During use, begin curling bag 1 from stoste chamber 23 ends, partition 12 between stoste chamber 23 and the facial mask cloth chamber 22 is squeezed, stoste chamber 23 and facial mask cloth chamber 22 connect, Essence 33 infiltrates in the facial mask cloth 32, continue curling bag 1, partition 12 between high activity composition cavity 21 and the facial mask cloth cavity 22 is squeezed, high activity composition cavity 21 and facial mask cloth cavity 22 connect, make whitening agent and antioxidant 31 and Essence 33 fully be mixed into functional components 34 and fully infiltrate facial mask cloth 32, namely make facial mask 35.
Can also become the curling bag 1 of sub-chamber's 21 ends from high activity during use, perhaps become the two ends of sub-chamber 21 and stoste chamber 23 simultaneously curling from high activity, make high activity become sub-chamber 21, facial mask cloth chamber 22 and stoste chamber 23 to connect, thereby make whitening agent and antioxidant 31 and Essence 33 fully be mixed into functional components 34 and fully infiltrate facial mask cloth 32, make facial mask 35.
Above-mentioned facial mask goods are symmetrical arranged with Essence 33 whitening agent and antioxidant 31 with respect to facial mask cloth 32, make the outward appearance coordination more attractive in appearance of facial mask goods, in the product of reality, whitening agent and antioxidant 31, facial mask cloth 32 and Essence 33 so long as separately deposit and and can push perforation, the position of whitening agent and antioxidant 31, facial mask cloth 32 and Essence 33 can arrange arbitrarily, can adjust according to actual needs.
Adopt technique scheme, the customer can learn composition and the content of facial mask intuitively when buying the facial mask goods, purchase feel more relieved and satisfactory; After the customer buys the facial mask goods back home, if temporary transient no words can be deposited, because whitening agent and antioxidant 31, facial mask cloth 32 and the Essence 33 of facial mask are separately deposited, so avoided growing of bacterium, prolonged the shelf-life of facial mask; The customer only need be curling gently when using the facial mask goods, and each composition of facial mask is fully mixed, and is easy to use.
Embodiment 2
Referring to Fig. 6, shown in legend wherein, all the other are identical with described embodiment 1, and difference is that the outside face of bag 1 becomes sub-chamber 21, facial mask cloth chamber 22 and stoste chamber 23 places to be provided with respectively volume scale 4 corresponding to high activity.
When the customer buys the facial mask goods at you, can accurately recognize each component and the content of facial mask.
Embodiment 3
All the other are identical with described embodiment 2, and difference is that bag is transparent material corresponding to volume scale place.
Embodiment 4
Referring to Fig. 7, shown in legend wherein, all the other are identical with described embodiment 1, and difference is, spatial accommodation comprises that at least one tears breach 5, tears breach 5 and is arranged on the sealing lip 11, makes things convenient for the customer to take out facial mask.
Embodiment 5
All the other are identical with described embodiment 1, difference is, spatial accommodation also comprises at least one auxiliary chamber, above-mentioned auxiliary chamber and above-mentioned high activity composition cavity and/or stoste cavity and/or the adjacent setting of facial mask cloth chamber are provided with above-mentioned partition between above-mentioned auxiliary chamber and above-mentioned high activity composition cavity and/or stoste cavity and/or the facial mask cloth chamber.
Embodiment 6
All the other are identical with described embodiment 1, and difference is that whitening agent and antioxidant are whitening agent, antioxidant and antidotal agent.
Adopt the beneficial effect of above technical scheme: the chamber that still can mutually connect again by spatial accommodation being divided into three independences, facial mask is when depositing, facial mask cloth in the facial mask, facial mask stoste and high activity composition can be deposited respectively, in order to avoid bacteria breed, have prolonged the shelf-life of facial mask; The customer can be simple and clear when buying facial mask the content of the various compositions of learning this kind facial mask, when buying, just can buy as required release trouble and worry; The customer only needs extruding or curling bag when using facial mask, can realize the perforation of adjacent chamber, thereby realizes the mixing of the various compositions of facial mask.
Adopt above technical scheme also to have other beneficial effect: one, the outside face at bag arranges the volume scale, and the volume scale place of bag is set to transparent material, can grasp more accurately the content of various compositions in the facial mask, the customer is more trusted with relieved; Two, breach is torn in setting at the sealing lip place, the facial mask of taking during convenient the use.
More than be the description to the utility model embodiment, by the above-mentioned explanation to the disclosed embodiments, make this area professional and technical personnel can realize or use the utility model.Multiple modification to these embodiment will be apparent concerning those skilled in the art, and General Principle as defined herein can in the situation that does not break away from spirit or scope of the present utility model, realize in other embodiments.Therefore, the utility model will can not be restricted to these embodiment shown in this article, but will meet the widest scope consistent with principle disclosed herein and features of novelty.
Claims (9)
1. cellular-type mask packaging bag, comprise bag and the spatial accommodation that is formed by described bag, it is characterized in that described spatial accommodation comprises three chambers that are respectively applied to the different facial mask compositions of packing, be provided with the partition that described chamber is connected through extruding between the adjacent described chamber.
2. cellular-type mask packaging bag according to claim 1 is characterized in that, the outside face of described bag is provided with respectively the volume scale corresponding to described three chamber places.
3. cellular-type mask packaging bag according to claim 2 is characterized in that, described bag is transparent material corresponding to described volume scale place.
4. cellular-type mask packaging bag according to claim 1 is characterized in that, described bag docking forms the described spatial accommodation of sealing, and the joint of described bag is provided with sealing lip.
5. cellular-type mask packaging bag according to claim 4 is characterized in that, described bag is plastic material, and described sealing lip is that heat-seal process forms; Described partition is that half heat-seal process forms.
6. cellular-type mask packaging bag according to claim 5 is characterized in that, described spatial accommodation comprises that at least one tears breach, and the described breach of tearing is arranged on the described sealing lip.
7. cellular-type mask packaging bag according to claim 6 is characterized in that, described spatial accommodation also comprises at least one auxiliary chamber, is provided with described partition between described auxiliary chamber and the described cavity.
8. facial mask goods is characterized in that, comprise facial mask and such as the arbitrary described cellular-type mask packaging bag of claim 1-6, described facial mask comprises facial mask cloth, facial mask stoste and high activity composition; Described facial mask cloth, facial mask stoste and high activity composition are deposited in respectively in described three chambers.
9. facial mask goods according to claim 8 is characterized in that, described facial mask stoste and high activity composition are symmetrical arranged with respect to described facial mask cloth.
