Abstract

The utility model relates to a stationery, in particular to a two-color pen. Including pen cap one (1), writing end one (2), pen holder (3), writing end two (4), pen cap two (5), pen refill one (6), pen refill two (7), and is characterized in that: The pen cap one (1) is connected with the writing end one (2) and the left end of the pen holder (3); the writing end two (4) is connected with the pen cap two (5) and the right end of the pen holder (3); the pen core one (6) is left end It is connected with writing end one (2), and the right end of refill two (7) is connected with writing end two (4). The utility model has a simple structure, can put two pen refills of different colors into one pen holder at the same time, and can better improve work efficiency; it is easy to carry, easy to replace the pen refills, and has a beautiful and generous appearance.

Description

a two-color pen

technical field

The utility model relates to a stationery, in particular to a two-color pen.

Background technique

At present, the gel pens on the market are basically one refill. For staff or students who like to take notes and highlight key points, they have to carry two gel pens with them, which is very inconvenient; if they carry one If you only use a gel pen, you will not be able to tell which are ordinary points and which are important points, which will bring some troubles to study or work.

Utility model content

The technical problem to be solved by the utility model is to provide a two-color pen, so that the writer can quickly and conveniently change the color of the pen to make different marks.

In order to solve the above-mentioned technical problems, the technical solution adopted by the utility model is: a two-color pen, comprising a pen cap one, a writing end one, a pen holder, a writing end two, a pen cap two, a pen core one, and a pen core two, and the pen cap one It is connected with the writing end one and the left end of the pen holder; the writing end two is connected with the cap two and the right end of the pen holder; the left end of the pen core one is connected with the writing end one, and the right end of the pen core two is connected with the writing end two.

The lengths of the first and second refills are half the length of the penholder.

The beneficial effects of the utility model:

(1) The structure of the utility model is simple, and two refills of different colors can be placed in one pen holder at the same time, so as to better improve work efficiency;

(2) Easy to carry, easy to replace the refill, beautiful appearance.

Description of drawings

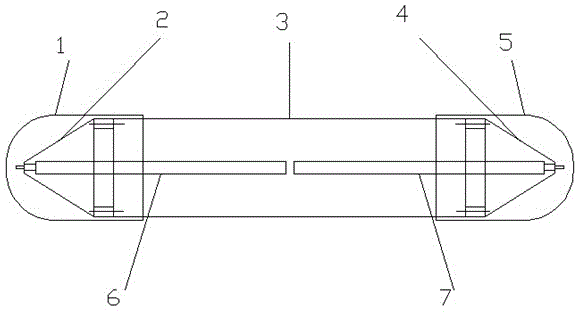

Fig. 1 is the structural representation of the utility model

Among them, 1-pen cap one; 2-writing end one; 3-penholder; 4-writing end two; 5-pen cap two; 6-refill one; 7-refill two.

Detailed ways

The utility model will be described in further detail below with reference to the accompanying drawings and in conjunction with the embodiments.

A two-color pen, comprising a pen cap 1, a writing end 2, a pen holder 3, a writing end 2 4, a pen cap 2 5, a refill 6, and a refill 7, the pen cap 1, the writing end 2, and the pen holder 3 left ends are connected; Writing end two 4 is connected with pen cap two 5, penholder 3 right ends; Pen core one 6 left ends are connected with writing end one 2, pen core two 7 right ends are connected with writing end two 4.

The length of described pen core one 6, pen core two 7 is half of pen holder 3 lengths.

Claims (2)

1. Double-color pen, comprise the cap for brush one (1), writing end one (2), penholder (3), writing end two (4), the cap for brush two (5), pen core one (6), pen core two (7), it is characterized in that: the described cap for brush one (1) is connected with writing end one (2), penholder (3) left end; Writing end two (4) is connected with the cap for brush two (5), penholder (3) right-hand member; Pen core one (6) left end is connected with writing end one (2), and pen core two (7) right-hand members are connected with writing end two (4).

2. Double-color pen according to claim 1, it is characterized in that: the length of described pen core one (6), pen core two (7) is half of penholder (3) length.
