A multifunctional paper pump, the center of the base is vertically connected to a support rod, and several rolls of roll paper are covered on the support rod, one side of the base is vertically connected to a baffle, and the baffle is connected to the cover through a lock, and the height of the baffle is the same as the height of the cover Correspondingly, the lower end of the cover is open, and the opening height is the height of a roll of paper, and the lower end of the support rod is provided with a buckle, and the buckle position is higher than the height of the lowest roll of paper. The technical effects of the utility model are: easy to use, convenient to store, prevent dust, prevent theft, and avoid unnecessary loss and waste.

Description

Multifunctional paper drawer

technical field

The utility model relates to a paper pumping device, in particular to a multifunctional paper pumping device.

Background technique

The paper drawer is to facilitate the extraction of paper towels. Usually, the paper drawers used can be used to extract paper towels at will. Some public places will have paper drawers, but some people who are greedy for small profits will take away all the public rolls. It makes it inconvenient for those who really need it and causes unnecessary waste.

Contents of the invention

The purpose of the utility model is to provide a multi-functional paper drawer, which can store multiple rolls of paper according to needs, prevent roll paper from being stolen, bring convenience to people who really need it, and save resources without wasting.

The utility model is achieved in this way, it includes a base, a support rod, a roll of paper, a baffle plate, a lock, a cover, and a buckle. One side of the base is vertically connected to the baffle, and the baffle is connected to the cover through a lock. The height of the baffle is equivalent to the height of the cover. Buckle, the buckle position is higher than the height of the lowest roll paper.

The technical effects of the utility model are: easy to use, convenient to store, prevent dust, prevent theft, and avoid unnecessary loss and waste.

Description of drawings

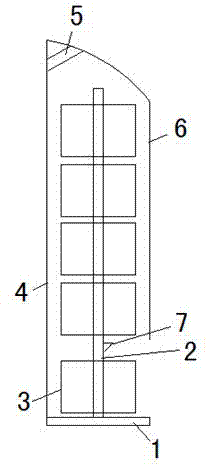

Fig. 1 is the structural representation of the utility model.

In the figure, 1, base 2, support rod 3, roll paper 4, baffle 5, lock 6, cover 7, buckle.

Detailed ways

As shown in Figure 1, the utility model is implemented in this way, it includes a base 1, a support rod 2, a paper roll 3, a baffle plate 4, a lock 5, a cover 6, and a buckle 7, and the center of the base 1 is vertically connected to the support rod 2. There are several rolls of roll paper 3 on the support rod 2. One side of the base 1 is vertically connected to the baffle 4. The baffle 4 is connected to the cover 6 through the lock 5. The height of the baffle 4 is equivalent to the height of the cover 6. The cover The lower end of 6 is open, and the height of opening is the height of a roll of paper 3, and the lower end of support rod 2 is provided with buckle 7, and the position of buckle 7 is higher than the height of the lowermost roll of paper.

Claims (1)

1. multi-functional Dispenser, it comprises base, support bar, coil paper, baffle plate, lock, cover, buckle, it is characterized in that the base center vertically connects support bar, be with some coil papers on the support bar, a side of base vertically connects baffle plate, baffle plate connects cover by lock, the height of baffle plate is suitable with the cover height, and the lower end of described cover is open type, and unlimited height is a coil paper height, the lower end of support bar is provided with buckle, and snapped-in position is higher than the height of orlop coil paper.
