CN203225259U - Frameless photovoltaic assembly support - Google Patents

Abstract

The utility model relates to a frameless photovoltaic module bracket, which includes a guide rail for installing the frameless photovoltaic module, the guide rail is fixedly arranged on a component clamp below it, and a support column is arranged at the bottom of the component clamp; the component clamp The buckle is composed of the first clip fitting, the second clip fitting and a spring; the second clip fitting is provided with a U-shaped groove, and the first clip fitting is embedded in the U-shaped groove of the second clip fitting. The bolts that can fix the guide rail are fixed; the front surface of the first clip fitting is provided with an inclined surface of 45° to 60°, and the rear end surface is provided with a round hole, and the spring is arranged in the round hole and the second clip fitting The sides are offset; the inside of the guide rail is provided with reinforcing ribs, and the outside side is provided with an inclination corresponding to the shape of the first clip fitting. The frameless photovoltaic component bracket has a simple structure, is convenient for installation and disassembly, has low production and installation costs, high installation efficiency, and good economic performance.

Description

Frameless photovoltaic module support

technical field

The utility model relates to the photovoltaic field, in particular to a frameless photovoltaic module bracket.

Background technique

With the continuous development and utilization of new energy technologies, photovoltaic energy as a solar energy industry continues to grow. Due to the relatively high technological content of photovoltaic products, extra care must be taken during installation. In order to ensure the firm structure of the existing photovoltaic modules after installation, it is necessary to design a support for installing the photovoltaic modules. In order to effectively support the photovoltaic modules and resist the influence of natural factors, a fixed frame needs to be designed around the outer periphery of these photovoltaic modules, and the photovoltaic modules are fixed by the cooperation of the fixed frame and the bracket at the bottom. However, this type of photovoltaic module bracket has a cumbersome structure, cumbersome production and installation, high production and installation costs, and inconvenient transportation and disassembly, which affects work efficiency.

Contents of the invention

The technical problem to be solved by the utility model is to provide a frameless photovoltaic module bracket with simple structure and easy installation.

In order to solve the above-mentioned technical problems, the utility model is realized through the following technical solutions: a frameless photovoltaic module bracket, including a guide rail for installing a frameless photovoltaic module, and the guide rail is fixedly arranged on a component under which the position can be automatically restored On the clip, a support column is arranged at the bottom of the component clip.

Preferably, the assembly clip is composed of a first clip fitting, a second clip fitting and a spring; a U-shaped groove is arranged in the second clip fitting, and the first clip fitting is embedded in the U-shaped part of the second clip fitting. In the groove, and between them are fixed by bolts that can fix the guide rail.

Preferably, the front surface of the first clip fitting is provided with an inclined surface of 45°-60°, and the rear end surface is provided with a round hole, and the spring is arranged in the round hole to abut against the inner surface of the second clip fitting.

Preferably, the inside of the guide rail is provided with reinforcing ribs, and one side of the outside is provided with an inclination corresponding to the shape of the first clip fitting.

Preferably, the frameless photovoltaic module is connected to the guide rail through an adhesive tape.

Compared with the prior art, the utility model has the advantages that the frameless photovoltaic module bracket has a simple structure, is convenient for installation and disassembly, has low production and installation costs, high installation efficiency, and good economic performance.

Description of drawings:

Below in conjunction with accompanying drawing, the utility model is further described.

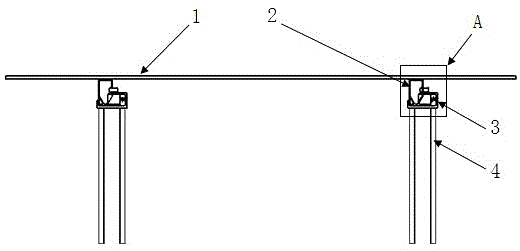

Figure 1 is a schematic diagram of the assembly structure of the frameless photovoltaic module bracket of the present invention;

Figure 2 is a schematic diagram of the installation structure between the guide rail and the frameless photovoltaic module in the frameless photovoltaic module support;

Fig. 3 is a partial enlarged view of A in Fig. 1;

Fig. 4 is a schematic diagram of the clip structure of the component.

In the figure: 1. Frameless photovoltaic module; 2. Guide rail; 3. Module clip; 3-1. Bolt; 3-2. First clip accessory; 3-3. Spring; 3-4. Second clip Accessories; 4. Support column; 5. Adhesive tape.

Detailed ways:

Below in conjunction with accompanying drawing and specific embodiment the utility model is described in detail:

Figure 1 and Figure 3 show a frameless photovoltaic module bracket, including a guide rail 2 for installing a frameless photovoltaic module 1, as shown in Figure 2, the frameless photovoltaic module 1 and the guide rail 2 are connected by an adhesive tape 5 The guide rail 2 is fixedly arranged on the component clip 3 which can automatically restore the position below it, and the bottom of the component clip 3 is provided with a support column 4; as shown in Figure 4, the component clip 3 is formed by the first clip The buckle fitting 3-2, the second buckle fitting 3-4 and the spring 3-3 are composed; the second buckle fitting 3-4 is provided with a U-shaped groove, and the first buckle fitting 3-2 is embedded in the second buckle Fittings 3-4 are in the U-shaped groove, and the bolts 3-1 that can fix the guide rail 2 are connected and fixed between them; when the guide rail 2 of the frameless photovoltaic module 1 acts on the first clip fitting 3-2, the first clip The accessory 3-2 moves horizontally, and the spring 3-3 shrinks; after the guide rail 2 of the frameless photovoltaic module 1 is put in place, the spring 3-3 unfolds, and the first clip accessory 3-2 returns to its original position, and the guide rail 2 is stuck ; The inside of the guide rail 2 is provided with reinforcing ribs, and the outer side is provided with an inclination angle corresponding to the shape of the first clip fitting 3-2; The inclined surface, the rear end surface is provided with a circular hole, and the spring 3-3 is arranged in the circular hole to abut against the inner surface of the second clip fitting 3-4.

The specific installation method is as follows. Firstly, the guide rail 2 and the frameless photovoltaic module 1 are bonded together with the adhesive tape 5, and then the whole is installed on the support column 4 with the module clip 3; The angle on the top of the first clip fitting 3-2 presses the second clip fitting 3-4 to move horizontally. After the components are installed in place, due to the elastic force of the spring 3-3, the first clip fitting 3-2 returns to its original position and is tightened. The bolt 5 on the component clip 3 makes the first clip fitting 3-2, the guide rail 2 and the second clip fitting 3-4 fastened, and the installation is completed.

The frameless photovoltaic module bracket has a simple structure, is convenient for installation and disassembly, has low production and installation costs, high installation efficiency, and good economic performance.

It should be emphasized that: the above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model in any form. Any simple modification, equivalent change and Modifications still belong to the scope of the technical solution of the utility model.

Claims (5)

1. A frameless photovoltaic module bracket, characterized in that: it includes a guide rail (2) for installing a frameless photovoltaic module (1), and the guide rail (2) is fixedly provided with a component clip that can automatically restore its position below it On (3), a support column (4) is provided at the bottom of the component clip (3). 2. The frameless photovoltaic module support according to claim 1, characterized in that: the module clip (3) consists of a first clip fitting (3-2), a second clip fitting (3-4) and Composed of springs (3-3); the second clip fitting (3-4) is provided with a U-shaped groove, and the first clip fitting (3-2) is embedded in the U-shaped groove of the second clip fitting (3-4) Inside, and between them are connected and fixed by bolts (3-1) capable of fixing the guide rail (2). 3. The frameless photovoltaic module support according to claim 2, characterized in that: the front end of the first clip fitting (3-2) is provided with an inclined surface of 45°-60°, and the rear end is provided with a round hole , the spring (3-3) is arranged in the round hole to abut against the inner surface of the second clip fitting (3-4). 4. The frameless photovoltaic module support according to claim 2, characterized in that: the inside of the guide rail (2) is provided with reinforcing ribs, and one side of the outside is provided with a shape corresponding to the shape of the first clip fitting (3-2). inclination. 5. The frameless photovoltaic module support according to claim 1, characterized in that: the frameless photovoltaic module (1) and the guide rail (2) are connected by an adhesive tape (5).
