Abstract

A developing brain cotton related to the field of medical aids. The brain cotton includes folding fan paper clips and brain cotton in two sizes of 2×8cm and 1×4cm. Each piece of brain cotton is provided with a middle part of the inner layer. Developing strips, the top of each piece of brain cotton is equipped with a hand-drawn thread; the brain cotton can not only directly meet the needs of small-sized brain cotton in brain surgery, but also can be developed under X-ray fluoroscopy, thereby effectively avoiding The phenomenon of brain cotton lost in the brain of surgical patients occurred.

Description

A developing brain cotton

【Technical field】

The utility model relates to the field of medical aids, in particular to a brain cotton which is used in craniotomy and can be developed under X-ray perspective.

【Background technique】

Known, the brain cotton that is packaged by folding fan paper clip mode is the most commonly used in craniotomy, and it is used for protecting and moistening important blood vessel, nerve and brain tissue and assisting hemostasis auxiliary equipment, yet, because clinically used at present The size of the brain cotton is uniformly 2×8cm, but in practical applications, smaller brain cotton is often used. Therefore, it is often necessary for surgical personnel to spend time cutting the brain cotton into a size of approx. Small pieces of 1×4 cm are used to meet the needs of practical applications. This cutting operation is not only time-consuming and laborious, but also extremely inconvenient. It is very easy to soak the folding fan paper clip, so it is very inconvenient to count the number of brain cotton and maintain the aseptic requirements of the operating table; in addition, when the brain cotton is found to be missing after the cranial cavity is closed, because the current brain cotton cannot be developed under X-ray fluoroscopy , and the number of brain cotton used in each craniotomy is at least dozens of pieces. Therefore, due to the inconvenience of counting the number of brain cotton, the risk of craniotomy is correspondingly increased, and the number of equipment nurses and nurses is virtually increased. Surgeons worry about the psychological pressure of brain cotton left in the brain of surgical patients.

【Content of invention】

In order to overcome the deficiencies in the background technology, the utility model discloses a developing brain cotton, which can not only directly meet the demand for small-sized brain cotton in craniotomy, but also can be developed under X-ray fluoroscopy, thereby Effectively avoid the phenomenon that the brain cotton is left in the brain of the operation patient.

In order to realize the above-mentioned purpose of the invention, the utility model adopts the following technical solutions:

A developing brain cotton, the brain cotton includes folding fan paper clips and brain cotton in two sizes of 2×8cm and 1×4 cm, each piece of brain cotton is provided with a developing strip in the middle of the inner layer, and each piece of brain cotton Cotton tops are provided with a hand pull thread.

As for the developing brain cotton, the folding fan paper clip is made of transparent and waterproof plastic paper.

As for the developing brain cotton, the surface of the brain cotton is a spunlace layer.

As for the developing brain cotton, the developing strip is polypropylene fiber containing barium sulfate.

Due to the adoption of the above-mentioned technical scheme, the utility model has the following beneficial effects:

The developing brain cotton described in the utility model adopts the brain cotton of two sizes of 2×8cm and 1×4 cm in the folding fan paper clip, thereby effectively meeting the demand for small-sized brain cotton in craniotomy, and correspondingly It saves the time for the relevant personnel of the operation to cut the brain cotton; in addition, the brain cotton also adds a developing line for developing in the inner layer, so as to achieve the purpose of developing under X-ray fluoroscopy, and then in the With the cooperation of the movable X-ray fluoroscopy machine, the risk of craniotomy is effectively reduced, that is, it not only avoids the phenomenon of brain cotton being lost in the patient's skull, but also reduces the psychological pressure of equipment nurses and surgeons. Correspondingly, the safety factor of the operation is improved.

【Description of drawings】

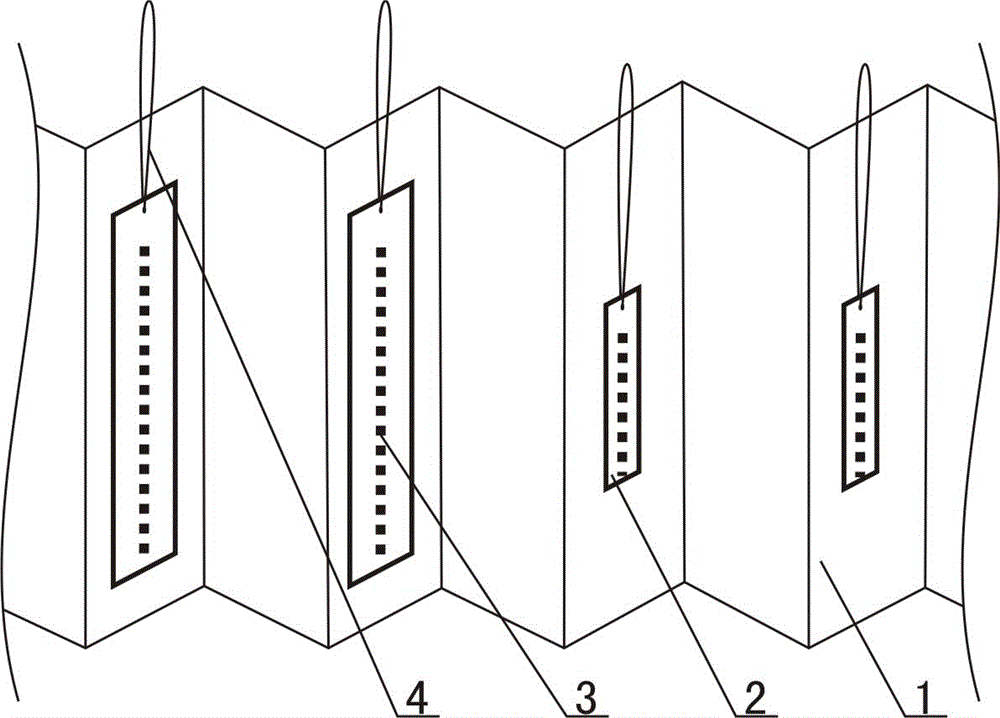

Fig. 1 is the schematic diagram of the utility model.

In the picture: 1. Folding fan paper clip; 2. Brain cotton; 3. Developing strip; 4. Hand-drawn wire.

【Detailed ways】

The present invention can be explained in more detail by the following examples, and the purpose of disclosing the utility model is intended to protect all changes and improvements within the scope of the utility model, and the utility model is not limited to the following examples;

A kind of developing brain cotton described in conjunction with accompanying drawing 1, described brain cotton comprises the folding fan paper clip 1 that is made of transparent and waterproof plastic paper and the brain cotton 2 of two sizes of 2×8cm and 1×4 cm, And these two sizes of brain cotton 2 can determine the respective packaging quantity according to needs; in order to facilitate the use of X-ray fluoroscopy development, the middle part of the inner layer of each piece of brain cotton 1 is provided with a polypropylene fiber development strip containing barium sulfate 3. For the convenience of taking and using, each piece of brain cotton 2 is provided with a handle 4 at the top; in addition, in order to avoid the phenomenon of hair loss or fleece that may occur on the surface of the brain cotton 2 from affecting the operation, the described The surface of each piece of brain cotton 2 is set as a spunlace layer.

When implementing the developing brain cotton described in the utility model, first select the folding fan paper clip 1 packaged with two sizes and quantities of brain cotton 2 according to the needs, and then take the brain cotton 2 of the corresponding size according to the needs in the craniotomy for use; When the operation is over, and the number of brain cotton 2 is found to be wrong, first use the movable X-ray fluoroscopy machine to see through the patient's head, so as to accurately check whether there is brain cotton 2 left in the patient's brain, such as no brain cotton 2 , then carry out safety closure, and then go to find the missing brain cotton 2, that is, perform other operations after first ensuring the safety of the surgical patient.

The unspecified part of the utility model is the prior art, so the utility model does not describe it in detail.

Claims (4)

1. development brain cotton, it is characterized in that: the described brain bale of cotton contains the brain cotton (2) of folding fan folder (1) and 2 * 8cm and two kinds of size dimensions of 1 * 4 cm, described every brain cotton (2) internal layer middle part is equipped with a development bar (3), and the napex of every brain cotton (2) is equipped with backguy (4) on the other hand.

2. development brain cotton according to claim 1, it is characterized in that: described folding fan folder (1) is made by the plastic paper of transparent and waterproof.

3. development brain cotton according to claim 1 is characterized in that: described brain cotton (2) surface is water thorn layer.

4. development brain cotton according to claim 1 is characterized in that: described development bar (3) is for containing the polypropylene fibre of barium sulfate.
