Abstract

The utility model discloses an irrigation system for gardens, which comprises a water storage device, a conveying device and an irrigation device. The irrigation device is connected to the water storage device through the conveying device, and the water storage device includes a rainwater collecting plate exposed on the ground , the rainwater collection tray is conical, and the lower end of the rainwater collection tray is connected with a water storage tank buried in the ground. The rainwater collection tray of the water storage device of the utility model can collect rainwater in rainy days and use it for landscaping irrigation, which saves urban water, enables rainwater to be recycled, and saves irrigation costs; the water storage tank can be used when rainwater is insufficient. The use of urban water for landscaping irrigation prevents plants from being dehydrated and dry; the rotary supercharger can increase the pressure of irrigation water, increase the irrigation area, and improve irrigation efficiency.

Description

A garden irrigation system

technical field

The utility model relates to an irrigation system for gardens, belonging to the field of garden equipment.

Background technique

At present, most of the plant irrigation methods are watered manually and through planting experience. Artificial watering is used to meet the demand for water in the process of plant growth, but there are many problems in the actual operation process. Moreover, most of the current urban greening irrigation uses urban tap water pipe network water supply, that is, domestic water is used as the irrigation water source, which will consume a lot of precious energy and water resources. Because in the city, the green belts are dotted, some are large, some are small, but basically still use manual responsibility and use the municipal pipe network to supply water for irrigation. The green maintenance workers regularly check the situation, turn on the irrigation water source, and irrigate the green. This irrigation maintenance method not only wastes energy but also needs a lot of manpower. Therefore, the places where manpower maintenance is insufficient tend to produce the situation that the trees cannot fully survive. And this irrigation method does not make full use of rainwater resources, especially for the green belt under the viaduct, even in rainy days, it must rely on manual irrigation, which is a great waste of water resources and human resources.

Utility model content

Aiming at the deficiencies of the existing technology, the technical problem to be solved by the utility model is to provide an irrigation system for gardens, which saves urban water, enables rainwater to be recycled, saves irrigation costs, improves irrigation efficiency, is stable and reliable, and can be used long life.

In order to solve the above-mentioned technical problems, the utility model is realized through the following technical solutions: a garden irrigation system, including a water storage device, a delivery device and an irrigation device, the irrigation device is connected to the water storage device through the delivery device, and the water storage device It includes a rainwater collection tray exposed above the ground, the rainwater collection tray is conical, and the lower end of the rainwater collection tray is connected with a water storage tank buried in the ground; the conveying device is provided with a booster pump body, and the booster pump body The power end of the booster pump body is connected to the power transmission line, and the control end of the booster pump body is connected to a control panel; the irrigation device includes a seepage pipe buried in the ground and a rotary sprinkler head arranged above the ground.

In an optimized garden irrigation system, a sand filter is provided on the upper part of the water storage tank, a dust filter layer is provided on the lower part of the water storage tank, and a water outlet is provided below the dust filter layer, and the water outlet is connected to the conveying device.

Optimally, the above-mentioned irrigation system for gardens, the delivery device includes a water delivery pipe, a rotary supercharger is arranged in the middle of the water delivery pipe, and water flow blades are arranged in the rotary supercharger; the booster pump body is arranged between the water delivery pipe and the water outlet. between.

Optimally, the garden irrigation system mentioned above is provided with a sand removal and water spray pipe above the sand filter in the water storage tank, and a sediment flow outlet is provided opposite the sand removal and water spray pipe.

The rainwater collection plate of the water storage device of the utility model can collect rainwater in rainy days for landscaping irrigation, save urban water, make rainwater recyclable, and save irrigation costs; the water storage tank can be used when the rainwater is insufficient. Use urban water for landscaping irrigation so that plants will not be short of water and dry; the rotary supercharger can increase the pressure of irrigation water, increase the irrigation area, and improve irrigation efficiency; the sand filter and dust filter layer can filter impurities in rainwater, Prevent impurities from clogging water pipes and affecting irrigation effects.

Description of drawings

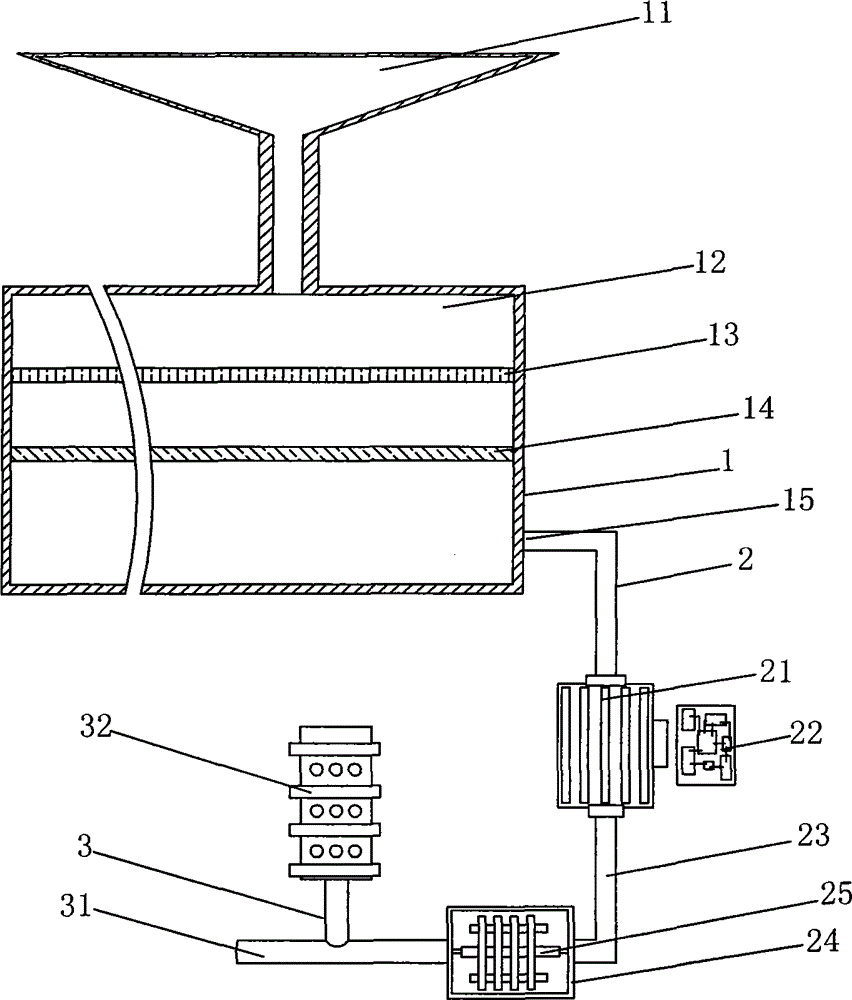

Fig. 1 is the structural representation of the utility model embodiment 1;

Fig. 2 is a schematic structural view of Embodiment 2 of the utility model.

Detailed ways

The technical characteristics of the present invention will be further described below in conjunction with the accompanying drawings and specific embodiments.

As shown in Figure 1, the utility model is an irrigation system for gardens, comprising a water storage device 1, a delivery device 2 and an irrigation device 3, the irrigation device 3 is connected to the water storage device 1 through the delivery device 2, and the water storage device 1 It includes a rainwater collection pan 11 exposed above the ground, the rainwater collection pan 11 is conical, and the lower end of the rainwater collection pan 11 is connected with a water storage tank 12 buried in the ground; the conveying device 2 is provided with a booster pump body 21. The power supply end of the booster pump body 21 is connected to the power transmission line, and the control end of the booster pump body 21 is connected to the control board 22; the irrigation device 3 includes a seepage pipe 31 buried underground and a rotary nozzle installed above the ground 32.

The upper part of the water storage tank 12 is provided with a sand filter 13 , the bottom of the water storage tank 12 is provided with a dust filter layer 14 , and the bottom of the dust filter layer 14 is provided with a water outlet 15 connected to the conveying device 2 .

The conveying device 2 includes a conveying water pipe 23, a rotary supercharger 24 is arranged in the middle of the conveying water pipe 23, and a water flow vane 25 is arranged in the rotating supercharger 24; the booster pump body 21 is arranged between the conveying water pipe 23 and the water outlet 15 .

Example 2

The difference between this embodiment and Embodiment 1 is that: as shown in Figure 2, a sand removal water spray pipe 16 is arranged above the sand filter screen 13 inside the water storage tank 12, and a sand outlet is arranged on the opposite side of the sand removal water spray pipe 16. 17.

The rainwater collection tray of the water storage device of the utility model can collect rainwater in rainy days and use it for landscaping irrigation, which saves urban water, enables rainwater to be recycled, and saves irrigation costs; the water storage tank can be used when rainwater is insufficient. Use urban water for landscaping irrigation so that plants will not be short of water and dry; the rotary supercharger can increase the pressure of irrigation water, increase the irrigation area, and improve irrigation efficiency; the sand filter and dust filter layer can filter impurities in rainwater, Prevent impurities from clogging water pipes and affecting irrigation effects.

The basic principles and main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned implementation regulations. What is described in the above-mentioned implementation regulations and instructions is only used to illustrate the principle of the utility model. Without departing from the principle and scope of the utility model, The utility model also has various changes and improvements, and these changes and improvements all belong to the scope of the claimed utility model.

The scope of protection required by the utility model is defined with the appended claims and other equivalents.

Claims (4)

1. gardens irrigation system, comprise water storage device, conveying plant and irrigation rig, described irrigation rig connects water storage device by conveying plant, it is characterized in that: described water storage device comprises a rainwater catch tray that is exposed on the ground, the rainwater catch tray is taper, and the lower end of rainwater catch tray is connected with and is embedded in underground water tank; Described conveying plant is provided with the supercharging pump housing, and the power end of the supercharging pump housing connects transmission line of electricity, and the control end of the supercharging pump housing is connected with control panel; Described irrigation rig comprises and is embedded in underground soakaway trench and is arranged at the above rotary-type shower nozzle in ground.

2. gardens according to claim 1 irrigation system, it is characterized in that: described water tank internal upper part is provided with the sand filtration net, and the bottom of water tank is provided with dust filtering layer, and the dust filtering layer below is provided with delivery port, and delivery port connects conveying plant.

3. gardens according to claim 2 irrigation system, it is characterized in that: described conveying plant comprises the conveying water pipe, carries the water pipe middle part to be provided with the rotating boosting device, is provided with the current blade in the rotating boosting device; The described supercharging pump housing is arranged to be carried between water pipe and the delivery port.

4. gardens according to claim 3 irrigation system, it is characterized in that: the online side of the inner sand filtration of described water tank is provided with the sparge pipe that removes sand, and the sparge pipe opposite of removing sand is provided with the silt flow export.
