Abstract

一种便携式可拆卸室外晾衣架，包括：固定架(1)，固定架(1)室内部装有起固定支撑作用的螺栓(2)，固定架(1)室外部设有转轴(3)，活动挂杆(4)通过转轴(3)与固定架(1)相连，螺栓(2)的头部还设有橡胶垫层(5)。其优点是：结构简单，能方便的在窗台或阳台的墙体上进行安装和拆卸，并且可根据墙壁的不同厚度进行调节固定，不破坏墙体，不使用时便于收纳保存，或适用于外墙不允许安装固定物的场合，将衣架挂于活动挂杆的孔洞上可防止衣物被风吹走，另外衣服、鞋子可以一起晾晒，使用方便、一物多用，实用性强。

Figure 201220755925

A portable detachable outdoor clothes hanger, comprising: a fixed frame (1), the interior of the fixed frame (1) is equipped with bolts (2) for fixing support, and the outside of the fixed frame (1) is equipped with a rotating shaft (3), The movable hanging rod (4) is connected with the fixed frame (1) through the rotating shaft (3), and the head of the bolt (2) is also provided with a rubber pad (5). Its advantages are: simple structure, can be easily installed and disassembled on the wall of the window sill or balcony, and can be adjusted and fixed according to the different thickness of the wall, without damaging the wall, easy to store and store when not in use, or suitable for outdoor When the wall does not allow the installation of fixed objects, hanging the clothes hanger on the hole of the movable hanging rod can prevent the clothes from being blown away by the wind. In addition, clothes and shoes can be dried together, which is convenient to use, multi-purpose, and highly practical.

Figure 201220755925

Description

便携式可拆卸室外晾衣架Portable detachable outdoor drying rack

技术领域 technical field

本实用新型涉及日常生活用品技术领域，具体的说是一种便携式可拆卸室外晾衣架。  The utility model relates to the technical field of daily necessities, in particular to a portable detachable outdoor clothes drying rack. the

背景技术 Background technique

随着住宅楼层越来越高，可晾晒空间也越来越少，目前人们使用的晾衣架都是固定在阳台或窗外的外墙面，需要在墙上打眼加钉，这样不仅破坏了小区建筑的整体美观，而且不易安装拆卸。  As the residential floors are getting higher and higher, there is less and less space for drying. At present, the clothes racks used by people are fixed on the outer wall outside the balcony or window, and they need to be drilled and nailed on the wall, which not only damages the buildings of the community The overall appearance is beautiful, and it is not easy to install and disassemble. the

实用新型内容 Utility model content

本实用新型的目的在于提供一种便携式可拆卸室外晾衣架，可方便安装和拆卸的室外活动晾衣架。  The purpose of the utility model is to provide a portable detachable outdoor clothes drying rack, which can be conveniently installed and disassembled. the

本实用新型一种便携式可拆卸室外晾衣架，包括：固定架1，固定架1室内部装有起固定支撑作用的螺栓2，固定架1室外部设有转轴3，活动挂杆4通过转轴3与固定架1相连，螺栓2的头部还设有橡胶垫层5。  The utility model is a portable detachable outdoor clothes hanger, comprising: a fixed frame 1, a bolt 2 for fixing support is installed inside the fixed frame 1 room, a rotating shaft 3 is arranged outside the fixed frame 1 room, and a movable hanging rod 4 passes through the rotating shaft 3 Connected with the fixed frame 1, the head of the bolt 2 is also provided with a rubber pad 5. the

所述的活动杆4设计为3根，且每根杆上设有8个用于挂衣架的孔洞。  The movable bar 4 is designed to be 3, and each bar is provided with 8 holes for hanging clothes hangers. the

本实用新型一种便携式可拆卸室外晾衣架在使用时，可通过螺栓2和固定架1的室外部分把它紧紧的固定在窗台或阳台的墙体上，并且可根据不同墙体的不同厚度进行调节固定，将挂好衣服的衣架挂于活动挂杆4的孔洞上便可以进行晾晒了，也可把鞋子放于固定 架1的室外部分进行晾晒，当晾晒结束时将活动挂杆收起成竖直状态，便可以回收衣物了。  When a portable detachable outdoor drying rack of the utility model is in use, it can be tightly fixed on the wall of the window sill or balcony through the bolt 2 and the outdoor part of the fixing frame 1, and can be fixed according to different thicknesses of different walls. Adjust and fix, hang the clothes hanger of the clothes on the hole of the movable hanging rod 4 and just can dry it, also can put the shoes on the outdoor part of the fixed frame 1 and dry it, when the drying ends, the movable hanging rod is put away In the vertical state, the clothes can be recycled. the

本实用新型一种便携式可拆卸室外晾衣架的优点是：结构简单，能方便的在窗台或阳台的墙体上进行安装和拆卸，并且可根据墙壁的不同厚度进行调节固定，不破坏墙体，不使用时便于收纳保存，或适用于外墙不允许安装固定物的场合，将衣架挂于活动挂杆的孔洞上可防止衣物被风吹走，另外衣服、鞋子可以一起晾晒，使用方便、一物多用，实用性强。  The utility model has the advantages of a portable detachable outdoor clothes hanger: simple in structure, can be easily installed and disassembled on the wall of the windowsill or balcony, and can be adjusted and fixed according to the different thicknesses of the wall without damaging the wall. It is convenient for storage and storage when not in use, or it is suitable for occasions where the external wall does not allow the installation of fixed objects. Hanging the clothes hanger on the hole of the movable hanging rod can prevent the clothes from being blown away by the wind. In addition, clothes and shoes can be dried together, which is convenient to use. Multi-purpose, strong practicability. the

附图说明 Description of drawings

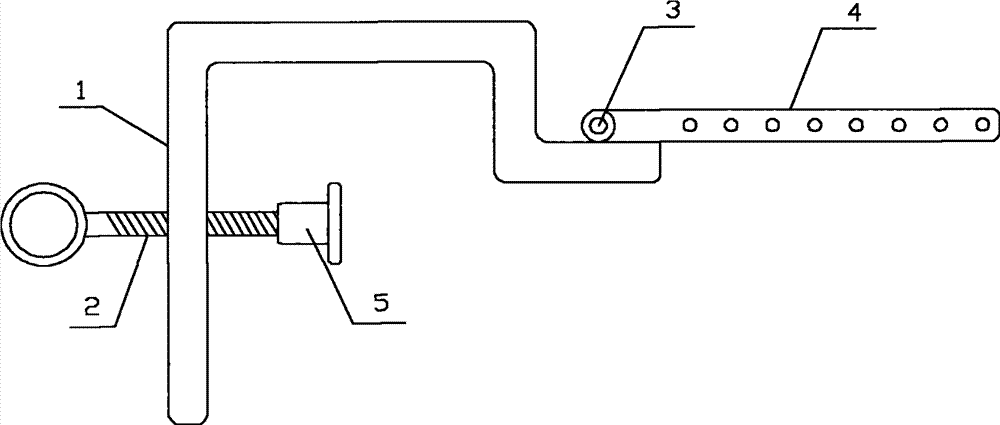

图1为本实用新型便携式可拆卸室外晾衣架的结构示意图。  Fig. 1 is a schematic structural diagram of a portable detachable outdoor clothes drying rack of the present invention. the

具体实施方式 Detailed ways

根据图1所示，一种便携式可拆卸室外晾衣架，包括：固定架1，固定架1室内部装有起固定支撑作用的螺栓2，固定架1室外部设有转轴3，活动挂杆4通过转轴3与固定架1相连，螺栓2的头部还设有橡胶垫层5。  As shown in Figure 1, a portable detachable outdoor drying rack includes: a fixed frame 1, a bolt 2 for fixing and supporting the interior of the fixed frame 1 room, a rotating shaft 3 outside the fixed frame 1 room, and a movable hanging rod 4 The rotating shaft 3 is connected with the fixed frame 1 , and the head of the bolt 2 is also provided with a rubber pad 5 . the

Claims (1)

1.一种便携式可拆卸室外晾衣架，包括：固定架(1)；其特征在于：所述的固定架(1)室内部装有起固定支撑作用的螺栓(2)，固定架(1)室外部设有转轴(3)，活动挂杆(4)通过转轴(3)与固定架(1)相连，螺栓(2)的头部还设有橡胶垫层(5)。  1. A portable detachable outdoor drying rack, comprising: a fixed frame (1); it is characterized in that: the interior of the fixed frame (1) is equipped with bolts (2) that play a fixed support role, and the fixed frame (1) A rotating shaft (3) is arranged outside the room, and the movable hanging rod (4) links to each other with the fixed mount (1) through the rotating shaft (3), and the head of the bolt (2) is also provided with a rubber pad (5). the
