Abstract
The utility model discloses a drainage bag with a urine culture collecting device. The drainage bag comprises a urine storage bag. A urine discharge switch is disposed at the bottom of the urine storage bag. A drainage tube is connected to the top of the urine storage bag. A drainage connector is disposed at the tail end of the drainage tube. The urine collecting device further disposed on the drainage tube comprises a three-way switch. Two ports of the three-way switch are communicated with the drainage tube, and the other port of the three-way switch is connected with a specimen collection receptacle. The drainage bag has the advantages that the urine culture collecting device protects the collected urine specimen from contamination, and accuracy in urine culture and collection is improved; opening and closing of the drainage tube can be controlled, so that the drainage bag is very handy and flexible.
Description
Technical field
This utility model belongs to medical care articles for use technical field, relates to a kind of urine that has and cultivates the drainage bag of leaving and taking device.
Background technology
At the hospital clinical nursing field, for serious symptom, operation and handicapped patient, because the state of an illness needs can make things convenient for the patient to urinate at patient's intravesical indwelling catheter usually.Need regularly to collect patient's urine specimen clinically and do the urine cultivation, observe the patient and have or not infection.At present, adopt when collecting urine specimen directly to put to urinate from urine storage bag and collect, and urine storage bag is generally repeatedly use, can pollute the freshly voided urine that need gather, influences cultivation results.This utility model adds the urine cultivation on the basis of existing drainage bag and leaves and takes device, and specimen is polluted in the time of can effectively preventing to leave and take, and improves the accuracy rate that detects.This device also can play the effect that the control drainage tube opens and closes simultaneously.
Summary of the invention
Main purpose of the present utility model provides a kind of urine that has and cultivates the drainage bag of leaving and taking device, mainly solve existing drainage bag and when doing urine and cultivate, directly put urine from urine storage bag and collect and cause that easily specimen pollutes, thereby cause urine to cultivate the inaccurate defective of testing result.
In order to realize goal of the invention, the technical scheme that this utility model adopts is, a kind of urine that has is cultivated the drainage bag of leaving and taking device, includes urine storage bag, and the urine storage bag bottom is provided with the switch of urinating, urine storage bag top connects drainage tube, the drainage tube end is provided with flow sub, also is provided with urine on the drainage tube and leaves and takes device, and urine is left and taken device and included three-way cock, wherein two interfaces of three-way cock are communicated with drainage tube, connect the specimen collection jar on another interface.
Feature of the present utility model is that also three-way cock is "T"-shaped structure, and the interface at rectilinear duct two ends is communicated with drainage tube respectively, and the interface on the pipeline of side connects the specimen collection jar.
Three-way cock side pipe joint is connected with the specimen collection jar by helicitic texture or tight fit structure.
Also be provided with over cap on the pipe joint of three-way cock side, over cap can be connected to after the specimen collection jar takes off and play dustproof antibacterial effect on the pipe joint of side.
Urine storage bag top is provided with link.
Flow sub is provided with protective sleeve.
The urine storage bag front indicates scale, and this scale is used for measuring the volume that enters the urine storage bag internal liquid.
The beneficial effects of the utility model are:
1) urine cultivation of the present utility model is left and taken device and can be guaranteed that the urine specimen of collecting is not contaminated, improves urine and cultivates the accuracy rate that detects;
2) three-way cock of the present utility model can be controlled the switching of drainage tube, replaces available technology adopting Small clamp folder and closes the switching that drainage tube is realized drainage tube, and is convenient, flexible.
Description of drawings

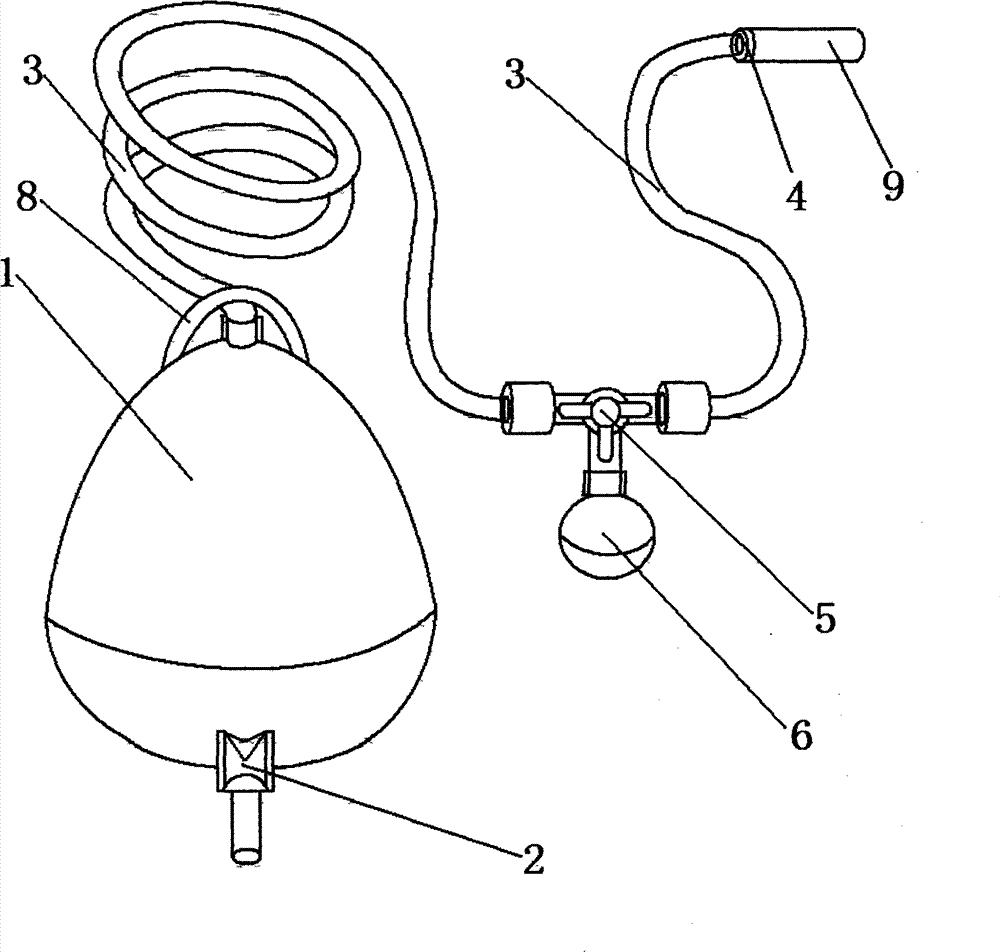

Fig. 1 is structural representation of the present utility model;
Fig. 2 is flow sub joint design sketch map of the present utility model;
Fig. 3 is over cap structural representation of the present utility model.
Among the figure, 1. urine storage bag, the switch of 2. urinating, 3. drainage tube, 4. flow sub, 5. three-way cock, 6. specimen collection jar, 7. over cap, 8. link, 9. protective sleeve.
The specific embodiment
Below in conjunction with the drawings and specific embodiments this utility model is elaborated.
This utility model provides a kind of urine that has to cultivate the drainage bag of leaving and taking device, as shown in Figure 1, include urine storage bag 1, urine storage bag 1 bottom is provided with the switch 2 of urinating, and urine storage bag 1 top connects drainage tube 3, and drainage tube 3 ends are provided with flow sub 4, also be provided with urine on the drainage tube 3 and leave and take device, urine is left and taken device and is included three-way cock 5, and wherein two interfaces of three-way cock 4 are communicated with drainage tube 3, connects specimen collection jar 6 on another interface.
During concrete enforcement, flow sub 4 be retained in the intravesical urinary catheter of patient and be connected, the flow sub shape as shown in Figure 2, three-way cock 5 is preferably "T"-shaped structure, the interface at its rectilinear duct two ends is communicated with drainage tube 3 respectively, interface on the pipeline of side connects specimen collection jar 6, and three-way cock 5 can be controlled the flow direction of urine and the switching of drainage tube.Under the normal condition, three-way cock 5 is in closed condition, and when needs of patients was urinated, the rotation bolt of pulling on the three-way cock 5 made urinary catheter and urine storage bag 1 conducting, and the pipeline closure of three-way cock 5 sides, urine flows in the urine storage bag 1 through drainage tube 3 and collects.Needing to do urine cultivates when detecting, at first three-way cock 5 and specimen collection jar 6 are disinfected, subsequently specimen collection jar 6 is connected on the side pipe joint of three-way cock 5, preferred helicitic texture or the tight fit structure of adopting connects, rotate three-way cock 5 rotation bolts subsequently and make urinary catheter and 6 conductings of specimen collection jar, and urine storage bag 1 one lateral line closures, urine specimen enters to be collected in the specimen collection jar 6, specimen collection jar 6 volumes are preferably 30m1, generally collect the 20ml urine specimen and get final product.After collection is finished three-way cock 5 cuts out, take off specimen collection jar 6 subsequently, from specimen collection jar 6, draw urine with disposable needle tubing and urinate the cultivation detection.After taking off specimen collection jar 6, the pipe joint place, side of three-way cock 5 covers with over cap 7, can play dustproof antibacterial effect, and the shape of over cap 7 as shown in Figure 3.Urine storage bag of the present utility model 1 top is provided with link 8, urine storage bag 1 can be hung over the sick bed below during use, urine storage bag 1 bottom is provided with the switch 2 of urinating, and urine can be bled off to continue to use, urine storage bag 1 front indicates scale, and this scale can be measured the volume of urine in the urine storage bag 1.
More than show and described ultimate principle of the present utility model, principal character and advantage of the present utility model; above-mentioned embodiment and description are principle of the present utility model; this utility model also has various changes and modifications under the prerequisite that does not break away from this utility model spirit and scope, and these changes and improvements all fall in the claimed scope of the present utility model.The protection domain that this utility model requires is defined by claims and equivalent thereof.
Claims (7)
1. one kind has the drainage bag that device is left and taken in the urine cultivation, include urine storage bag (1), urine storage bag (1) bottom is provided with the switch of urinating (2), urine storage bag (1) top connects drainage tube (3), and drainage tube (3) end is provided with flow sub (4), it is characterized in that, also be provided with urine on the drainage tube (3) and leave and take device, described urine is left and taken device and is included three-way cock (5), and wherein two interfaces of three-way cock (4) are communicated with drainage tube (3), connects specimen collection jar (6) on another interface.
2. a kind of urine that has as claimed in claim 1 is cultivated the drainage bag of leaving and taking device, it is characterized in that, described three-way cock (5) is "T"-shaped structure, and the interface at rectilinear duct two ends is communicated with drainage tube (3) respectively, and the interface on the pipeline of side connects specimen collection jar (6).
3. a kind of urine that has as claimed in claim 2 is cultivated the drainage bag of leaving and taking device, it is characterized in that described three-way cock (5) side pipe joint is connected with specimen collection jar (6) by helicitic texture or tight fit structure.
4. a kind of urine that has as claimed in claim 3 is cultivated the drainage bag of leaving and taking device; it is characterized in that; also be provided with over cap (7) on the pipe joint of described three-way cock (5) side, over cap (7) can be connected to after specimen collection jar (6) takes off and play dustproof antibacterial effect on the pipe joint of side.
5. a kind of urine that has as claimed in claim 1 is cultivated the drainage bag of leaving and taking device, it is characterized in that described urine storage bag (1) top is provided with link (8).
6. a kind of urine that has as claimed in claim 1 is cultivated the drainage bag of leaving and taking device, it is characterized in that described flow sub (4) is provided with protective sleeve (9).
7. a kind of urine that has as claimed in claim 1 is cultivated the drainage bag of leaving and taking device, it is characterized in that described urine storage bag (1) front indicates scale, and this scale is used for measuring the volume that enters urine storage bag (1) internal liquid.
