Abstract

The utility model belongs to the equipment for power transmission and transformation construction in the electric power industry, in particular to an insulating rod spring pin installer, comprising an insulating operating rod (5), an installer seat (4), an installer main body (1), and an installer The front end of the main body (1) is provided with a pin-removing hook (1-1), and the overhead device seat (2) is fixed with screws above the middle of the main body (1) of the installer, and the hinge shaft (8) is used above the overhead device seat (2) Connect the overhead device (3), the end of the overhead device (3) is provided with a pin retaining groove (2-1), and the lower part of the main body (1) of the installer is provided with a chute (1- 2), in the chute (1-2) of the pinning clamping piece 1 (6) and the pinning clamping piece 2 (7), at the lower end of the pinning clamping piece 2 (7) There is a clamping part slot (7-1) on the head, and the insulating rod spring pin installer is very convenient, simple and easy to use when the metal fittings on the live wire side of the 6 kV overhead transmission line are defective, saving manpower and material resources, and greatly improving the work efficiency. Efficiency, to ensure the safety of operators and line operation.

Description

Insulation Pole Spring Pin Installer

technical field

The utility model belongs to a construction appliance for power transmission and transformation in the electric power industry, in particular to a spring pin installer for insulating rods.

Background technique

Since the transmission line is operated in the field all the year round, it is affected by the natural environment, meteorological conditions and external force damage for a long time. Various defects are prone to appear on the wires and fittings of the live line, especially after the insulator is damaged by lightning, it needs to be replaced in time. Due to the lack of special tools in the construction, the working hours are long, the manpower required is large, the labor intensity is high, and there are unsafe factors. The power supply and the loss of power users will be affected when the power failure is dealt with.

Contents of the invention

The purpose of this utility model is to overcome the above technical deficiencies and provide a spring pin installer for insulating rods that can work without power failure, is easy to use, safe and reliable.

The technical scheme adopted by the utility model to solve the technical problem is: the insulating rod spring pin installer includes an insulating operating rod, an installer seat, and an installer main body. Fix the overhead device seat with screws above the middle of the overhead device seat, connect the overhead device with a hinge shaft above the overhead device seat, a pin retaining groove is provided on the end of the overhead device, and a pin clamping slide is provided under the main body of the installer. Groove, pin loading clamp one and loading pin clamping part two are housed in the loading pin clamping part chute, on the lower end of loading pin clamping part two, be provided with clamping part draw-in groove.

The beneficial effects of the utility model are: the insulating rod spring pin installer is very convenient, simple and easy to operate, saves manpower and material resources, greatly improves work efficiency, and ensures that operators and lines safe operation.

Description of drawings

The following will be described in detail with embodiments in conjunction with the accompanying drawings.

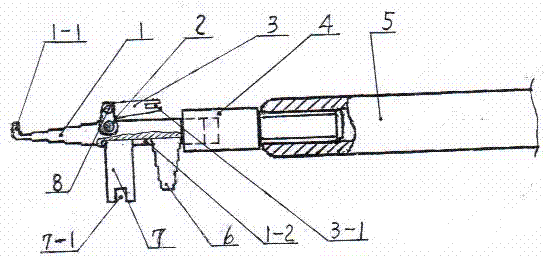

Fig. 1 is a structural diagram of an insulating rod spring pin installer.

In the figure, 1-Installer main body; 1-1-Pin removal hook; 1-2-Pin clamping part chute; 2-Overhead seat; 2-1-Pin retaining groove; Installer seat; 5-insulation operating rod; 6-pin clamping part one; 7-pin clamping part two; 7-1-clamping slot; 8-hinge shaft.

Detailed ways

Embodiment, with reference to accompanying drawing 1, the insulating rod spring pin installer is to be threaded on the end of the insulating operating rod 5 to fix the mounter seat 4, and the installer main body 1 is inserted on the front end of the mounter seat 4. Make a hook shape at the front end of the installer main body 1 as a pin-removing hook 1-1, fix an overhead device seat 2 with a screw above the middle of the installer main body 1, and connect the overhead device with a hinge shaft 8 above the overhead device seat 2 3. A pin retaining groove 2-1 is provided on the end of the overhead device 3 . The below of installer main body 1 is provided with loading pin clamping part chute 1-2, and pin loading clamping part 1 6 and loading pin clamping part 2 7 are housed in pin loading clamping part chute 1-2, in The lower end of the pin clamping part 2 7 is provided with a clamping part draw-in groove 7-1.

The method of using the insulating rod spring pin installer is: use the overhead device 3 to open the spring pin to be taken and use the pin stop groove 2-1 to stop the pressure to avoid rebounding, and then use the pin removal hook 1-1 to hook the spring pin down , after replacing the defective hardware parts, use the pin clamping part 1 6 and pin clamping part 2 7 under the installer base 4 to clamp the spring pins and install them, press the clamping part slot 7-1 to install over.

Claims (1)

1. An insulating rod spring pin installer, including an insulating operating rod (5), an installer seat (4), and an installer body (1), which is characterized in that a pin removal hook is provided at the front end of the installer body (1) (1-1), fix the overhead seat (2) with screws above the middle of the main body (1) of the installer, connect the overhead (3) with a hinge (8) above the overhead seat (2), and connect the overhead (3) There is a pin retaining groove (2-1) on the end of the installer, and there is a chute (1-2) for the pin clamping part under the main body (1) of the installer. One (6) and two (7) of pin-loading clamping parts (7) are housed in the groove (1-2), and a clamping part draw-in slot ( 7-1).
