The utility model discloses an impact type road surface roughening machine, which comprises a frame and wheels installed on the frame. A roller one and a roller two are connected to the chassis of the frame and rotate along the width direction of the frame. A plurality of thin rods 1 are arranged on the roller 1 and along its length direction, and the plurality of thin rods 1 are arranged radially along the roller 1, and a plurality of thin rods 1 are arranged on the roller 2 and along its length direction. Two thin rods, a plurality of thin rods two are arranged radially along the roller shaft two, and the outer ends of the plurality of thin rods one and two are provided with impact balls for roughing the road surface. The frame is provided with a driving device for driving the first roller and the second roller to rotate and a transmission device for transmitting the power output by the driving device to the first roller and the second roller. The impact type road surface roughening machine has high working efficiency, high road surface roughening quality, simple structure, and is convenient for popularization and use.

Description

An impact type road roughening machine

technical field

The utility model relates to a road surface roughening machine, in particular to an impact type road surface roughening machine.

Background technique

The long-term use of the current cement concrete pavement shows that the rough surface of the pavement is easy to be polished, and the anti-skid performance decays quickly. After one or two years of use, the surface anti-skid ability of the pavement basically disappears, and it needs to be maintained. ; Using the embossing and grooving process to make the cement concrete pavement anti-skid and anti-skid, the increase in the anti-skid resistance is small, and the edge of the groove is easy to break, and the mortar on the surface has poor wear resistance. In terms of roughening construction, the traditional chiseling and milling processes are used for surface treatment of concrete pavement. Under high-speed mechanical impact, micro-cracks are prone to occur inside the concrete, vibrating and loosening the protruding aggregates, and the cleaning is not thorough. The treated surface is uneven. The environmental pollution is serious, and the follow-up clean-up workload is heavy. In addition, due to the insufficient depth of the bridge deck cement concrete structure and the existence of laitance, a weak bonding surface is formed between it and the waterproof layer, and the interlayer stress increases and shear failure occurs, which eventually leads to the culprit of the asphalt concrete bridge deck disease. The survey shows that 78% of bridge deck diseases are related to poor interlayer bonding, which shows the importance of interlayer bonding to the durability of bridge decks. There are many reasons that affect the interlayer bonding, and the chiseling process is one of the basic factors that restrict the interlayer bonding effect. The quality of chiseling effect directly affects the bonding quality between cement concrete and asphalt concrete, weakens the ability to resist horizontal shear, and thus affects the service life of the bridge deck. In addition to low efficiency, the traditional artificial chiseling, brushing and mechanical grooving processes have the main problem of not being able to completely remove the laitance; although the milling process can solve the laitance problem, it is easy to cause loosening and damage to the concrete surface and form lines of different depths. The deep grooves are not conducive to surface cleaning and cause water retention on the bridge deck; while the construction roughening efficiency is high, but it will form a weak layer on the concrete surface.

At present, the commonly used ones are chisel machine, chisel machine, groove machine, small milling machine and road shot blasting machine. The chisel machine produces compressed air through the air compressor to drive the chisel head to chisel the road surface, and the mechanical shock force formed has too much impact on the road surface, which affects the service life of the road surface. Furthermore, the chisel works during the hot construction period, and the dust generated is very harmful to the environment and staff. Anti-skid treatment is also widely used with engraving machines, and transverse grooves are more widely used. It enables the road surface to produce better longitudinal anti-slip force, and can effectively ensure the lateral drainage of the road surface, but the rolling noise is relatively large, and the ability to prevent sideslip is not strong. When the road surface is wet, the car is prone to sideslip. Small milling machines are also often used to roughen cement concrete roads, but the damage to the concrete surface is relatively large, which is not conducive to wear resistance, and the construction does not meet environmental protection requirements. The current era is advocating a green, environmentally friendly and energy-saving society. Road shot blasting machines are also produced by many manufacturers as green and environmentally friendly road surface treatment equipment, which can be dust-free, soil-free, and pollution-free during construction operations. However, the recovery and recycling of shot blasting materials cannot be done as desired. When the machine passes through the construction joints of cement concrete pavement, the shot blasting materials will be lost, and the road shot blasting machine is expensive.

Utility model content

The purpose of the utility model is to overcome the deficiencies in the above-mentioned prior art, and provide an impact type road surface roughening machine. The impact type road surface roughening machine has high working efficiency, high road surface roughening quality, simple structure, and is convenient for popularization and use.

In order to achieve the above object, the technical solution adopted by the utility model is: an impact type road surface roughening machine, which is characterized in that: it includes a frame and wheels installed on the frame, the chassis of the frame and along the frame Roller 1 and Roller 2 are rotatably connected in the width direction, and a plurality of thin rods 1 are arranged on the roller 1 and along its length direction, and the plurality of thin rods 1 are arranged radially along the roller 1, so A plurality of thin rods two are arranged on the roller shaft two and along its length direction, and the plurality of thin rods two are arranged radially along the roller shaft two, and the outer ends of the plurality of thin rods one and thin rod two Both are provided with impact balls for roughening the road surface, and the frame is provided with a drive device for driving the first roller and the second roller to rotate and for transmitting the power output by the drive device to the first roller and the second roller. Two transmissions.

The above-mentioned impact type road roughing machine is characterized in that: the first roller is close to the head of the frame, the second roller is located on the side of the first roller far away from the head of the frame, and the thin rod one The diameter of the upper impact ball is greater than the diameter of the upper impact ball on the thin rod two.

The above-mentioned impact type road roughening machine is characterized in that: the rotation directions of the first roller and the second roller are opposite to the rotation directions of the wheels.

The above-mentioned impact-type road roughening machine is characterized in that: the side of the roller close to the head of the frame is provided with a buffer pad for preventing debris from splashing.

The above-mentioned impact type road roughing machine is characterized in that: a plurality of thin rods 1 are staggered along the length direction of roller 1, and a plurality of thin rods 2 are staggered along the length of roller 2.

The above-mentioned impact-type road roughening machine is characterized in that: one side of the roller shaft close to the head of the frame is provided with a plurality of nozzles for spraying water on the road surface to be roughened.

The above-mentioned impact type road roughing machine is characterized in that: the chassis is provided with two disc brushes that cooperate with each other and are used to sweep debris to the middle of the bottom of the chassis, and a connecting rod 1 is installed on the chassis, The upper end of the connecting rod one is installed on the chassis, the lower end of the connecting rod one is rotatably connected with the connecting rod two, the end of the connecting rod two far away from the connecting rod one is connected with a mounting frame, and the disc brush is connected to the mounting frame Above, the installation frame is provided with a hydraulic motor 1 for driving the disc brush to rotate, and on the chassis and between the hydraulic motor 1 and the connecting rod 1, there is a lifting cylinder for driving the connecting rod 2 to rotate around the lower end of the connecting rod .

The above-mentioned impact type road surface roughening machine is characterized in that: the tail of the frame is provided with a debris collection device, and the debris collection device includes a cylinder installed at the tail of the frame and arranged horizontally. The lower part is provided with a feeding port for debris to enter the drum and a push shovel for facilitating the entry of debris into the feeding port. The two sides of the drum are respectively provided with a fixed shaft and a fixed shaft connected to the frame. Two, the fixed shaft 1 is connected to the inner wall of the drum and the fixed shaft 2 is connected to the inner wall of the drum through a plurality of support rods, the inner end of the fixed shaft 1 is provided with a hydraulic motor 2, and the output shaft of the hydraulic motor 2 is connected with Rotating shaft, the end of the rotating shaft away from the hydraulic motor 2 is rotatably mounted on the fixed shaft 2, the rotating shaft is covered with a circular plate, and the circular plate is arranged along the circumferential direction of the circular plate A plurality of brush seedling boxes, a plurality of brush seedling boxes are provided with brush seedlings; the upper part of the drum is provided with a conveying channel for transporting the debris brought by the brush seedlings to the upper part of the drum to the stacker, and the stacker The boxes are arranged on the rack.

The above-mentioned impact type road surface roughing machine is characterized in that: the end of the brush seedling box away from the rotating shaft is provided with a through hole, the brush seedling box is provided with a brush seedling rack, and the brush seedling rack is connected to the The seedling brush box is in loose fit, the seedling brush passes through the through hole and is connected with the seedling brush rack, and the seedling brush is in loose fit with the wall of the through hole.

The above-mentioned impact type road roughing machine is characterized in that: the rear side of the drum is connected with a support wheel for supporting the drum, and the tail of the frame is connected with a handrail for manually pushing the road roughing machine.

Compared with the prior art, the utility model has the following advantages:

1. The utility model has simple structure, novel and reasonable design, and is easy to install.

2. The utility model uses the impact ball to impact and destroy the road surface, which can achieve the desired surface roughness by impacting the road surface without causing damage to the road surface. The impact ball on the thin rod one and the impact ball on the thin rod two Two impacts are performed to improve the work efficiency. As long as the impact type road roughing machine passes the road once, it can impact the road surface that meets the requirements, and the operation is convenient.

3. In the utility model, the diameter of the impact ball on the first thin rod is designed to be larger than the diameter of the impact ball on the second thin rod, so that the impact road roughening machine forms two different impact levels on the roughening of the road surface , rough roughening first, and then fine roughening, so that the roughening of the road surface is more neat and fine.

4. In the utility model, a plurality of the thin rods 1 are staggered along the length direction of the roller 1, and a plurality of the thin rods 2 are staggered along the length direction of the roller 2, so that the impact type road roughening machine can Comprehensive coverage of the entire road surface, avoiding leaving unroughed road surface, and improving the effectiveness of the operation.

5. The utility model is equipped with a nozzle, which can spray the road surface wet before roughening, avoiding dust generated when debris splashes during roughening, and further avoiding pollution to the environment.

6. The utility model realizes the collection of pavement debris and cleans the pavement by setting a debris collecting device.

7. The utility model has the advantages of low cost, good application effect and convenient popularization and use.

In summary, the utility model has the advantages of simple structure, novel and reasonable design, high working reliability, long service life, high working efficiency, high quality of roughening the road surface, and is convenient for popularization and use.

The technical solutions of the present utility model will be further described in detail through the drawings and embodiments below.

Description of drawings

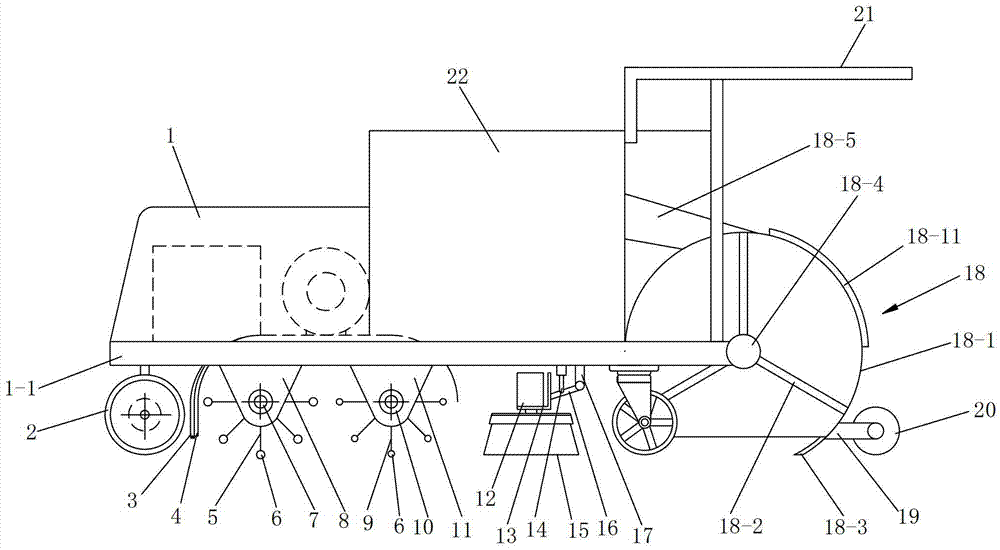

Fig. 1 is the front view of the utility model.

Fig. 2 is the bottom view of the utility model.

Fig. 3 is a top view of the utility model.

Fig. 4 is a schematic structural view of the debris collection device of the present invention.

Explanation of reference signs:

1—frame; 1-1—chassis; 2—wheels;

3—nozzle; 4—cushion pad; 5—thin rod one;

6—impact ball; 7—roller one; 8—roller connecting plate one;

9—thin rod two; 10—roller two; 11—roller connecting plate two;

12—hydraulic motor one; 13—mounting frame; 14—lift cylinder;

15—disc brush; 16—connecting rod two; 17—connecting rod one;

18—debris collection device; 18-1—drum; 18-2—support rod;

18-3—push shovel; 18-4—fixed shaft one; 18-5—conveying channel;

18-6—Fixed shaft two; 18-7—Brush seedling box; 18-8—Brush seedling rack;

18-9 - brush seedlings; 18-10 - circular plate; 18-11 - brush seedling replacement window;

18-12—rotating shaft; 19—installation plate; 20—support wheel;

21—armrest; 22—collecting box; 23—power output shaft;

24—driving wheel; 25—flywheel; 26—clutch;

27—Reducer.

Detailed ways

A kind of impact type road roughening machine as shown in Fig. 1, Fig. 2 and Fig. 3, comprises frame 1 and the wheel 2 that is installed on frame 1, on the chassis 1-1 of described frame 1 and along the machine Frame 1 widthwise rotation is connected with roller one 7 and roller two 10, on described roller one 7 and is provided with a plurality of thin rods one 5 along its length direction, a plurality of described thin rods one 5 all along the rolling axis The radial arrangement of one 7, on the two rollers 10 and along its length direction, a plurality of thin rods two 9 are arranged, and the plurality of thin rods two 9 are arranged radially along the two rollers 10, and the plurality of thin rods two 9 are all arranged radially along the two rollers 10. The outer ends of the thin rod one 5 and the thin rod two 9 are all provided with impact balls 6 for roughening the road surface, and the frame 1 is provided with a driving device for driving the first roller 7 and the second roller 10 to rotate and A transmission device for transmitting the power output by the driving device to the first roller 7 and the second roller 10 .

In this embodiment, the driving device is an engine, and the transmission device includes a driving wheel 24 installed on the power output shaft 23 of the engine, which is rotatably connected to the frame 1 and corresponds to the first roller 7 and the second roller 10 The transmission shaft, the flywheel 25 installed on the transmission shaft, the one end speed reducer 27 installed on the first roller 7 and the second roller 10, and the output shaft installed on the transmission shaft 25 and connected to the speed reducer 27 Cooperating clutch 26. When the present embodiment is in use, the driving device will drive the roller one 7 and the roller two 10 to rotate through the transmission device, and then drive a plurality of thin rods one 5 and a plurality of thin rods two 9 to do circular motion, and pass through the thin rod one 5. The impact ball 6 on the impact ball 6 and the impact ball 6 on the thin rod 9 roughen the road surface, and use the impact ball 6 to impact and destroy the road surface, which can hit the desired surface roughness on the road surface without causing damage to the road surface. The impact ball 6 on the thin rod one 5 and the impact ball 6 on the thin rod two 9 perform two impacts, which improves the work efficiency. It is easy to operate, and the impact ball 6 is made of steel balls, and the thin rod one 5 and the thin rod two 9 are made of high-strength steel. In this embodiment, the roller one 7 is installed on the frame 1 through the roller connecting plate one 8, and both ends of the roller one 7 are rotationally connected with the roller connecting plate one 8, and the two rollers 10 is installed on the frame 1 through the second roller connecting plate 11, and both ends of the second roller 10 are rotationally connected with the second roller connecting plate 11.

As shown in Figures 1 and 2, the first roller 7 is close to the head of the frame 1, the second roller 10 is located on the side of the roller one 7 away from the head of the frame 1, and the thin rod one 5 is The diameter of impact ball 6 is greater than the diameter of impact ball 6 on thin rod two 9.

In this embodiment, the diameter of the impact ball 6 on the thin rod one 5 is designed to be greater than the diameter of the impact ball 6 on the thin rod two 9, so that the impact type road surface roughening machine forms two different ways of roughening the road surface. Impact level, the diameter of the impact ball 6 on the thin rod one 5 is larger, rough roughening is performed first, the diameter of the impact ball 9 on the thin rod two 9 is smaller, and then fine roughening is performed, so that the road surface is roughened. The hair is more neat and fine. In this embodiment, the rotation directions of the first roller 7 and the second roller 10 are opposite to the rotation direction of the wheel 2 . Such a method can ensure that the debris generated after the impact ball 6 hits the road surface will not splash towards the rear of the frame 1, so as to avoid causing injury to the operators located at the rear of the frame 1.

As shown in FIG. 1 , the side of the first roller 7 near the head of the frame 1 is provided with a buffer pad 4 for preventing debris from splashing.

As shown in FIG. 2 , a plurality of the first thin rods 5 are staggered along the length direction of the first roller 7 , and a plurality of the second thin rods 9 are staggered along the length of the second roller 10 . In this way, the impact type road surface roughening machine can fully cover the entire road surface, avoiding leaving unshaven road surface, and improving the effectiveness of the operation.

As shown in FIG. 1 , a plurality of nozzles 3 for spraying water to the road surface to be roughened are provided on the side of the roller one 7 close to the head of the frame 1 . Its function is to spray the road surface wet before roughening, so as to avoid the dust generated when debris splashes during roughening, thereby avoiding pollution to the environment. In this embodiment, the multiple nozzles 3 are all connected to the water tank installed on the frame 1 .

As shown in Figure 1, the chassis 1-1 is provided with two disc brushes 15 that cooperate with each other and are used to sweep debris to the middle of the lower part of the chassis 1-1, and a connecting rod 15 is installed on the chassis 1-1. 17. The upper end of the connecting rod one 17 is installed on the chassis 1-1, the lower end of the connecting rod one 17 is rotatably connected with the connecting rod two 16, and the end of the connecting rod two 16 far away from the connecting rod one 17 is connected with a mounting frame 13, the disc brush 15 is connected to the mounting frame 13, the mounting frame 13 is provided with a hydraulic motor one 12 for driving the disc brush 15 to rotate, and the chassis 1-1 is located on the hydraulic motor one 12 and connected A lift cylinder 14 for driving the connecting rod two 16 to rotate around the lower end of the connecting rod one 17 is arranged between the rod one 17 .

In this embodiment, the debris generated after the roughening of the road surface is swept to the middle part below the chassis 1-1 by two disc brushes 15, and the scattered debris is gathered together, which facilitates the subsequent debris collection. The brush 15 is driven by the hydraulic motor 12. At the same time, the disc brush 15 can also be lifted under the drive of the lifting cylinder 14 when it is not in use. The specific working process is: the piston rod of the lifting cylinder 14 drives the connecting rod 2 16, making the connecting rod two 16 rotate around the lower end of the connecting rod one 17, so that the connecting rod two 16 drives the brush plate 15 to rotate upwards by an angle, so that the brush plate 15 is lifted.

1 and 4, the tail of the frame 1 is provided with a debris collection device 18, the debris collection device 18 includes a drum 18-1 installed at the tail of the frame 1 and arranged horizontally, the drum 18- The lower part of 1 is provided with the feed inlet for debris entering the drum 18-1 and the pushing shovel 18-3 for facilitating the debris entering the feed inlet, and the two sides of the drum 18-1 are respectively provided with The fixed shaft one 18-4 and the fixed shaft two 18-6 connected to the frame 1, the fixed shaft one 18-4 and the inner wall of the drum 18-1 and the second fixed shaft 18-6 and the inner wall of the drum 18-1 pass through multiple Two support rods 18-2 are connected, and the inner end of the fixed shaft 18-4 is provided with a hydraulic motor 2, and the output shaft of the hydraulic motor 2 is connected with a rotating shaft 18-12, and the rotating shaft 18-12 is far away from One end of the hydraulic motor 2 is rotatably mounted on the fixed shaft 2 18-6, the rotating shaft 18-12 is covered with a circular plate 18-10, and on the circular plate 18-10 and along the circular plate 18 The circumferential direction of -10 is provided with a plurality of brush seedling boxes 18-7, and a plurality of brush seedling boxes 18-7 are provided with brush seedlings 18-9; -9 The debris brought to the upper part of the drum 18-1 is conveyed to the conveying channel 18-5 of the stacker 22, which is arranged on the frame 1.

In this embodiment, the debris collection device 18 is used to sweep the two brush plates 15 to the debris collection in the middle below the chassis 1-1. When in use, the debris is shoveled to the drum 18- 1, a plurality of rotating brush seedlings 18-9 centrifugally throw out the debris entering the drum 18-1, and then throw them into the collection box 22 along the tangential direction through the conveying channel 18-5 under the centrifugal action, realizing the The collection of pavement debris cleans the pavement. The cylinder 18-1 is provided with a brush replacement window 18-11.

1 and 4, the brush seedling box 18-7 is provided with a through hole away from the end of the rotating shaft 18-12, the brush seedling box 18-7 is provided with a brush seedling rack 18-8, and the The seedling brushing frame 18-8 is loosely matched with the seedling brushing box 18-7, and the seedling brushing 18-9 passes through the through hole and is connected with the seedling brushing frame 18-8, and the seedling brushing 18-9 is connected with the seedling brushing frame 18-8. The walls of the through holes are loosely fitted.

In this embodiment, the seedling brushing frame 18-8 is loosely fitted with the seedling brushing box 18-7, and the seedling brushing 18-9 is loosely fitted with the wall of the through hole, so that when the seedling brushing 18-9 moves When at a low position, it falls naturally under the action of gravity. At this time, the amount of debris swept into the cylinder 18-1 by the brush seedlings 18-9 is the largest, and as the brush seedlings 18-9 move upwards, the brush seedlings 18-9 are constantly indented In the brush seedling box 18-7, the amount of debris carried on the top of the cylinder 18-1 has been improved, and the working efficiency of the debris collection device 18 has been improved.

As shown in FIG. 1 , the back side of the drum 18 - 1 is connected with a support wheel 20 for supporting the drum 18 - 1 , and the tail of the frame 1 is connected with a handrail 21 for manually pushing the road roughing machine. The drum 18 - 1 is supported by setting the supporting wheel 20 , the supporting wheel 20 is rotatably mounted on the mounting plate 19 , and the supporting wheel 20 is connected with the outer wall of the drum 18 - 1 through the mounting plate 19 . By arranging the handrail 21, it is convenient for manpower to push the impact type road roughing machine. In this embodiment, the number of the wheels 2 is four, including two wheels 2 at the head of the frame 1 and two wheels 2 at the tail of the frame 1, and two wheels 2 at the head of the frame 1 2 is driven by hydraulic pressure as a driving wheel, and the two wheels 2 positioned at the rear of the frame 1 can be made of universal wheels.

The above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any simple modifications, changes and equivalent structural transformations made to the above embodiments according to the technical essence of the present utility model still belong to Within the scope of protection of the technical solution of the utility model.

Claims (10)

1. An impact type road roughening machine, characterized in that: it includes a frame (1) and wheels (2) mounted on the frame (1), the chassis (1-1) of the frame (1) Roller 1 (7) and Roller 2 (10) are connected on and rotate along the width direction of the frame (1), and a plurality of thin rods 1 (5) are arranged on the roller 1 (7) and along its length direction. ), a plurality of thin rods one (5) are arranged radially along the roller shaft one (7), and a plurality of thin rods two (9) are arranged on the roller shaft two (10) and along its length direction, The plurality of thin rods two (9) are arranged radially along the roller shaft two (10), and the outer ends of the plurality of thin rods one (5) and thin rod two (9) are all provided with The impact ball (6) on the road surface, the frame (1) is provided with a driving device for driving the first roller (7) and the second roller (10) to rotate and for transmitting the power output by the driving device to Gearing for Roller One (7) and Roller Two (10). 2. An impact-type road roughing machine according to claim 1, characterized in that: the first roller (7) is close to the head of the frame (1), and the second roller (10) is located The shaft one (7) is away from the side of the head of the frame (1), and the diameter of the impact ball (6) on the thin rod one (5) is larger than the diameter of the impact ball (6) on the thin rod two (9). 3. An impact-type road roughing machine according to claim 1, characterized in that: the rotation direction of the first roller (7) and the second roller (10) is opposite to that of the wheel (2) . 4. An impact-type road surface roughening machine according to claim 3, characterized in that: the side of the first roller (7) close to the head of the frame (1) is provided with a buffer for preventing debris from splashing Pad (4). 5. An impact-type road surface roughening machine according to claim 1, characterized in that: a plurality of thin rods (5) are distributed in a staggered manner along the length direction of the roller shaft (7), and a plurality of thin rods (5) The two rods (9) are distributed in a staggered manner along the length direction of the two rollers (10). 6. An impact-type road surface roughening machine according to claim 1, characterized in that: the side of the first roller (7) close to the head of the frame (1) is provided with a plurality of Nozzles (3) for spraying water on rough pavement. 7. The impact-type road roughing machine according to claim 1, characterized in that: the chassis (1-1) is provided with two mutually cooperating and used to sweep debris to the chassis (1-1) ), the disc brush (15) in the lower middle part, the chassis (1-1) is equipped with a connecting rod one (17), and the upper end of the connecting rod one (17) is installed on the chassis (1-1), the The lower end of the connecting rod one (17) is rotatably connected to the connecting rod two (16), and the end of the connecting rod two (16) far away from the connecting rod one (17) is connected to the mounting frame (13), and the disc brush (15) Connected to the installation frame (13), the installation frame (13) is provided with a hydraulic motor one (12) for driving the disc brush (15) to rotate, and the chassis (1-1) is located on the hydraulic motor one ( 12) and connecting rod one (17) are provided with a lift cylinder (14) for driving connecting rod two (16) to rotate around the lower end of connecting rod one (17). 8. An impact-type road surface roughening machine according to claim 1, characterized in that: a debris collection device (18) is provided at the tail of the frame (1), and the debris collection device (18) It includes a drum (18-1) installed at the tail of the frame (1) and arranged horizontally. The lower part of the drum (18-1) is provided with a feed port for debris to enter the drum (18-1) and for convenience. The debris enters the push shovel (18-3) of the feed port, and the two sides of the drum (18-1) are respectively provided with a fixed shaft (18-4) and a fixed shaft connected to the frame (1). The second fixed shaft (18-6), the first fixed shaft (18-4) and the inner wall of the drum (18-1) as well as the second fixed shaft (18-6) and the inner wall of the drum (18-1) pass through a plurality of support rods (18-2), the inner end of the fixed shaft one (18-4) is provided with a hydraulic motor two, the output shaft of the hydraulic motor two is connected with a rotating shaft (18-12), and the rotating shaft ( 18-12) The end away from the hydraulic motor 2 is rotatably mounted on the fixed shaft 2 (18-6), and the rotating shaft (18-12) is covered with a circular plate (18-10), and the circular plate (18-10) is A plurality of seedling brush boxes (18-7) are arranged on the plate (18-10) and along the circumferential direction of the circular plate (18-10), and brush seedling boxes (18-7) are provided on the plurality of seedling brush boxes (18-7). Seedlings (18-9); the upper part of the drum (18-1) is provided with a conveying channel for transporting the debris brought by the brush seedlings (18-9) to the upper part of the drum (18-1) to the stacker (22) (18-5), the stacker (22) is set on the frame (1). 9. An impact-type road roughing machine according to claim 8, characterized in that: a through hole is opened on the end of the brush seedling box (18-7) away from the rotating shaft (18-12), and the The seedling brushing box (18-7) is provided with a seedling brushing frame (18-8), and the seedling brushing frame (18-8) is loosely fitted with the seedling brushing box (18-7), and the seedling brushing (18-7) -9) Pass through the through hole and connect with the brush seedling rack (18-8), and the brush seedling (18-9) is in loose fit with the hole wall of the through hole. 10. An impact-type road roughening machine according to claim 8, characterized in that: the back side of the drum (18-1) is connected with a support wheel (20) for supporting the drum (18-1), so The tail end of the frame (1) is connected with a handrail (21) that is used to manually promote the road roughening machine.
