Abstract

The utility model relates to the technical field of daily necessities, and particularly refers to a multifunctional charging bag. The multifunctional charging bag comprises: a bag body and a bag cover, wherein the bag body is provided with a button, and the corresponding bag cover is provided with a lock hole interlocked with the button, and two conductive sheets on the charger plug extend from the lock hole and are inserted into the wall socket, so that the bag cover is hung on the two conductive sheets of the charger plug. The beneficial effects of the utility model are: 1. It can solve the problem that there is no suitable place for the mobile phone to be placed when charging. 2. It can protect the mobile phone from damage. 3. Charging is extremely convenient. 4. The charger can be conveniently stored.

Description

A kind of multi-functional charging bag

Technical field:

The utility model relates to technical field of living goods, refers in particular to a kind of multi-functional charging bag.

Background technology:

Along with improving constantly of people's living standard, mobile phone has become requisite communication tool in people's daily life, and mobile phone needs often charging.When by wall plug mobile phone being charged, if there is not suitable position to place for mobile phone around the wall plug, that can only be placed on the ground mobile phone, easy of like this mobile phone injury, for fear of to the mobile phone injury, mobile phone have to be hand held in, so extremely inconvenient.

The utility model content:

The purpose of this utility model is to provide a kind of multi-functional charging bag, and the problem that does not have correct position to place for mobile phone in the time of can solving cell-phone charging like this can protect mobile phone not sustain damage, charge extremely convenient, but the convenient for collecting charger.

The utility model realizes that the technical scheme that its purpose adopts is: this multi-functional charging bag comprises: bag and pkt. flap, described bag is provided with a button, corresponding pkt. flap is provided with one and forms the lockhole of interlocking with button, two conducting strips on the Charger (portable round) are stretched out on the socket that is inserted on the wall by lockhole, make pkt. flap hang on two conducting strips of Charger (portable round).

During cell-phone charging, charger is connected with mobile phone, then mobile phone is put into bag, two conducting strips on the Charger (portable round) are stretched out on the socket that is inserted on the wall by lockhole, make pkt. flap hang on two conducting strips of Charger (portable round).When not charging, charger is placed in the bag, lockhole and the formation of the button on bag interlocking with pkt. flap skid off in bag to prevent charger.

The beneficial effects of the utility model are:

1, the problem that does not have correct position to place for mobile phone in the time of can solving cell-phone charging.

2, can protect mobile phone not sustain damage.

3, charging is extremely convenient.

But 4 convenient for collecting chargers.

Description of drawings:

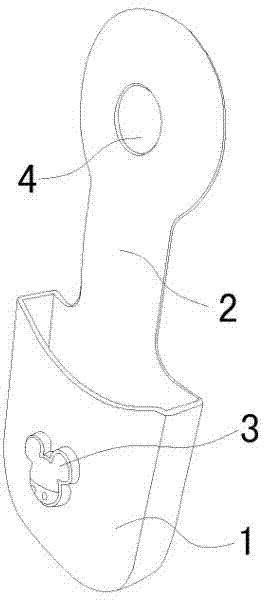

Fig. 1 is stereogram of the present utility model.

Symbol description:

1 bag

2 pkt. flaps

3 buttons

4 lockholes

The specific embodiment:

Below in conjunction with specific embodiments and the drawings the utility model is further specified.

As shown in Figure 1, multi-functional charging bag comprises in the present embodiment: bag 1 and pkt. flap 2.

Particularly

Above-mentioned bag 1 is provided with a button 3; button 3 in the present embodiment is the all-purpose card button; corresponding pkt. flap 2 is provided with one and forms the lockhole 4 of interlocking with button 3; two conducting strips on the Charger (portable round) are stretched out on the socket that is inserted on the wall by lockhole 4; make pkt. flap 2 hang on two conducting strips of Charger (portable round); the problem that does not have correct position to place for mobile phone in the time of can solving cell-phone charging like this can protect mobile phone not sustain damage, and charges extremely convenient.

During cell-phone charging, charger is connected with mobile phone, then mobile phone is put into bag 1, two conducting strips on the Charger (portable round) are stretched out on the socket that is inserted on the wall by lockhole 4, make pkt. flap 2 hang on two conducting strips of Charger (portable round).

When not charging, charger is placed in the bag 1, lockhole 4 and the 3 formation interlockings of the button on the bag 1 with pkt. flap 2 skid off in bag 1 to prevent charger, so just can reach the purpose of convenient for collecting charger.

Certainly, the above only is an embodiment of the present utility model, be not to limit the utility model practical range, all equivalences of doing according to the described structure of the utility model claim, feature and principle change or modify, and all should be included in the utility model claim.

Claims

1. A multi-functional charging bag, characterized in that it includes a bag body (1) and a bag cover (2), the bag body (1) is provided with a button (3), corresponding to the bag cover (2) There is a lock hole (4) interlocked with the button (3), and the two conductive strips on the charger plug protrude from the lock hole (4) to be inserted into the socket on the wall, so that the bag cover (2) is hung on the On the two conductive strips of the charger plug.
