Abstract
The utility model relates to a wine bottle, including beverage bottle inlayer and skin, the inlayer is the bottle of the area bottleneck that pottery or glass made, is provided with the bottle lid on the bottleneck, the outer barrel that is bamboo or wood system, outer barrel includes barrel and lower barrel, goes up barrel and barrel amalgamation down airtight cavity, goes up barrel inside top layer and barrel inside bottom down and all is provided with the protection bed course down, and the inlayer bottle sets up between the protection bed course that last barrel and barrel set up down, and the lateral wall of inlayer bottle is provided with anticollision structure simultaneously. Inside top layer of last barrel and barrel inside bottom all set up the protection bed course down, and the lateral wall of inlayer bottle is provided with the anticollision structure simultaneously, makes it can obtain sufficient buffering in transportation, handling, makes the inlayer bottle obtain the protection, makes it be difficult broken to have reached the utility model discloses a purpose.
Description
Technical field
The utility model relates to a kind of bottle.
Background technology
At present, most widely used on market is glass bottle processed mostly, part adopts porcelain vase or Earthen Bottle, above-mentioned bottle different modeling, attractive in appearance, but it is broken easily in transportation, causes damage, and other adopt thick bamboo tube to contain wine, though with a long history, the easy seepage of thick bamboo tube bottle can not long-term storage, also having a kind of mode is to add an inner bag in the thick bamboo tube bottle, contain wine with inner bag, though this mode has solved the leakage problems of thick bamboo tube wine, because it adopts two courages, its inner bag generally adopts materials such as pottery or glass, broken easily in transportation, therefore, be necessary this technology is improved.
The utility model content
Technical problem to be solved in the utility model is, a kind of bottle is provided, and has simple in structurely, is easy to produce, and cost is lower, meets characteristics such as low-carbon environment-friendly requirement.
The utility model is to realize like this; comprise bottle internal layer and skin; internal layer is the bottle of the band bottleneck made of pottery or glass; bottleneck is provided with bottle cap; skin is bamboo or wooden cylindrical shell; outer layer barrel comprises upper shell and lower shell; upper shell and lower shell piece together airtight cavity; upper shell inner top layer and lower shell inner bottom are provided with the protection bed course; the internal layer bottle is arranged between the protection bed course of upper shell and lower shell setting, and the sidewall of internal layer bottle is provided with crashproof structure simultaneously.
The protection bed course of described crashproof structure and the setting of lower shell inner bottom is formed in one.
Between described upper shell and the lower shell by being threaded togather.
Upper shell and lower shell connecting portion are arranged on top or bottom or the middle part of outer layer barrel.
Upper shell and lower shell connecting portion are provided with the ring connected in star.
Lateral wall at described outer layer barrel also is provided with at least one ring connected in star in parallel.
The utility model is with respect to the advantage of prior art: outer layer barrel adopts between upper shell and the lower shell by being threaded; make upper shell and lower shell form airtight cavity; make things convenient for the unlatching of outer layer barrel with closed; be convenient to the internal layer bottle is taken out; in upper shell inner top layer and lower shell inner bottom the protection bed course is set all; the sidewall of internal layer bottle is provided with crashproof structure simultaneously; make bed course contact and compress with at the bottom of the bottle of bottom with the top bottle cap of internal layer bottle respectively with underlayer; whole internal layer bottle is fixed; prevent the play up and down of internal layer bottle; make it in transportation; can access enough bufferings in the handling process; the internal layer bottle is protected; it is broken that it is difficult for, thereby reached the purpose of this utility model.
Description of drawings

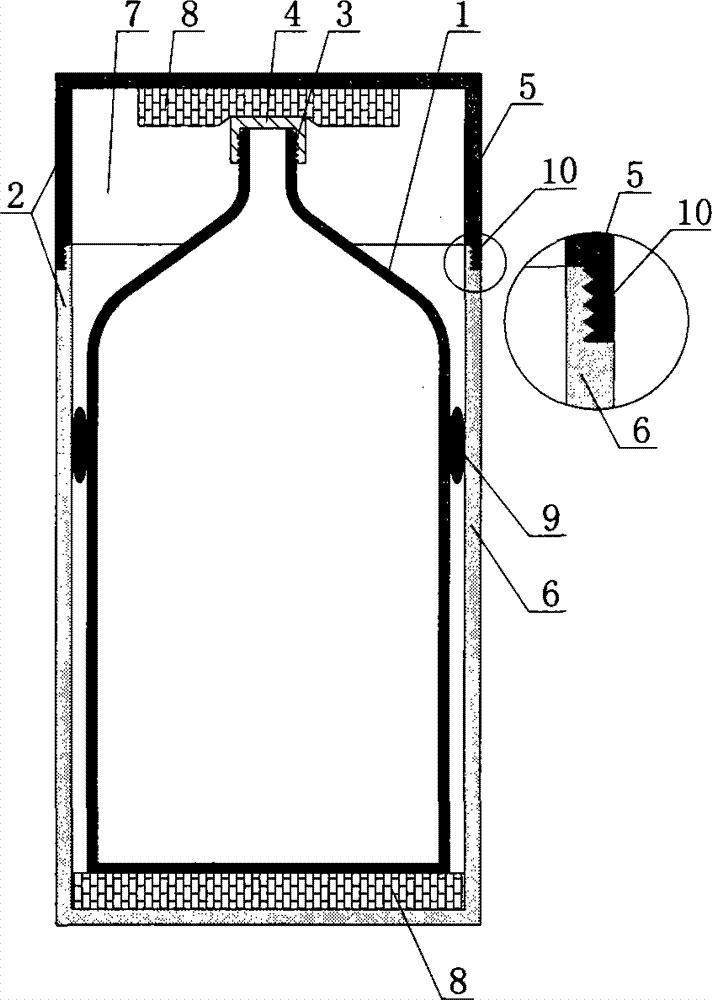

Fig. 1 is one of structural representation of the utility model embodiment 1;
Fig. 2 be the utility model embodiment 2 structural representation two;
Fig. 3 be the utility model embodiment 3 structural representation three;
Fig. 4 be the utility model embodiment 4 structural representation four.
Fig. 5 be the utility model embodiment 5 structural representation five.
The specific embodiment
Reach embodiment by reference to the accompanying drawings down, the utility model is further elaborated.
Shown in Fig. 1,2,3,4,5; a kind of bottle; comprise bottle internal layer 1 and outer 2; internal layer 1 is the bottle of the ceramic band bottleneck of making 3; bottleneck is provided with bottle cap 4; outer 2 is bamboo cylindrical shell; outer layer barrel comprises upper shell 5 and lower shell 6; upper shell 5 pieces together airtight cavity 7 with lower shell 6; upper shell 5 inner top layer and lower shell 6 inner bottom are provided with protection bed course 8; the internal layer bottle is arranged between the protection bed course 8 of upper shell 5 and lower shell 6 settings, and the sidewall of internal layer bottle is provided with crashproof structure 9 simultaneously.As shown in Figure 1, crashproof structure 9 is ring type elastic adhesive tape, and as shown in Figure 4, crashproof structure 9 is for sticking to the anti-collision block on the internal layer bottle side wall, and as shown in Figure 5, crashproof structure 9 is for sticking to the anti-collision block of strip on the internal layer bottle side wall.
As shown in Figure 2, described crashproof structure 9 is air bag 12 with the integrated formed structure of lower shell 6 inner bottom protection bed course 8 compositions.As shown in Figure 3, described crashproof structure 9 is foam block 13 with the integrated formed structure of protection bed course 8 formation of lower shell 6 inner bottom settings.
Shown in Fig. 1,2,3,4,5, link together by screw thread 10 between described upper shell 5 and the lower shell 6.
Shown in Fig. 1,2,3,4,5, upper shell 5 and lower shell 6 connecting portions are arranged on the top of outer layer barrel.
Shown in Fig. 2,3,4,5, upper shell 5 is provided with ring connected in star 11 with lower shell 6 connecting portions.
Shown in Fig. 2,3,4,5, also be provided with many ring connected in stars 11 in parallel at the lateral wall of described outer layer barrel.
Claims (6)
1. bottle; comprise bottle internal layer and skin; internal layer is the bottle of the band bottleneck made of pottery or glass; bottleneck is provided with bottle cap; skin is bamboo or wooden cylindrical shell; outer layer barrel comprises upper shell and lower shell; upper shell and lower shell piece together airtight cavity; it is characterized in that upper shell inner top layer and lower shell inner bottom are provided with the protection bed course; the internal layer bottle is arranged between the protection bed course of upper shell and lower shell setting, and the sidewall of internal layer bottle is provided with crashproof structure simultaneously.
2. bottle according to claim 1 is characterized in that the protection bed course of described crashproof structure and the setting of lower shell inner bottom is formed in one.
3. bottle according to claim 1 is characterized in that between described upper shell and the lower shell by being threaded togather.
4. bottle according to claim 3 is characterized in that upper shell and lower shell connecting portion are arranged on top or bottom or the middle part of outer layer barrel.
5. bottle according to claim 4 is characterized in that upper shell and lower shell connecting portion are provided with the ring connected in star.
6. bottle according to claim 5 is characterized in that also being provided with at least one ring connected in star in parallel at the lateral wall of described outer layer barrel.
