Abstract
The utility model discloses a sickbed having a massage function. The sickbed having the massage function comprises a sickbed body, wherein a backup plate is connected to the front end of a bed head of the sickbed, a massager is installed between the backup plate and the bed head, a plurality of holes are formed on the backup plate according to massaging positions, massaging heads of the massager extend into the plurality of holes correspondingly and extend out of the massaging face of the backup plate, and a back cushion is further arranged on the massaging face of the backup plate. The sickbed having the massage function is simple and reasonable in structure and convenient to use. When a patient needs massage, the patient can lean on the backup plate of the bed head to sit, so that the massaging heads on the backup plate can massage the back of the patient, manpower resources are effectively saved, time and labor are saved, the treatment effect of the patient is ensured, and bad disease symptoms including pressure sores and the like are prevented.
Description
Technical field
This utility model relates to a kind of sick bed, is specially a kind of sick bed with massage functions.
Background technology
Patient is during the long-term bed treatment, often need family members or medical personnel that its health is massaged, with blood circulation promoting, improve therapeutic effect, prevent bad diseases such as pressure ulcer, and this manual massage's mode not only takies the human resources, and wastes time and energy, so this utility model design is a kind of has the sick bed of massage functions to address the above problem.
The utility model content
The purpose of this utility model provides a kind of sick bed with massage functions, adopts manually with the patient who solves the medium-term and long-term bed of prior art and massages, and not only takies the human resources, and the problem that wastes time and energy.
For achieving the above object, the technical solution adopted in the utility model is:
A kind of sick bed with massage functions, it is characterized in that: include the sick bed body, the head of a bed front end of described sick bed is connected with backup plate, between described backup plate and the head of a bed masseur is installed, have a plurality of perforates according to the massage position on the described backup plate, the massage head correspondence of described masseur stretches in a plurality of perforates, and massage head stretches out the massage face of backup plate, also is provided with back cushion on the massage face of described backup plate.
Described a kind of sick bed with massage functions is characterized in that: described backup plate is the arc backup plate of middle part indent.
The beneficial effects of the utility model are:
This utility model is simple and reasonable, easy to use, when patient need massage, need only patient's seat in the backup plate of the head of a bed, massage head on the backup plate just can be massaged patient's back like this, has saved the human resources effectively, and is time saving and energy saving, guarantee patient's therapeutic effect, prevented bad diseases such as pressure ulcer.
Description of drawings

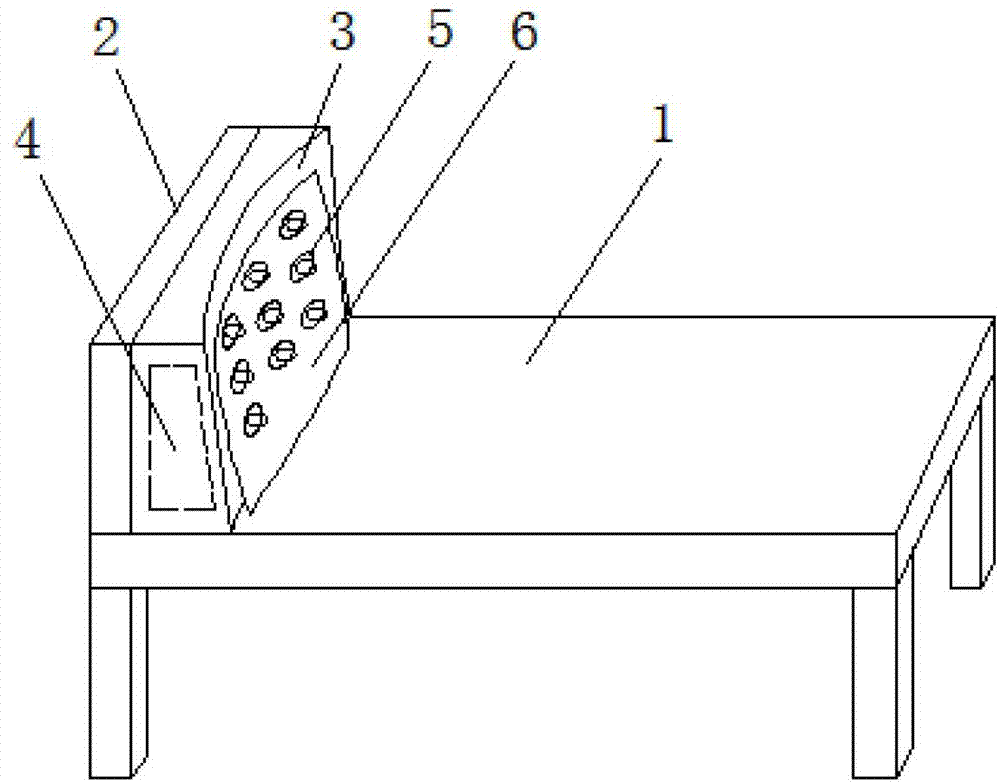

Fig. 1 is structural representation of the present utility model.
The specific embodiment
As shown in Figure 1, a kind of sick bed with massage functions, include sick bed 1 body, the head of a bed 2 front ends of sick bed 1 are connected with backup plate 3, between backup plate 3 and the head of a bed 2 masseur 4 is installed, has a plurality of perforates according to the massage position on the backup plate 3, massage head 5 correspondences of masseur 4 stretch in a plurality of perforates, and massage head 5 is stretched out the massage face of backup plate 3, also is provided with back cushion 6 on the massage face of backup plate 3.
Backup plate 3 is the arc backup plate of middle part indent.
Claims (2)
1. sick bed with massage functions, it is characterized in that: include the sick bed body, the head of a bed front end of described sick bed is connected with backup plate, between described backup plate and the head of a bed masseur is installed, have a plurality of perforates according to the massage position on the described backup plate, the massage head correspondence of described masseur stretches in a plurality of perforates, and massage head stretches out the massage face of backup plate, also is provided with back cushion on the massage face of described backup plate.
2. a kind of sick bed with massage functions according to claim 1, it is characterized in that: described backup plate is the arc backup plate of middle part indent.
