Abstract

The utility model discloses an upper arm negative pressure dressing, which comprises a cylindrical dressing body, the dressing body includes an inner hole part matching with the upper arm, and a crack is arranged on the side wall of the dressing body along its axial direction. , the inside of the dressing body is embedded with a drainage tube for communicating with an external negative pressure source. When in use, after wound debridement and hemostasis, place the upper arm of the wounded in the cylindrical dressing body and stick it securely. The sticking process should not exceed 2 minutes. The utility model can be used to cover the wound on the upper arm, and has good therapeutic effect.

Description

upper arm negative pressure dressing

technical field

The utility model relates to a dressing, in particular to a negative pressure dressing.

Background technique

A dressing is a dressing used to cover a sore, cut, or other damage. Negative pressure dressing refers to a dressing that can be used to bandage a wound and connect to a negative pressure source to seal the wound with negative pressure. Both clinical and research have proved that closed negative pressure beverage technology has a good therapeutic effect on chronic wounds and infected wounds, can prevent and control infection, promote blood circulation in wounds, and promote the growth of wound granulation tissue and angiogenesis.

There are a variety of general-purpose negative pressure dressings on the market today. These dressings usually include a sponge (mostly made of polyurethane or polyethylene glycol, etc.), an airtight waterproof film and a negative pressure tube (mostly made of a medical drainage tube). When performing negative pressure therapy for patients, the above-mentioned parts need to be assembled, and it takes a long time to change the dressing, and when it is used for large-area wounds, several dressings need to be spliced. In addition, when some parts of the body are injured, such as the upper arm, the existing dressing cannot be completely applied to the injured part, which affects the therapeutic effect.

Utility model content

In view of the above problems, the purpose of this utility model is to provide an upper arm negative pressure dressing to solve the problems in the prior art.

In order to achieve the above object, the technical scheme of the utility model is as follows:

A negative pressure dressing for the upper arm, characterized in that it includes a cylindrical dressing body, the dressing body includes an inner hole adapted to the upper arm, and a split is provided on the side wall of the dressing body along its axis direction, A drainage tube for communicating with an external negative pressure source is buried inside the dressing body.

In a preferred embodiment of the present invention, the outer layer of the dressing body is covered with an airtight waterproof film.

In a preferred embodiment of the present invention, a waterproof adhesive film with a protective film is provided at both ends of the breach and the inner hole.

In a preferred embodiment of the present invention, the dressing body is a polyurethane sponge.

In a preferred embodiment of the present utility model, the dressing body is a polyvinyl alcohol dressing.

In a preferred embodiment of the utility model, the drainage tube is a silicone tube.

The dressing body of the utility model can be replaced by porous materials of other materials.

The drainage tube of the utility model can be replaced by drainage tubes of other materials.

The negative pressure dressing of the utility model is provided with different models according to the length and circumference of the upper arm of a person.

When in use, after wound debridement and hemostasis, place the upper arm of the wounded in the cylindrical dressing body, tear off the protective film of the waterproof adhesive film at both ends of the sponge crack and the inner hole, and stick it securely. The sticking process should not exceed 2 minutes.

The utility model can be used to cover the wound on the upper arm, and has good therapeutic effect.

The features of the utility model can be clearly understood by referring to the drawings of this case and the detailed description of the following preferred embodiments.

Description of drawings

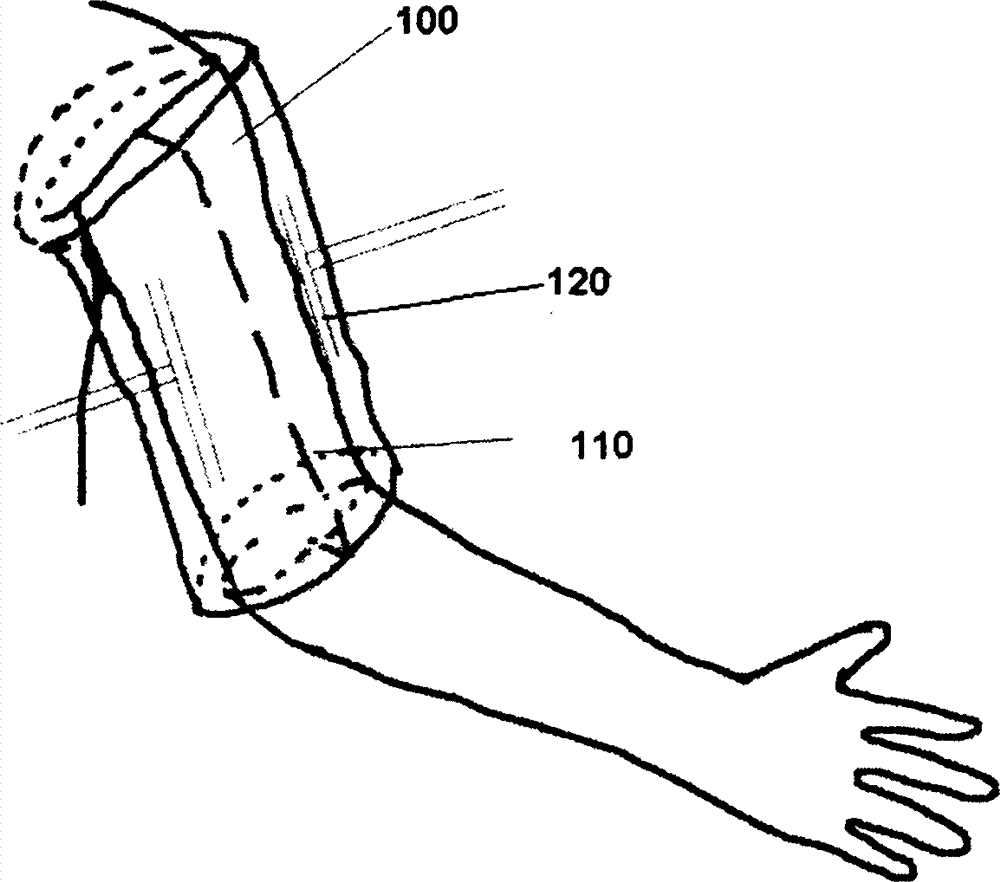

Fig. 1 is a schematic diagram of the utility model omitting the drainage tube.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

Referring to FIG. 1 , an upper arm negative pressure dressing includes a cylindrical dressing body 100 , and an airtight film is provided on the surface of the dressing body. The dressing body can be polyurethane sponge, polyvinyl alcohol dressing or other dressings.

The dressing body includes an inner hole adapted to the upper arm. The side wall of the dressing body is provided with a slit 110 along its axial direction; when the wound is bandaged, the upper arm of the wounded is placed in the inner hole of the sponge through the slit. Drainage tubes 120 for communicating with the outside are buried inside the dressing body; there can be two or more drainage tubes, which are evenly arranged inside the cylindrical dressing body; the drainage tubes can be silicone tubes or tubes made of other materials. The drainage tubes can be connected together in the sponge and lead out together to connect to the negative pressure source, or they can be led out separately and connected to the negative pressure source respectively.

Both ends of the breach 110 and the inner hole are provided with a waterproof adhesive film with a protective film.

The dressing body, airtight film and drainage tube are designed in one piece.

When using, after wound debridement and hemostasis, choose the appropriate model according to the length and circumference of the upper arm of the wounded, put the upper arm of the wounded in the cylindrical dressing body, tear off the protective film of the waterproof adhesive film, and stick it securely. Can. The sticking process can be completed within 2 minutes.

The utility model can be used to cover the wound on the upper arm, and has good therapeutic effect.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions describe only the principle of the utility model. There will be various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The protection scope required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A kind of upper arm negative pressure dressing, it is characterized in that, comprises the dressing body of cylindrical shape, and described dressing body comprises the inner hole portion that is adapted with upper arm, and the side wall of described dressing body is provided with along its axial direction There is a gap, and a drainage tube for communicating with an external negative pressure source is buried inside the dressing body. 2. The upper arm negative pressure dressing according to claim 1, wherein an airtight waterproof film is pasted on the outer layer of the dressing body. 3. The upper arm negative pressure dressing according to claim 1, characterized in that a waterproof adhesive film with a protective film is provided at both ends of the breach and the inner hole. 4. The upper arm negative pressure dressing according to claim 1, wherein the dressing body is a polyurethane sponge. 5. The upper arm negative pressure dressing according to claim 1, wherein the dressing body is a polyvinyl alcohol dressing. 6. The upper arm negative pressure dressing according to claim 1, wherein the drainage tube is a silicone tube.
