Abstract
本实用新型揭示了一种手机充电器，包括基座和若干个用于与外部电源电连接的插头部，每个插头部上设有不同的第一插头，所述基座与插头部能够可拆的电连接。该手机充电器使用方便，可以配合多种插座的手机充电器。
The utility model discloses a charger for a mobile phone, which comprises a base and several plug parts for electrical connection with an external power supply, each plug part is provided with a different first plug, and the base and the plug parts can be connected to each other. disconnected electrical connections. The mobile phone charger is easy to use, and can cooperate with mobile phone chargers of various sockets.
Description
Technical field
The utility model relates to charger, particularly a kind of charger for mobile phone.
Background technology
Mobile phone is requisite communication tool in people's daily life, and producer often is equipped with charger in mobile phone.Existing charger generally by a body, extends plug on the body, only need during use plug is inserted on the socket of external power source, is communicated with charger namely chargeable with mobile phone data wire again.The problem of bringing then is, the plug on the charger often is limited by the socket of extraneous power supply, and namely the plug of charger must match with external electric supply socket and just can connect.In the process of going on business, perhaps when some special occasions can not find with the suitable external electric supply socket of plug, cause the inconvenience of use.
Summary of the invention
At the deficiencies in the prior art, be necessary to provide a kind of easy to use, can cooperate the charger for mobile phone of multiple socket.
For solving the problems of the technologies described above, the utility model provides following technical scheme: comprise that pedestal and several are used for the intercalation part that is electrically connected with external power source, be respectively equipped with the first different plugs on each intercalation part, what described pedestal and intercalation part can be removable is electrically connected.
Be improved to the basis with first kind, second kind of improved characteristic is that described pedestal is provided with jack, and described intercalation part is provided with second plug, and pedestal is electrically connected with second plug by jack with intercalation part.
Be improved to the basis with first kind, the third improved characteristics are that described pedestal is provided with second plug, and described intercalation part is provided with jack, and pedestal is electrically connected with jack by second plug with intercalation part.
Be improved to the basis with second kind or three kinds, the 4th kind of improved characteristics are also to be provided with guide protrusions on the described pedestal, and described intercalation part is provided with first gathering sill suitable with described guide protrusions.
Be improved to the basis with second kind or the third, the 5th kind of improved characteristics are also to be provided with guide protrusions on the described intercalation part, and described pedestal is provided with first gathering sill suitable with described guide protrusions.
Be improved to the basis with the 4th kind, the 6th kind of improved characteristics are also to be provided with guide protrusions on the described intercalation part, and described pedestal is provided with first gathering sill suitable with described guide protrusions.
Be improved to the basis with the 4th kind, the 7th kind of improved characteristics are that described plug is provided with guiding rib, and described jack is provided with second gathering sill suitable with guiding rib.
Be improved to the basis with the 5th kind, the 8th kind of improved characteristics are that described jack is provided with guiding rib, and described second plug is provided with second gathering sill suitable with guiding rib.
Be improved to the basis with the 5th kind, the 9th kind of improved characteristics are that described plug is provided with guiding rib, and described jack is provided with second gathering sill suitable with guiding rib.
The charger for mobile phone that the utility model provides, pedestal is electrically connected with intercalation part is removable, and charger for mobile phone comprises some kinds of intercalation parts, can make the charger for mobile phone electrical connection that matches with multiple external supply socket by changing intercalation part.And made further improvement in pedestal and intercalation part, a plurality of guiders namely are set, it is more smooth and easy, convenient to make that pedestal is connected with intercalation part.
Compared with prior art, the charger for mobile phone that the utility model provides is easy to use, can cooperate multiple external electric supply socket.
Description of drawings
The utility model is described in further detail below in conjunction with drawings and Examples, in the accompanying drawing:

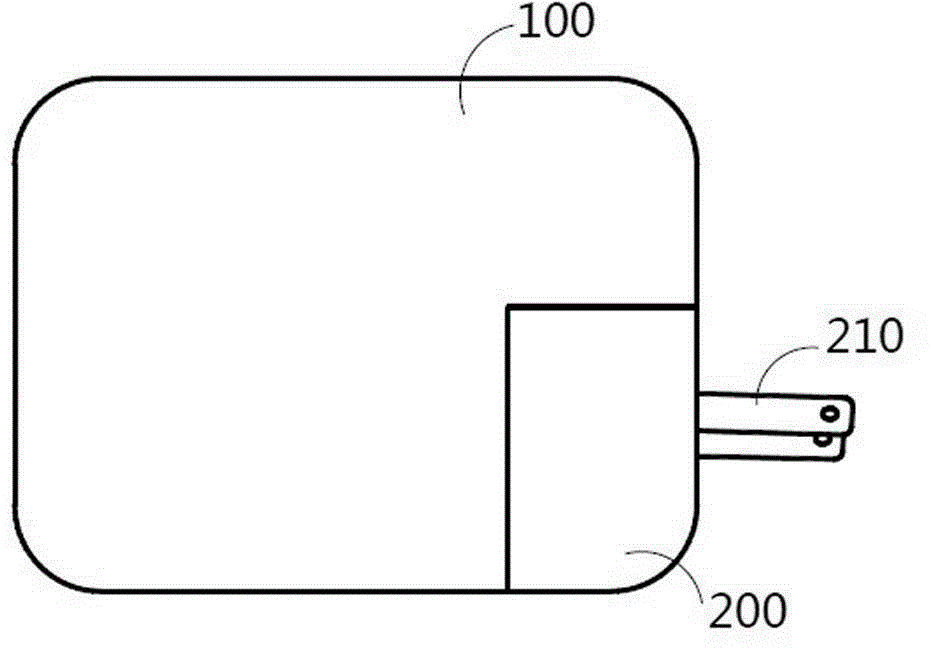

Fig. 1 is charger for mobile phone work structuring schematic diagram;
Fig. 2 is charger for mobile phone pedestal cross-sectional view;
Fig. 3 is charger for mobile phone intercalation part structural representation;
Pedestal-100; Intercalation part-200; Second plug-110; Guide protrusions-120; First plug-210; Jack-220; First gathering sill-230; Guiding rib-111; Second gathering sill-221.
Embodiment
In order to make the purpose of this utility model, technical scheme and advantage clearer, below in conjunction with embodiment and accompanying drawing, further the utility model is described in detail:
Referring to Fig. 1, shown in the figure is the utility model charger for mobile phone, and it can be electrically connected with multiple external electric supply socket, applicable to reaching multiple special occasions cell-phone charging at ordinary times.
Referring to Fig. 1 ~ Fig. 3, the charger for mobile phone shown in the figure comprises that pedestal 100 and several are used for the intercalation part 200 that is electrically connected with external power source, and what described pedestal 100 and intercalation part 200 can be removable is electrically connected.Wherein base is provided with the many common structures of charger in 100, and as circuit board, potential device etc., pedestal 100 is outer to be provided with the USB interface that is communicated with mobile phone, and it is all common structure, no longer is described in detail at this.Above-mentioned intercalation part 200 is equipped with a plurality of, and each intercalation part 200 is respectively equipped with first plug 210 of different size, is cylindricality, square, piece type, three holes or porous etc. as first plug 210.
Described pedestal 100 is provided with second plug 110, and described intercalation part 200 is provided with jack 220, and pedestal 100 is electrically connected with jack 220 by second plug 110 with intercalation part 200.As a kind of simple version, also can be for establishing jack 220 on the pedestal 100, and intercalation part 200 is provided with second plug 110.
Guiding and contraposition when cooperating with intercalation part 200 for ease of pedestal 100, also be provided with guide protrusions 120 on the described pedestal 100, described intercalation part 200 is provided with first gathering sill 230 suitable with described guide protrusions 120, described guide protrusions 120 and 230 smooth cooperations of first gathering sill.Obviously, above-mentioned guiding and contraposition also can be established guide protrusions 120 at intercalation part 200 and realize by establish first gathering sill 230 at pedestal 100.Above-mentioned guide protrusions 120 also can be the guider of other rib strip shapeds.
Be better to realize guiding and contraposition between second plug 110 and the jack 220, described second plug 110 is provided with two guiding ribs 111, and described jack 220 is provided with two second gathering sills 221 suitable with guiding rib 111.Obviously, above-mentioned purpose also can be established guiding rib 111 and realize by being provided with second gathering sill 221 at second plug 110 on the jack 220.In addition, guiding rib 111 also can substitute with other protrusions that possesses guide effect.
When need using charger, can then intercalation part 200 contrapositions be cooperated with pedestal 100 according to the type selecting intercalation part 200 of external power receptacle, with being electrically connected of realization pedestal 100 in second plug, the 110 insertion jacks 220 and intercalation part 200.To insert conduction with first plug 210 that external power receptacle is complementary at last, with data wire charger being connected with mobile phone gets final product.The charger for mobile phone pedestal 100 that the utility model provides and intercalation part 200 removable electrical connections, and charger for mobile phone comprises some kinds of intercalation parts 200 can make the charger for mobile phone electrical connection that matches with multiple external power receptacle by changing intercalation part 200.And made further improvement in pedestal 100 and intercalation part 200, a plurality of guiders namely are set, it is more smooth and easy, convenient to make that pedestal 100 is connected with intercalation part 200.
The description of above-described embodiment, we can know clearly that the charger for mobile phone that the utility model provides is easy to use, can cooperate multiple external electric supply socket.
The above only is preferred embodiment of the present utility model; not in order to limit the utility model; all within spirit of the present utility model and principle, any modification of doing, be equal to replacement, improvement etc., all should be included within the protection range of the present utility model.
Claims (9)
