Abstract
The utility model discloses a medical infusion thermostat which comprises a constant temperature box (1) and a control box (2). The constant temperature box (1) is provided with an infusion pipe groove (3), a heating device (8) and a temperature sensor (7) are arranged below the infusion pipe groove (3), a display screen (4), a power switch button (5) and a temperature setting knob (6) are arranged on the control box (2), a control circuit is arranged inside the control box (2), the temperature setting knob (6) is connected to a signal input port of a microcontroller of the control circuit, a signal output port of the microcontroller is connected to the display screen (4), the temperature sensor (7) is connected to the signal input port of the microcontroller, and a control signal output port of the microcontroller is connected with the heating device (8). According to the medical infusion thermostat, an electric heating mechanism is used for heating, temperature control precision is high, a heating effect is good, the heating temperature can be detected in real time and adjusted, and the heating temperature is constant.
Description
Technical field
This utility model relates to a kind of medical infusion thermostat.
Background technology
Venous transfusion is one of effective method for the treatment of disease, so often adopting the method for venous transfusion clinically treats, but under most environment, fluid temperature often has very big difference with human body temperature, patient can feel ice-cold after medicinal liquid entered human body, even produce uncomfortable reaction such as numbness, particularly in winter, this situation is even more serious, increase patient's misery greatly, brought very big trouble for patient and medical personnel.
Much more existing transfusion thermostats are that the constant temperature bag that adopt to inject warm water carries out heated at constant temperature, and this device needs in time to discharge in the bag warm water and in time injects new warm water, operate very complicated loaded down with trivial detailsly, have brought very big trouble to medical personnel.
The utility model content
The purpose of this utility model is to overcome the deficiencies in the prior art, provides a kind of employing electrical heating mechanism to heat, the temperature control precision height, and heats is good, can detect heating-up temperature in real time and regulate the medical infusion thermostat that heating-up temperature is constant.
The purpose of this utility model is achieved through the following technical solutions: the medical infusion thermostat, it comprises constant temperature box and control box, described constant temperature box is provided with the transfusion tube seat, transfusion tube seat below is provided with heater and temperature sensor, control box is provided with display screen, power switch button and temperature setting knob, control box inside is provided with control circuit, the temperature setting knob is connected with the microcontroller signal input port of control circuit, the signal output port of microcontroller is connected in display screen, temperature sensor is connected in the signal input port of microcontroller, the control signal output port of microcontroller is connected with heater, and described heater is electrical heating wire.
The beneficial effects of the utility model are:
(1) this utility model adopts electrical heating mechanism to heat, the temperature control precision height, and heats is good;
(2) control circuit of the present utility model can detect heating-up temperature in real time and regulate, and has guaranteed the constant of heating-up temperature.
Description of drawings
Fig. 1 is this utility model structural representation block diagram;

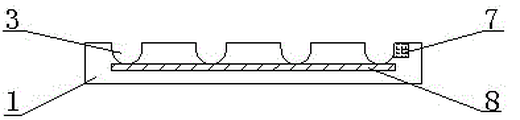

Fig. 2 is constant temperature box (1) cutaway view;
Fig. 3 is control circuit structural representation block diagram;
Among the figure, 1-constant temperature box, 2-control box, the 3-tube seat of infusing, 4-display screen, 5-power switch button, 6-temperature setting knob, 7-temperature sensor, 8-heater.
The specific embodiment
Below in conjunction with accompanying drawing the technical solution of the utility model is described in further detail: as shown in Figure 1, the medical infusion thermostat, it comprises constant temperature box 1 and control box 2, described constant temperature box 1 is provided with transfusion tube seat 3, transfusion tube seat 3 belows are provided with heater 8 and temperature sensor 7, control box 2 is provided with display screen 4, power switch button 5 and temperature setting knob 6, control box 2 inside are provided with control circuit, temperature setting knob 6 is connected with the microcontroller signal input port of control circuit, the signal output port of microcontroller is connected in display screen 4, temperature sensor 7 is connected in the signal input port of microcontroller, the control signal output port of microcontroller is connected with heater 8, and described heater 8 is electrical heating wire.
Claims (2)
1. medical infusion thermostat, it is characterized in that: it comprises constant temperature box (1) and control box (2), described constant temperature box (1) is provided with transfusion tube seat (3), transfusion tube seat (3) below is provided with heater (8) and temperature sensor (7), control box (2) is provided with display screen (4), power switch button (5) and temperature setting knob (6), control box (2) inside is provided with control circuit, temperature setting knob (6) is connected with the microcontroller signal input port of control circuit, the signal output port of microcontroller is connected in display screen (4), temperature sensor (7) is connected in the signal input port of microcontroller, and the control signal output port of microcontroller is connected with heater (8).
2. medical infusion thermostat according to claim 1, it is characterized in that: described heater (8) is electrical heating wire.
