CN203169490U - Sickbed mattress capable of preventing pressure sores - Google Patents
Sickbed mattress capable of preventing pressure sores Download PDFInfo
- Publication number
- CN203169490U CN203169490U CN 201320046111 CN201320046111U CN203169490U CN 203169490 U CN203169490 U CN 203169490U CN 201320046111 CN201320046111 CN 201320046111 CN 201320046111 U CN201320046111 U CN 201320046111U CN 203169490 U CN203169490 U CN 203169490U
- Authority
- CN
- China
- Prior art keywords
- air cushion
- mattress
- pressure sores
- sickbed
- mattress capable
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 206010011985 Decubitus ulcer Diseases 0.000 title claims abstract description 13
- 208000004210 Pressure Ulcer Diseases 0.000 title claims abstract description 13
- 229920001821 foam rubber Polymers 0.000 claims description 3
- 230000007774 longterm Effects 0.000 description 1
- 230000000474 nursing effect Effects 0.000 description 1
Images
Landscapes
- Invalid Beds And Related Equipment (AREA)
- Mattresses And Other Support Structures For Chairs And Beds (AREA)
Abstract
The utility model discloses a sickbed mattress capable of preventing pressure sores. The sickbed mattress capable of preventing the pressure sores comprises a mattress body. An air cushion is arranged on the mattress body, an air inlet is communicated to the side wall of the air cushion, a plurality of protrusions are formed on the upper surface of the air cushion when the air cushion is filled with air, and the protrusions intersect with one another in a netted mode. The sickbed mattress capable of preventing the pressure sores is simple in structure and convenient to use.
Description
Technical field
This utility model relates to a kind of anti-pressure ulcer sick bed mattress.
Background technology
In hospital, all only be provided with the sick bed of patients sleep at present all wards, because the size in room is restricted, and can't arrange more bed in the ward, therefore, families of patients is always stayed up late night when nursing for patient, there is not bed to have a rest, very arduous, be difficult to attend to the patient for a long time, not only have influence on family members' health, also have influence on patient's treatment simultaneously.
And the patient for long-term bed can't take care of oneself, and lies on a bed for a long time, causes the back easily to produce pressure ulcer.
The utility model content
This utility model provides a kind of anti-pressure ulcer sick bed mattress simple in structure, easy to use.
This utility model technical solution problem provides following scheme:
A kind of anti-pressure ulcer sick bed mattress, comprise mattress, it is characterized in that: the top of described mattress is provided with air cushion, is communicated with air inlet on the sidewall of described air cushion, the air cushion upper surface is provided with the multiple tracks projection during described air cushion gassy, and described multiple tracks projection crosses one another and is latticed.
Described mattress is wrapped with foam-rubber cushion, and described air cushion connects inflator.
This utility model is made improvement on the basis of traditional mattress, upper surface at mattress is installed air cushion, be provided with spongy layer on the surface of air cushion again, like this when patient lies on a bed for a long time, can open the switch of inflator, begin to carry out charge operation, the air cushion on the mattress is filled up, the projection on the air cushion can prevent pressure ulcer like this.
Description of drawings

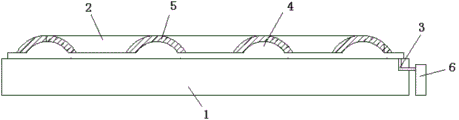

Fig. 1 is structural representation of the present utility model.
The specific embodiment
Referring to accompanying drawing, a kind of anti-pressure ulcer sick bed mattress, comprise mattress 1, the top of described mattress 1 is provided with air cushion 2, be communicated with air inlet 3 on the sidewall of described air cushion 2, the air cushion upper surface is provided with multiple tracks projection 4 during described air cushion 2 gassies, and described multiple tracks projection 4 crosses one another and is latticed, described mattress 1 is wrapped with foam-rubber cushion 5, and described air cushion 2 connects inflator 6.
Claims (2)
1. anti-pressure ulcer sick bed mattress, comprise mattress, it is characterized in that: the top of described mattress is provided with air cushion, is communicated with air inlet on the sidewall of described air cushion, the air cushion upper surface is provided with the multiple tracks projection during described air cushion gassy, and described multiple tracks projection crosses one another and is latticed.
2. according to the described anti-pressure ulcer sick bed mattress of claim 1, it is characterized in that: described mattress is wrapped with foam-rubber cushion, and described air cushion connects inflator.
