The utility model relates to the technical field of containers, in particular to an anti-vibration and anti-seepage bamboo sleeve of a liquid container. The anti-vibration and anti-seepage bamboo sleeve comprises a sleeve and a sleeve cover; both the sleeve and the sleeve cover are made of natural bamboo joints, an inwardly convex sleeving opening is arranged on the top of the sleeve, a sleeving groove is arranged on the inner side of the lower end of the sleeve cover, an anti-vibration layer is arranged on the inner side of the sleeve, and the liquid storage container is filled in the inner side of the anti-vibration layer; the aperture and the shape of the sleeving opening are matched with the aperture and the shape of the sleeving groove respectively; and the anti-vibration layer is made of an anti-vibration air bubble cushion film or a netted foam anti-vibration pad. The anti-vibration and anti-seepage bamboo sleeve has the advantages that the anti-vibration and anti-seepage bamboo sleeve is reasonable in structural design, the bamboo joints which are connected with each other in an embedded manner are used as an upper end cover and a lower end cover of the container, the anti-vibration layer in the sleeve realizes anti-vibration and anti-seepage protection effects, and the anti-vibration and anti-seepage bamboo sleeve is good in sealing performance, is applicable to accommodating liquid for a long time, is particularly suitable for storing wine for a long time, and has excellent popularization and application value.
Description
Technical field
The utility model relates to the container containing technical field, the bamboo sleeve of the shockproof antiseepage of especially a kind of liquid container.
Background technology
The bamboo container of liquid filling container generally comprises bamboo cylindrical shell and is arranged at the interior inner bag of cylindrical shell now.Bamboo cylindrical shell generally by keeping upper strata, the bottom whole joint thick bamboo tube every tube, is offered a hole on the tabula of thick bamboo tube upper end, clogs the inner-tube mouth sealing with cork after liquid is injected inner bag.This bamboo seal of vessel effect is better, but owing to adopt the natural tabula of ring as the upper and lower end face of wine tube, must choose that diameter is identical, also essentially identical bamboo wood of slub length, just can produce the essentially identical container of specification container, cause the waste of bamboo wood easily, cost is also higher.In addition, this this thick bamboo tube rocks when the liquid of splendid attire is given a shock easily because corresponding protective cover is not set, and the liquid in the inner bag also oozes dew easily, especially is not suitable for the drinks long-term storage.
The utility model content
The purpose of this utility model is to provide the shockproof antiseepage of a kind of liquid container bamboo sleeve in order to overcome above-mentioned technical disadvantages.
The technical scheme that the utility model technical solution problem adopts is: the bamboo sleeve of the shockproof antiseepage of a kind of liquid container, comprise cylindrical shell and cover, described cylindrical shell and cover are made by natural ring, cylinder top is provided with the running-on of convex, inboard, cover lower end is provided with grooving, the cylindrical shell inboard is provided with shakeproof layer, and liquid storage container is filled in the shakeproof layer inboard.
The bore of described running-on and grooving, shape be suitable cover all.
Described shakeproof layer is shockproof bubble pad film or reticulated polymer foam absorbing pad.
The beneficial effect that the utility model has is: the utility model reasonable in design; adopt the ring of interlocking mutually as the end cap up and down of container; shockproof, antiseepage dew protection that shakeproof layer in the cylindrical shell provides; good airproof performance; be suitable for long-term carrying liquid; especially be suitable for the long-term storage of drinks, have splendid application value.
Description of drawings

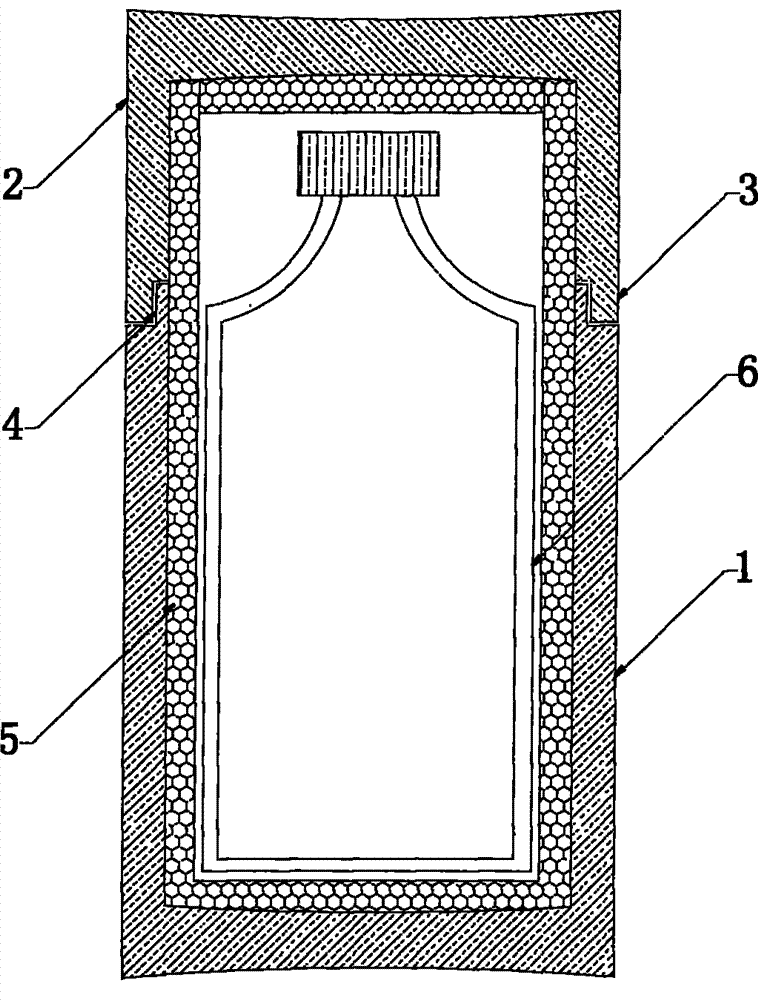

Accompanying drawing 1 is structural representation of the present utility model.
The specific embodiment
Do following detailed description below in conjunction with 1 pair of the utility model of accompanying drawing.
As shown in Figure 1, the utility model comprises cylindrical shell 1 and cover 2, and described cylindrical shell 1 is made by natural ring with cover 2, cylindrical shell 1 top is provided with the running-on 4 of convex, inboard, cover 2 lower end is provided with grooving 3, and cylindrical shell 1 inboard is provided with shakeproof layer 5, and liquid storage container 6 is filled in shakeproof layer 5 inboards; The bore of described running-on 4 and grooving 3, shape be suitable cover all; Described shakeproof layer 5 is shockproof bubble pad film or reticulated polymer foam absorbing pad.During use, there is the liquid storage container 6 of liquid to be close to shakeproof layer 5 inboards saving, spins or clamping cover 2 gets final product with cylindrical shell 1.
Claims (3)
1. the bamboo sleeve of the shockproof antiseepage of liquid container comprises cylindrical shell and cover, and it is characterized in that: described cylindrical shell and cover are made by natural ring, cylinder top is provided with the running-on of convex, inboard, cover lower end is provided with grooving, and the cylindrical shell inboard is provided with shakeproof layer, and liquid storage container is filled in the shakeproof layer inboard.
2. the bamboo sleeve of the shockproof antiseepage of a kind of liquid container according to claim 1, it is characterized in that: the bore of described running-on and grooving, shape be suitable cover all.
3. the bamboo sleeve of the shockproof antiseepage of a kind of liquid container according to claim 1, it is characterized in that: described shakeproof layer is shockproof bubble pad film or reticulated polymer foam absorbing pad.
