Abstract

The utility model discloses a daily article, in particular to a retractable mop. It includes a mop rod and a sliding sleeve that is arranged on the mop rod and can slide on the mop rod. A connecting block is fixedly installed at the bottom of the mop rod, and mop heads that are detachably connected to the connecting block are arranged on both sides of the connecting block. A cleaning brush is arranged at the bottom end of the mop head, and a drag rod is arranged between the mop head and the sliding sleeve. The utility model has the following advantages: since the mop head is detachably connected to the connection block, it can be replaced in time when it is damaged; at the same time, the cleaning brush placed at the bottom of the mop head is not easy to lose and has high cleaning efficiency, thereby overcoming The traditional mop strips are easy to lose, the cleaning efficiency is not high, and it is inconvenient to replace the cloth strips. The structure is simple and easy to use, which meets people's requirements for the use of mops and is conducive to popularization and use.

Description

The extension type mop

Technical field

The utility model relates to a kind of articles for daily use, especially a kind of extension type mop.

Background technology

The kind of the mop of Cun Zaiing is a lot of in the market, and the cloth of a lot of conventional mop is easy to disappearance when shelving improperly, the defective of the mop of existing this structure, and the one, be easy to damage, cause unnecessary loss; The 2nd, the cleaning cotton cloth is at random when cleaning floor, and efficient is not high.

Summary of the invention

The utility model is intended to address the above problem, a kind of extension type mop is provided, it has overcome, and cloth is lost easily on the conventional mop cleaning cotton, cleaning efficiency is not high and it is cotton inconvenient to change mop cleaning, wastes problems such as serious, and its technical scheme that adopts is as follows:

A kind of extension type mop, the sliding sleeve that comprises mop rod and be placed on the mop rod and can slide at mop rod, the mop rod bottom is installed with contiguous block, the both sides of contiguous block are provided with removably and are connected mophead on the contiguous block, the bottom of mophead is mounted with cleaning brush, is provided with between mophead and the sliding sleeve to involve bar.

Described cleaning brush is cleaning cotton or cleaning bristle.

The utlity model has following advantage:

Because mophead is connected on the contiguous block with removably, therefore after damaging, it can in time change, the cleaning brush of the bottom of mophead arrangement simultaneously, be difficult for losing, the cleaning efficiency height, overcome thus that the conventional mop cloth is easily lost, cleaning efficiency is not high and in that to change structure of problem such as cloth inconvenience simple, easy to use, has satisfied the instructions for use of people for mop, be conducive to promote the use of.

Description of drawings

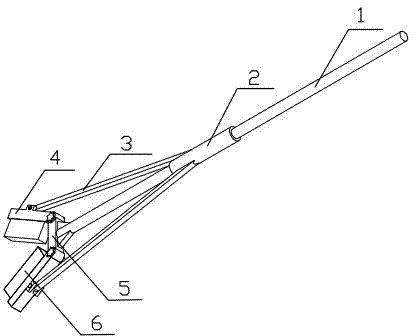

Fig. 1 is the perspective view of the utility model extension type mop;

Fig. 2 is the main TV structure schematic diagram of the utility model extension type mop.

The specific embodiment

Below in conjunction with the drawings and specific embodiments, extension type mop of the present utility model is described in further detail.

As shown in the figure, extension type mop of the present utility model, the sliding sleeve 2 that comprises mop rod 1 and be placed on the mop rod 1 and can slide at mop rod, mop rod 1 bottom is installed with contiguous block 5, the both sides of contiguous block 5 are provided with removably and are connected mophead 4 on the contiguous block, the bottom of mophead 4 is mounted with cleaning brush 6, cleaning brush 6 both can also can be the cleaning brush hair for cleaning cotton cloth, be provided with between mophead 4 and the sliding sleeve 2 and involve bar 3, can realize that lifting realizes the folding of replaceable mophead and launches thereby pull sliding sleeve.

In use, sliding sleeve 2 is mentioned, mophead 4 is mentioned open by involving bar 3, can realize normal cleaning then; Cleaning after finishing is put down sliding sleeve 2, by involving bar 3 changeable type mophead 4 is shunk, and can conveniently deposit, and also can extrude excessive moisture; In addition, mophead 4 replaceable reusing after damaging.

With way of example the utility model is illustrated above, but the utility model is not limited to above-mentioned specific embodiment, all any change or modification of doing based on the utility model all belong to the claimed scope of the utility model.

Claims (2)

1. A retractable mop, including a mop rod (1) and a sliding sleeve (2) that is placed on the mop rod (1) and can slide on the mop rod, characterized in that: the bottom of the mop rod (1) A connection block (5) is fixedly installed at the end of the connection block (5), and a mop head (4) detachably connected to the connection block is provided on both sides of the connection block (5), and the bottom end of the mop head (4) is arranged with A cleaning brush (6), a dragging rod (3) is arranged between the mop head (4) and the sliding sleeve (2). 2. The retractable mop according to claim 1, characterized in that: the cleaning brush (6) is cleaning cotton cloth or cleaning bristles.
