CN203144755U - Clothes hanger - Google Patents

Abstract

The utility model discloses a clothes hanger, and belongs to the field of intelligent clothes hangers. The clothes hanger comprises a clothes hanging rod, a motor, a fixed pulley, a pulling rope, a pushing block, an awning, a water storage box, a humidity sensor and a microprocessor module, wherein the motor is connected with the pulling rope through the fixed pulley, one end of the pushing block is connected with the clothes hanging rod, and the other end of the pushing block is connected with the pulling rope. The clothes hanger can sense rainy weather and automatically push clothes to be under the awning, and is ingenious in design and strong in practicability.

Description

A kind of clothes hanger

Technical field

The utility model relates to a kind of clothes hanger, belongs to the Intellective airer field.

Background technology

Social now, people's work is more and more busier, sometimes, drying in the air after people are washed with clothes has just worked out outside, if change in weather is overcast and rainy, usually has little time to return to receive clothes, make clothes be soaked with rain, need again to go again to wash, increased trouble to people.

The utility model content

The utility model proposes a kind of clothes hanger with automatic receipts clothes function at the problem in the background technology.

The utility model adopts following technical scheme for solving above technical problem:

A kind of clothes hanger comprises clothes-horse, motor, fixed pulley, pull rope, pushing block, rain shade, water storage case, humidity sensor and microprocessor module; Described motor is connected by pull rope with fixed pulley; One end of described pushing block is connected with clothes-horse, and the other end is connected with pull rope; Described rain shade is positioned at an end of clothes-horse, and a section of clothes-horse can be covered; The output of described microprocessor module is connected with motor; Described humidity sensor is connected with the input of microprocessor module.

Preferably, described motor is stepper motor.

Further, described water storage case places the top of rain shade, and described humidity sensor is positioned at the bottom of water storage case.

Technique effect:

1, the utility model can be responded to rainy weather, and automatically clothes is shifted onto under the rain shade, and structural design is ingenious, and is practical.

2, the utility model is realized action, accurate positioning by stepper motor.

Description of drawings

Fig. 1 is structural representation of the present utility model.

Fig. 2 is that the utility model clothes is pulled to the state diagram under the rain shade.

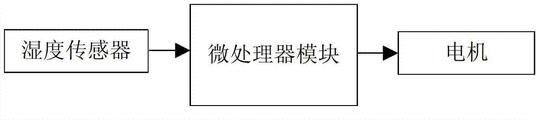

Fig. 3 is circuit structure block diagram of the present utility model.

Label title among Fig. 1, Fig. 2: 1, clothes-horse; 2, motor; 3, fixed pulley; 4, pushing block; 5, rain shade; 6, water storage case; 7, humidity sensor; 8, clothes; 9, pull rope.

The specific embodiment

Below in conjunction with accompanying drawing the technical solution of the utility model is done introduction in further detail:

Structure of the present utility model comprises clothes-horse 1, motor 2, fixed pulley 3, pull rope 9, pushing block 4, rain shade 5, water storage case 6, humidity sensor 7 and microprocessor module as shown in Figure 1; Described motor 2 is connected by pull rope 9 with fixed pulley 3; One end of described pushing block 4 is connected with clothes-horse 1, and the other end is connected with pull rope 9; Described rain shade 5 is positioned at an end of clothes-horse 1, and a section of clothes-horse can be covered.Circuit structure block diagram of the present utility model as shown in Figure 3, the output of described microprocessor module is connected with motor 2, described microprocessor module is by 9 motions of motor 2 control pull ropes, thereby control pushing block 4 moves axially along clothes-horse; Described humidity sensor 7 is connected with the input of microprocessor module, detects to realize humidity (wet weather); Described motor 2 is stepper motor; Described water storage case 6 places the top of rain shade 5; Described humidity sensor 7 is positioned at the bottom of water storage case 6.

During use, the user only need hang over clothes 8 on the clothes-horse 1, when rainy, rainwater can fall in the water storage case 6, and it is too high that very fast microprocessor module can detect water storage case 6 interior humidity by humidity sensor 7, at this moment, microprocessor module is by 9 motions of motor 2 control pull ropes, pull rope 9 drives pushing blocks 4 and moves to rain shade 5, thereby the clothes 8 on the clothes-horse 1 all is pushed into the below (as shown in Figure 2) of rain shade 5, with the water of taking shelter from rain.

Claims (3)

1. a clothes hanger is characterized in that: comprise clothes-horse (1), motor (2), fixed pulley (3), pull rope (9), pushing block (4), rain shade (5), water storage case (6), humidity sensor (7) and microprocessor module; Described motor (2) is connected by pull rope (9) with fixed pulley (3); One end of described pushing block (4) is connected with clothes-horse (1), and the other end is connected with pull rope (9); Described rain shade (5) is positioned at an end of clothes-horse (1), and a section of clothes-horse (1) can be covered; The output of described microprocessor module is connected with motor (2); Described humidity sensor (7) is connected with the input of microprocessor module.

2. clothes hanger according to claim 1, it is characterized in that: described motor (2) is stepper motor.

3. clothes hanger according to claim 1, it is characterized in that: described water storage case (6) places the top of rain shade (5); Described humidity sensor (7) is positioned at the bottom of water storage case (6).
