Abstract

The utility model relates to a sports equipment, in particular to a double-board basketball stand used in basketball teaching, training and competition. The main frame of the basketball stand consists of two structurally identical bases 1, pillars 2, tripods 3, crossbars 4, lower supports 5, baskets 9, backboards 10 and four oblique supports 11. The two side pillars of the basketball stand are installed outside the two sidelines of the basketball field, so that the two backboards are suspended at the center of the basketball field, and there is no support near the basketball field. The disadvantage that the traditional basketball stand is easy to bump into the support can be avoided, and the safety of basketball is improved. By adopting the basketball stand, a new type of basketball game can be carried out. The application of the basketball stand can improve the excitement of athletes, stimulate the athletes' interest in competitions, reduce sports injuries, and make basketball develop towards diversification. The basketball stand can meet the special needs of the public and professional athletes, and has practical significance for improving the effect of basketball.

Description

double plate basketball stand

technical field

The utility model relates to a sports equipment, in particular to a double-board basketball stand used in basketball teaching, training and competition. the

Background technique

The basketball stand used during basketball teaching, training and competition is usually made up of support, backboard and basket at present. During application, the support at the lower part of the basketball stand is placed outside the two bottom lines of the basketball court, and the backboard and the basket on the upper part are protruded into the basketball court. The disadvantages of the above-mentioned basketball stand are: the support of the basketball stand is placed near the bottom line, and during practice or competition, the athlete easily bumps into the support, especially in competitions where the competition is more intense, and the athlete often bumps into the support to cause damage. And this type of basketball stand is only suitable for being placed near the bottom line of the basketball court, and cannot be placed in the center of the basketball court. the

Contents of the invention

In order to overcome the above disadvantages, the utility model proposes a double-board basketball stand, the backboard and the basket of the basketball stand can be suspended in the center of the basketball court. Through the application of the basketball stand, the purpose of innovating the form of basketball games and improving the entertainment and safety of basketball sports can be achieved. the

The technical solution adopted by the utility model is: a double-board basketball stand, the main frame of which is composed of two bases with the same structure, pillars, tripods, cross bars, lower brackets, baskets, backboards and four oblique stent composition. Wherein, the lower parts of the two pillars are respectively inserted in the round holes of the two bases, the upper parts of the two pillars are respectively connected with the two tripods by screws and nuts, and the two ends of the two tripods are respectively connected with the two ends of the two cross bars by screws and nuts. Nut connection, the middle parts of the two cross bars are respectively connected with the upper ends of the two middle plates by screws and nuts, the lower ends of the two middle plates are respectively fixedly connected with the middle parts of the two lower brackets, and the middle parts of the two lower brackets are fixedly connected by the lower transverse plate, and the lower transverse The upper end of the board is fixedly connected with the lower end of the vertical board, the two ends of the vertical board are respectively fixedly connected with the two middle boards, the two ends of the two lower brackets are respectively connected with the lower parts of the two backboards through screws and nuts, and the upper ends of the four inclined brackets are respectively connected with the two middle boards. The upper parts of the two backboards are connected by screws and nuts, the lower ends of the four inclined supports are respectively fixedly connected with the upper parts of the vertical boards, and baskets are arranged on the two backboards. the

The outer side of the pillar is covered with a sponge layer. the

Preferably said two backboards are of different colours. the

Compared with the prior art, the utility model has the following advantages:

1. The basketball stand is simple in structure and easy to use. The two backboards of the basketball stand are erected by the pillars on both sides of the field and two crossbars. The pillars on both sides are installed on the outside of the two sidelines of the basketball court, so that the two backboards are suspended in the center of the basketball court, and there is no support near the basketball court. The disadvantage that the traditional basketball stand is easy to bump into the support can be avoided, and the safety of basketball is improved. the

2. The basketball game of a new mode can be carried out by adopting the basketball stand, because the two backboards are arranged at the center of the basketball court. New competition rules can be formulated according to the characteristics of the venue. During the competition, athletes from both sides compete in the central area of the venue, the speed of offensive and defensive conversion is fast, and the number of shots is increased, which can make the competition more tense, intense and exciting, and more ornamental and entertaining. In a word, the application of the basketball rack can improve the excitement of the athletes, stimulate the athletes' interest in competitions, reduce sports injuries, and make basketball develop towards diversification. The basketball stand can meet the special needs of the public and professional athletes, and has practical significance for improving the effect of basketball. the

Description of drawings

Below in conjunction with accompanying drawing, the specific embodiment of the present utility model is described in further detail. the

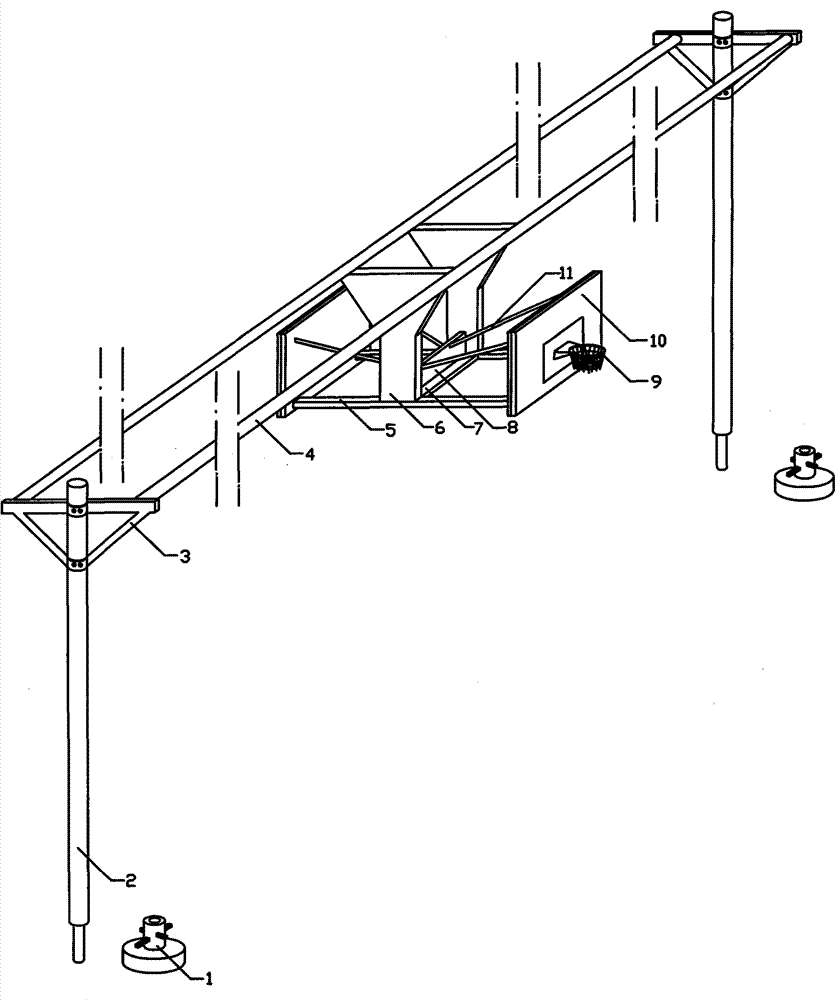

Fig. 1 is a three-dimensional schematic diagram of the utility model. the

Detailed ways

In the schematic diagram of the double-board basketball stand shown in Figure 1, the lower parts of the two pillars 2 are respectively inserted in the round holes of the two bases 1, and the upper parts of the two pillars are respectively connected with the two tripods 3 by screws and nuts. The two ends of the tripod are respectively connected with the two ends of the two crossbars 4 by screws and nuts, the middle parts of the two crossbars are respectively connected with the upper ends of the two middle plates 6 by screws and nuts, and the lower ends of the two middle plates are respectively connected with the two lower brackets 5. The middle part is fixedly connected, the middle parts of the two lower brackets are fixedly connected through the lower horizontal plate 7, the upper end of the lower horizontal plate is fixedly connected with the lower end of the vertical plate 8, and the two ends of the vertical plate are respectively fixedly connected with the two middle plates. The ends are respectively connected to the lower parts of the two backboards 10 by screws and nuts, the upper ends of the four inclined supports 11 are respectively connected to the upper parts of the two backboards by screws and nuts, and the lower ends of the four inclined supports are respectively fixedly connected to the upper ends of the vertical boards. All are provided with basket 9 on. the

The outer side of the above-mentioned pillar is covered with a sponge layer. the

The above two backboards have the same structure but different colors. the

The usage method of the utility model is: first fix the two bases of the basketball stand under the floor of the gymnasium or under the ground outside the sideline of the outdoor basketball court, then respectively insert the intubation tubes of the two pillars into the round holes of the two bases, and place the two A crossbar and a backboard are installed so that the two backboards hang in the middle of the basketball court. Using this basketball stand for teaching and training can be targeted for shooting and defensive technical exercises in the middle area of the basketball court, and many people cooperate with fast running dribbling, passing and shooting skills and tactics exercises; using this basketball stand for competitions, Can formulate special basketball game rules according to the characteristics of this basketball stand. For example, in a game, players from both sides shoot to any of the two baskets in the middle of the court, and both players can score. Like this, although increased defensive difficulty, can increase the shooting chance of both players, the scoring rate increases, makes the game more exciting. the

Claims (1)

1. a double plate type basketball stand is characterized in that: the main frame of this basketball stand is made of two structurally identical bases (1), pillars (2), tripods (3), cross bars (4), lower supports ( 5), a basket (9), a backboard (10), and four oblique brackets (11); wherein, the lower parts of the two pillars are respectively inserted in the round holes of the two bases, and the upper parts of the two pillars are connected with the two triangles respectively. The frame is connected by screws and nuts, the two ends of the two tripods are respectively connected with the two ends of the two cross bars by screws and nuts, the middle parts of the two cross bars are respectively connected with the upper ends of the two middle plates (6) by screws and nuts, and the two The lower end of the middle plate is fixedly connected with the middle parts of the two lower supports respectively, the middle parts of the two lower supports are fixedly connected through the lower transverse plate (7), the upper end of the lower transverse plate is fixedly connected with the lower end of the vertical plate (8), and the two ends of the vertical plate are respectively connected with two The middle plate is fixedly connected, the two ends of the two lower brackets are respectively connected with the lower parts of the two backboards through screws and nuts, the upper ends of the four oblique brackets are respectively connected with the upper parts of the two backboards through screws and nuts, and the lower ends of the four oblique brackets are respectively connected with the vertical The top of the board is fixedly connected. the
