CN203139286U - Flowing liquid heating device for infusion set - Google Patents
Flowing liquid heating device for infusion set Download PDFInfo
- Publication number
- CN203139286U CN203139286U CN 201320188648 CN201320188648U CN203139286U CN 203139286 U CN203139286 U CN 203139286U CN 201320188648 CN201320188648 CN 201320188648 CN 201320188648 U CN201320188648 U CN 201320188648U CN 203139286 U CN203139286 U CN 203139286U
- Authority
- CN
- China
- Prior art keywords
- heating device
- flowing liquid
- infusion set
- mandrel
- utility
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Infusion, Injection, And Reservoir Apparatuses (AREA)
Abstract
本实用新型公开了一种输液器流动液体升温装置，包括由保温材料制成的壳体，壳体内设置有用于环绕输液软管的芯棒，所述芯棒内设置有电热元件，电热元件通过导线连接温度控制器。本实用新型设计合理，结构简单，使用安全、可靠，操作快捷、方便，制作成本低，便于推广使用。
The utility model discloses a heating device for flowing liquid of an infusion set, which comprises a shell made of heat-insulating material, a mandrel for surrounding an infusion hose is arranged inside the shell, an electric heating element is arranged inside the mandrel, and the electric heating element passes through the The wires are connected to the temperature controller. The utility model has the advantages of reasonable design, simple structure, safe and reliable use, quick and convenient operation, low manufacturing cost and convenient popularization and use.
Description
Technical field
This utility model belongs to the medical device technical field, is specifically related to a kind of transfusion device working fluid heat riser.
Background technology
When treating for the trauma patient shock, often need quick vein to import big quantity of fluid, because temperature of liquid is low than human body temperature under the room temperature, therefore, behind a large amount of room temperature liquid input human bodies, can cause that human vas shrinks, shiver with cold, be unfavorable for good shock treatment.The method of taking at present is before transfusion, the bottle of medicinal liquid or the water bath intensification that bag is put into uniform temperature will be housed earlier, and then be used for the vein input, tends to incur loss through delay the opportunity of rescue like this.
The utility model content
The purpose of this utility model is the deficiency that exists at prior art, and a kind of transfusion device working fluid heat riser reasonable in design, simple in structure, convenient to operation is provided.
The technical solution of the utility model is: a kind of transfusion device working fluid heat riser, it is characterized in that: comprise the housing of being made by insulation material, be provided with in the housing for the plug around infusion tube, be provided with heating in the described plug, heating connects temperature controller by lead.
Above-mentioned a kind of transfusion device working fluid heat riser is characterized in that: described housing comprises two left side half housing and right half housings that arrange relatively, is provided with on left half housing and right half housing for interconnective hinge with for relatively-stationary fastener.
Above-mentioned a kind of transfusion device working fluid heat riser, it is characterized in that: the two ends of described plug respectively arrange a baffle plate, and described baffle plate is provided with the through hole that passes for infusion tube.
Above-mentioned a kind of transfusion device working fluid heat riser, it is characterized in that: the outer surface of described plug is provided with heat-insulation layer.
This utility model compared with prior art has the following advantages:
(1) this utility model is reasonable in design, and is simple in structure;
(2) use safety, reliable, swift to operate, convenient;
(3) cost of manufacture is low, is convenient to promote the use of.
Below by drawings and Examples, the technical solution of the utility model is described in further detail.
Description of drawings

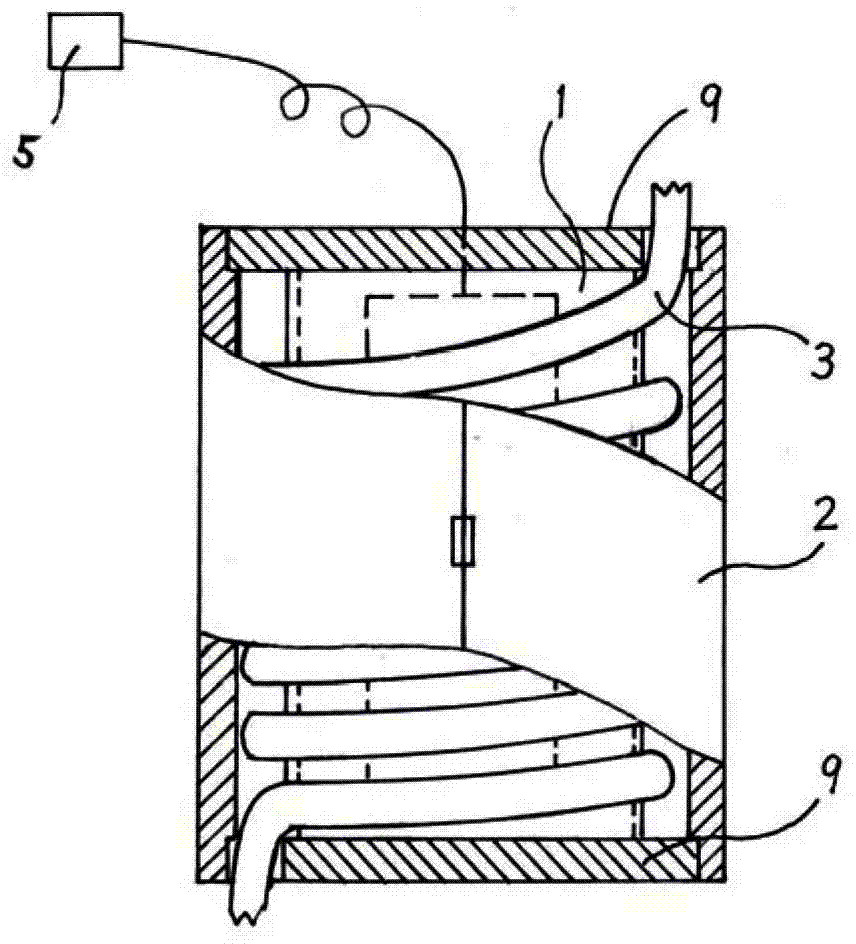

Fig. 1 is front view of the present utility model.
Fig. 2 is the vertical view of Fig. 1.
Description of reference numerals:
1-plug; 2-housing; 3-infusion tube;
5-temperature controller; 6-left half housing; 7-right half housing;
8-hinge; 9-baffle plate; 10-through hole;
12-fastener.
The specific embodiment
As shown in Figure 1, this utility model comprises the housing of being made by insulation material 2, is provided with in the housing 2 for the plug 1 around infusion tube 3, is provided with heating in the described plug 1, and heating connects temperature controller 5 by lead.
The outer surface of described plug 1 is provided with heat-insulation layer.
As shown in Figure 2, described housing 2 comprises two left side half housing 6 and right half housings 7 that arrange relatively, and left half housing 6 and right half housing 7 are provided with for interconnective hinge 8 and are used for relatively-stationary fastener 12.
As shown in Figure 2, the two ends of described plug 1 respectively arrange a baffle plate 9, and described baffle plate 9 is provided with the through hole 10 that passes for infusion tube 3.
During this utility model work, at first open fastener 12, a left side half housing 6 relative with two and that fixedly install is opened with right half housing 7, therefrom take out plug 1, one section infusion tube 3 is looped around on the plug 1 with helical form, the infusion tube 3 that will be looped around on the plug 1 with left half housing 6 and right half housing 7 fences up then, close fastener 12, make left half housing 6 become a tubular with right half housing, 7 relative fixed, get final product energized this moment, opens the gauge tap of temperature controller 5, and plug 1 begins heating under the effect of heating, when the infusion tube 3 of flow of liquid on being looped around plug 1, the liquid in the pipe heats up under the baking of plug 1 at once.Can regulate heating by temperature controller 5, thereby regulate the temperature of plug 1, liquid heat to suitable temperature is entered in the patient body.The baffle plate 9 that is arranged on plug 1 two ends can guarantee that the infusion tube 3 that is looped around on the plug 1 is relatively stable when work, can slippage.
