CN203128892U - Electrical-carbon dual-purpose clothes dryer - Google Patents

Abstract

The utility model discloses an electric-carbon dual-purpose clothes dryer, which comprises a drying box provided with ventilation holes on the box body, a switch and a knob are also arranged on the box body, and the box body on the top of the drying box is An opening is provided, a first interlayer net is installed on the opening, a drawer is arranged at the bottom of the drying box, a brazier is arranged in the drawer, and a third interlayer net is installed on the box above the drawer. A second interlayer net is installed on the box body between the interlayer net and the third interlayer net, and an electric heating rod is installed under the second interlayer net; the box under the first interlayer net and the second interlayer net Clothes hangers are installed on the body. The utility model adopts electric energy and solid fuel as heat energy sources, so that the use conditions of the dryer are greatly reduced, and the clothes can be quickly and effectively dried under different conditions. The utility model has a wide application range, can be effectively used in both the north and the south, and is especially suitable for rural families.

Description

An electric carbon dual-purpose clothes dryer

technical field

The utility model relates to a drying device, in particular to an electric-carbon dual-purpose clothes dryer.

Background technique

Commonly used clothes dryers use electric heating to dry clothes, but they consume more power. When there is a power outage, or in places where electric energy cannot be used, such as outdoors, the use of clothes dryers is limited. For rural areas, most households use firewood, but the unburned charcoal left after the firewood is used up is not effectively used, and the carbon is wasted in many cases.

Contents of the invention

Aiming at the shortcomings of the above-mentioned existing clothes dryers, the purpose of this utility model is to provide an electric-carbon dual-purpose clothes dryer, which makes full use of resources and has a wide range of applications.

In order to realize above-mentioned technical task, the utility model adopts following technical scheme:

An electric-carbon dual-purpose clothes dryer, comprising a drying box with ventilation holes on the box body, a switch and a knob are also arranged on the drying box, an opening is arranged on the box body at the top of the drying box, and the opening The first interlayer net is installed on the top, the bottom of the drying box is provided with a drawer, and a brazier is arranged in the drawer, and a third interlayer net is installed on the box above the drawer, between the first interlayer net and the second interlayer net A second compartment net is installed on the box body between the three compartment nets, and an electric heating rod is installed under the second compartment net; Hangers.

The utility model adopts electric energy and solid fuel as heat energy sources, so that the use conditions of the dryer are greatly reduced, and the clothes can be quickly and effectively dried under different conditions. The dryer can also be used as a locker during the season when clothes are not to be dried. The utility model has a wide application range, can be effectively used in both the north and the south, and is especially suitable for rural families.

Description of drawings

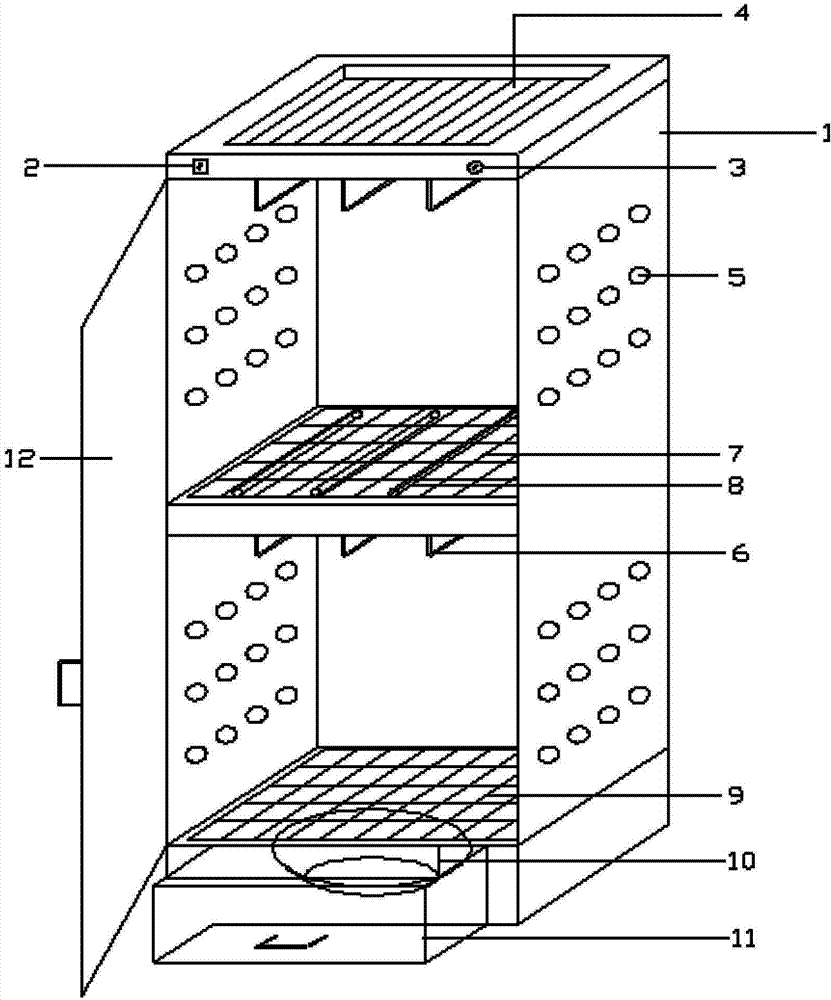

Fig. 1 is the overall structural representation of the utility model;

The meaning of the symbols in the figure: 1-drying box, 2-switch, 3-knob, 4-the first compartment net, 5-ventilation hole, 6-clothes hanger, 7-the second compartment net, 8-electric heating rod , 9-the third compartment net, 10-brazier, 11-drawer, 12-box door;

Below in conjunction with accompanying drawing and embodiment the utility model is described further.

Detailed ways

According to the above technical scheme, as shown in Figure 1, this embodiment provides an electric-carbon dual-purpose clothes dryer, which includes a drying box 1 with ventilation holes 5 on the box body, and a box is installed on the drying box 1. Door 12, switch 2 and knob 3 are also arranged on the cabinet, an opening is provided on the cabinet at the top of the drying box 1, a first interlayer net 4 is installed on the opening, the bottom of the drying box 1 A drawer 11 is provided, a brazier 10 is arranged in the drawer 11, a third interlayer net 9 is installed on the box above the drawer 11, and a third interlayer net 9 is installed on the box between the first interlayer net 4 and the third interlayer net 9 A second interlayer net 7 is installed, and an electric heating rod 8 is installed below the second interlayer net 7 ; a clothes hanger 6 is installed on the casing below the first interlayer net 4 and the second interlayer net 7 .

In this embodiment, the first interlayer net 4 , the second interlayer net 7 and the third interlayer net 9 all use iron grids, which can effectively transfer heat energy. The box body and box door 12 of this drying box 1 are also made of iron materials, so when drying clothes in the box body, the box wall can reflect heat energy, thereby improving drying efficiency; The air vent 5 can discharge water vapor rapidly.

Below the first interlayer net 4 and the second interlayer net 7, a clothes hanger 6 is installed, and when clothes are dried, the clothes are folded first, and then hung on the clothes hanger 6 in the casing. Smaller items such as socks and shoes can be dried directly on the three-compartment net. The utility model has two ways of drying clothes:

The first is to use carbon drying. This method is especially suitable for rural families. After rural families use firewood, unburned charcoal is placed in the brazier 10 in the drawer 11 below the drying box 1, and then the door 12 is closed to dry the clothes. When using, you can cover the red carbon with an appropriate amount of ash to make the temperature moderate.

The second is to use electric drying. After the dryer is energized, the switch 2 on the box is pressed, and the electric heating rod 8 in the drying box 1 starts to work, and the clothes can be dried. The heating power of the electric heating rod 8 can be adjusted through the knob 3 on the box body, so that the inside of the box can reach a suitable drying temperature.

It can also be used as a storage cabinet after washing the dryer when the dryer is not in use. The utility model has many uses and strong practicability, and is suitable for popularization and use.

Claims (1)

1. An electric-carbon dual-purpose clothes dryer, comprising a drying box (1) with ventilation holes (5) on the box body, and a switch (2) and a knob (3) on the drying box (1) ), characterized in that an opening is provided on the box body at the top of the drying box (1), and a first compartment net (4) is installed on the opening, and a drawer is provided at the bottom of the drying box (1) (11), the drawer (11) is provided with a brazier (10), and the third compartment net (9) is installed on the box above the drawer (11), and the first compartment net (4) and the third compartment A second interlayer net (7) is installed on the box between the layer nets (9), and an electric heating rod (8) is installed under the second interlayer net (7); between the first interlayer net (4) and Clothes hangers (6) are installed on the casing below the second interlayer net (7).
