Abstract

The utility model provides a multifunctional combined sofa, which is composed of a plurality of sofa monomers, and each sofa monomer includes two left and right symmetrical, hollow armrests, a chute one, a slider one, a chute two, and a slider two As well as the seat cushion, chute 1 and chute 2 are symmetrically embedded in the inner sides of the front and rear ends of the left and right armrests respectively. Slider 1 is connected to chute 1, and slider 2 is connected to chute 2, and chute 1 and chute 2 are not At the same height, the cushion is connected to the first chute through the first slider; two adjacent sofa units are connected through an additional cushion, and the additional cushion is connected to the second chute through the second slider. Beneficial effects of the utility model: it can be stretched, can be used as a sofa when unfolded, and can be used as a cabinet or a coffee table when folded; it can also be spliced into three or more sofas; it can also be folded up and used as a tea table; it has complete functions and can be fully utilized Space; some items can be placed on the armrests on both sides; the number of single sofas can be expanded arbitrarily, which is suitable for the needs of different groups.

Description

multifunctional modular sofa

technical field

The utility model relates to the field of combined furniture, in particular to a multifunctional combined sofa.

Background technique

At present, housing prices in China are generally high, and buying a house has become a major problem for Chinese people. Therefore, most of the current families are relatively small, and the use of small space is even more important. Buying large pieces of furniture will undoubtedly make the living room look smaller. Therefore, some multi-functional furniture can be used to save space. The multi-functional furniture is easy to use, not only that, it can be stretched and folded freely, and can increase the sense of space.

Assembled furniture is a new furniture group with novel form and exquisite structure. Its characteristic is to break up the larger furniture into parts and divide it into several smaller units, and then use children's building blocks to combine them. As integral furniture, their forms can be the same or different according to the needs of use. Compared with general furniture, combined furniture has many advantages. In the past, once the furniture was made and finalized, it was difficult to change its form. Each piece of furniture had only one purpose, and a family needed to purchase furniture for various purposes to meet the needs of daily life. As a result, furniture occupies most of the space in the living room, and this contradiction is particularly prominent in small-area houses. And the combined furniture can be developed to the space, reducing the floor space. There are many kinds of combined furniture, and the common ones are combined bookshelves, combined tables, and combined cabinets. Combined furniture can be used in many public places besides home use, such as combined sofas, suitable for reception rooms, lounges, etc.; combined bookshelves, suitable for libraries, reading rooms and reference rooms, etc. Combined furniture is small in size, easy to pack and carry, and can change its form according to changes in the environment and use requirements, so that things can be as you like. Existing modular sofas are generally only used as sofas, which are not enough to meet the needs of various functions. Therefore, it is urgently necessary to combine human-machine engineering with the characteristics of small households and tight space utilization according to the current situation of family households in the current social environment. Based on the principle of learning, design a set of practical multi-functional combined sofa, so as to meet the needs of small-sized families for reasonable arrangement of space and self-assembly of furniture.

Contents of the invention

The technical problem to be solved by the utility model is to provide a multifunctional combined sofa that can be stretched and combined to make full use of the space and reduce unnecessary waste in view of the problems of single function and insufficient space utilization in the existing combined sofa.

The technical scheme that the utility model solves its technical problem adopts is:

The multifunctional combined sofa is composed of multiple sofa monomers, each sofa monomer includes two symmetrical, hollow armrests, chute 1, slider 1, chute 2, slider 2, and seat cushions, chute 1 and chute 2 are respectively symmetrically embedded in the inner sides of the front and rear ends of the left and right armrests. Slider 1 is connected to chute 1, and slider 2 is connected to chute 2. The chute 1 and chute 2 are not at the same height. Slider 1 is slidably connected to the chute 1 on the left and right sides; two adjacent sofa units are connected by additional cushions, and the additional cushions are slidably connected to the slides on the left and right sides through slider 2. Slot two on.

In the above solution, the width of the armrests satisfies that the sum of the widths of the two armrests is at least greater than the width of a seat cushion or an additional seat cushion.

In the above scheme, when the second chute is above the first chute, the height difference between the first chute and the second chute is at least not lower than the height of the seat cushion; when the second chute is below the first chute, the first chute The height difference with the second chute is at least not lower than the height of the additional cushion.

In the above solution, the first chute is horizontally embedded in the inner sides of the front and rear ends of the handrail, and the second chute and the first chute form an included angle.

In the above solution, the angle between the second chute and the first chute is 10°-40°.

The working principle of the utility model: the seat cushion can realize the folding and unfolding of a single sofa monomer by sliding left and right on the chute one by the slider one. Put the two single sofas together, and then add an additional cushion in the middle to be stuck on the chute 2 through the slider 2 to form three sofas; when only two sofas are needed, the two sofas can be moved closer together and slide Block 2 slides along the chute 2 and raises the additional cushion to a height and hides it in the two armrests; when the sofa is not needed but is used as a tea table, close the two armrests, and the cushion passes through the slider 1 in the chute 1 Slide up and down until it slides into the two armrests and hides it. At the same time, the slider one passes through the chute and slides to hide in the middle of the armrest and is located under the additional seat cushion. Through the chute 1 and chute 2 with height difference, two sofa sheets The additional cushions between the bodies and the cushions of each sofa body itself are folded in without affecting each other.

The beneficial effects of the utility model are:

(1) It can be stretched and stretched, used as a sofa when unfolded, and used as a cabinet or coffee table when folded; it can also be spliced. When two or more sofas are put together, only need to add additional cushions to become three or more. More sofas; they can all be folded up and used as coffee tables; they are fully functional and make full use of the space;

(2) The armrests on both sides are relatively wide, and some items can be placed on it, such as tea, snacks, ashtrays, etc.;

(3) The telescopic splicing is flexible, and the number of individual sofas can be expanded arbitrarily, which is suitable for the needs of different groups.

Description of drawings

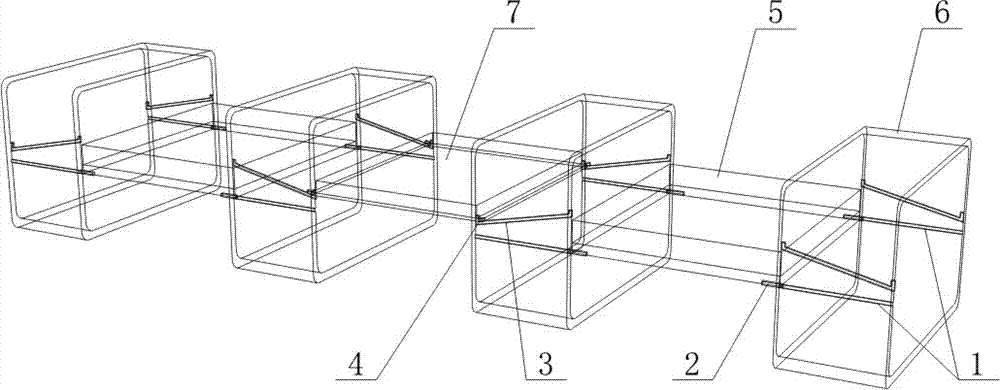

Fig. 1 is a schematic diagram of the overall structure of the utility model.

Fig. 2 is a schematic structural view of a single sofa unit of the present invention.

Fig. 3 is a schematic diagram of the structure of the cooperation between the additional seat cushion and the slider between two sofa monomers of the present invention.

Fig. 4 is a schematic structural view of a single sofa unit of the present invention shrunk into a cabinet.

Fig. 5 is a structural schematic diagram of three sofas formed by cooperation of two sofa monomers and additional seat cushions of the present invention.

Fig. 6 is a schematic diagram of the structure of the additional seat cushion folded in the armrest in Fig. 5 .

Fig. 7 is a schematic diagram of the structure of the accessory cushion and the cushion of each single sofa unit being folded in the armrest as a coffee table.

In the figure: 1. Chute 1; 2. Slider 1; 3. Chute 2; 4. Slider 2; 5. Cushion; 6. Handrail; 7. Additional cushion.

Detailed ways

The technical solution of the present utility model will be described in further detail below in conjunction with the accompanying drawings and embodiments.

Referring to Figures 1 to 3, the multifunctional combined sofa described in the present invention is composed of a plurality of sofa monomers, and each sofa monomer includes two symmetrical and hollow armrests 6, chute-1, left and right. Slider 1 2, chute 2 3, slider 2 4 and seat cushion 5, chute 1 and chute 2 3 are respectively symmetrically embedded in the inner sides of the front and rear ends of the left and right handrails 6, and slider 1 2 is connected to chute 1 Above, the slider 2 4 is connected to the chute 2 3, the chute 1 and the chute 3 are not at the same height, and the seat cushion 5 is connected to the chute 1 on the left and right sides through the slider 2 and can slide left and right. On; two adjacent sofa monomers are connected by an additional cushion 7, and the additional cushion 7 is slidably connected to the chute two 3 on the left and right sides through the slider two 4.

The width of the armrests 6 satisfies that the sum of the widths of the two armrests 6 is at least greater than the width of a seat cushion 5 or an additional seat cushion 7 .

When the chute two 3 is above the chute one 1, the height difference between the chute one 1 and the chute two 3 is at least not lower than the height of the cushion 5; when the chute two 3 is below the chute one 1, the The height difference between groove one 1 and chute two 3 is not lower than the height of additional cushion 7 at least.

Described chute one 1 is horizontally embedded in the inner sides of the front and rear ends of the handrail 6, and chute two 3 and chute one 1 form an included angle with each other.

The included angle between the second chute 3 and the first chute 1 is 10°-40°.

As shown in Figure 4, a sofa monomer shrinks together and becomes a cabinet: cushion 5 slides left and right on chute-1 by slide block-2, until slides into two armrests 6 the inside, hides and becomes a cabinet.

As shown in Figure 5, put two sofa monomers together, then add an additional cushion 7 in the middle to form three sofas, the additional cushion 7 is stuck on the chute 2 3 through the slider 2 4, and the two sofas The monomers are connected together to form three sofas. And you can continue to add sofa monomers and additional cushions for random combinations.

As shown in Figure 6, three sofas are packed up and become two, and the additional cushion 7 is hidden in the armrest 6 li.

The additional seat cushion 7 slides on the inclined chute 2 3 through the slider 2 4, and then receives the armrest 6 and rises to a height, which does not hinder the sliding of the seat cushion 5 of each sofa monomer itself, does not affect the seat cushion 5 and also receives it. Enter the inside of the armrest 6.

As shown in Figure 7, on the basis of Figure 6, each sofa monomer is also completely folded in combination with Figure 4, and the seat cushion 5 is retracted into the armrest 6 to be used as a coffee table. Through the chute one 1 and the chute two 3 with height difference, the additional cushion 7 between two sofa monomers and the cushion 5 of each sofa monomer itself are drawn in without affecting each other.

The above is only a preferred embodiment of the utility model, and of course the scope of rights of the utility model cannot be limited with this, so the equivalent changes made according to the patent scope of the utility model still belong to the protection of the utility model scope.

Claims (5)

1. The multifunctional combined sofa is characterized in that: it is composed of multiple sofa monomers, and each sofa monomer includes two symmetrical and hollow armrests (6), one chute (1), one slider (2 ), chute 2 (3), slider 2 (4) and seat cushion (5), chute 1 (1) and chute 2 (3) are symmetrically embedded in the inner sides of the front and rear ends of the left and right handrails (6) respectively, and slide Block 1 (2) is connected to chute 1 (1), slider 2 (4) is connected to chute 2 (3), chute 1 (1) and chute 2 (3) are not at the same height, The cushion (5) is slidably connected to the chute one (1) on the left and right sides through the slider one (2); the adjacent two sofa monomers are connected by an additional cushion (7), and the additional cushion (7) ) is slidably connected to the chute 2 (3) on the left and right sides through the slider 2 (4). 2. The multifunctional modular sofa according to claim 1, characterized in that: the width of the armrest (6) meets the requirement that the sum of the widths of the two armrests (6) is at least greater than one cushion (5) or one additional cushion ( 7) The width. 3. The multifunctional modular sofa according to claim 1, characterized in that: when the second chute (3) is above the first chute (1), the distance between the first chute (1) and the second chute (3) The height difference between them is at least not lower than the height of the cushion (5); when the second chute (3) is below the first chute (1), the height difference between the first chute (1) and the second chute (3) At least not lower than the height of the additional cushion (7). 4. The multifunctional combined sofa as claimed in claim 1 or 3, characterized in that: the first chute (1) is horizontally embedded in the inner sides of the front and rear ends of the armrest (6), and the second chute (3) and the first chute (1) Form an included angle with each other. 5. The multifunctional modular sofa according to claim 4, characterized in that: the angle between the second chute (3) and the first chute (1) is 10°-40°.
